AZR60G-ARSSH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

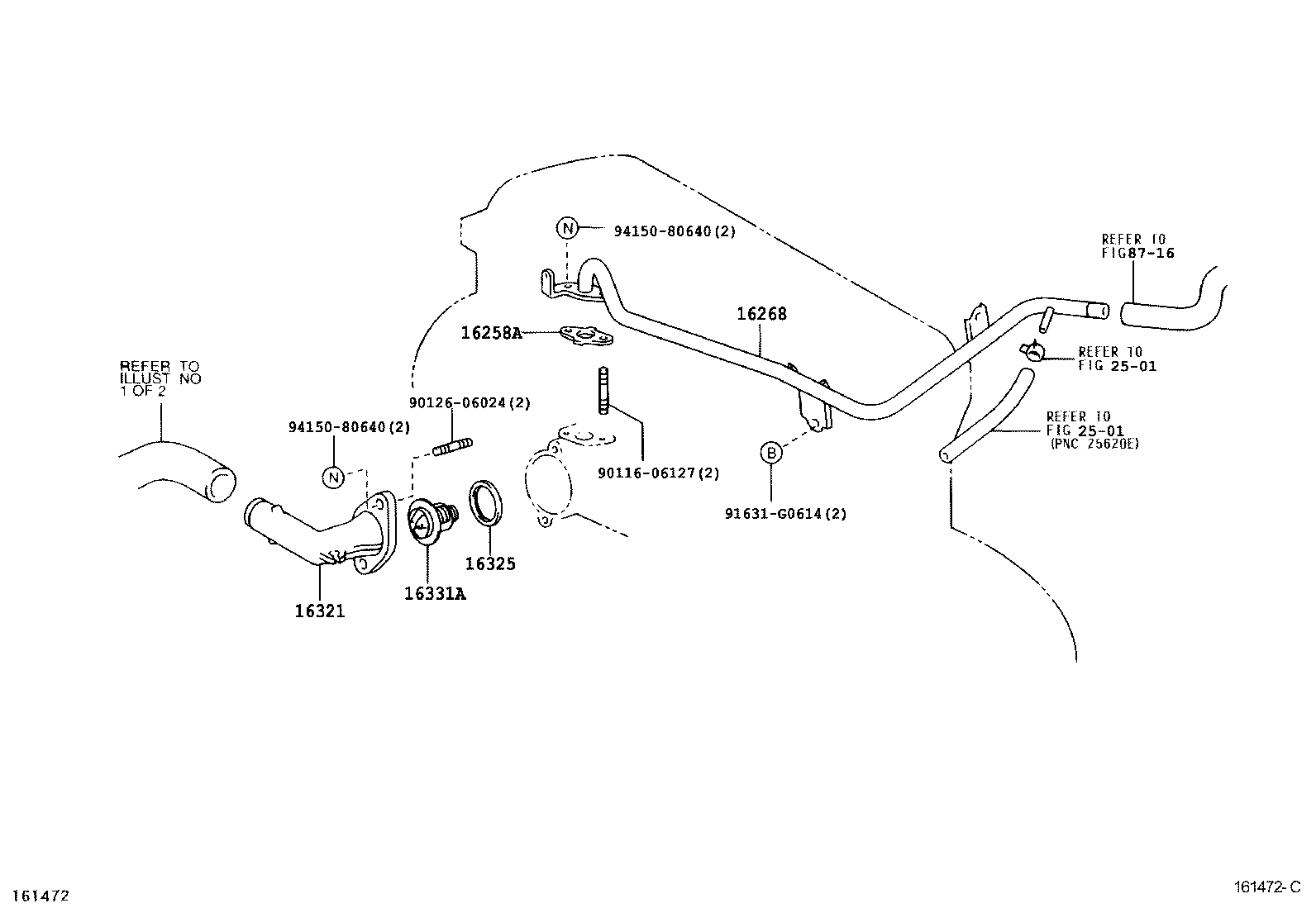

ILLUST NO. 2 OF 2(0111- )

Click highlighted areas on diagram

diagram 16258A 16268 16321 16325 16331A 2501 2501 8716 9011606127 9012606024 91631G0614 9415080640 9415080640
Part # Description Qty Price
16258A - GASKET(FOR HEATER RETURN)
16258-28011

1AZFSE..AZR6#

 1
16258-28030

1AZFSE..AZR6#

 1
16258-28010

1AZFSE..AZR6#

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-28020

1AZFSE..AZR6#

 1
16321 - INLET, WATER
16321-28010

1AZFSE..AZR6#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-28010

1AZFSE..AZR6#

 1
16325-62010

1AZFSE..AZR6#

 1
16331A - THERMOSTAT
90916-03127

1AZFSE..AZR6#

*WAX 88−100

 1
Common parts
90116-06127
90126-06024
91631-G0614
94150-80640
Linked diagrams
2501
8716

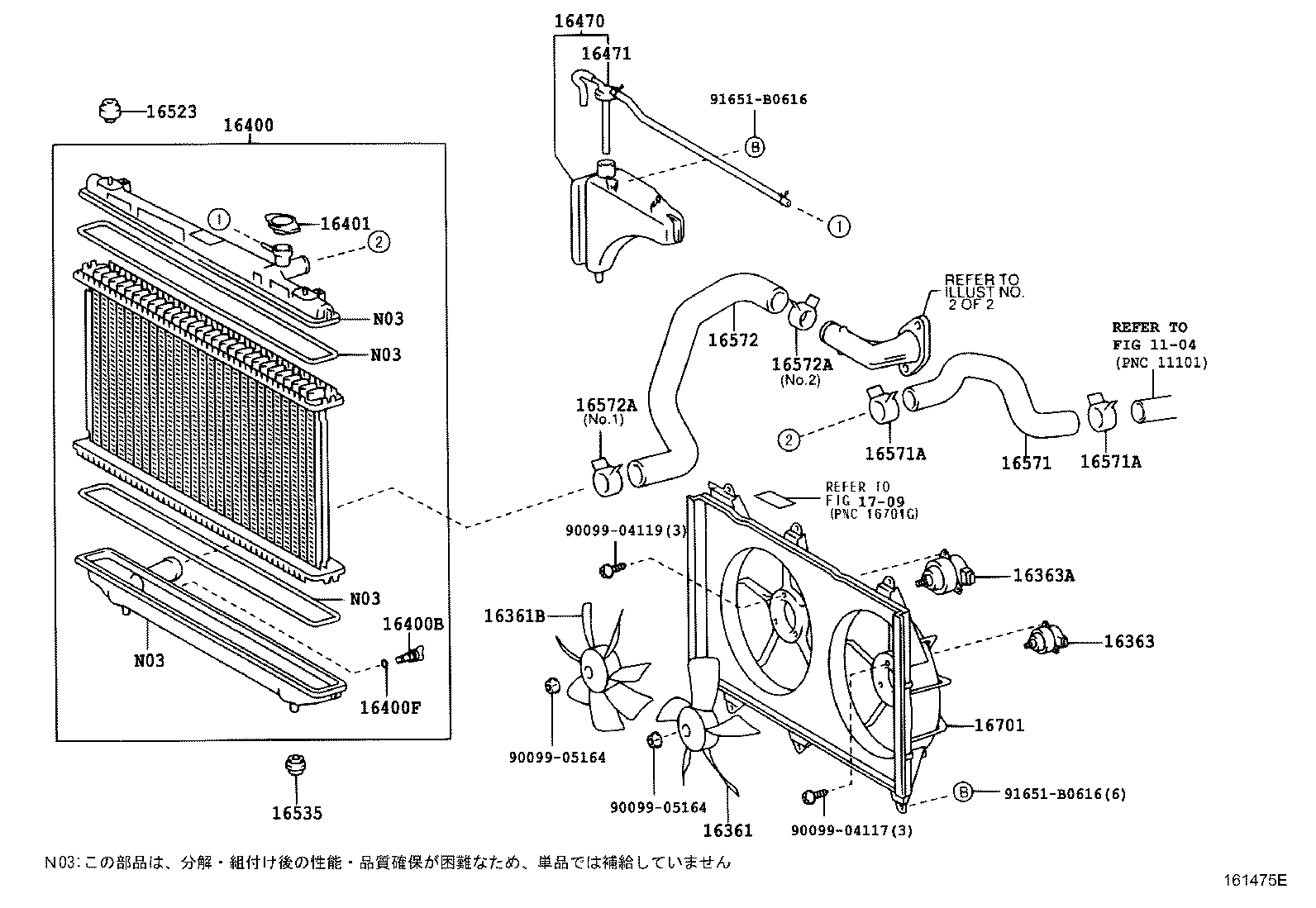

ILLUST NO. 1 OF 2(0111- )

Click highlighted areas on diagram

diagram 1104 16361 16361B 16363 16363A 16400 16400B 16400F 16401 16470 16471 16523 16535 16571 16571A 16571A 16572 16572A 16572A 16701 1709 9009904117 9009904119 9009905164 9009905164 91651B0616 91651B0616
Part # Description Qty Price
16361 - FAN
16361-28020

1AZFSE..AZR6#

 1
16361B - FAN, NO.2
16361-28030

1AZFSE..AZR6#

 1
16363 - MOTOR, COOLING FAN
16363-23010

1AZFSE..AZR6#

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-21030

1AZFSE..AZR6#

 1
16363-64190

1AZFSE..AZR6#

 1
16400 - RADIATOR ASSY
16400-28360

1AZFSE..AZR6#

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

1AZFSE..AZR6#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1AZFSE..AZR6#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-62100

1AZFSE..AZR6#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-28070

1AZFSE..AZR6#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-28040

1AZFSE..AZR6#

 1
16523 - CUSHION, SUB-RADIATOR SUPPORT
16523-28010

1AZFSE..AZR6#

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-74150

1AZFSE..AZR6#

 2
16571 - HOSE, RADIATOR, INLET
16571-28120

1AZFSE..AZR6#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37005

1AZFSE..AZR6#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37005

1AZFSE..AZR6#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-28090

1AZFSE..AZR6#

 1
16572-28150

1AZFSE..AZR6#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37005

1AZFSE..AZR6#

NO.2

 1
90467-37005

1AZFSE..AZR6#

NO.2

 1
90466-37002

1AZFSE..AZR6#

NO.1

 1
90466-37002

1AZFSE..AZR6#

NO.1

 1
90467-37005

1AZFSE..AZR6#

NO.1 & NO.2

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37005

1AZFSE..AZR6#

NO.2

 1
90467-37005

1AZFSE..AZR6#

NO.2

 1
90466-37002

1AZFSE..AZR6#

NO.1

 1
90466-37002

1AZFSE..AZR6#

NO.1

 1
90467-37005

1AZFSE..AZR6#

NO.1 & NO.2

 2
16701 - SHROUD SUB-ASSY, FAN
16711-28210

1AZFSE..AZR6#

 1
Common parts
90099-04117
90099-04119
90099-05164
91651-B0616
Linked diagrams
1104
1709
