AZR60G-ARSSH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111-0408)

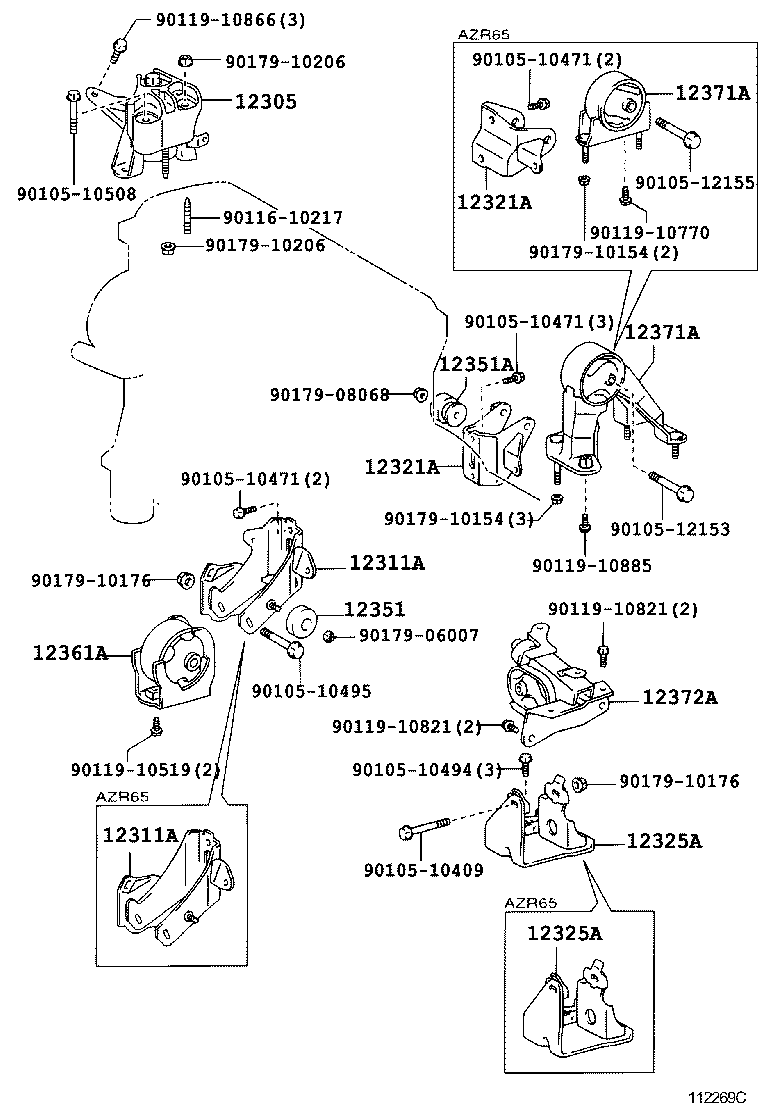

Click highlighted areas on diagram

diagram 12305 12311A 12311A 12321A 12321A 12325A 12325A 12351 12351A 12361A 12371A 12371A 12372A 9010510409 9010510471 9010510471 9010510471 9010510494 9010510495 9010510508 9010512153 9010512155 9011610217 9011910519 9011910770 9011910821 9011910821 9011910866 9011910885 9017906007 9017908068 9017910154 9017910154 9017910176 9017910176 9017910206 9017910206
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-28080

1AZFSE..AZR60

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-28120

1AZFSE..AZR60

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-28120

1AZFSE..AZR60

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-28090

1AZFSE..AZR60

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-28090

1AZFSE..AZR60

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-28130

1AZFSE..AZR60

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-28130

1AZFSE..AZR60

 1
12351 - DAMPER, ENGINE MOUNTING
12351-28010

1AZFSE..AZR6#

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-27030

1AZFSE..AZR60

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-28170

1AZFSE..AZR6#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-28090

1AZFSE..AZR60

 1
12371-28060

1AZFSE..AZR60..4HC

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-28090

1AZFSE..AZR60

 1
12371-28060

1AZFSE..AZR60..4HC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-28100

1AZFSE..AZR6#

 1
Common parts
90105-10409
90105-10471
90105-10494
90105-10495
90105-10508
90105-12153
90105-12155
90116-10217
90119-10519
90119-10770
90119-10821
90119-10866
90119-10885
90179-06007
90179-08068
90179-10154
90179-10176
90179-10206
