AZR60G-ARSSH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )

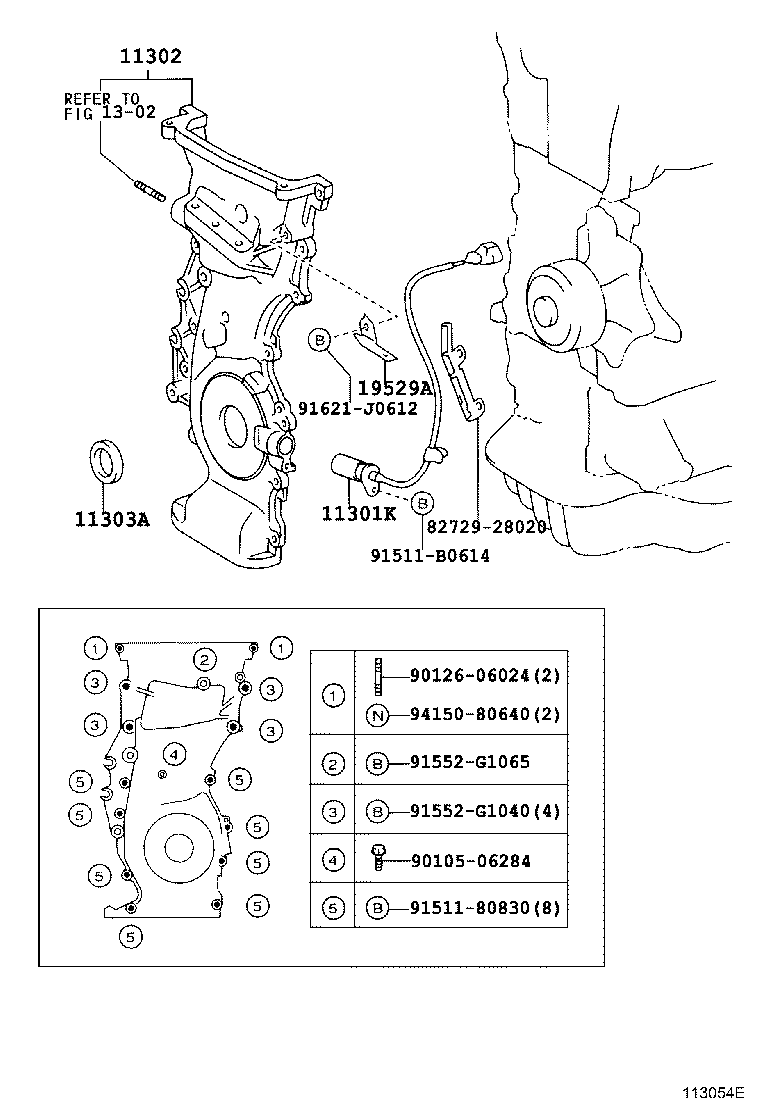

Click highlighted areas on diagram

diagram 11301K 11302 11303A 1302 19529A 8272928020 9010506284 9012606024 9151180830 91511B0614 91552G1040 91552G1065 91621J0612 9415080640
Part # Description Qty Price
11301K - SENSOR, CRANK POSITION
90919-05047

1AZFSE..AZR6#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-28081

1AZFSE..AZR6#

 1
11310-28080

1AZFSE..AZR6#

 1
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-38089

1AZFSE..AZR6#

 1
90311-38078

1AZFSE..AZR6#

 1
90311-38084

1AZFSE..AZR6#

 1
19529A - CLAMP
19529-28010

1AZFSE..AZR6#

 1
Common parts
82729-28020
90105-06284
90126-06024
91511-80830
91511-B0614
91552-G1040
91552-G1065
91621-J0612
94150-80640
Linked diagrams
1302
