AZR60G-ARSQH (2001)
Toyota Noah/Voxy
Production
Nov 2001
-
Aug 2004
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0111- )

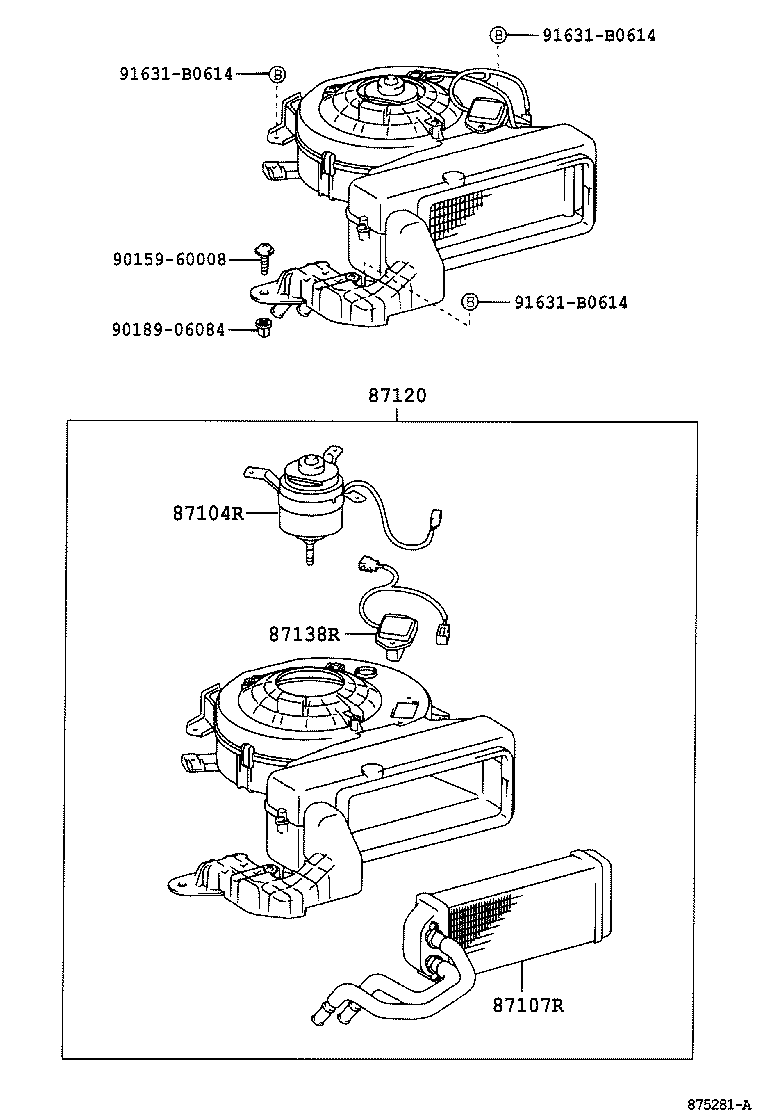

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-95J06 |
AZR6# |
1 | ||
| 87104-26020 |
AZR6# |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-28280 |
AZR6# |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-28040 |
AZR6# |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-26010 |
AZR6# |
1 | ||
| Common parts | ||||
| 90159-60008 | ||||
| 90189-06084 | ||||
| 91631-B0614 | ||||
