AZR60G-ARSQH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )

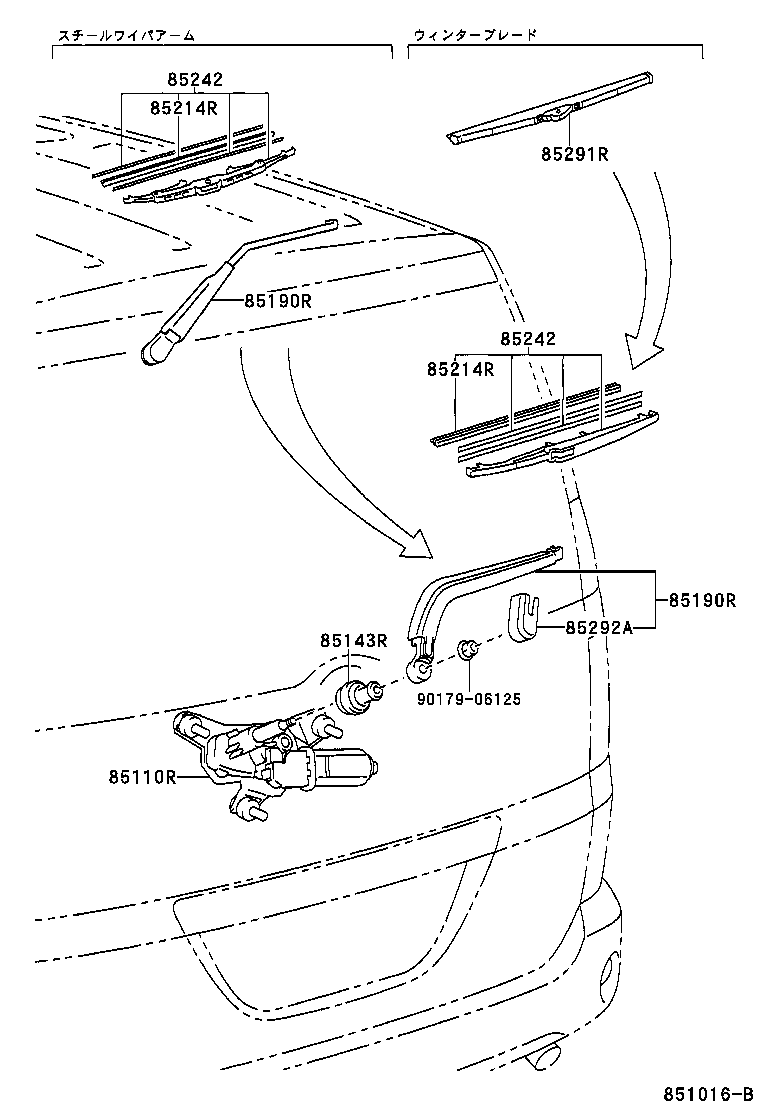

Click highlighted areas on diagram

diagram 85110R 85143R 85190R 85190R 85214R 85214R 85242 85242 85291R 85292A 9017906125
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-28070

AZR6#

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-60110

AZR6#

 1
85190R - ARM ASSY, REAR WIPER
85241-60070

AZR6#

ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ

 1
85241-28080

AZR6#

 1
85190R - ARM ASSY, REAR WIPER
85241-60070

AZR6#

ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ

 1
85241-28080

AZR6#

 1
85214R - RUBBER, REAR WIPER
85214-10100

AZR6#

 1
85214R - RUBBER, REAR WIPER
85214-10100

AZR6#

 1
85242 - BLADE, RR WIPER
85242-28060

AZR6#

 1
85242-60050

AZR6#

ｱﾘ(ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ)

 1
85242 - BLADE, RR WIPER
85242-28060

AZR6#

 1
85242-60050

AZR6#

ｱﾘ(ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ)

 1
85291R - BLADE,REAR WIPER, WINTER
85291-44100

AZR6#

 1
85291-60060

AZR6#

ｱﾘ(ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ)

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-28040

AZR6#

 1
Common parts
90179-06125
