AZR60G-ARSQH (2001)
Toyota Noah/Voxy

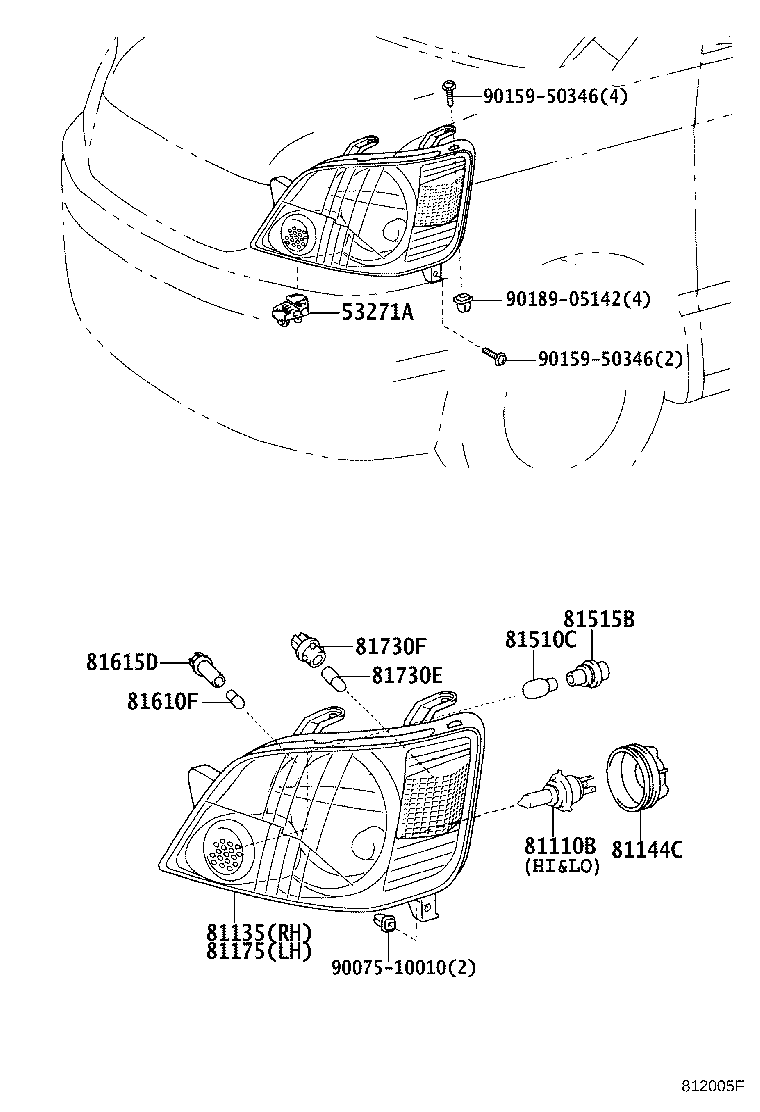

ILLUST NO. 1 OF 2(0111-0408)NOAH
ﾊﾛｹﾞﾝ ﾍﾂﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-12060 |
AZR6# |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
AZR6# 12V 65W |
2 | ||
| 90981-13058 |
AZR6# 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13046 |
AZR6# 12V65W(SAE),60W(ECE) |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-28630 |
AZR6#..NOAH..(L,X) |
1 | ||
| 81130-28690 |
AZR6#..S |
1 | ||
| 81140-28650 |
AZR6#..S ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81130-28700 |
AZR6#..Z |
1 | ||
| 81140-28670 |
AZR6#..NOAH..(L,X) ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81140-28660 |
AZR6#..Z ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 81135-3A150 |
AZR6# ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
2 | ||
| 90075-65002 |
AZR6# |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-28690 |
AZR6#..S |
1 | ||
| 81070-28660 |
AZR6#..Z ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81170-28630 |
AZR6#..NOAH..(L,X) |
1 | ||
| 81070-28670 |
AZR6#..NOAH..(L,X) ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81170-28700 |
AZR6#..Z |
1 | ||
| 81070-28650 |
AZR6#..S ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
AZR6#..NOAH 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-13043 |
AZR6# 12V 21W |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
AZR6#..NOAH |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
AZR6#..NOAH 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
AZR6#..NOAH |
2 | ||
| 90075-60046 |
AZR6#..NOAH ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
2 | ||
| 81730E - BULB (FOR SIDE TURN SIGNAL) | ||||
| 90981-15012 |
AZR6#..NOAH..(L,X) |
2 | ||
| 99132-12050 |
AZR6#..S |
2 | ||
| 81730F - SOCKET PLUG, SIDE TURN SIGNEL LAMP | ||||
| 90075-60016 |
AZR6# |
2 | ||
| Common parts | ||||
| 90075-10010 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||

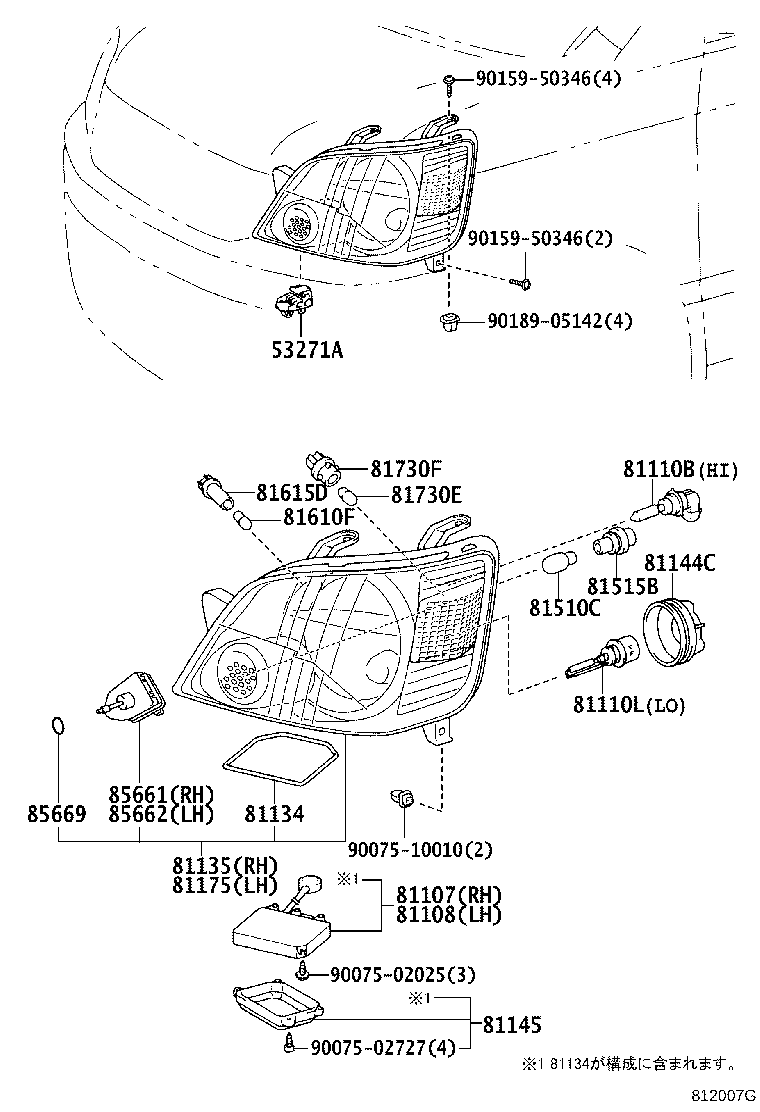

ILLUST NO. 1 OF 2(0111-0408)NOAH
ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-12060 |
AZR6# |
2 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-28670 |
AZR6# |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-28670 |
AZR6# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
AZR6# 12V 65W |
2 | ||
| 90981-13058 |
AZR6# 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13046 |
AZR6# 12V65W(SAE),60W(ECE) |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20001 |
AZR6# 85V 35W |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68001 |
AZR6#..NOAH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-28630 |
AZR6#..NOAH..(L,X) |
1 | ||
| 81130-28690 |
AZR6#..S |
1 | ||
| 81140-28650 |
AZR6#..S ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81130-28700 |
AZR6#..Z |
1 | ||
| 81140-28670 |
AZR6#..NOAH..(L,X) ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81140-28660 |
AZR6#..Z ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 81135-3A150 |
AZR6# ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
2 | ||
| 90075-65002 |
AZR6# |
2 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-67005 |
AZR6# |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-28690 |
AZR6#..S |
1 | ||
| 81070-28660 |
AZR6#..Z ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81170-28630 |
AZR6#..NOAH..(L,X) |
1 | ||
| 81070-28670 |
AZR6#..NOAH..(L,X) ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81170-28700 |
AZR6#..Z |
1 | ||
| 81070-28650 |
AZR6#..S ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
AZR6#..NOAH 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-13043 |
AZR6# 12V 21W |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
AZR6#..NOAH |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
AZR6#..NOAH 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
AZR6#..NOAH |
2 | ||
| 90075-60046 |
AZR6#..NOAH ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
2 | ||
| 81730E - BULB (FOR SIDE TURN SIGNAL) | ||||
| 90981-15012 |
AZR6#..NOAH..(L,X) |
2 | ||
| 99132-12050 |
AZR6#..S |
2 | ||
| 81730F - SOCKET PLUG, SIDE TURN SIGNEL LAMP | ||||
| 90075-60016 |
AZR6# |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-22020 |
AZR6# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-22020 |
AZR6# |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
AZR6# |
2 | ||
| Common parts | ||||
| 90075-02025 | ||||
| 90075-02727 | ||||
| 90075-10010 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||

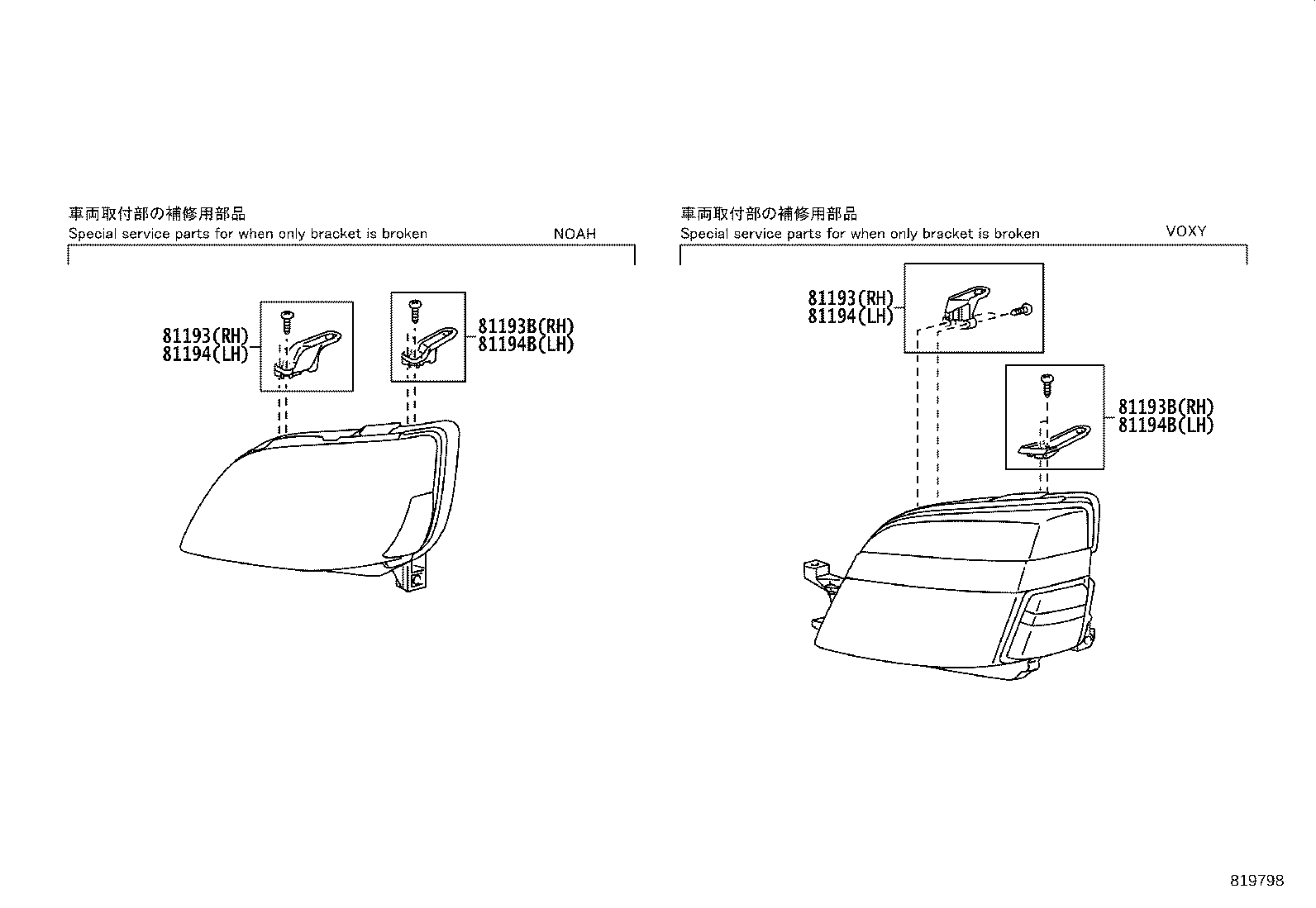

ILLUST NO. 2 OF 2(0111-0408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-28020 |
AZR6#..NOAH |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-28020 |
AZR6#..NOAH |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-28010 |
AZR6#..NOAH |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-28010 |
AZR6#..NOAH |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-28020 |
AZR6#..NOAH |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-28020 |
AZR6#..NOAH |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-28010 |
AZR6#..NOAH |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-28010 |
AZR6#..NOAH |
1 | ||
