AZR60G-ARSQH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )

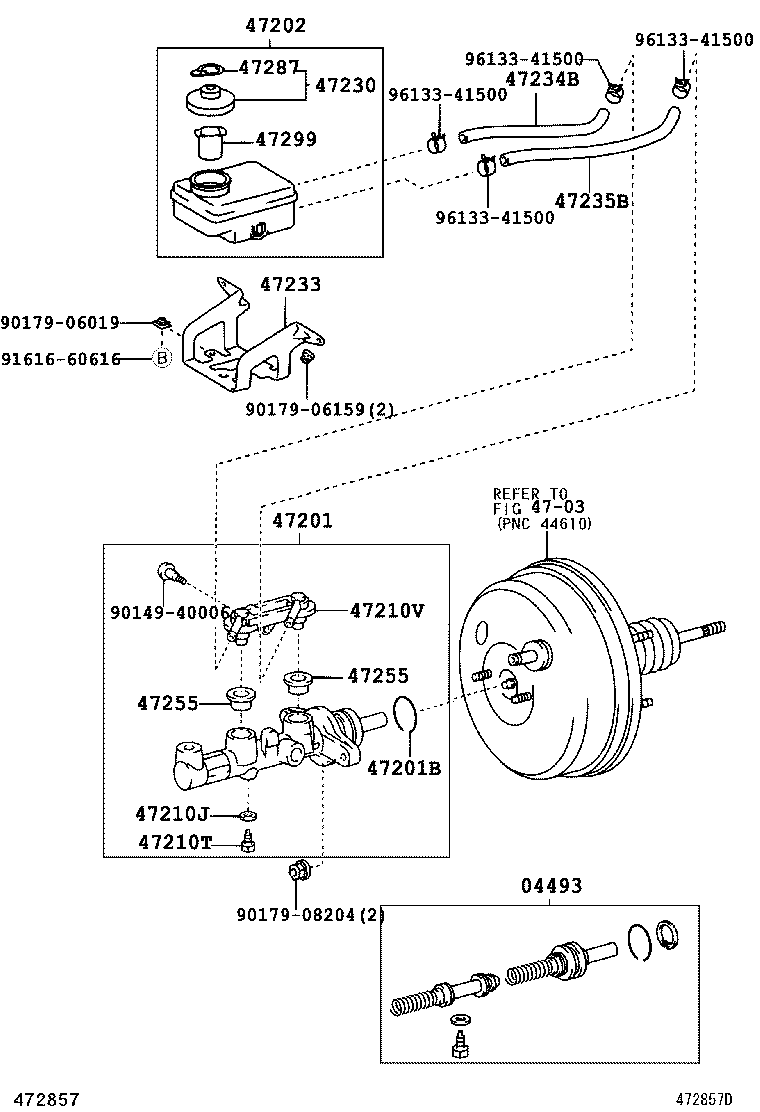

Click highlighted areas on diagram

diagram 04493 4703 47201 47201B 47202 47210J 47210T 47210V 47230 47233 47234B 47235B 47255 47255 47287 47299 9014940006 9017906019 9017906159 9017908204 9161660616 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-44020

AZR6#

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-44130

AZR6#

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059

AZR6#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-28240

AZR6#

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

AZR6#..4HC

 1
90029-43001

AZR6#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

AZR6#

 1
47210V - UNION(FOR BRAKE MASTER CYLINDER)
90029-40402

AZR6#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-28240

AZR6#

 1
47233 - BRACKET, RESERVOIR
47233-28110

AZR6#

 1
47234B - TUBE, RESERVOIR, NO.1
47234-28110

AZR6#

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-28110

AZR6#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

AZR6#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

AZR6#

 2
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

AZR6#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010

AZR6#

 1
Common parts
90149-40006
90179-06019
90179-06159
90179-08204
91616-60616
96133-41500
Linked diagrams
4703
