AZR60G-ARSEH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111-0408)

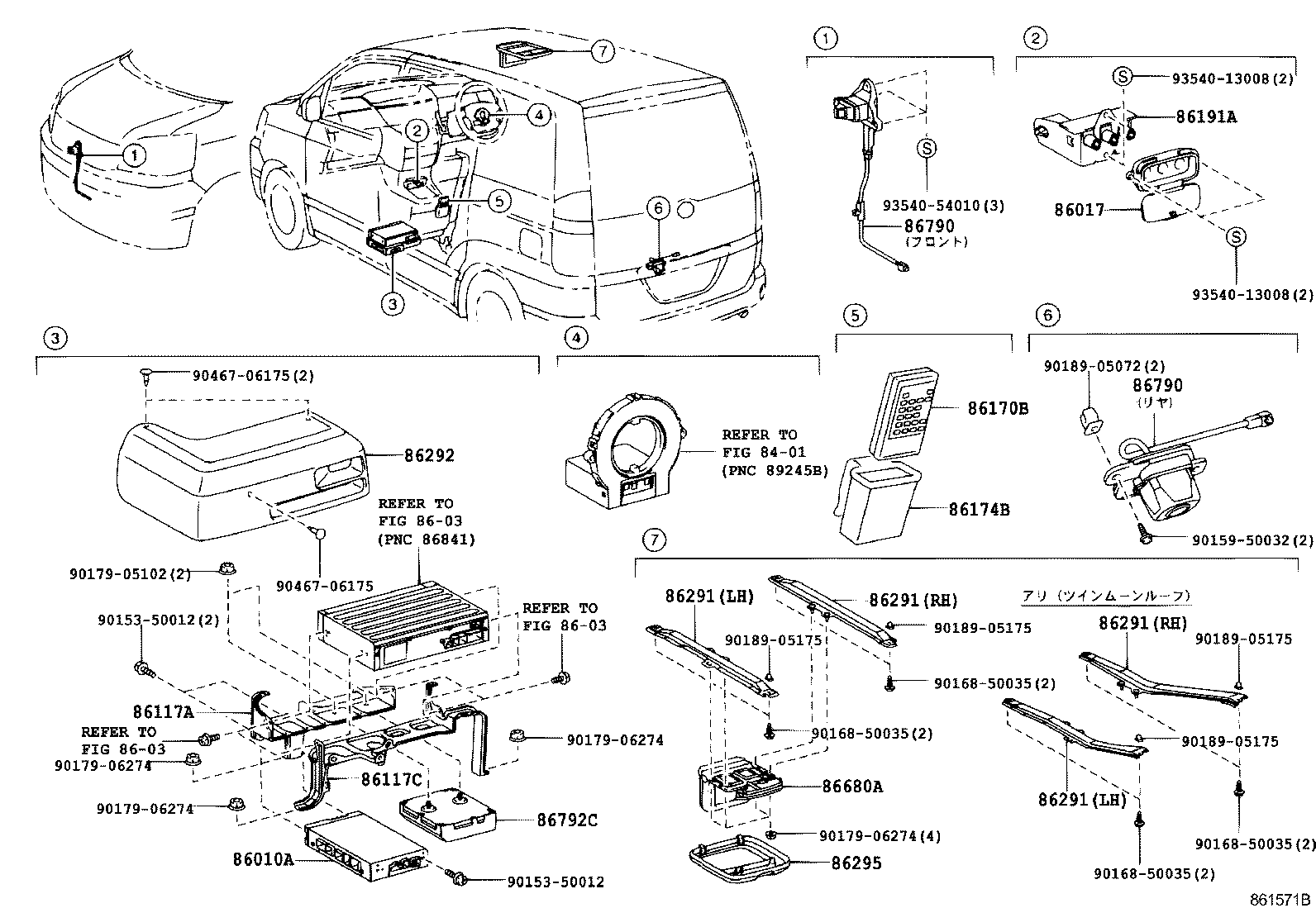

Click highlighted areas on diagram

diagram 8401 86010A 86017 8603 8603 8603 86117A 86117C 86170B 86174B 86191A 86291 86291 86291 86291 86292 86295 86680A 86790 86790 86792C 9015350012 9015350012 9015950032 9016850035 9016850035 9016850035 9016850035 9017905102 9017906274 9017906274 9017906274 9017906274 9018905072 9018905175 9018905175 9018905175 9018905175 9046706175 9046706175 9354013008 9354013008 9354054010
Part # Description Qty Price
86010A - TUNER ASSY, TELEVISION
86010-28080

AZR6#

 1
86017 - PARTS SET, VIDEO
86017-28020E0

AZR6#..NOAH..(L,X)

SANDAL WOOD,TRIM4#

 1
86017-28020B0

AZR6#

DK.GRAY,TRIM1#

 1
86117A - BRACKET, TELEVISION DISPLAY, A
86117-28120

AZR6#

 1
86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2
86117-28130

AZR6#

 1
86170B - SWITCH & VOLUME ASSY, TELEVISION
86170-28050

AZR6#

 1
86174B - CASE, SWITCH & VOLUME
86174-28010

AZR6#

 1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-28060

AZR6#

 1
86291 - BRACKET, TELEVISION
86291-28040

AZR6#

右側

 1
86291-28050

AZR6#

左側

 1
86291-28060

AZR6#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),右側

 1
86291-28070

AZR6#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),左側

 1
86291 - BRACKET, TELEVISION
86291-28040

AZR6#

右側

 1
86291-28050

AZR6#

左側

 1
86291-28060

AZR6#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),右側

 1
86291-28070

AZR6#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),左側

 1
86291 - BRACKET, TELEVISION
86291-28040

AZR6#

右側

 1
86291-28050

AZR6#

左側

 1
86291-28060

AZR6#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),右側

 1
86291-28070

AZR6#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),左側

 1
86291 - BRACKET, TELEVISION
86291-28040

AZR6#

右側

 1
86291-28050

AZR6#

左側

 1
86291-28060

AZR6#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),右側

 1
86291-28070

AZR6#

ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),左側

 1
86292 - COVER, TELEVISION SET
86292-28010

AZR6#

 1
86295 - BASE, TELEVISION
86295-28010B3

AZR6#

LT.GRAY,TRIM1#

 1
86295-28010A1

AZR6#..NOAH..(L,X)

IVORY,TRIM4#

 1
86680A - DISPLAY ASSY, TELEVISION
86680-28030B2

AZR6#

FUJITSU TEN,LT.GRAY,TRIM1#

 1
86680-28030A0

AZR6#..NOAH..(L,X)

FUJITSU TEN,IVORY,TRIM4#

 1
86790 - CAMERA ASSY, TELEVISION
86790-28100A1

AZR6#..NOAH

WHITE PM.,042,ﾌﾛﾝﾄ

 1
86790-28100B1

AZR6#..NOAH

DARK GRAY M.M.,1E2,ﾌﾛﾝﾄ

 1
86790-28100J1

AZR6#..NOAH

DK. BLUE M.M.,8Q7,ﾌﾛﾝﾄ

 1
86790-28100B0

AZR6#..NOAH

SILVER ME.,1D4,ﾌﾛﾝﾄ

 1
86790-28100F0

AZR6#..NOAH..(L,X)

YELLOW PM,591,ﾌﾛﾝﾄ

 1
86790-28100A0

AZR6#..NOAH..(L,X)

SUPER WHITE 2,040,ﾌﾛﾝﾄ

 1
86790-28100D0

AZR6#..NOAH..(L,X)

LT.ROSE M.M.,3Q1,ﾌﾛﾝﾄ

 1
86790-28120

AZR6#

ﾘﾔ

 1
86790-28100J2

AZR6#..NOAH..4HC..X

ｴﾙｾｵ ｴﾃﾞｨｼｮﾝ *(C) OR ｴﾙｾｵ ｴﾃﾞｨｼｮﾝ *(D),BLVE ME.,8N0,ﾌﾛﾝﾄ

 1
86790 - CAMERA ASSY, TELEVISION
86790-28100A1

AZR6#..NOAH

WHITE PM.,042,ﾌﾛﾝﾄ

 1
86790-28100B1

AZR6#..NOAH

DARK GRAY M.M.,1E2,ﾌﾛﾝﾄ

 1
86790-28100J1

AZR6#..NOAH

DK. BLUE M.M.,8Q7,ﾌﾛﾝﾄ

 1
86790-28100B0

AZR6#..NOAH

SILVER ME.,1D4,ﾌﾛﾝﾄ

 1
86790-28100F0

AZR6#..NOAH..(L,X)

YELLOW PM,591,ﾌﾛﾝﾄ

 1
86790-28100A0

AZR6#..NOAH..(L,X)

SUPER WHITE 2,040,ﾌﾛﾝﾄ

 1
86790-28100D0

AZR6#..NOAH..(L,X)

LT.ROSE M.M.,3Q1,ﾌﾛﾝﾄ

 1
86790-28120

AZR6#

ﾘﾔ

 1
86790-28100J2

AZR6#..NOAH..4HC..X

ｴﾙｾｵ ｴﾃﾞｨｼｮﾝ *(C) OR ｴﾙｾｵ ｴﾃﾞｨｼｮﾝ *(D),BLVE ME.,8N0,ﾌﾛﾝﾄ

 1
86792C - COMPUTER, PARKING ASSIST
86792-28060

AZR6#

 1
86792-28061

AZR6#

 1
Common parts
90153-50012
90159-50032
90168-50035
90179-05102
90179-06274
90189-05072
90189-05175
90467-06175
93540-13008
93540-54010
