AZR60G-ARSEH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111-0408)L,V,X

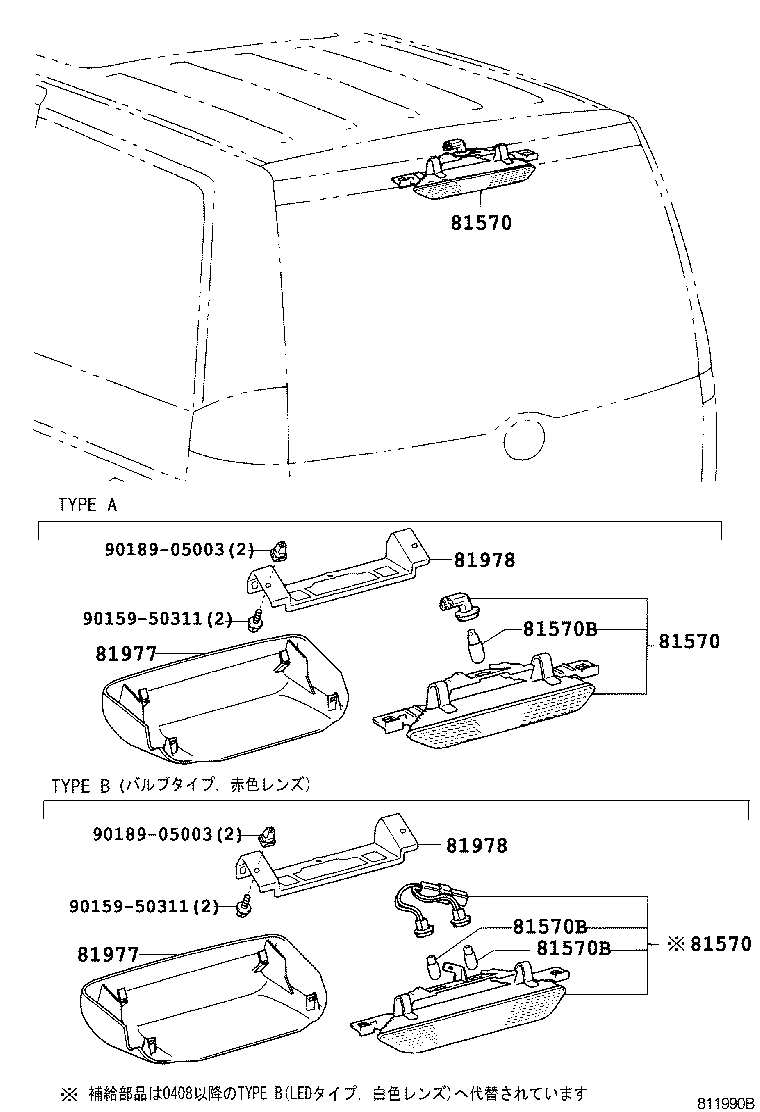

Click highlighted areas on diagram

diagram 81570 81570 81570 81570B 81570B 81570B 81977 81977 81978 81978 9015950311 9015950311 9018905003 9018905003
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-28220

AZR6#..NOAH

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570-28240

AZR6#..L,V,X

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
81570-13160

AZR6#..X

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
81570 - LAMP ASSY, CENTER STOP
81570-28220

AZR6#..NOAH

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570-28240

AZR6#..L,V,X

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
81570-13160

AZR6#..X

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
81570 - LAMP ASSY, CENTER STOP
81570-28220

AZR6#..NOAH

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570-28240

AZR6#..L,V,X

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
81570-13160

AZR6#..X

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059

AZR6#..X

12V 16W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90981-11059

AZR6#..L,V,X

12V 16W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059

AZR6#..X

12V 16W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90981-11059

AZR6#..L,V,X

12V 16W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059

AZR6#..X

12V 16W,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90981-11059

AZR6#..L,V,X

12V 16W,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
81977 - COVER, CENTER STOP LAMP
81977-28090C0

AZR6#..NOAH..(L,X)

BLACK,TRIM1#,4#

 1
81977 - COVER, CENTER STOP LAMP
81977-28090C0

AZR6#..NOAH..(L,X)

BLACK,TRIM1#,4#

 1
81978 - BRACKET, STOP CENTER
81978-28020

AZR6#..L,V,X

 1
81978 - BRACKET, STOP CENTER
81978-28020

AZR6#..L,V,X

 1
Common parts
90159-50311
90189-05003

(0111-0408) ; (0408- )S,Z

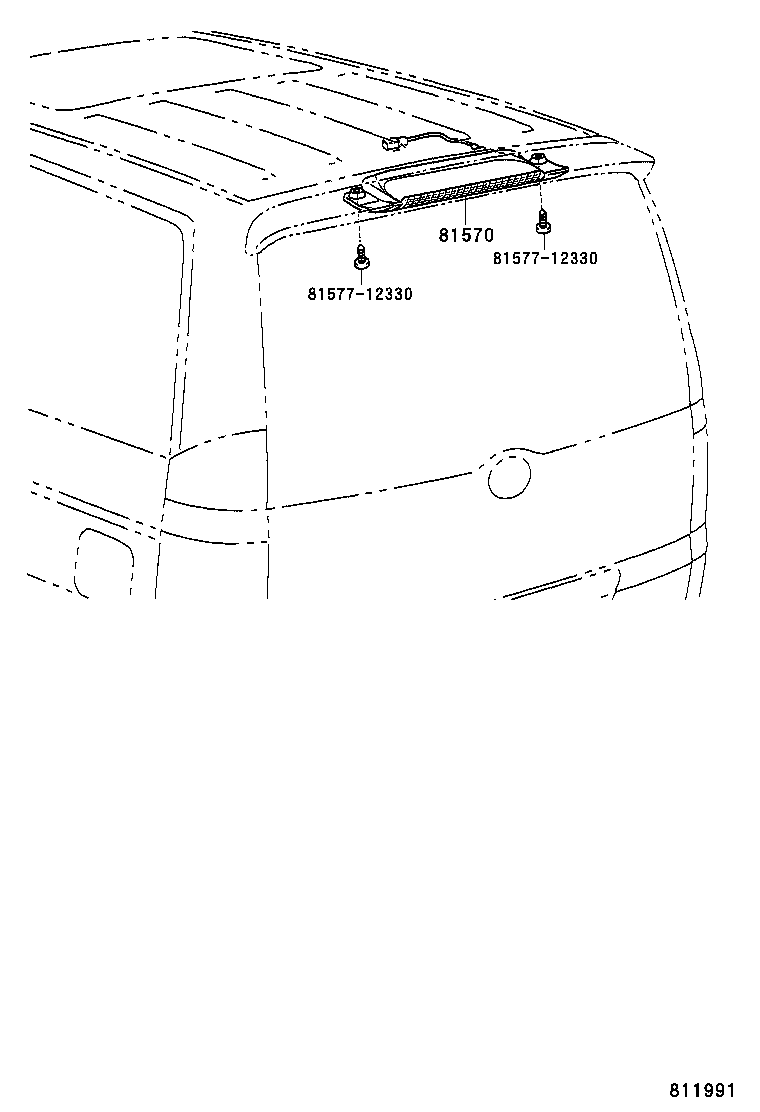

Click highlighted areas on diagram

ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)

diagram 81570 8157712330 8157712330
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-28220

AZR6#..NOAH

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
81570-28240

AZR6#..L,V,X

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
81570-13160

AZR6#..X

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
81577-12330
