AZR60G-ARSEH (2001)
Toyota Noah/Voxy

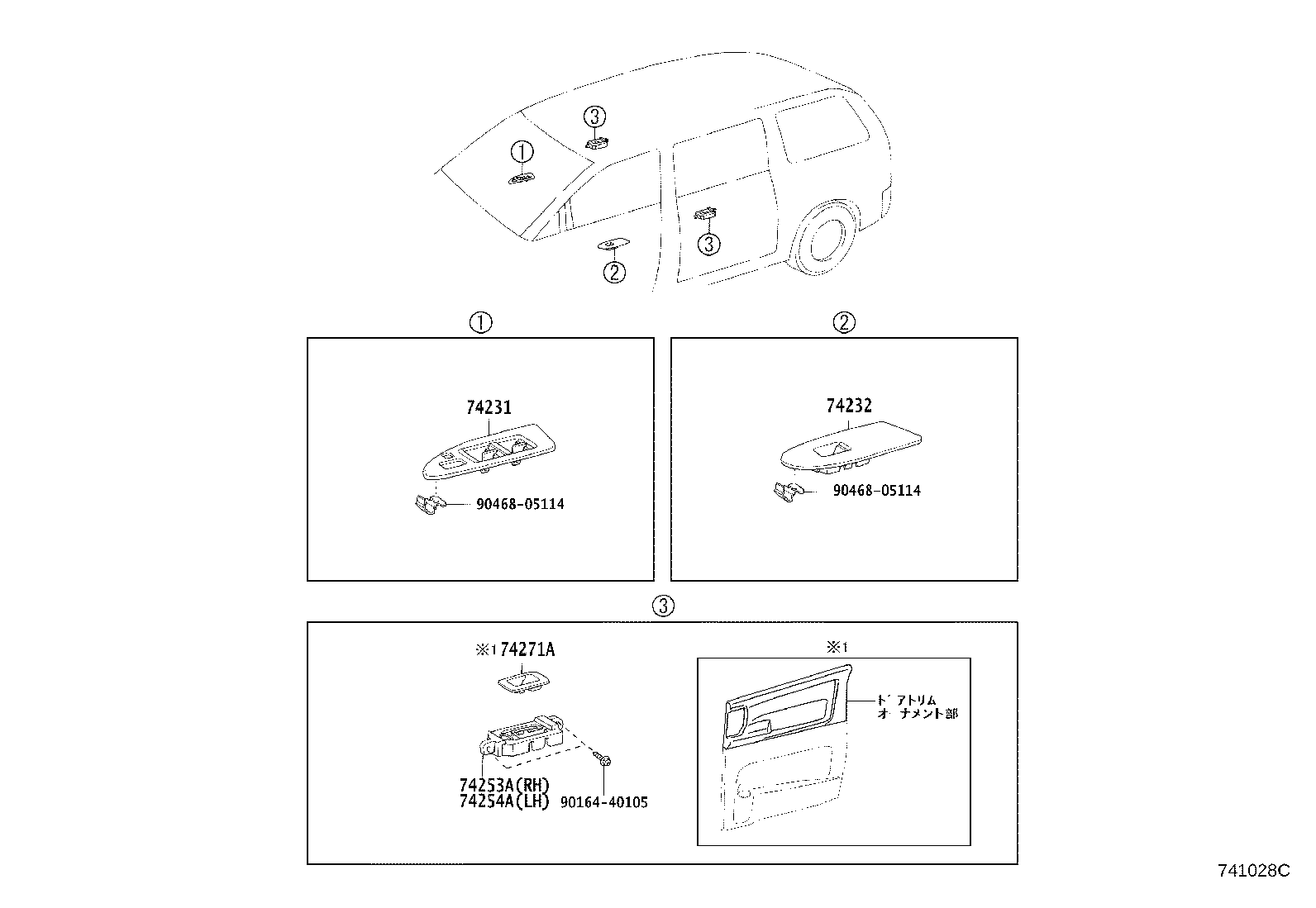

ILLUST NO. 1 OF 3(0111- )
ｱｰﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-28770 |
AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(D);ﾓｸﾒ(ﾌﾞﾙ-) |
1 | ||
| 74231-28780 |
AZR6#..4HC..Z ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F) |
1 | ||
| 74231-28760 |
AZR6#..4HC..Z ﾓﾃﾞﾘｽﾀ- ｸﾞﾗﾝﾄﾞ ﾋﾞﾚﾂﾄ & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 74231-28720B0 |
AZR6#..S,X,Z ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),STONE,TRIM1# |
1 | ||
| 74231-28750 |
AZR6#..4HC..S ﾓﾃﾞﾘｽﾀ-ｻﾞｼﾝﾊﾞ |
1 | ||
| 74231-28720E0 |
AZR6#..NOAH..X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),FAWN,TRIM4# |
1 | ||
| 74231-28690B0 |
AZR6#..S,X,Z STONE,TRIM1# |
1 | ||
| 74231-28790 |
AZR6#..4HC..Z ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F) & ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 74231-28760 |
AZR6#..4HC..(S,Z) ﾓﾃﾞﾘｽﾀ-ｻﾞ ｽﾋﾟ-ﾄﾞ & ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 74231-28710 |
AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｨｼｮﾝ *(C),*(D);ﾓｸﾒ(ﾌﾞﾗｳﾝ) |
1 | ||
| 74231-28690E0 |
AZR6#..NOAH..X FAWN,TRIM4# |
1 | ||
| 74231-28750 |
AZR6#..4HC..(S,Z) ﾓﾃﾞﾘｽﾀ-ｻﾞ ｽﾋﾟ-ﾄﾞ |
1 | ||
| 74231-28750 |
AZR6#..4HC..Z ﾓﾃﾞﾘｽﾀ-ｸﾞﾗﾝﾄﾞ ﾋﾞﾚﾂﾄ |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-28480 |
AZR6#..4HC..(S,Z) ﾓﾃﾞﾘｽﾀ-ｻﾞ ｽﾋﾟ-ﾄﾞ |
1 | ||
| 74232-28480 |
AZR6#..4HC..Z ﾓﾃﾞﾘｽﾀ-ｸﾞﾗﾝﾄﾞ ﾋﾞﾚﾂﾄ |
1 | ||
| 74232-28490 |
AZR6#..4HC..Z ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F) |
1 | ||
| 74232-28450B0 |
AZR6#..S,X,Z STONE,TRIM1# |
1 | ||
| 74232-28450E0 |
AZR6#..NOAH..X FAWN,TRIM4# |
1 | ||
| 74232-28470 |
AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｨｼｮﾝ *(C),*(D);ﾓｸﾒ(ﾌﾞﾗｳﾝ) |
1 | ||
| 74232-28480 |
AZR6#..4HC..S ﾓﾃﾞﾘｽﾀ-ｻﾞｼﾝﾊﾞ |
1 | ||
| 74232-28410 |
AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(D);ﾓｸﾒ(ﾌﾞﾙ-) |
1 | ||
| 74253A - BASE, QUARTER ARMREST, RH | ||||
| 74253-28010 |
AZR6# |
1 | ||
| 74254A - BASE, QUARTER ARMREST, LH | ||||
| 74254-28010 |
AZR6# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-28040 |
AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(D);ﾓｸﾒ(ﾌﾞﾙ-) |
2 | ||
| 74271-28020 |
AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｨｼｮﾝ *(C),*(D);ﾓｸﾒ(ﾌﾞﾗｳﾝ) |
2 | ||
| 74271-28050 |
AZR6#..4HC..Z ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F) |
2 | ||
| 74271-28010B0 |
AZR6#..S,X,Z ﾘﾔﾄﾞｱ ﾄﾘﾑ ｵ-ﾅﾒﾝﾄ(ｲﾗｽﾄ ｻﾝｼﾖｳ) = ﾌｱﾌﾞﾘﾂｸ ﾚｽ,STONE,TRIM19 |
2 | ||
| 74271-28010E0 |
AZR6#..NOAH..X FAWN,TRIM4# |
2 | ||
| 74271-28010B1 |
AZR6#..S,X,Z DK.GRAY,TRIM19 |
2 | ||
| Common parts | ||||
| 90164-40105 | ||||
| 90468-05114 | ||||

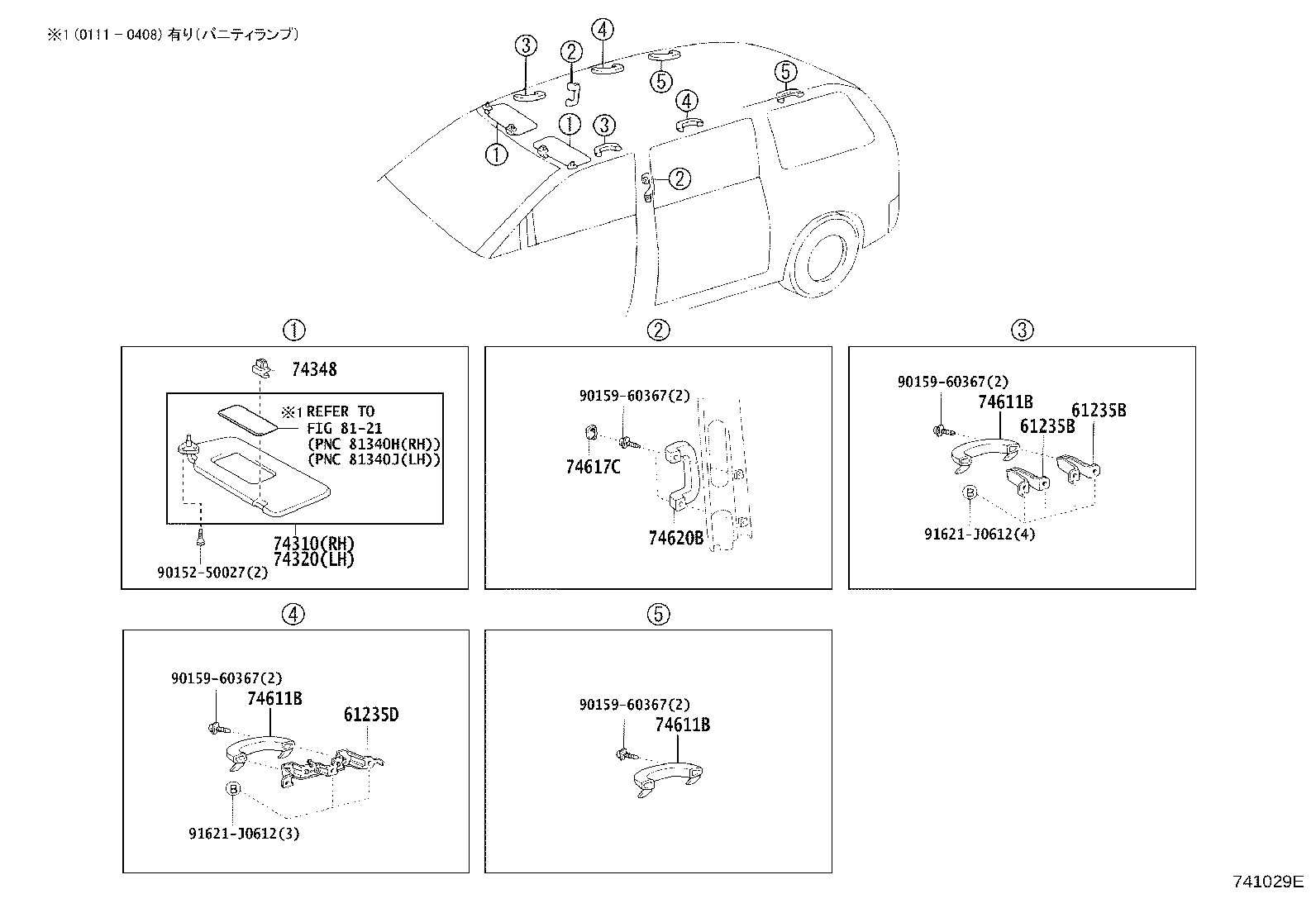

ILLUST NO. 2 OF 3(0111- )
ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61235B - BRACKET, ASSIST GRIP | ||||
| 61235-28090 |
AZR6# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
4 | ||
| 61235-28090 |
AZR6# |
2 | ||
| 61235B - BRACKET, ASSIST GRIP | ||||
| 61235-28090 |
AZR6# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
4 | ||
| 61235-28090 |
AZR6# |
2 | ||
| 61235D - BRACKET, ASSIST GRIP | ||||
| 61235-28100 |
AZR6# |
2 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-2J200A0 |
AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(C),IVORY,TRIM41 |
1 | ||
| 74310-2J200B0 |
AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(D),LT.GRAY,TRIM1# |
1 | ||
| 74310-2J200B0 |
AZR6#..4HC..Z ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),LT.GRAY,TRIM1# |
1 | ||
| 74310-2J210B0 |
AZR6#..S,X,Z LT. GRAY,TRIM1# |
1 | ||
| 74310-2J220B0 |
AZR6#..S,X,Z ｱﾘ(ｶ-ﾃﾝ ｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),LT. GRAY,TRIM1# |
1 | ||
| 74310-2J200A0 |
AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(D),IVORY,TRIM4# |
1 | ||
| 74310-2J210A0 |
AZR6#..NOAH..X IVORY,TRIM4# |
1 | ||
| 74310-2J220A0 |
AZR6#..NOAH..X ｱﾘ(ｶ-ﾃﾝ ｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-28620A0 |
AZR6#..NOAH..X IVORY,TRIM4# |
1 | ||
| 74320-28620B0 |
AZR6#..S,X,Z LT. GRAY,TRIM1# |
1 | ||
| 74320-28610B0 |
AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(D),LT.GRAY,TRIM1# |
1 | ||
| 74320-28610A0 |
AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(D),IVORY,TRIM4# |
1 | ||
| 74320-28630A0 |
AZR6#..NOAH..X ｱﾘ(ｶ-ﾃﾝ ｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM4# |
1 | ||
| 74320-28630B0 |
AZR6#..S,X,Z ｱﾘ(ｶ-ﾃﾝ ｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),LT. GRAY,TRIM1# |
1 | ||
| 74320-28610B0 |
AZR6#..4HC..Z ｷﾗﾒｷ 2 *(E),ｷﾗﾒｷ 2 ﾅﾋﾞｽﾍﾟｼﾔﾙ *(F),LT.GRAY,TRIM1# |
1 | ||
| 74320-28610A0 |
AZR6#..NOAH..4HC..X ｴﾙｾｵ ｴﾃﾞｲｼﾖﾝ *(C),IVORY,TRIM41 |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-12040A2 |
AZR6#..NOAH..(L,X) IVORY,TRIM4# |
2 | ||
| 74348-12040B0 |
AZR6# LT.GRAY,TRIM1# |
2 | ||
| 74348-12040A0 |
AZR6#..NOAH..(L,X) IVORY,TRIM41 |
2 | ||
| 74611B - GRIP, ASSIST | ||||
| 74611-20030B8 |
AZR6# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.GRAY,TRIM1# |
6 | ||
| 74611-20030B8 |
AZR6# LT.GRAY,TRIM1# |
5 | ||
| 74611-20030A0 |
AZR6#..NOAH..(L,X) IVORY,TRIM4# |
5 | ||
| 74611-20030A0 |
AZR6#..NOAH..(L,X) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4# |
6 | ||
| 74611B - GRIP, ASSIST | ||||
| 74611-20030B8 |
AZR6# LT.GRAY,TRIM1# |
5 | ||
| 74611-20030A0 |
AZR6#..NOAH..(L,X) IVORY,TRIM4# |
5 | ||
| 74611-20030B8 |
AZR6# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.GRAY,TRIM1# |
6 | ||
| 74611-20030A0 |
AZR6#..NOAH..(L,X) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4# |
6 | ||
| 74611B - GRIP, ASSIST | ||||
| 74611-20030B8 |
AZR6# LT.GRAY,TRIM1# |
5 | ||
| 74611-20030A0 |
AZR6#..NOAH..(L,X) IVORY,TRIM4# |
5 | ||
| 74611-20030B8 |
AZR6# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.GRAY,TRIM1# |
6 | ||
| 74611-20030A0 |
AZR6#..NOAH..(L,X) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM4# |
6 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74615-60020B3 |
AZR6# LT.GRAY,TRIM1# |
4 | ||
| 74615-60020A0 |
AZR6#..NOAH..(L,X) IVORY,TRIM4# |
4 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74620-60030A0 |
AZR6#..NOAH..(L,X) IVORY,TRIM4# |
2 | ||
| 74620-60030B3 |
AZR6# LT.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90152-50027 | ||||
| 90159-60367 | ||||
| 91621-J0612 | ||||
