AZR60G-ARSEH (2001)
Toyota Noah/Voxy
Production
Nov 2001
-
Aug 2004
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0111-0408)

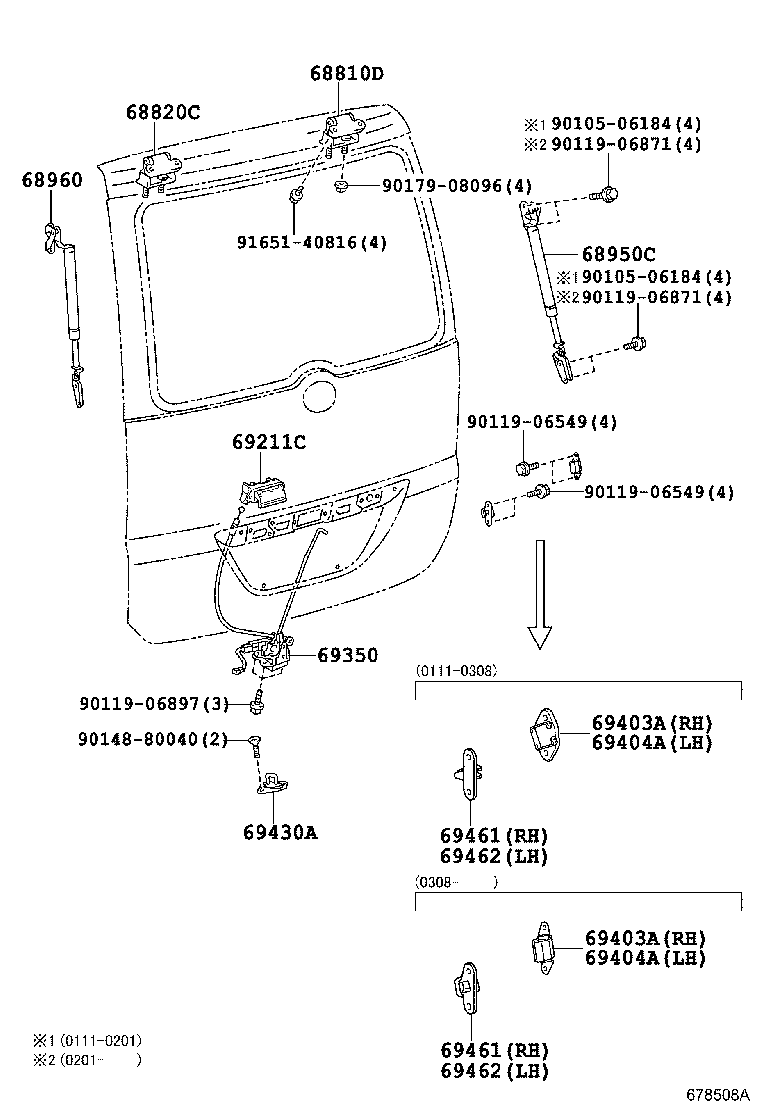

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68810D - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-28040 |
AZR6# |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-28040 |
AZR6# |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-28240 |
AZR60 |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-28240 |
AZR60 |
1 | ||
| 69211C - HANDLE, BACK DOOR OUTSIDE | ||||
| 69023-13010 |
AZR6# |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-28100 |
AZR6# |
1 | ||
| 69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH | ||||
| 69403-28040 |
AZR6# |
1 | ||
| 67293-28030 |
AZR6# |
1 | ||
| 69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH | ||||
| 69403-28040 |
AZR6# |
1 | ||
| 67293-28030 |
AZR6# |
1 | ||
| 69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH | ||||
| 69404-28020 |
AZR6# |
1 | ||
| 67294-28020 |
AZR6# |
1 | ||
| 69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH | ||||
| 69404-28020 |
AZR6# |
1 | ||
| 67294-28020 |
AZR6# |
1 | ||
| 69430A - STRIKER ASSY, BACK DOOR LOWER LOCK | ||||
| 69430-48010 |
AZR6# |
1 | ||
| 69461 - STOPPER, BACK DOOR SIDE MALE, RH | ||||
| 69401-38010 |
AZR6# |
1 | ||
| 67281-28010 |
AZR6# |
1 | ||
| 69461 - STOPPER, BACK DOOR SIDE MALE, RH | ||||
| 69401-38010 |
AZR6# |
1 | ||
| 67281-28010 |
AZR6# |
1 | ||
| 69462 - STOPPER, BACK DOOR SIDE MALE, LH | ||||
| 67282-28010 |
AZR6# |
1 | ||
| 69402-38010 |
AZR6# |
1 | ||
| 69462 - STOPPER, BACK DOOR SIDE MALE, LH | ||||
| 67282-28010 |
AZR6# |
1 | ||
| 69402-38010 |
AZR6# |
1 | ||
| Common parts | ||||
| 90105-06184 | ||||
| 90119-06549 | ||||
| 90119-06871 | ||||
| 90119-06897 | ||||
| 90148-80040 | ||||
| 90179-08096 | ||||
| 91651-40816 | ||||
