AZR60G-ARSEH (2001)

Toyota Noah/Voxy

Production Nov 2001 - Aug 2004
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0111- )

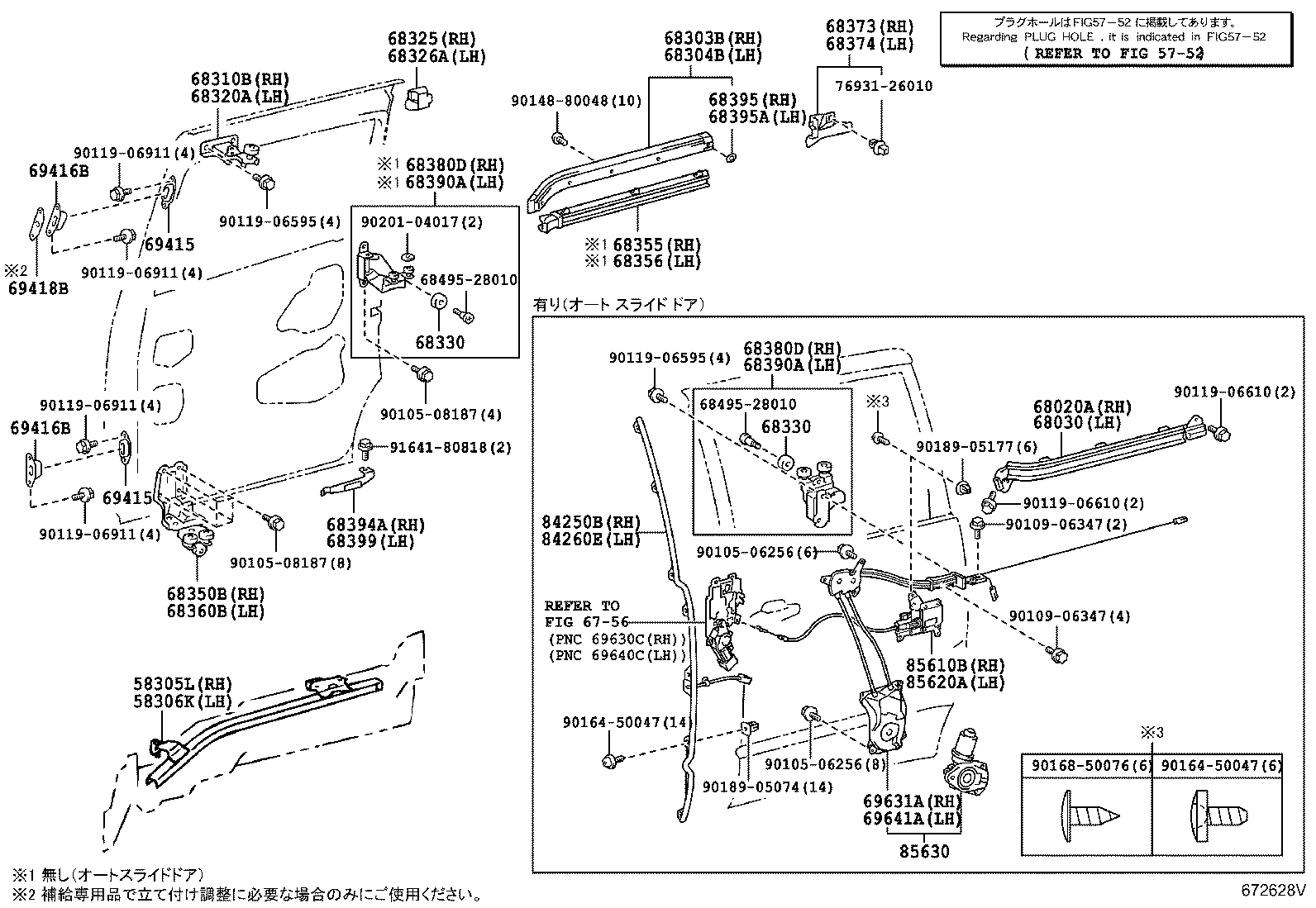

Click highlighted areas on diagram

diagram 5752 58305L 58306K 6756 68020A 68030 68303B 68304B 68310B 68320A 68325 68326A 68330 68330 68350B 68355 68356 68360B 68373 68374 68380D 68380D 68390A 68390A 68394A 68395 68395A 68399 6849528010 6849528010 69415 69415 69416B 69416B 69418B 69631A 69641A 7693126010 84250B 84260E 85610B 85620A 85630 9010506256 9010506256 9010508187 9010508187 9010906347 9010906347 9011906595 9011906595 9011906610 9011906610 9011906911 9011906911 9011906911 9011906911 9014880048 9016450047 9016450047 9016850076 9018905074 9018905177 9020104017 9164180818
Part # Description Qty Price
58305L - GUIDE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH
58305-28070

AZR6#

 1
58306K - GUIDE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH
58306-28090

AZR6#

 1
68030 - GUIDE ASSY, SLIDE DOOR CABLE
68030-28010

AZR6#

 1
68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68303-28060

AZR6#

 1
68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68304-28100

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
68304-28090

AZR6#

 1
68310B - ROLLER ASSY, SLIDE DOOR, UPPER RH
68310-28050

AZR6#

 1
68320A - ROLLER ASSY, SLIDE DOOR, UPPER, LH
68320-28060

AZR6#

 1
68325 - CUSHION, SLIDE DOOR UPPER RAIL, RH
68325-28021

AZR6#

 1
68325-28020

AZR6#..4HC

 1
68326A - CUSHION, SLIDE DOOR UPPER RAIL, LH
68326-28020

AZR6#..4HC

 1
68326-28021

AZR6#

 1
68330 - ROLLER ASSY, SLIDE DOOR, CENTER
68331-28060

AZR6#

 2
68330 - ROLLER ASSY, SLIDE DOOR, CENTER
68331-28060

AZR6#

 2
68350B - ROLLER ASSY, SLIDE DOOR, LOWER RH
68350-28040

AZR6#

 1
68355 - GARNISH, SLIDE DOOR CENTER RAIL, RH
68355-28030

AZR6#

 1
68356 - GARNISH, SLIDE DOOR CENTER RAIL, LH
68356-28040

AZR6#

 1
68360B - ROLLER ASSY, SLIDE DOOR, LOWER LH
68360-28070

AZR6#

 1
68373 - MOULDING, SLIDE RAIL END, RH
68373-28050

AZR6#

 1
68374 - MOULDING, SLIDE RAIL END, LH
68374-28110

AZR6#

 1
68380D - HINGE ASSY, SLIDE DOOR, CENTER RH
68380-28020

AZR6#

 1
68380D - HINGE ASSY, SLIDE DOOR, CENTER RH
68380-28020

AZR6#

 1
68390A - HINGE ASSY, SLIDE DOOR, CENTER LH
68390-28051

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
68390-28050

AZR6#..4HC

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
68390-28030

AZR6#

 1
68390A - HINGE ASSY, SLIDE DOOR, CENTER LH
68390-28051

AZR6#

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
68390-28050

AZR6#..4HC

ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)

 1
68390-28030

AZR6#

 1
68394A - PLATE, SLIDE DOOR LOWER RAIL, RH
68394-28020

AZR6#

 1
68395 - PACKING, SLIDE DOOR CENTER RAIL
68395-28070

AZR6#

 5
68395A - PACKING, SLIDE DOOR CENTER RAIL
68395-28070

AZR6#

 5
68399 - PLATE, SLIDE DOOR LOWER RAIL, LH
68399-28030

AZR6#

 1
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-28021

AZR6#

下側

 2
69415-28020

AZR6#

下側

 2
69415-28011

AZR6#

上側

 2
69415-28010

AZR6#

上側

 2
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-28021

AZR6#

下側

 2
69415-28020

AZR6#

下側

 2
69415-28011

AZR6#

上側

 2
69415-28010

AZR6#

上側

 2
69416B - STOPPER, SLIDE DOOR DOWN MALE
69416-28040

AZR6#

 4
69416B - STOPPER, SLIDE DOOR DOWN MALE
69416-28040

AZR6#

 4
69418B - SHIM, SLIDE DOOR DOWN STOP MALE
69418-28060

AZR6#

 1
69641A - CONTROL, SLIDE DOOR ATTACHMENT, LH
69641-28010

AZR6#

 1
84260E - SENSOR ASSY, POWER SLIDE DOOR
84260-28040

AZR6#

 1
85620A - MOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH
85620-28030

AZR6#

 1
85630 - MOTOR ASSY, SLIDE DOOR
85006-28021

AZR6#

 1
85006-28020

AZR6#..4HC

 1
Common parts
68495-28010
76931-26010
90105-06256
90105-08187
90109-06347
90119-06595
90119-06610
90119-06911
90148-80048
90164-50047
90168-50076
90189-05074
90189-05177
90201-04017
91641-80818
Linked diagrams
5752
6756
