AZR60G-ARSEH (2001)
Toyota Noah/Voxy
Production
Nov 2001
-
Aug 2004
Engine
1AZFSE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0111- )AZR60

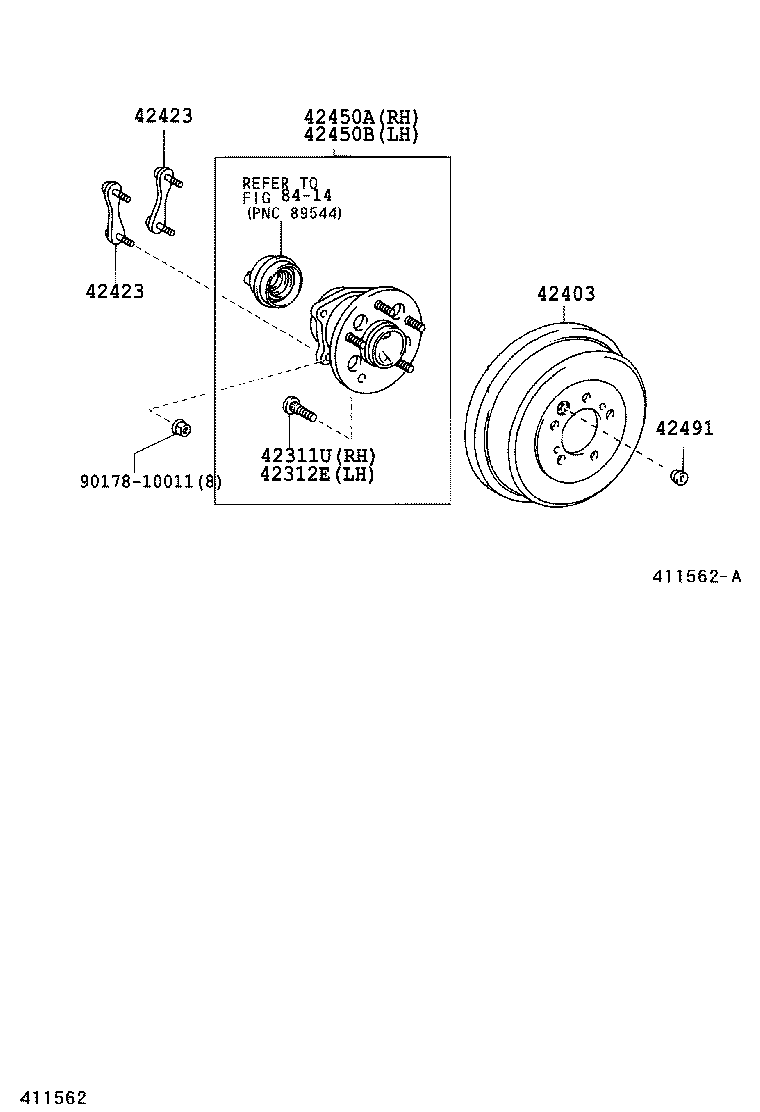

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
AZR60 |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
AZR60 |
5 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-28100 |
AZR6# |
2 | ||
| 42423 - RETAINER, REAR AXLE BEARING, INNER | ||||
| 42423-28020 |
AZR60 |
4 | ||
| 42423 - RETAINER, REAR AXLE BEARING, INNER | ||||
| 42423-28020 |
AZR60 |
4 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-44040 |
AZR60 |
1 | ||
| 42450-44020 |
AZR60 |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42450-44020 |
AZR60 |
1 | ||
| 42450-44040 |
AZR60 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-14010 |
AZR6# |
2 | ||
| Common parts | ||||
| 90178-10011 | ||||
| Linked diagrams | ||||
| 8414 | ||||
