AZR60G-ANENH (2004)

Toyota Noah/Voxy

Production Aug 2004 - Jun 2007
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )NOAH

Click highlighted areas on diagram

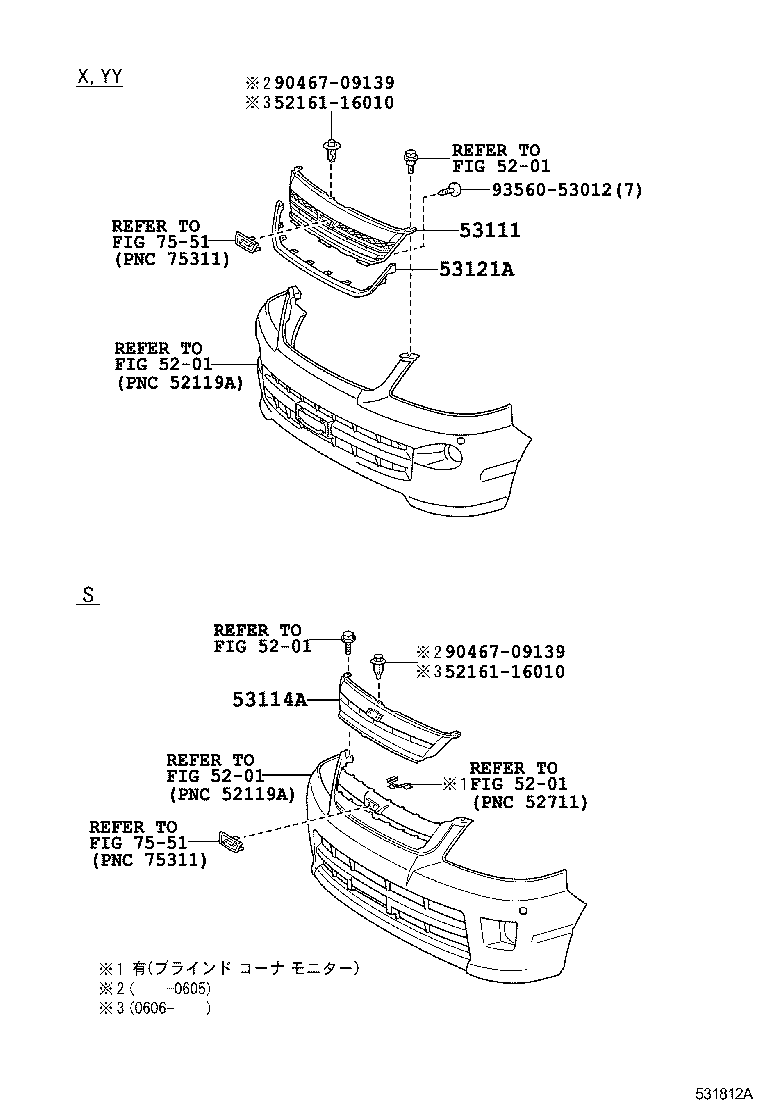

diagram 5201 5201 5201 5201 5201 5216116010 5216116010 53111 53114A 53121A 7551 7551 9046709139 9046709139 9356053012
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-28300A1

AZR6#..NOAH

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-),WHITE PM.,042

 1
53111-28270B1

AZR6#..NOAH

DARK GRAY M.M.,1E2

 1
53111-28270J0

AZR6#..NOAH

DARK BLUE MC,8Q7

 1
53111-28300B1

AZR6#..NOAH

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-),DARK GRAY M.M.,1E2

 1
53111-28270A1

AZR6#..NOAH

WHITE PM.,042

 1
53111-28300B0

AZR6#..NOAH

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-),SILVER ME.,1D4

 1
53111-28270B0

AZR6#..NOAH

SILVER ME.,1D4

 1
53111-28380B0

AZR6#..NOAH..(X,YY)

SILVER ME.,1D4

 1
53111-28390B0

AZR6#..NOAH..(X,YY)

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-),SILVER ME.,1D4

 1
53111-28380C0

AZR6#..YY

BLACK,202

 1
53111-28380D0

AZR6#..NOAH..(X,YY)

RED MC.,3M8

 1
53111-28300J0

AZR6#..NOAH

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-),DARK BLUE MC,8Q7

 1
53111-28380A1

AZR6#..NOAH..(X,YY)

WHITE PM.,042

 1
53111-28390D0

AZR6#..NOAH..(X,YY)

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-),RED MC.,3M8

 1
53111-28390C0

AZR6#..YY

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-),BLACK,202

 1
53111-28390A1

AZR6#..NOAH..(X,YY)

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-),WHITE PM.,042

 1
53111-28500

AZR6#..Z

ｷﾗﾒｷ *(A) & ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-)

 1
53111-28420

AZR6#..Z

 1
53111-28430

AZR6#..Z

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-)

 1
53111-28490

AZR6#..Z

ｷﾗﾒｷ *(A)

 1
53114A - GRILLE, RADIATOR, INNER
53114-28030

AZR6#..S

 1
53114-28040

AZR6#..S

ｱﾘ(ﾌﾞﾗｲﾝﾄﾞ ｺ-ﾅ ﾓﾆﾀ-)

 1
53121A - MOULDING, RADIATOR GRILLE
53121-28070

AZR6#..NOAH..(X,YY)

 1
Common parts
52161-16010
90467-09139
93560-53012
Linked diagrams
5201
7551
