AZR60G-ANENH (2004)

Toyota Noah/Voxy

Production Aug 2004 - Jun 2007
Engine 1AZFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

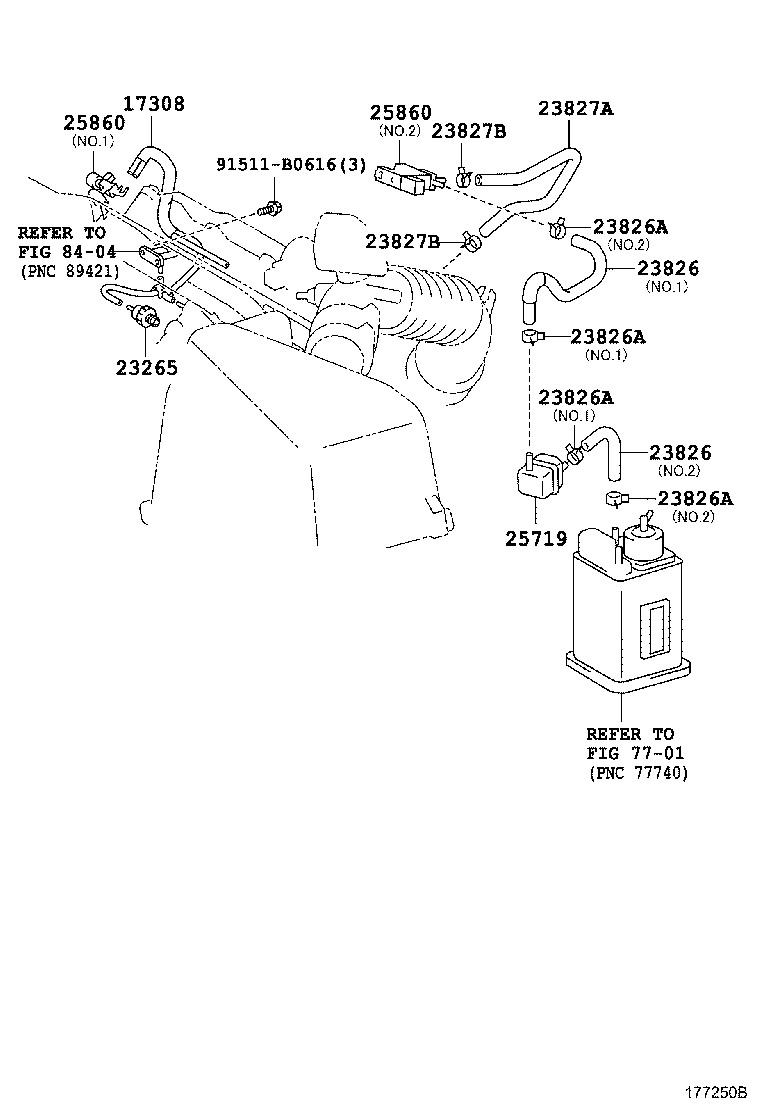

Click highlighted areas on diagram

diagram 17308 23265 23826 23826 23826A 23826A 23826A 23826A 23827A 23827B 23827B 25719 25860 25860 7701 8404 91511B0616
Part # Description Qty Price
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-28010

1AZFSE..AZR6#

 1
17308-28010

1AZFSE..AZR6#

 1
23265 - FILTER, GAS, NO.1
90917-11037

1AZFSE..AZR6#

 1
90917-11037

1AZFSE..AZR6#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-28270

1AZFSE..AZR6#

NO.2

 1
23826-28260

1AZFSE..AZR6#

NO.1

 1
23826-28190

1AZFSE..AZR6#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-28270

1AZFSE..AZR6#

NO.2

 1
23826-28260

1AZFSE..AZR6#

NO.1

 1
23826-28190

1AZFSE..AZR6#

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

1AZFSE..AZR6#

NO.2

 2
90467-12056

1AZFSE..AZR6#

NO.1

 2
96132-51100

1AZFSE..AZR6#

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

1AZFSE..AZR6#

NO.2

 2
90467-12056

1AZFSE..AZR6#

NO.1

 2
96132-51100

1AZFSE..AZR6#

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

1AZFSE..AZR6#

NO.2

 2
90467-12056

1AZFSE..AZR6#

NO.1

 2
96132-51100

1AZFSE..AZR6#

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

1AZFSE..AZR6#

NO.2

 2
90467-12056

1AZFSE..AZR6#

NO.1

 2
96132-51100

1AZFSE..AZR6#

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-28140

1AZFSE..AZR6#

 1
23827-28140

1AZFSE..AZR6#

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

1AZFSE..AZR6#

 2
96132-51300

1AZFSE..AZR6#

 2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

1AZFSE..AZR6#

 2
96132-51300

1AZFSE..AZR6#

 2
25719 - TANK, VACUUM SURGE
25719-62040

1AZFSE..AZR6#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-28020

1AZFSE..AZR6#

NO.1

 1
25860-28030

1AZFSE..AZR6#

NO.2

 1
25860-28030

1AZFSE..AZR6#

NO.2

 1
25860-28070

1AZFSE..AZR6#

NO.1

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-28020

1AZFSE..AZR6#

NO.1

 1
25860-28030

1AZFSE..AZR6#

NO.2

 1
25860-28030

1AZFSE..AZR6#

NO.2

 1
25860-28070

1AZFSE..AZR6#

NO.1

 1
Common parts
91511-B0616
Linked diagrams
7701
8404
