ZWR80G-CPXGB (2014)
Toyota Noah/Voxy/Esquire

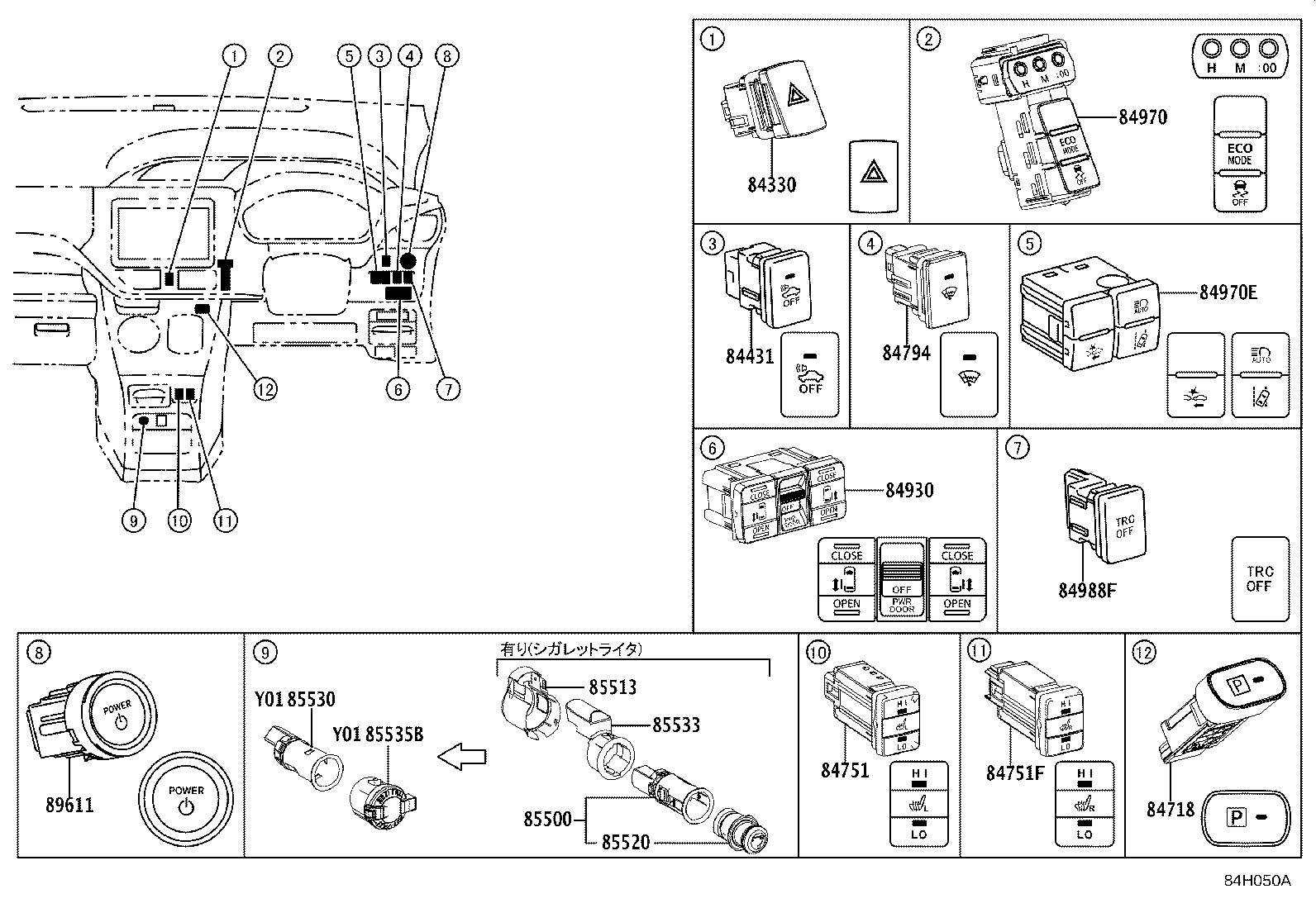

ILLUST NO. 5 OF10(1401-1601)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28200 |
ZRR8#,ZWR80 |
1 | ||
| 84332-28201 |
ZRR8#,ZWR80 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-28042 |
ZRR8#..GI;ZWR80..G,GI,V,XI |
1 | ||
| 84751-28041 |
ZRR8#..GI;ZWR80..G,GI,V,XI |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-52082 |
ZRR8#..GI;ZWR80..G,GI,V,XI |
1 | ||
| 84751-52081 |
ZRR8#..GI;ZWR80..G,GI,V,XI |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZRR8#,ZWR80 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-28070C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 85535-28070C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
ILLUST NO. 5 OF10(1601-1706)ZWR80
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28200 |
ZRR8#,ZWR80 |
1 | ||
| 84332-28201 |
ZRR8#,ZWR80 |
1 | ||
| 84431 - SWITCH, VEHICLE APPROACHING SPEAKER | ||||
| 84431-28021 |
ZWR80 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-28042 |
ZRR8#..GI;ZWR80..G,GI,V,XI |
1 | ||
| 84751-28041 |
ZRR8#..GI;ZWR80..G,GI,V,XI |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-52082 |
ZRR8#..GI;ZWR80..G,GI,V,XI |
1 | ||
| 84751-52081 |
ZRR8#..GI;ZWR80..G,GI,V,XI |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84871-35010 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 84871-35011 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-28170 |
ZRR8#,ZWR80..GI |
1 | ||
| 84930-28170 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 84930-28160 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| 84970E - SWITCH ASSY, COMBINATION NO.2 | ||||
| 84970-28060 |
ZWR80;ZRR8#..G,GI,SI,V,XI,ZS |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-28031 |
ZWR80 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZRR8#,ZWR80 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-28070C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 85535-28070C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30141 |
ZWR80 |
1 | ||
| 89611-30142 |
ZWR80 |
1 | ||
ILLUST NO. 6 OF10(1401-1601)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84431 - SWITCH, VEHICLE APPROACHING SPEAKER | ||||
| 84431-28021 |
ZWR80 |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84871-35010 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 84871-35011 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-28170 |
ZRR8#,ZWR80..GI |
1 | ||
| 84930-28170 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 84930-28160 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-28031 |
ZWR80 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30141 |
ZWR80 |
1 | ||
| 89611-30142 |
ZWR80 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30141 |
ZWR80 |
1 | ||
| 89611-30142 |
ZWR80 |
1 | ||
