ZWR80G-CPXEB (2017)
Toyota Noah/Voxy/Esquire
Production
Jun 2017
-
Apr 2020
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1706- )

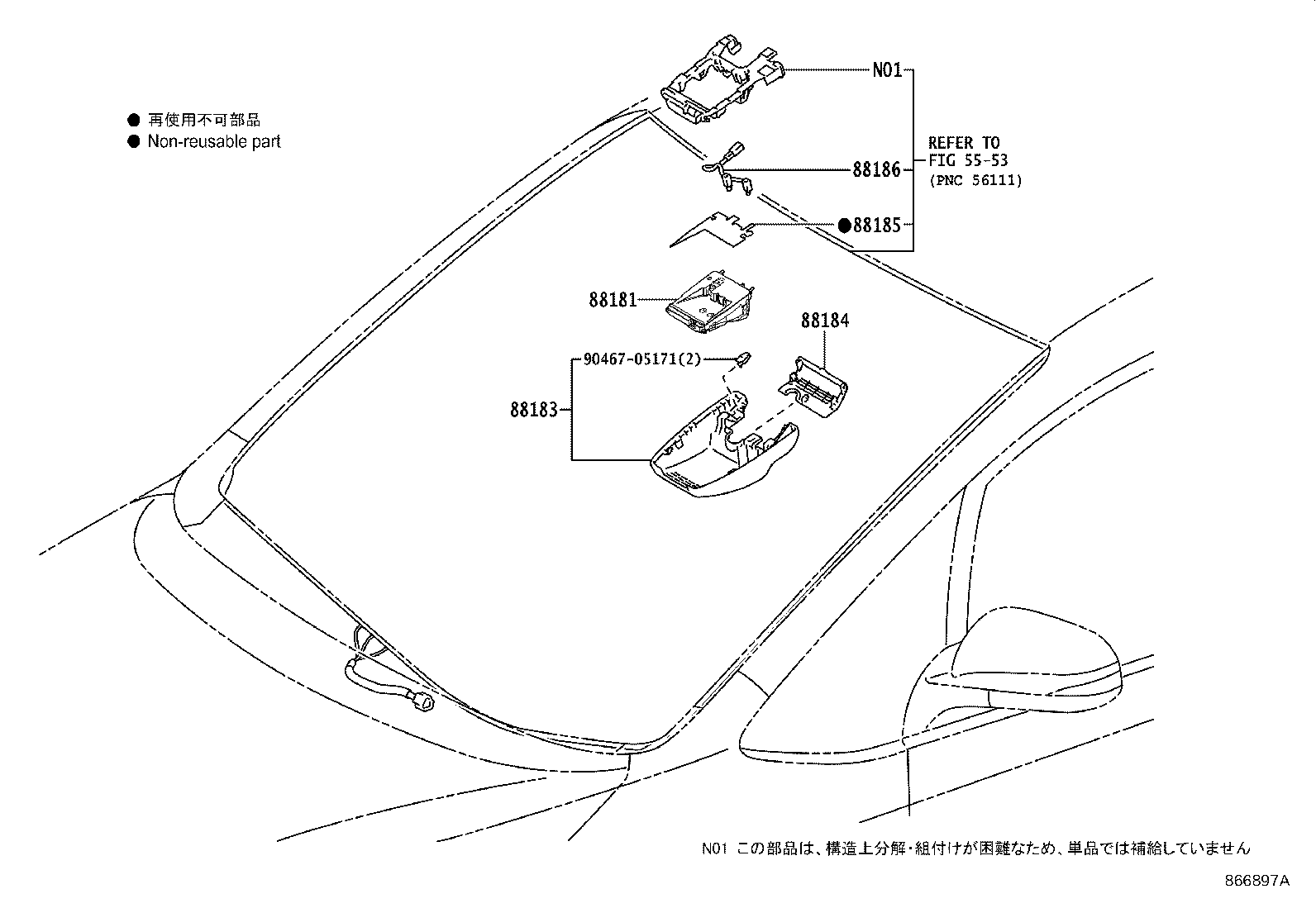

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88181 - SENSOR, PRE-COLLISION CITY | ||||
| 88181-0W140 |
ZWR80;ZRR8#..G,GI,SI,V,XI,ZS |
1 | ||
| 88181-0W170 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 88181-0W141 |
ZWR80;ZRR8#..G,GI,SI,V,XI,ZS |
1 | ||
| 88181-0W170 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 88183 - COVER, PRE-COLLISION CITY | ||||
| 88183-28030 |
ZRR8#..V,XI;ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 88183-28030 |
ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 88184 - COVER, PRE-COLLISION CITY, 2ND | ||||
| 88184-28010 |
ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 88184-28010 |
ZRR8#..V,XI;ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 88185 - HEATER, PRE-COLLISION CITY | ||||
| 88185-28010 |
ZRR8#..V,XI;ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 88185-28010 |
ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 88186 - WIRE, PRE-COLLISION CITY HEATER | ||||
| 88186-28010 |
ZRR8#..V,XI;ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 88186-28010 |
ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| Linked diagrams | ||||
| 5553 | ||||
