ZWR80G-CPXEB (2017)

Toyota Noah/Voxy/Esquire

Production Jun 2017 - Apr 2020
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1706- )

Click highlighted areas on diagram

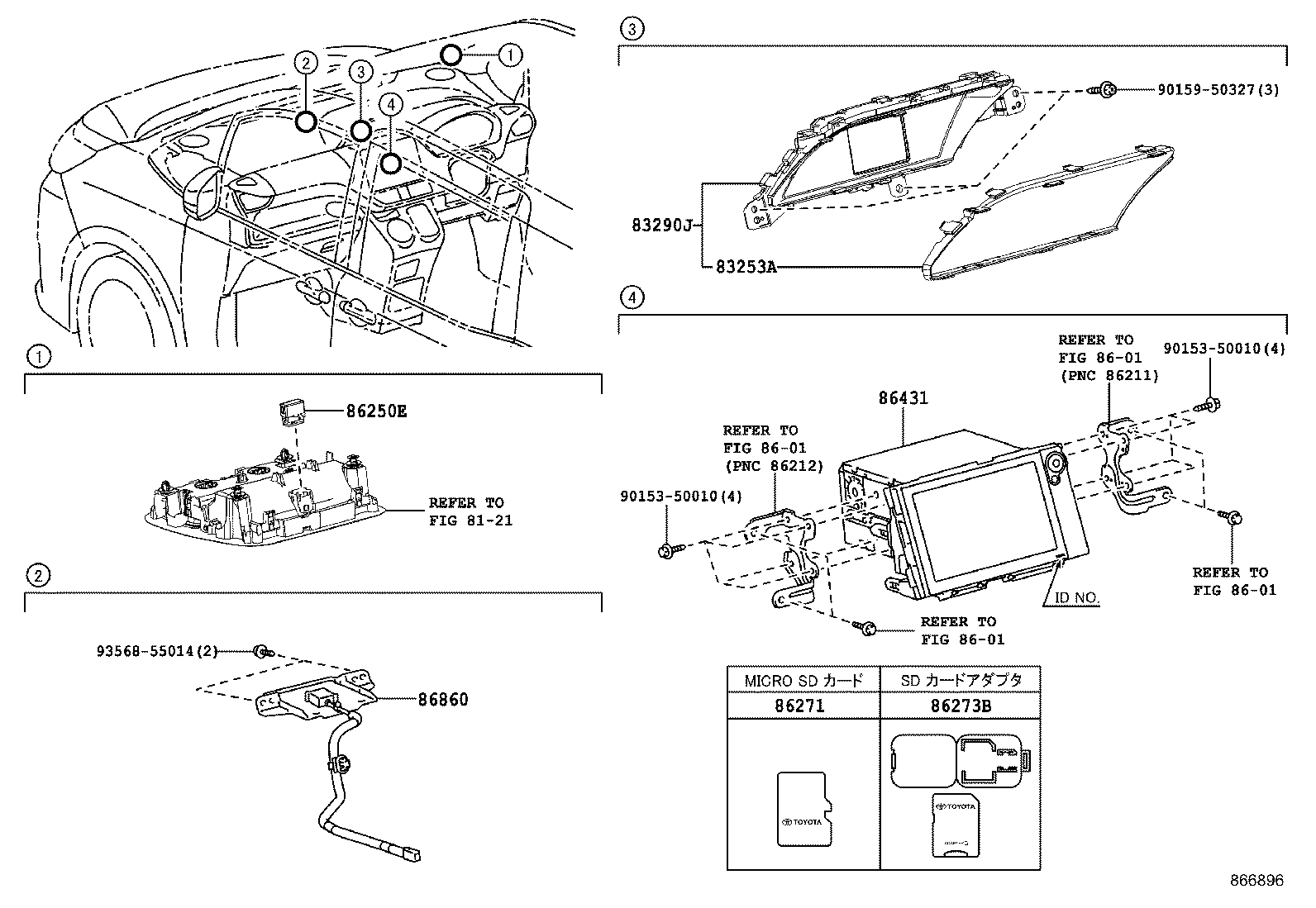

diagram 8121 83253A 83290J 8601 8601 8601 8601 86250E 86271 86273B 86431 86860 9015350010 9015350010 9015950327 9356855014
Part # Description Qty Price
83253A - GLASS, ACCESSORY METER
83253-28010

ZWR80;ZRR8#..G,GI,SI,V,XI,ZS

 1
83253-28020

ZWR80;ZRR8#..G,GI,SI,V,XI,ZS

 1
83290J - METER ASSY, ACCESSORY
83290-28033

ZRR8#,ZWR80..G,GI,V

 1
83290-28032

ZRR8#,ZWR80..G,GI,V

 1
83290-28022

ZRR8#..SI,XI,ZS;ZWR80..SI,X,XI,ZS

 1
Common parts
90153-50010
90159-50327
93568-55014
Linked diagrams
8121
8601
