ZWR80G-CPXEB (2017)
Toyota Noah/Voxy/Esquire

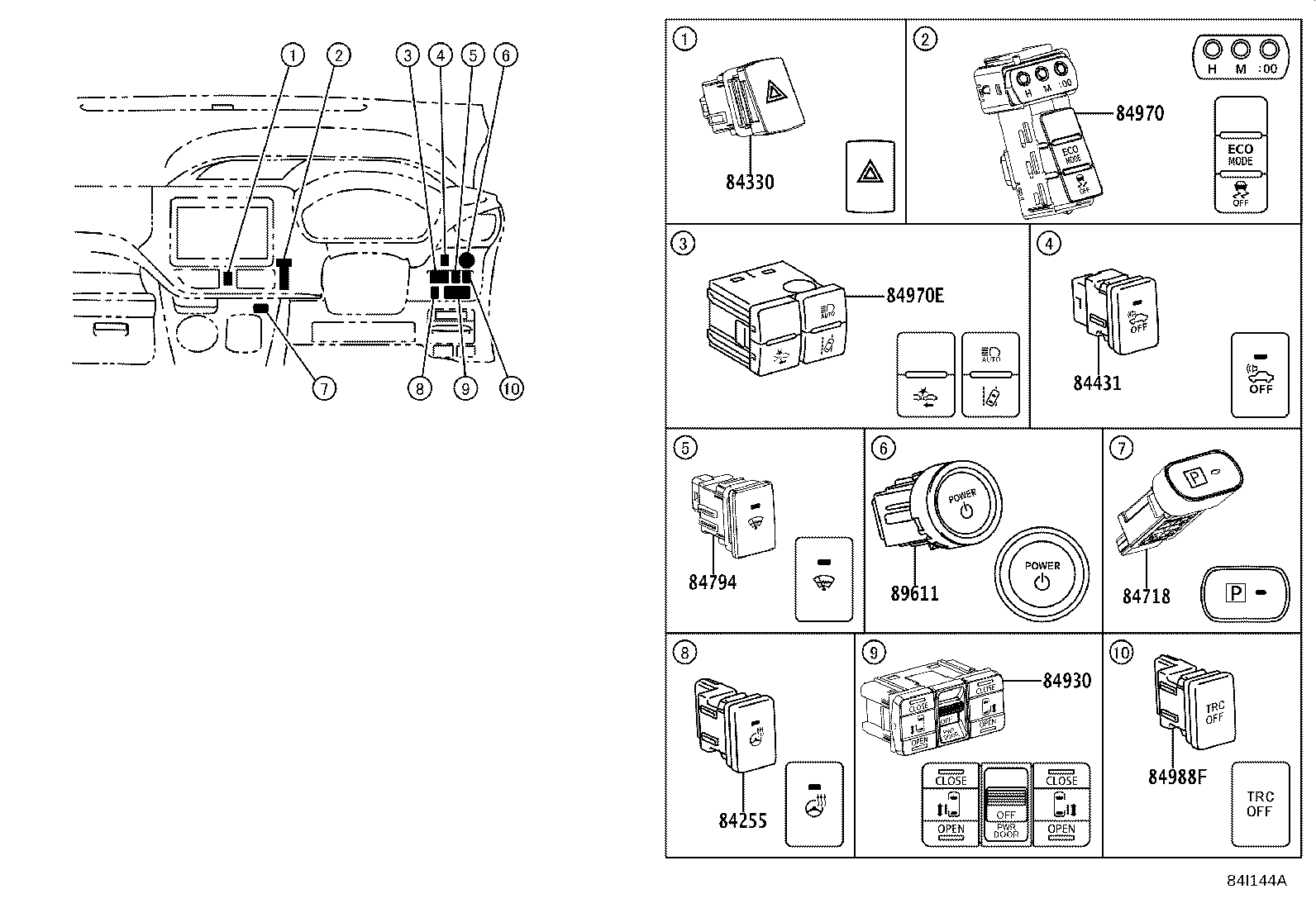

ILLUST NO. 5 OF10(1706- )ZWR80
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28201 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 84332-28201 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 84431 - SWITCH, VEHICLE APPROACHING SPEAKER | ||||
| 84431-28021 |
ZWR80 |
1 | ||
| 84718 - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-28010 |
ZWR80..NOAH..X;ZWR80..G,GI,SI,ZS |
1 | ||
| 84718-28010 |
ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84871-35011 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) 寒冷地仕様−有り |
1 | ||
| 84871-35011 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS 寒冷地仕様−有り |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-28160 |
ZRR8#,ZWR80..G,SI,ZS;ZRR8#,ZWR80..NOAH..X |
1 | ||
| 84930-28160 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 84930-28170 |
ZRR8#,ZWR80..G,SI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) & 有り(ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞ) |
1 | ||
| 84930-28170 |
ZRR8#,ZWR80..V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) & 有り(ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞ) |
1 | ||
| 84930-28170 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(X,XI) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-28020 |
ZWR80..NOAH..X;ZWR80..G,GI,SI,ZS |
1 | ||
| 84970-28020 |
ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 84970E - SWITCH ASSY, COMBINATION NO.2 | ||||
| 84970-28060 |
ZRR8#..V,XI;ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 84970-28060 |
ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-28031 |
ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 84988-28031 |
ZWR80..NOAH..X;ZWR80..G,GI,SI,ZS |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30142 |
ZWR80 |
1 | ||

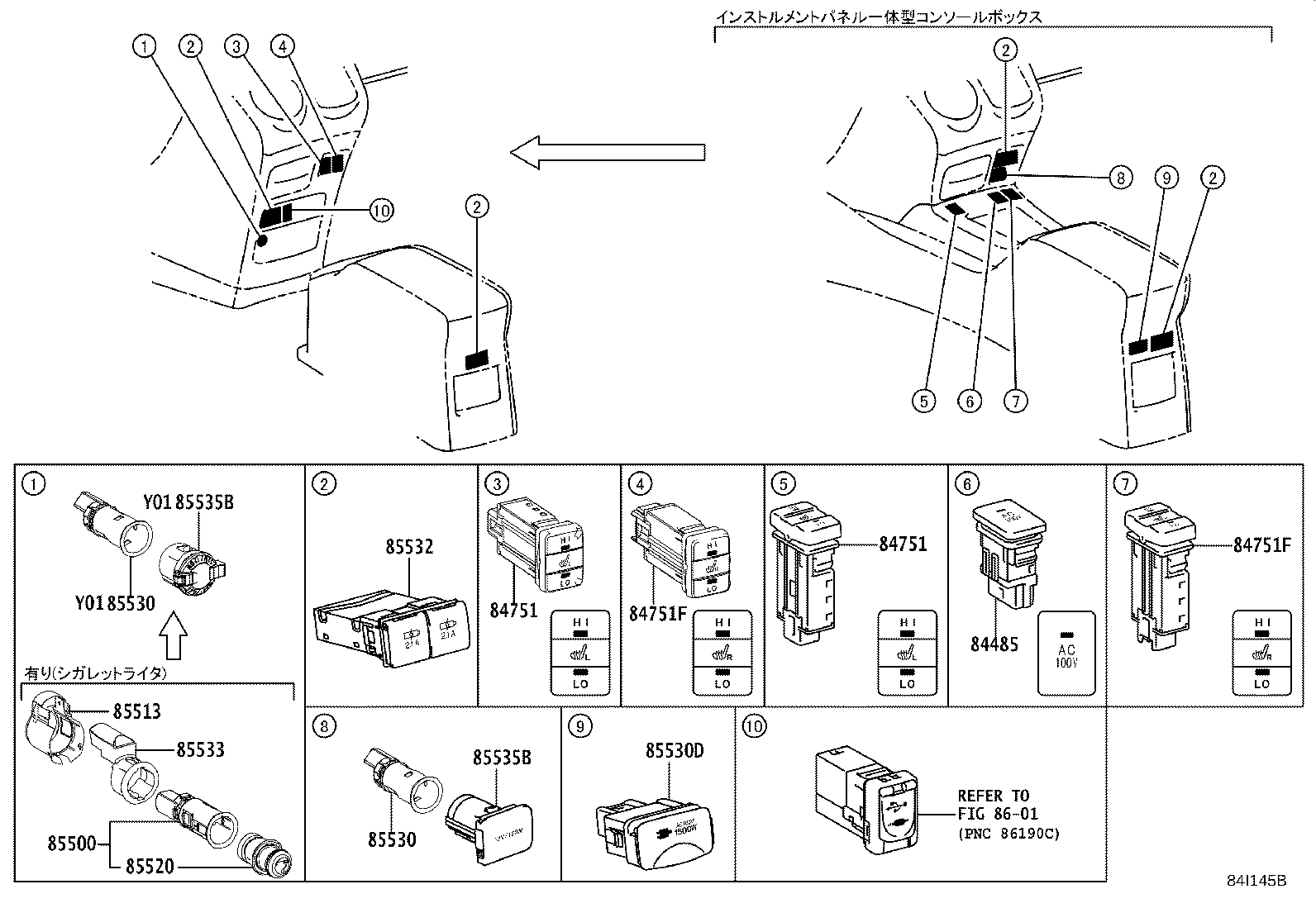

ILLUST NO. 6 OF10(1706- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84485 - SWITCH, POWER OUTLET(AC100V ACCESSORY SOCKET) | ||||
| 84485-52011 |
ZWR80..(ESQIR,VOXY)..(V,X,XI) ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W) |
1 | ||
| 84485-52011 |
ZWR80..(ESQIR,NOAH)..(G,GI,X) ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W) |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-28042 |
ZRR8#..V;ZWR80..V,XI |
1 | ||
| 84751-28042 |
ZRR8#..G,GI;ZWR80..G,GI,SI,ZS |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-28042 |
ZRR8#..V;ZWR80..V,XI |
1 | ||
| 84751-28042 |
ZRR8#..G,GI;ZWR80..G,GI,SI,ZS |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-52082 |
ZRR8#..G,GI;ZWR80..G,GI,SI,ZS |
1 | ||
| 84751-52082 |
ZRR8#..V;ZWR80..V,XI |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-52082 |
ZRR8#..G,GI;ZWR80..G,GI,SI,ZS |
1 | ||
| 84751-52082 |
ZRR8#..V;ZWR80..V,XI |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85500-28080 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85513-28010 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85520-28010 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZRR8#,ZWR80 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZRR8#,ZWR80 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-58070C1 |
ZWR80..(ESQIR,VOXY)..(V,X,XI) ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM2# |
1 | ||
| 85530-58070C1 |
ZWR80..(ESQIR,NOAH)..(GI,X) ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM2# |
1 | ||
| 85530-58070C1 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM0#,2# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85533-30060 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-28070C0 |
ZRR8#,ZWR80..(G,SI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 85535-28070C0 |
ZRR80..SI..IV5;ZRR8#,ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| 85535-28090 |
ZWR80..G,GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-28070C0 |
ZRR8#,ZWR80..(G,SI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 85535-28070C0 |
ZRR80..SI..IV5;ZRR8#,ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| 85535-28090 |
ZWR80..G,GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W) |
1 | ||
| Linked diagrams | ||||
| 8601 | ||||

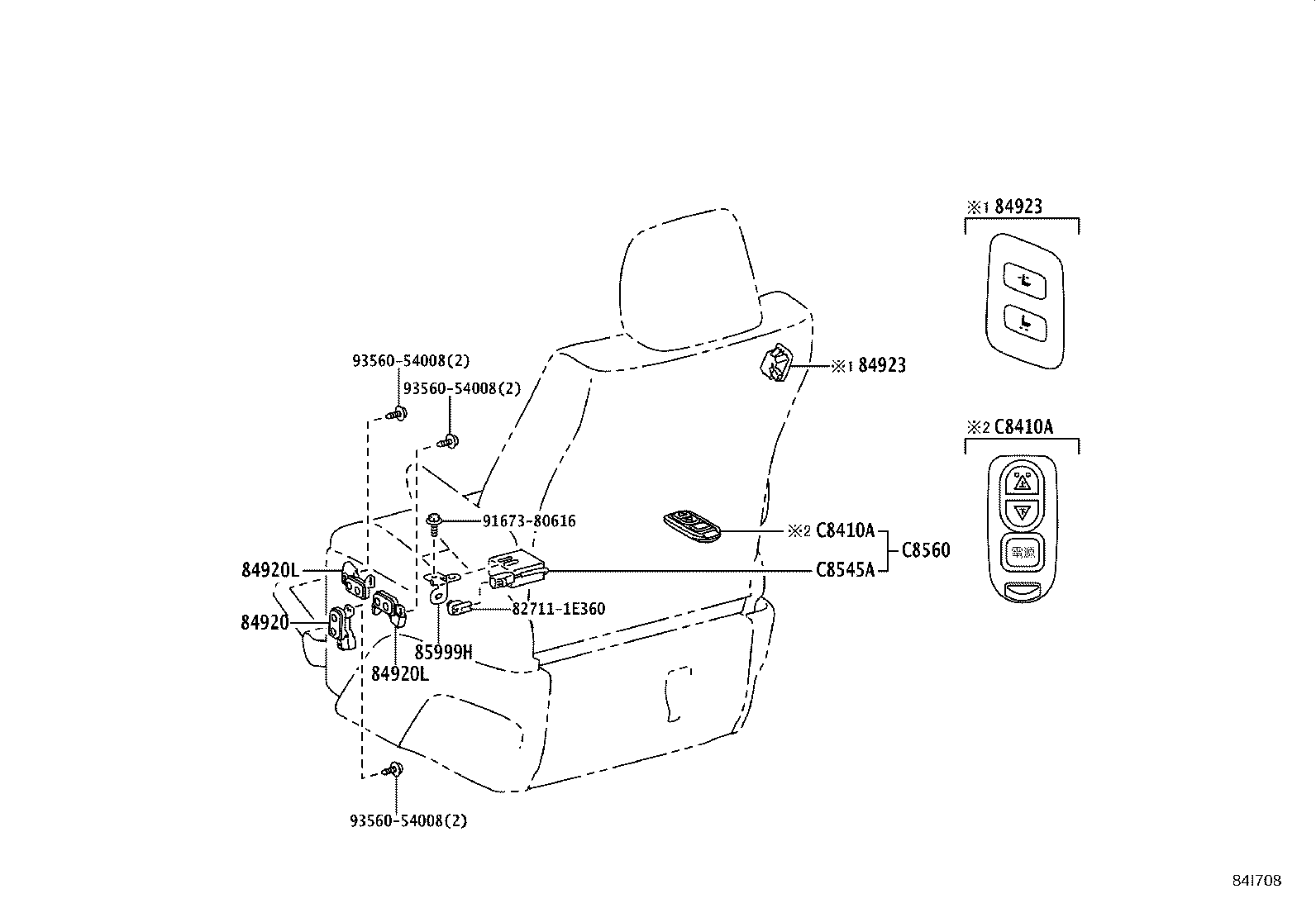

ILLUST NO. 8 OF10(1710- )
ｼｰﾄ(ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟﾁﾙﾄｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E360 | ||||
| 91673-80616 | ||||
| 93560-54008 | ||||
