ZWR80G-CPXEB (2017)
Toyota Noah/Voxy/Esquire
(1709- )

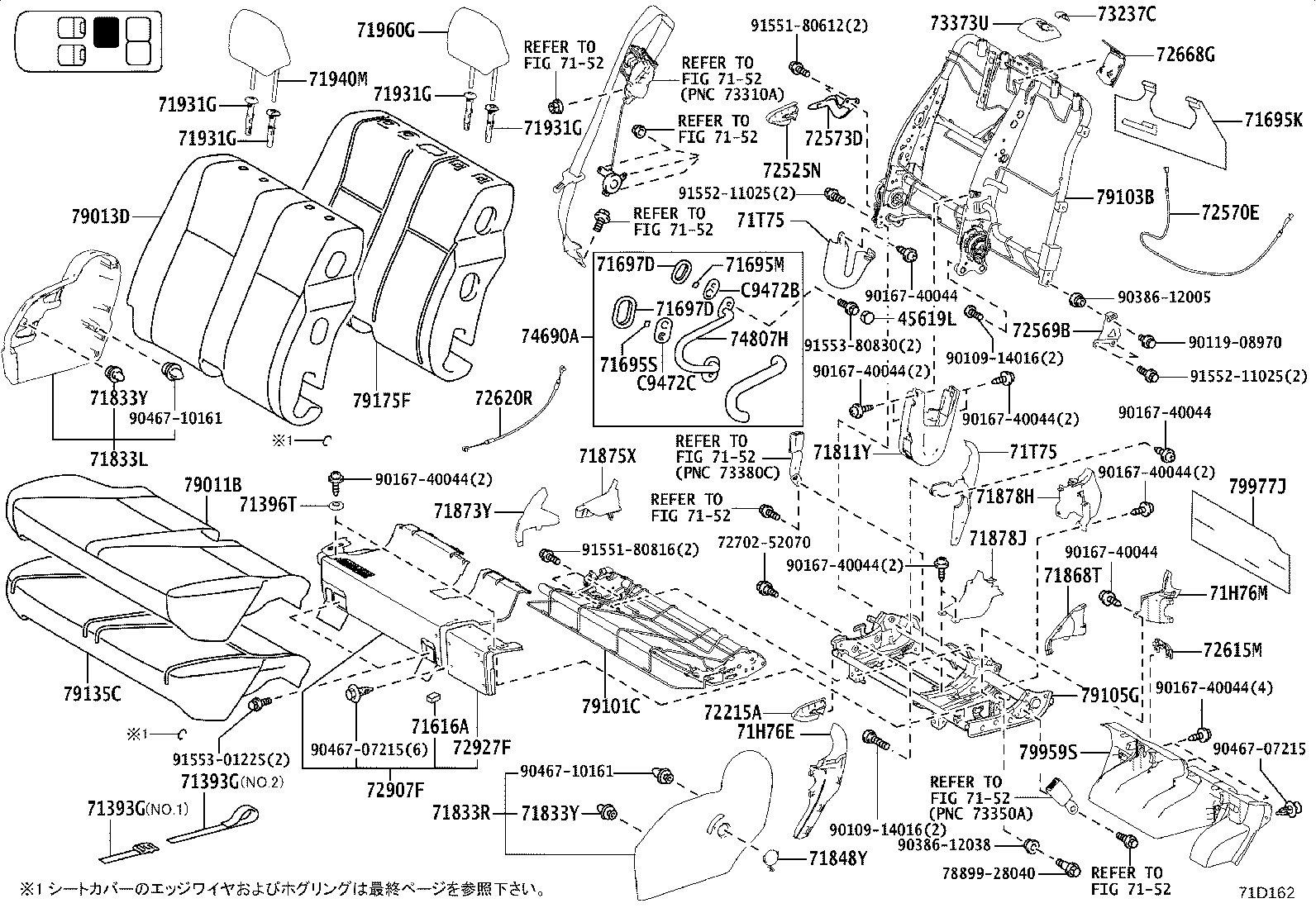

ﾘﾔNO.1ｼｰﾄ(ｳｪﾙｼﾞｮｲﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71695K - PROTECTOR, NO.1 SEAT BACK, RH | ||||
| 71695-28230 |
ZRR8#,ZWR80..07S |
1 | ||
| 71695-28231 |
ZRR8#,ZWR80..07S |
1 | ||
| 71811Y - COVER, RECLINING ADJUSTER, RH | ||||
| 71875-28520 |
ZRR85..CBU;ZRR80,ZWR80;ZRR85..07S..IV5 |
1 | ||
| 71833L - COVER, REAR SEAT RECLINING, RH | ||||
| 71833-28250C0 |
ZRR80..07S..SI..IV5;ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS) BLACK,TRIM2# |
1 | ||
| 71833-28250C0 |
ZRR8#,ZWR80..07S..(G,SI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 71833Y - CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT) | ||||
| 71769-47020 |
ZWR80;ZRR8#..07S..IV5;ZRR8#..07S..X..CBU;ZRR80..08S..(SI,ZS)..IV5;ZRR8#..(G,GI,SI,V,XI,ZS)..CBU |
2 | ||
| 71833Y - CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT) | ||||
| 71769-47020 |
ZWR80;ZRR8#..07S..IV5;ZRR8#..07S..X..CBU;ZRR80..08S..(SI,ZS)..IV5;ZRR8#..(G,GI,SI,V,XI,ZS)..CBU |
2 | ||
| 71848Y - CAP, SEAT ADJUSTER COVER, RH NO.1(FOR RH SEAT) | ||||
| 71848-28040C0 |
ZRR8#,ZWR80..(G,SI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 71848-28040C0 |
ZRR80..SI..IV5;ZRR8#,ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28400C0 |
ZRR80..07S..SI..IV5;ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS) BLACK,TRIM2#,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28390C0 |
ZRR8#,ZWR80..07S..(G,SI)..CBU BLACK,TRIM0#,2#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28400C0 |
ZRR8#,ZWR80..07S..(G,SI)..CBU BLACK,TRIM0#,2#,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28380C0 |
ZRR80..07S..SI..IV5;ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS) BLACK,TRIM2#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28410C0 |
ZRR80..07S..SI..IV5;ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS) BLACK,TRIM2#,NO.4:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28380C0 |
ZRR8#,ZWR80..07S..(G,SI)..CBU BLACK,TRIM0#,2#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28390C0 |
ZRR80..07S..SI..IV5;ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS) BLACK,TRIM2#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28410C0 |
ZRR8#,ZWR80..07S..(G,SI)..CBU BLACK,TRIM0#,2#,NO.4:ｲﾗｽﾄ参照 |
1 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
ZRR8#,ZWR80..07S..G ﾛｯｸ付,BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-44020C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
ZRR8#,ZWR80..07S..G ﾛｯｸ無,BLACK,TRIM0#,2# |
2 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
ZRR8#,ZWR80..07S..G ﾛｯｸ付,BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-44020C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
ZRR8#,ZWR80..07S..G ﾛｯｸ無,BLACK,TRIM0#,2# |
2 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
ZRR8#,ZWR80..07S..G ﾛｯｸ付,BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-44020C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
ZRR8#,ZWR80..07S..G ﾛｯｸ無,BLACK,TRIM0#,2# |
2 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
ZRR8#,ZWR80..07S..G ﾛｯｸ付,BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-44020C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
ZRR8#,ZWR80..07S..G ﾛｯｸ無,BLACK,TRIM0#,2# |
2 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-28J70C0 |
ZRR8#,ZWR80..07S..XI..CBU BLACK,TRIM2# |
2 | ||
| 71940-28K60C0 |
ZRR8#,ZWR80..07S..(G,V) BLACK,TRIM2# |
2 | ||
| 71940-28K60E0 |
ZRR8#,ZWR80..07S..G DARKBROWN,TRIM0# |
2 | ||
| 71940-28L00C1 |
ZRR8#,ZWR80..07S..XI..CBU BLACK,TRIM2# |
2 | ||
| 71940-28F20C0 |
ZRR8#,ZWR80..07S..X..CBU BLACK,TRIM2# |
2 | ||
| 71940-28K90E1 |
ZRR8#,ZWR80..07S..G DARKBROWN,TRIM0# |
2 | ||
| 71940-28K90C1 |
ZRR8#,ZWR80..07S..(G,V) BLACK,TRIM2# |
2 | ||
| 71T75 - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-28370C0 |
ZRR8#,ZWR80..07S..(G,SI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 71876-28370C0 |
ZRR80..07S..SI..IV5;ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS) BLACK,TRIM2# |
1 | ||
| 71T75 - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-28370C0 |
ZRR8#,ZWR80..07S..(G,SI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 71876-28370C0 |
ZRR80..07S..SI..IV5;ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS) BLACK,TRIM2# |
1 | ||
| 72215A - LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH | ||||
| 72215-28020C0 |
ZRR80..07S..SI..IV5;ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS) BLACK,TRIM2# |
1 | ||
| 72215-28020C0 |
ZRR8#,ZWR80..07S..(G,SI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 72525N - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-28130C0 |
ZRR8#,ZWR80..07S..(G,SI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 72525-28130C0 |
ZRR80..07S..SI..IV5;ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS) BLACK,TRIM2# |
1 | ||
| 72570E - CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH | ||||
| 72570-28100 |
ZRR8#,ZWR80..07S |
1 | ||
| 72620R - CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT) | ||||
| 72620-28170 |
ZRR8#,ZWR80..07S |
1 | ||
| 73373U - COVER, NO.1 SEAT SHOULDER BELT, RH NO.1 | ||||
| 73373-28040 |
ZRR8#,ZWR80..07S NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 73373-28060 |
ZRR8#,ZWR80..07S NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 79011B - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-28M20C0 |
ZRR8#,ZWR80..07S..XI BLACK,TRIM2# |
1 | ||
| 79011-28Q90C2 |
ZRR8#,ZWR80..07S..XI BLACK,TRIM2# |
1 | ||
| 79011-28K70C4 |
ZRR8#,ZWR80..07S..X BLACK,TRIM2# |
1 | ||
| 79011-28N40C1 |
ZRR8#,ZWR80..07S..(G,V) BLACK,TRIM2# |
1 | ||
| 79011-28N40E1 |
ZRR8#,ZWR80..07S..G DARKBROWN,TRIM0# |
1 | ||
| 79013D - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28L60C1 |
ZRR8#,ZWR80..07S..X..CBU BLACK,TRIM2# |
1 | ||
| 79013-28N80C0 |
ZRR8#,ZWR80..07S..XI..CBU BLACK,TRIM2# |
1 | ||
| 79013-28Q10C0 |
ZRR8#,ZWR80..07S..(G,V) BLACK,TRIM2# |
1 | ||
| 79013-28Q10E0 |
ZRR8#,ZWR80..07S..G DARKBROWN,TRIM0# |
1 | ||
| 79013-28R40C1 |
ZRR8#,ZWR80..07S..XI..CBU BLACK,TRIM2# |
1 | ||
| 79013-28R00C0 |
ZRR8#,ZWR80..07S..X..CBU BLACK,TRIM2# |
1 | ||
| 79013-28R20E0 |
ZRR8#,ZWR80..07S..G DARKBROWN,TRIM0# |
1 | ||
| 79013-28R20C0 |
ZRR8#,ZWR80..07S..(G,V) BLACK,TRIM2# |
1 | ||
| 79101C - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-28210 |
ZRR8#,ZWR80..07S |
1 | ||
| 79105G - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-28420 |
ZRR8#,ZWR80..07S ﾌﾛﾝﾄ |
1 | ||
| 79105-28410 |
ZRR8#,ZWR80..07S ﾘﾔ |
1 | ||
| 79135C - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-28520 |
ZRR8#,ZWR80..07S |
1 | ||
| 79175F - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28530 |
ZRR8#,ZWR80..07S..CBU |
1 | ||
| 79959S - COVER, REAR SEAT LEG, RH | ||||
| 79959-28250C0 |
ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS)..CBU BLACK,TRIM2#,右側ｼｰﾄ |
1 | ||
| 79959-28250C0 |
ZRR8#,ZWR80..07S..(G,SI)..CBU BLACK,TRIM0#,2#,右側ｼｰﾄ |
1 | ||
| 79959-28320C0 |
ZRR8#,ZWR80..07S..(G,SI)..CBU BLACK,TRIM0#,2#,左側ｼｰﾄ |
1 | ||
| 79959-28320C0 |
ZRR8#,ZWR80..07S..(GI,V,X,XI,ZS)..CBU BLACK,TRIM2#,左側ｼｰﾄ |
1 | ||
| Common parts | ||||
| 72702-52070 | ||||
| 78899-28040 | ||||
| 90109-14016 | ||||
| 90119-08970 | ||||
| 90167-40044 | ||||
| 90386-12005 | ||||
| 90386-12038 | ||||
| 90467-07215 | ||||
| 90467-10161 | ||||
| 91551-80612 | ||||
| 91551-80816 | ||||
| 91552-11025 | ||||
| 91553-01225 | ||||
| 91553-80830 | ||||
| Linked diagrams | ||||
| 7152 | ||||

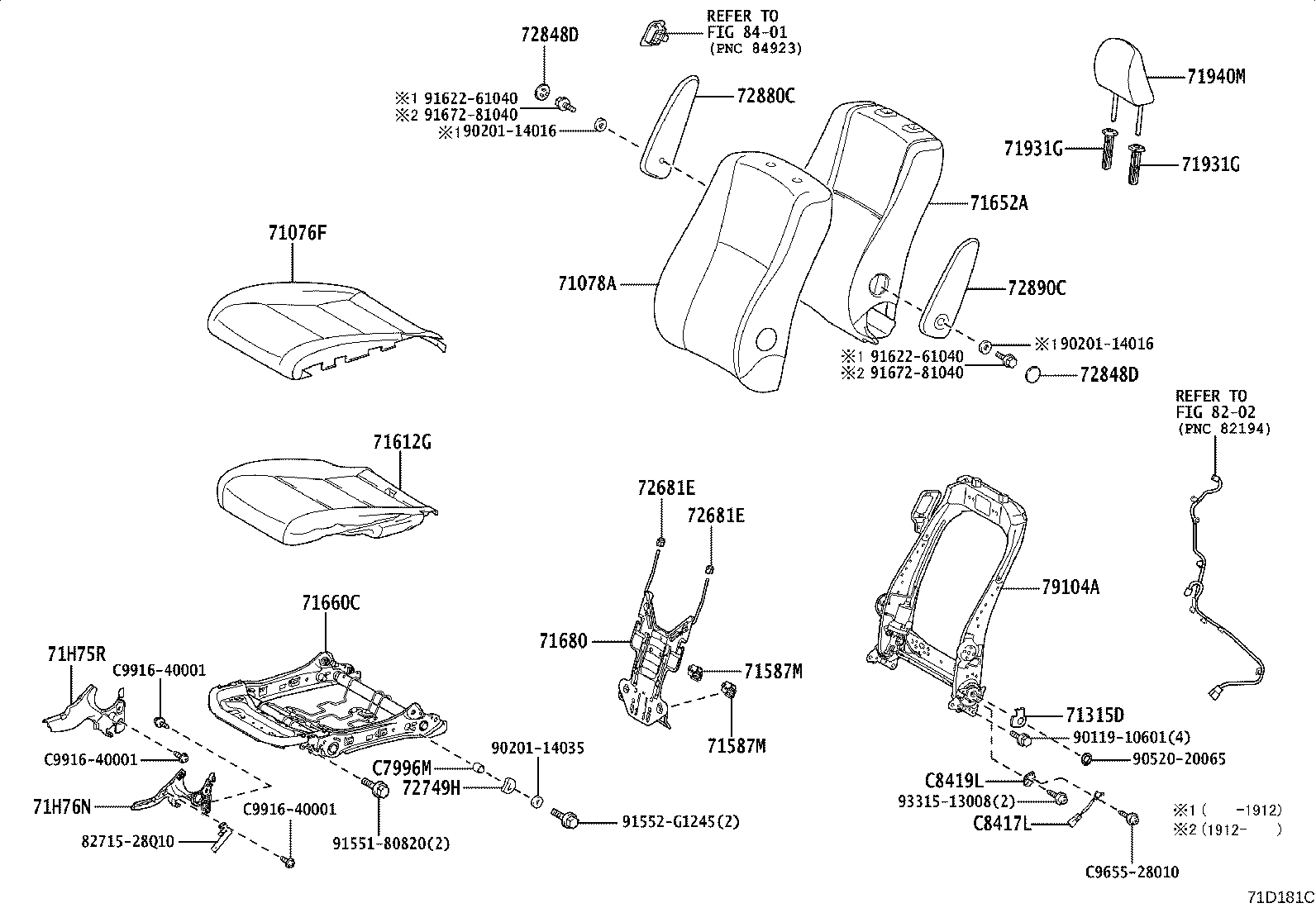

ILLUST NO. 1 OF 5(1710- )
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟﾁﾙﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
ZRR8#,ZWR80..07S..G ﾛｯｸ付,BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-44020C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
ZRR8#,ZWR80..07S..G ﾛｯｸ無,BLACK,TRIM0#,2# |
2 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
ZRR8#,ZWR80..07S..G ﾛｯｸ付,BLACK,TRIM0#,2# |
2 | ||
| 71931-47010C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-44020C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
ZRR8#,ZWR80..07S..G ﾛｯｸ無,BLACK,TRIM0#,2# |
2 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-28J70C0 |
ZRR8#,ZWR80..07S..XI..CBU BLACK,TRIM2# |
2 | ||
| 71940-28K60C0 |
ZRR8#,ZWR80..07S..(G,V) BLACK,TRIM2# |
2 | ||
| 71940-28K60E0 |
ZRR8#,ZWR80..07S..G DARKBROWN,TRIM0# |
2 | ||
| 71940-28L00C1 |
ZRR8#,ZWR80..07S..XI..CBU BLACK,TRIM2# |
2 | ||
| 71940-28F20C0 |
ZRR8#,ZWR80..07S..X..CBU BLACK,TRIM2# |
2 | ||
| 71940-28K90E1 |
ZRR8#,ZWR80..07S..G DARKBROWN,TRIM0# |
2 | ||
| 71940-28K90C1 |
ZRR8#,ZWR80..07S..(G,V) BLACK,TRIM2# |
2 | ||
| 72848D - CAP, NO.1 SEAT ARMREST, NO.1 LH | ||||
| 72848-28030C0 |
ZRR8#,ZWR80..07S..G BLACK,TRIM0#,2# |
2 | ||
| 72848-28030C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU BLACK,TRIM2# |
2 | ||
| 72848D - CAP, NO.1 SEAT ARMREST, NO.1 LH | ||||
| 72848-28030C0 |
ZRR8#,ZWR80..07S..G BLACK,TRIM0#,2# |
2 | ||
| 72848-28030C0 |
ZRR8#,ZWR80..07S..(SI,V,X,XI,ZS)..CBU BLACK,TRIM2# |
2 | ||
| 72880C - ARMREST ASSY, NO.1 SEAT, C RH(FOR LH SEAT) | ||||
| 72880-28M60E0 |
ZRR8#,ZWR80..07S..G DARKBROWN,TRIM0# |
1 | ||
| 72880-28M20B1 |
ZRR8#,ZWR80..07S..X..CBU DK.GRAY,TRIM2# |
1 | ||
| 72880-28M60C1 |
ZRR8#,ZWR80..07S..(G,V,XI)..CBU BLACK,TRIM2# |
1 | ||
| 72890C - ARMREST ASSY, NO.1 SEAT, C LH(FOR LH SEAT) | ||||
| 72890-28M40B1 |
ZRR8#,ZWR80..07S..X..CBU DK.GRAY,TRIM2# |
1 | ||
| 72890-28M80E0 |
ZRR8#,ZWR80..07S..G DARKBROWN,TRIM0# |
1 | ||
| 72890-28M80C1 |
ZRR8#,ZWR80..07S..(G,V,XI)..CBU BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 82715-28Q10 | ||||
| 90119-10601 | ||||
| 90201-14016 | ||||
| 90201-14035 | ||||
| 90520-20065 | ||||
| 91551-80820 | ||||
| 91552-G1245 | ||||
| 91622-61040 | ||||
| 91672-81040 | ||||
| 93315-13008 | ||||
| C9655-28010 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

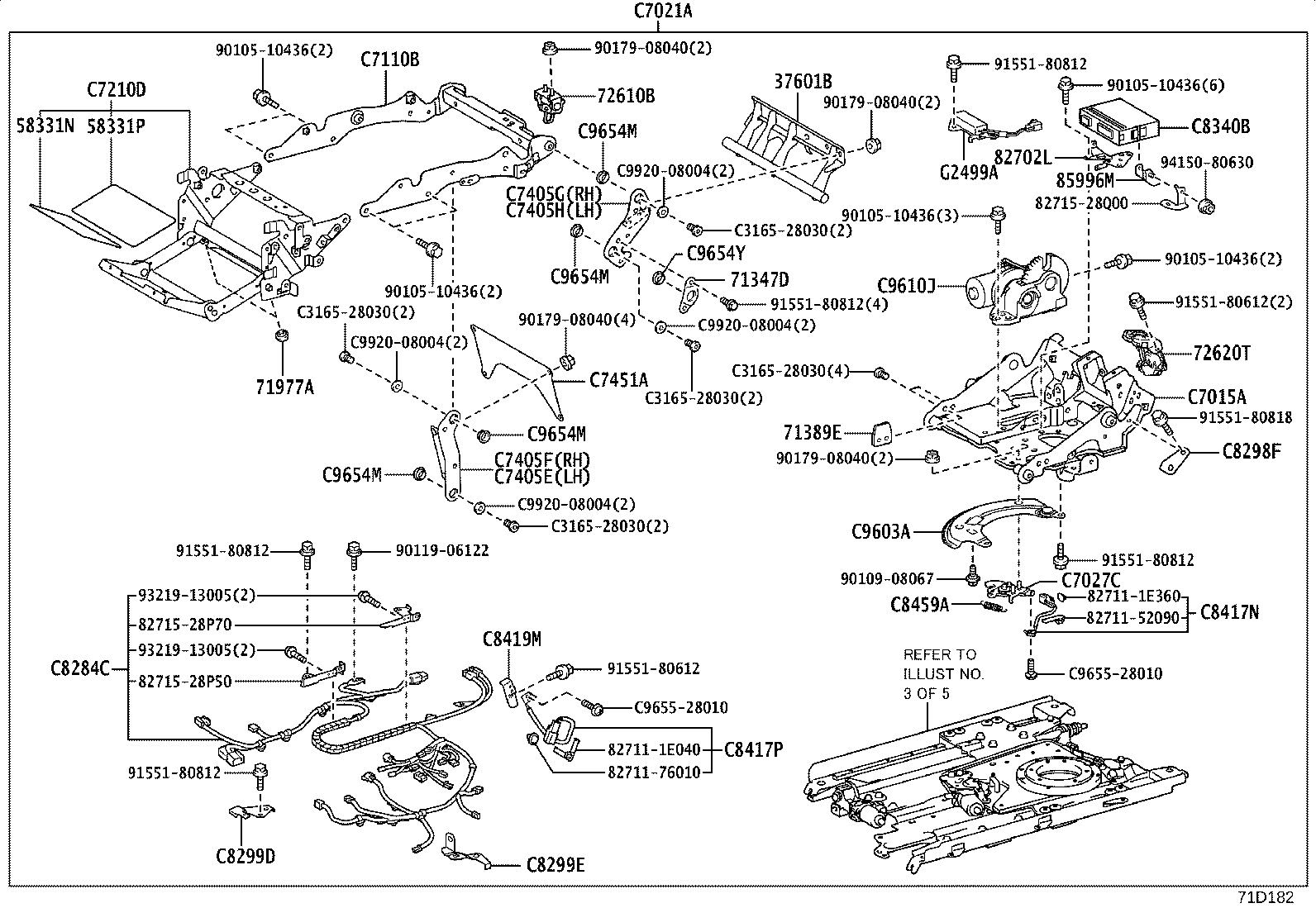

ILLUST NO. 2 OF 5(1710- )
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟﾁﾙﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E040 | ||||
| 82711-1E360 | ||||
| 82711-52090 | ||||
| 82711-76010 | ||||
| 82715-28P50 | ||||
| 82715-28P70 | ||||
| 82715-28Q00 | ||||
| 90105-10436 | ||||
| 90109-08067 | ||||
| 90119-06122 | ||||
| 90179-08040 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 93219-13005 | ||||
| 94150-80630 | ||||
| C3165-28030 | ||||
| C9655-28010 | ||||
| C9920-08004 | ||||

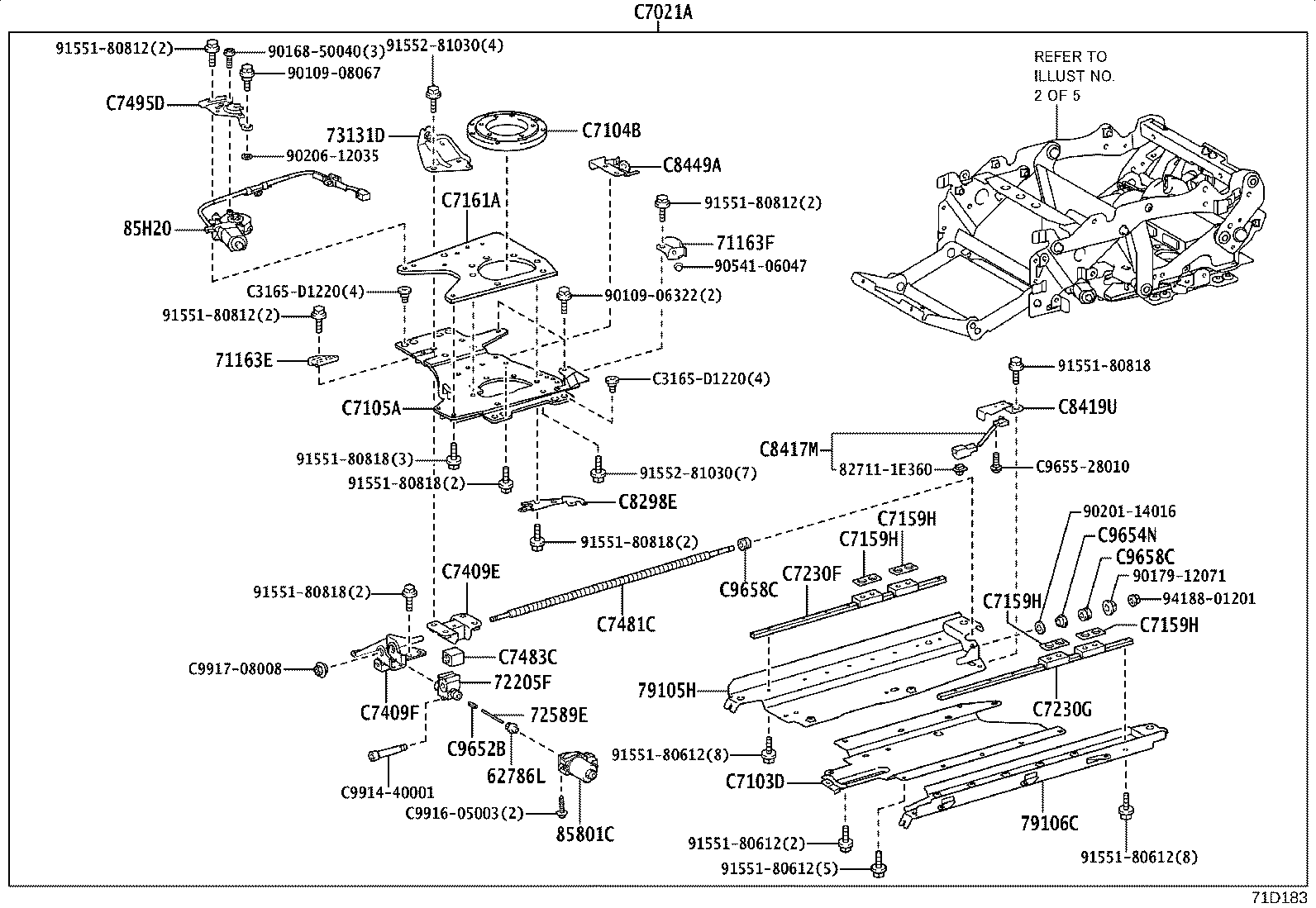

ILLUST NO. 3 OF 5(1710- )
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟﾁﾙﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E360 | ||||
| 90109-06322 | ||||
| 90109-08067 | ||||
| 90168-50040 | ||||
| 90179-12071 | ||||
| 90201-14016 | ||||
| 90206-12035 | ||||
| 90541-06047 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91552-81030 | ||||
| 94188-01201 | ||||
| C3165-D1220 | ||||
| C9655-28010 | ||||
| C9914-40001 | ||||
| C9916-05003 | ||||
| C9917-08008 | ||||

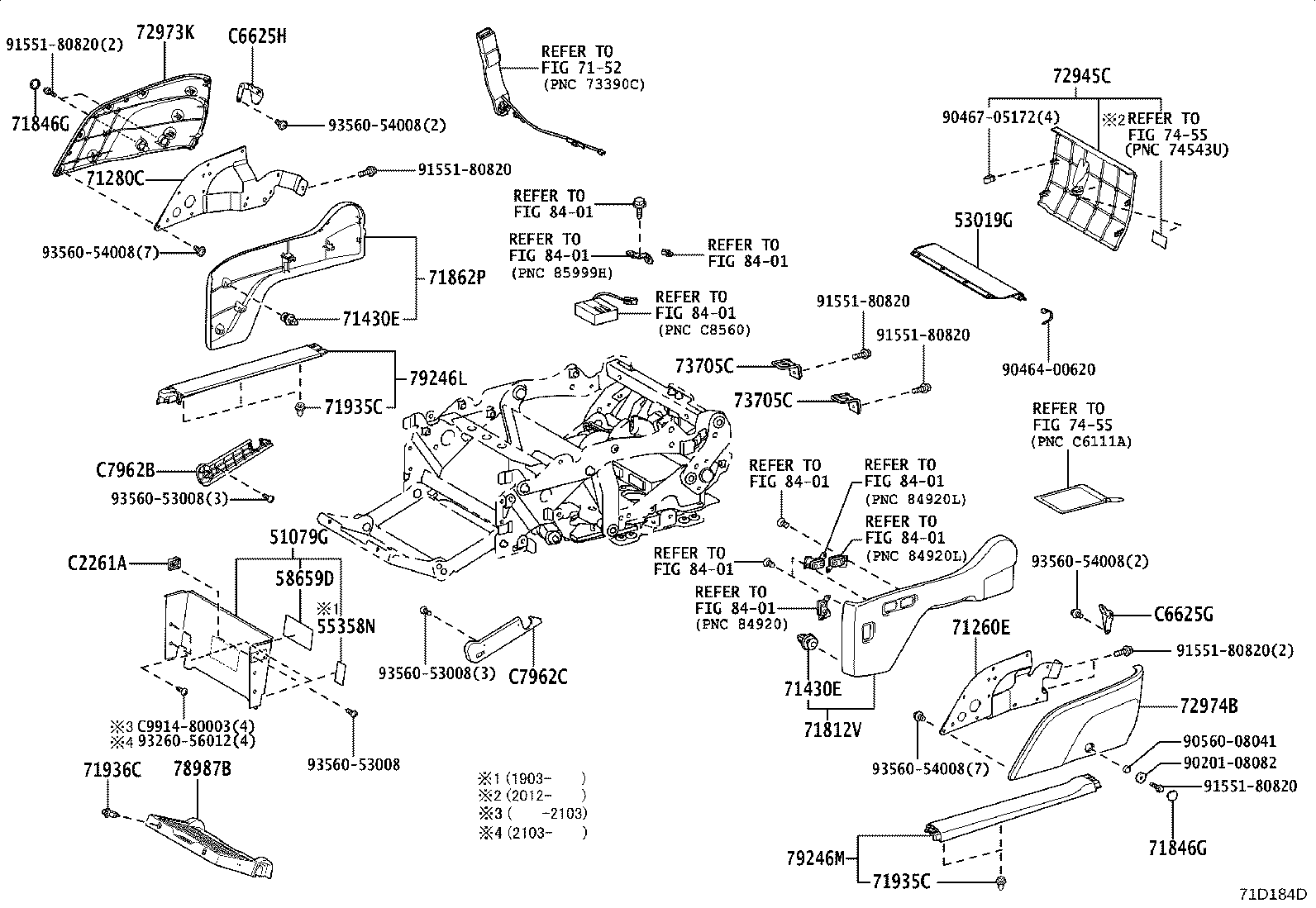

ILLUST NO. 4 OF 5(1710- )
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟﾁﾙﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90201-08082 | ||||
| 90464-00620 | ||||
| 90467-05172 | ||||
| 90560-08041 | ||||
| 91551-80820 | ||||
| 93260-56012 | ||||
| 93560-53008 | ||||
| 93560-54008 | ||||
| C9914-80003 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
| 8401 | ||||

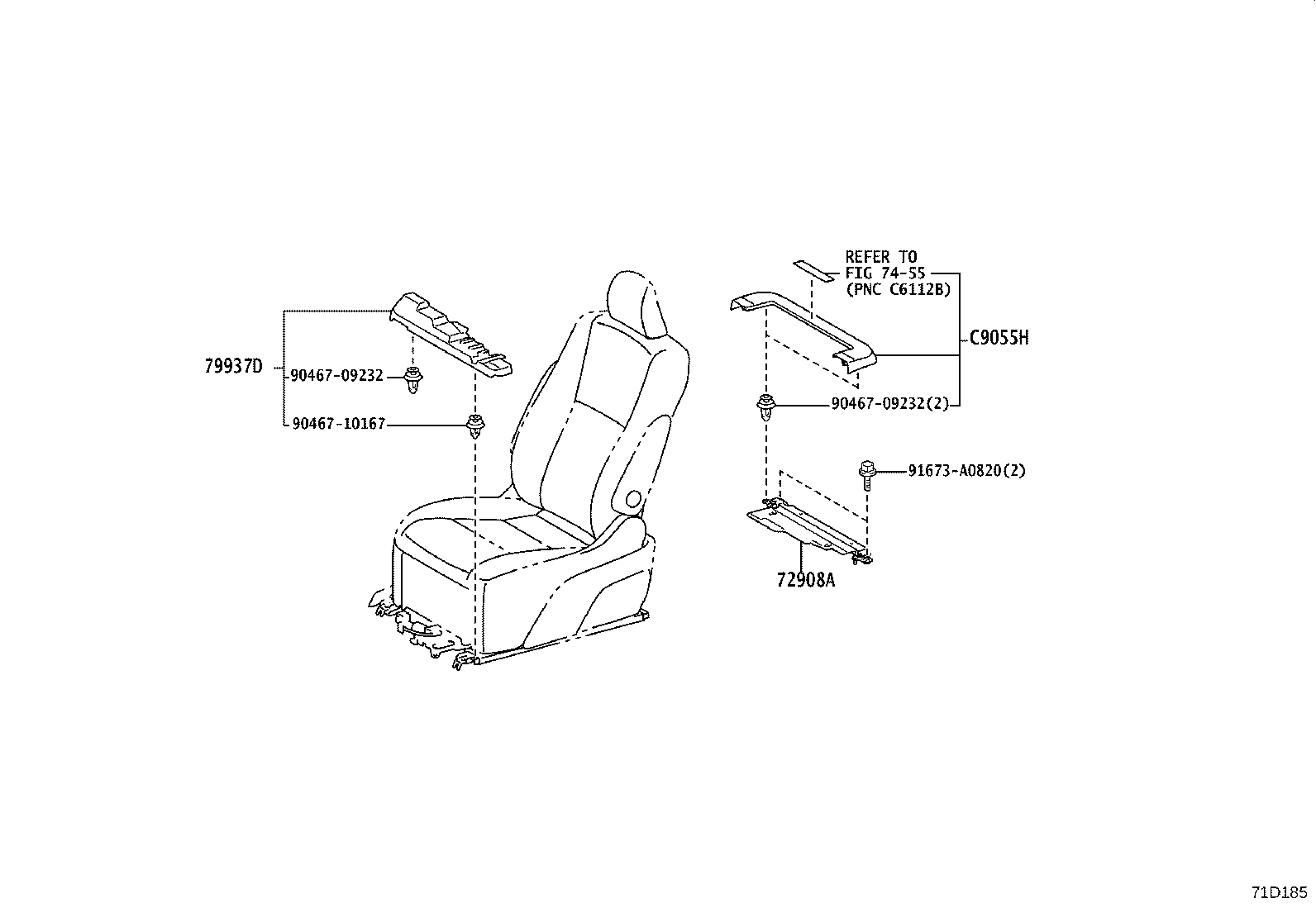

ILLUST NO. 5 OF 5(1710- )
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟﾁﾙﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-09232 | ||||
| 90467-10167 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 7455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
