ZWR80G-CPXEB (2017)

Toyota Noah/Voxy/Esquire

Production Jun 2017 - Apr 2020
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401-1901)

Click highlighted areas on diagram

ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 69503 69503A 69510 69570 89070E 89071B 89072A 8907A 89745A 89751A 89752A 89785B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-28D70

ZRR8#..V;ZWR80..(ESQIR,VOXY)..(V,X,XI)

 1
69005-28D70

ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 1

(1901- )

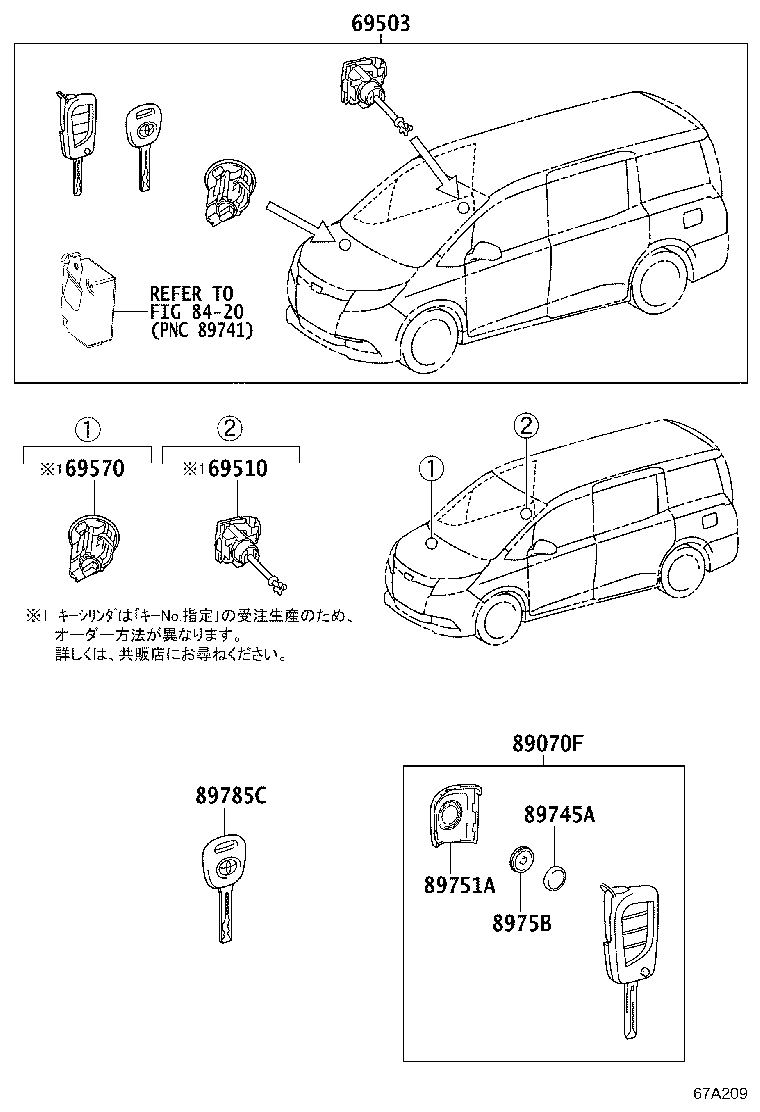

Click highlighted areas on diagram

ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 69503 69510 69570 8420 89070F 89745A 89751A 8975B 89785C
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-28D70

ZRR8#..V;ZWR80..(ESQIR,VOXY)..(V,X,XI)

 1
69005-28D70

ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 1
Linked diagrams
8420
