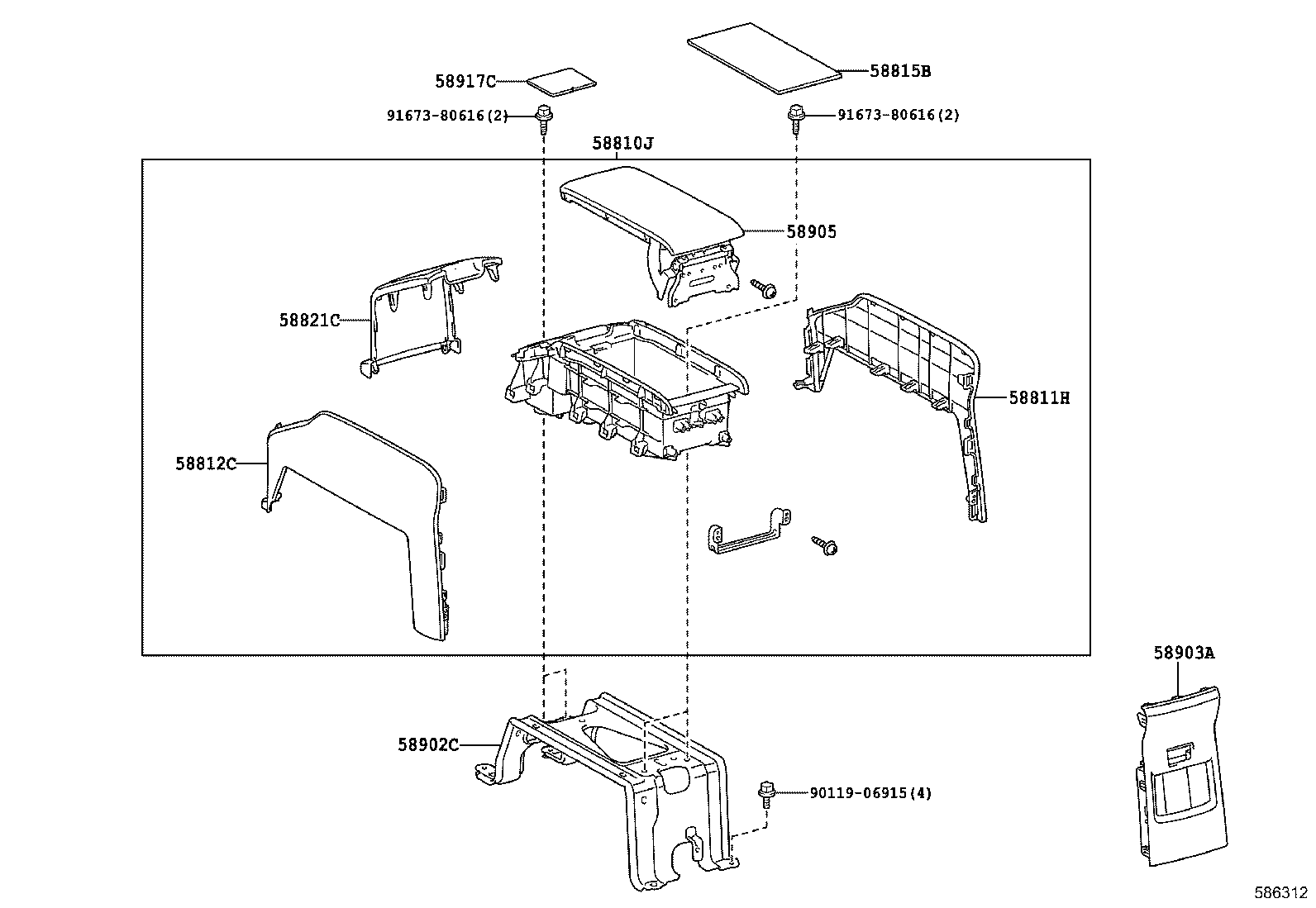

ZWR80G-CPXEB (2017)
Toyota Noah/Voxy/Esquire
(1706- )ZWR80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-28600C0 |
ZWR80..G,SI BLACK,TRIM0#,2# |
1 | ||
| 58810-28610C0 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM00,2# |
1 | ||
| 58810-28610C0 |
ZWR80..GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM2# |
1 | ||
| 58810-28600C0 |
ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| 58810-28610A0 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),FROMAGE,TRIM00 |
1 | ||
| 58811H - BOX, CONSOLE, RH | ||||
| 58811-28250C0 |
ZWR80..GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM2# |
1 | ||
| 58811-28240C0 |
ZWR80..G,SI BLACK,TRIM0#,2# |
1 | ||
| 58811-28250C0 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM0#,2# |
1 | ||
| 58811-28240C0 |
ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| 58812C - BOX, CONSOLE, LH | ||||
| 58812-28050C0 |
ZWR80..GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM2# |
1 | ||
| 58812-28040C0 |
ZWR80..G,SI BLACK,TRIM0#,2# |
1 | ||
| 58812-28040C0 |
ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| 58812-28050C0 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM0#,2# |
1 | ||
| 58815B - CARPET, CONSOLE BOX | ||||
| 58815-28040 |
ZWR80 |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-28070C0 |
ZWR80..G,SI BLACK,TRIM0#,2# |
1 | ||
| 58821-28070C0 |
ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-28060 |
ZWR80..G,GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W) |
1 | ||
| 58902-28050 |
ZWR80 |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-28040 |
ZWR80..G,GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W) |
1 | ||
| 58903-28020 |
ZWR80;ZRR8#..GI |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-28070C0 |
ZWR80..G,SI BLACK,TRIM0#,2# |
1 | ||
| 58905-28070C0 |
ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| 58905-28080A0 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),FROMAGE,TRIM00 |
1 | ||
| 58905-28080C0 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM00,2# |
1 | ||
| 58905-28080C0 |
ZWR80..GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM2# |
1 | ||
| 58917C - MAT, BOX BOTTOM, NO.2 | ||||
| 58917-28010 |
ZWR80;ZRR8#..GI |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91673-80616 | ||||

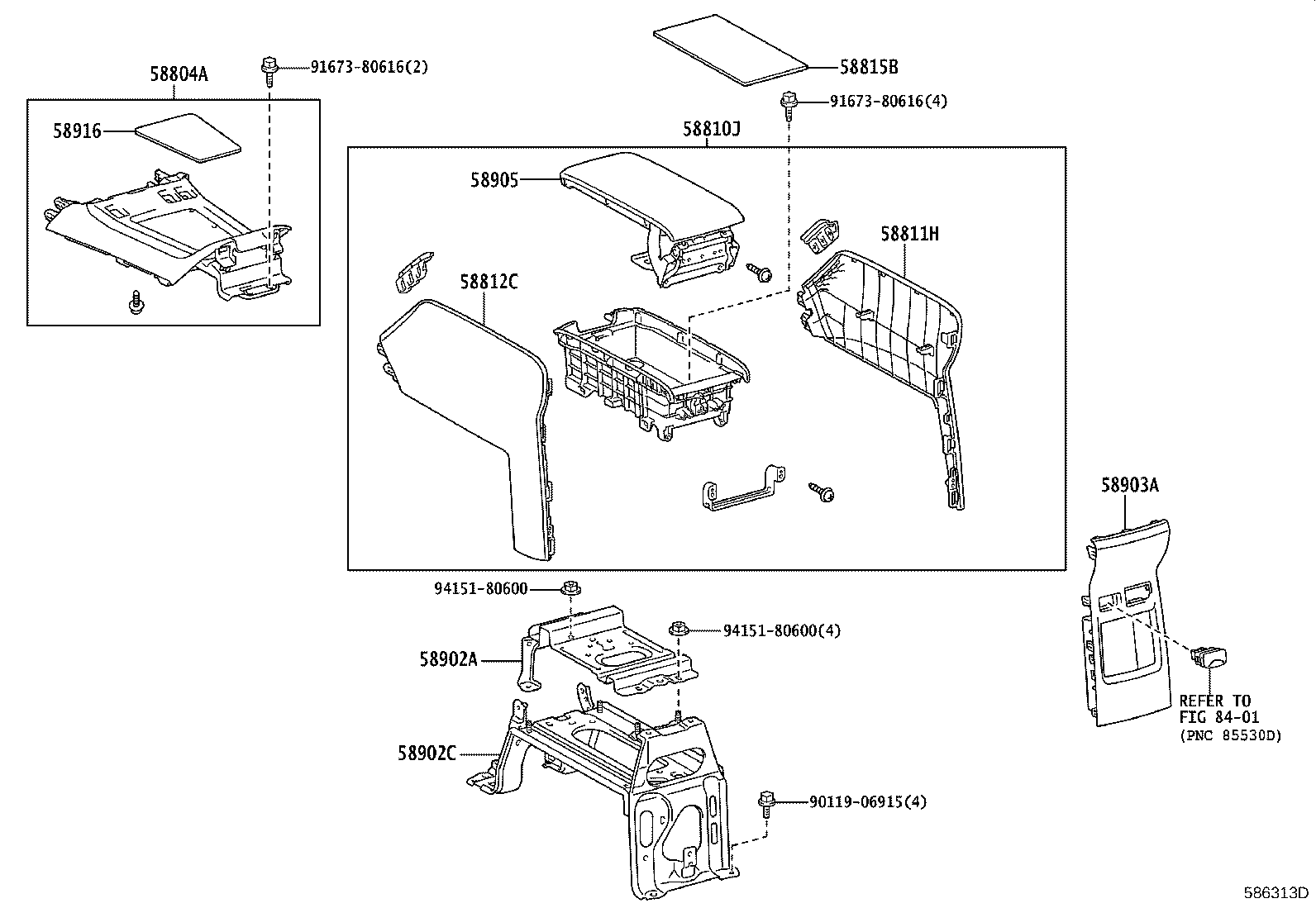

(1706- )ZWR80..G,GI,V,X,XI
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙｲｯﾀｲｶﾞﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-28080C0 |
ZWR80..(ESQIR,NOAH)..(G,GI,X) ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM2# |
1 | ||
| 58804-28080A0 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),FROMAGE,TRIM0# |
1 | ||
| 58804-28080C0 |
ZWR80..(ESQIR,VOXY)..(V,X,XI) ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM2# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-28600C0 |
ZWR80..G,SI BLACK,TRIM0#,2# |
1 | ||
| 58810-28610C0 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM00,2# |
1 | ||
| 58810-28610C0 |
ZWR80..GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM2# |
1 | ||
| 58810-28600C0 |
ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| 58810-28610A0 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),FROMAGE,TRIM00 |
1 | ||
| 58811H - BOX, CONSOLE, RH | ||||
| 58811-28250C0 |
ZWR80..GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM2# |
1 | ||
| 58811-28240C0 |
ZWR80..G,SI BLACK,TRIM0#,2# |
1 | ||
| 58811-28250C0 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM0#,2# |
1 | ||
| 58811-28240C0 |
ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| 58812C - BOX, CONSOLE, LH | ||||
| 58812-28050C0 |
ZWR80..GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM2# |
1 | ||
| 58812-28040C0 |
ZWR80..G,SI BLACK,TRIM0#,2# |
1 | ||
| 58812-28040C0 |
ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| 58812-28050C0 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM0#,2# |
1 | ||
| 58815B - CARPET, CONSOLE BOX | ||||
| 58815-28040 |
ZWR80 |
1 | ||
| 58902A - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58902-28070 |
ZWR80..(ESQIR,VOXY)..(V,X,XI) ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W) |
1 | ||
| 58902-28070 |
ZWR80..(ESQIR,NOAH)..(G,GI,X) ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W) |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-28060 |
ZWR80..G,GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W) |
1 | ||
| 58902-28050 |
ZWR80 |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-28040 |
ZWR80..G,GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W) |
1 | ||
| 58903-28020 |
ZWR80;ZRR8#..GI |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-28070C0 |
ZWR80..G,SI BLACK,TRIM0#,2# |
1 | ||
| 58905-28070C0 |
ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| 58905-28080A0 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),FROMAGE,TRIM00 |
1 | ||
| 58905-28080C0 |
ZWR80..G ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM00,2# |
1 | ||
| 58905-28080C0 |
ZWR80..GI,V,X,XI ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W),BLACK,TRIM2# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-28010 |
ZWR80..(ESQIR,VOXY)..(V,X,XI) ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W) |
1 | ||
| 58916-28010 |
ZWR80..(ESQIR,NOAH)..(G,GI,X) ｱｸｾｻﾘｺﾈｸﾀ−DC12V & USB(4個) & AC100V(1500W) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
