Toyota Noah/voxy/esquire ZWR80 RADIATOR GRILLE

Part #	Description	Period	Qty
52161R - PIECE, FRONT BUMPER
52161-16010	ZRR8#,ZWR80	06/2017 - 12/2999	4
53101 - GRILLE SUB-ASSY, RADIATOR
53101-28630	ZRR8#,ZWR80..ESQIR	06/2017 - 01/2019	1
53101-28690	ZRR8#,ZWR80..ESQIR	01/2019 - 12/2999	1
53121B - MOULDING, RADIATOR GRILLE, UPPER
53121-28220	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53121C - PLATE, RADIATOR GRILLE FINISH, RH
53121-28230	ZRR8#,ZWR80..(G,SI)..CBU	01/2019 - 12/2999	1
53121-28300	ZRR8#,ZWR80..XI NO.2	01/2019 - 04/2020	1
53121-28270	ZRR8#,ZWR80..XI..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),NO.1	01/2019 - 04/2020	1
53121-28280	ZRR8#,ZWR80..XI NO.1	01/2019 - 04/2020	1
53121-28290	ZRR8#,ZWR80..XI..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),NO.2	01/2019 - 04/2020	1
53121C - PLATE, RADIATOR GRILLE FINISH, RH
53121-28230	ZRR8#,ZWR80..(G,SI)..CBU	01/2019 - 12/2999	1
53121-28300	ZRR8#,ZWR80..XI NO.2	01/2019 - 04/2020	1
53121-28270	ZRR8#,ZWR80..XI..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),NO.1	01/2019 - 04/2020	1
53121-28280	ZRR8#,ZWR80..XI NO.1	01/2019 - 04/2020	1
53121-28290	ZRR8#,ZWR80..XI..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),NO.2	01/2019 - 04/2020	1
53122C - PLATE, RADIATOR GRILLE FINISH, LH
53122-28100	ZRR8#,ZWR80..XI..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),NO.1	01/2019 - 04/2020	1
53122-28120	ZRR8#,ZWR80..XI..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),NO.2	01/2019 - 04/2020	1
53122-28130	ZRR8#,ZWR80..XI NO.2	01/2019 - 04/2020	1
53122-28110	ZRR8#,ZWR80..XI NO.1	01/2019 - 04/2020	1
53122-28060	ZRR8#,ZWR80..(G,SI)..CBU	01/2019 - 12/2999	1
53122C - PLATE, RADIATOR GRILLE FINISH, LH
53122-28100	ZRR8#,ZWR80..XI..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),NO.1	01/2019 - 04/2020	1
53122-28120	ZRR8#,ZWR80..XI..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),NO.2	01/2019 - 04/2020	1
53122-28130	ZRR8#,ZWR80..XI NO.2	01/2019 - 04/2020	1
53122-28110	ZRR8#,ZWR80..XI NO.1	01/2019 - 04/2020	1
53122-28060	ZRR8#,ZWR80..(G,SI)..CBU	01/2019 - 12/2999	1
53123B - MOULDING, RADIATOR GRILLE SIDE, RH
52712-28120	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53124B - MOULDING, RADIATOR GRILLE SIDE, LH
52713-28120	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53125E - MOULDING, RADIATOR GRILLE, NO.1 RH
53125-28110	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53125F - MOULDING, RADIATOR GRILLE, NO.2 RH
53125-28120	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53125G - MOULDING, RADIATOR GRILLE, NO.3 RH
53125-28130	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53125H - MOULDING, RADIATOR GRILLE, NO.4 RH
53125-28140	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53125J - MOULDING, RADIATOR GRILLE, NO.5 RH
53125-28150	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53125K - MOULDING, RADIATOR GRILLE, NO.6 RH
53125-28160	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53125L - MOULDING, RADIATOR GRILLE, NO.7 RH
53125-28170	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53126D - MOULDING, RADIATOR GRILLE, NO.1 LH
53126-28110	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53126E - MOULDING, RADIATOR GRILLE, NO.2 LH
53126-28120	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53126F - MOULDING, RADIATOR GRILLE, NO.3 LH
53126-28130	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53126G - MOULDING, RADIATOR GRILLE, NO.4 LH
53126-28140	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53126H - MOULDING, RADIATOR GRILLE, NO.5 LH
53126-28150	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53126J - MOULDING, RADIATOR GRILLE, NO.6 LH
53126-28160	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
53126K - MOULDING, RADIATOR GRILLE, NO.7 LH
53126-28170	ZRR8#,ZWR80..XI	06/2017 - 04/2020	1
Common parts
90167-40057
90167-50063
90179-06127
90179-06349
90467-05172
90467-10203

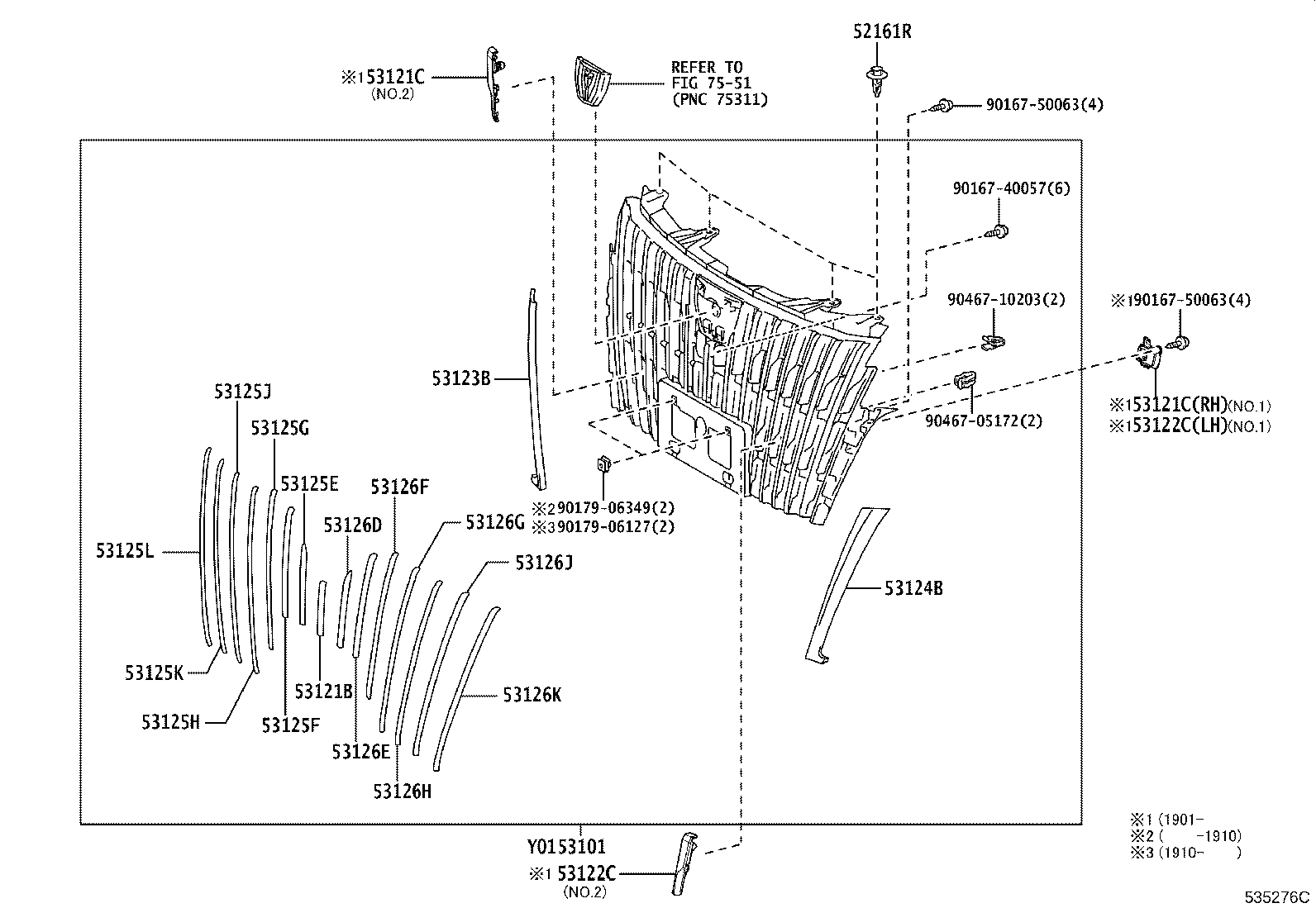

Linked diagrams
7551

ZWR80G-CPXEB (2017)

(1706- )ESQIR
