ZWR80G-BPXGB (2014)

Toyota Noah/Voxy/Esquire

Production Feb 2014 - Jun 2017
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1402- )ZWR80

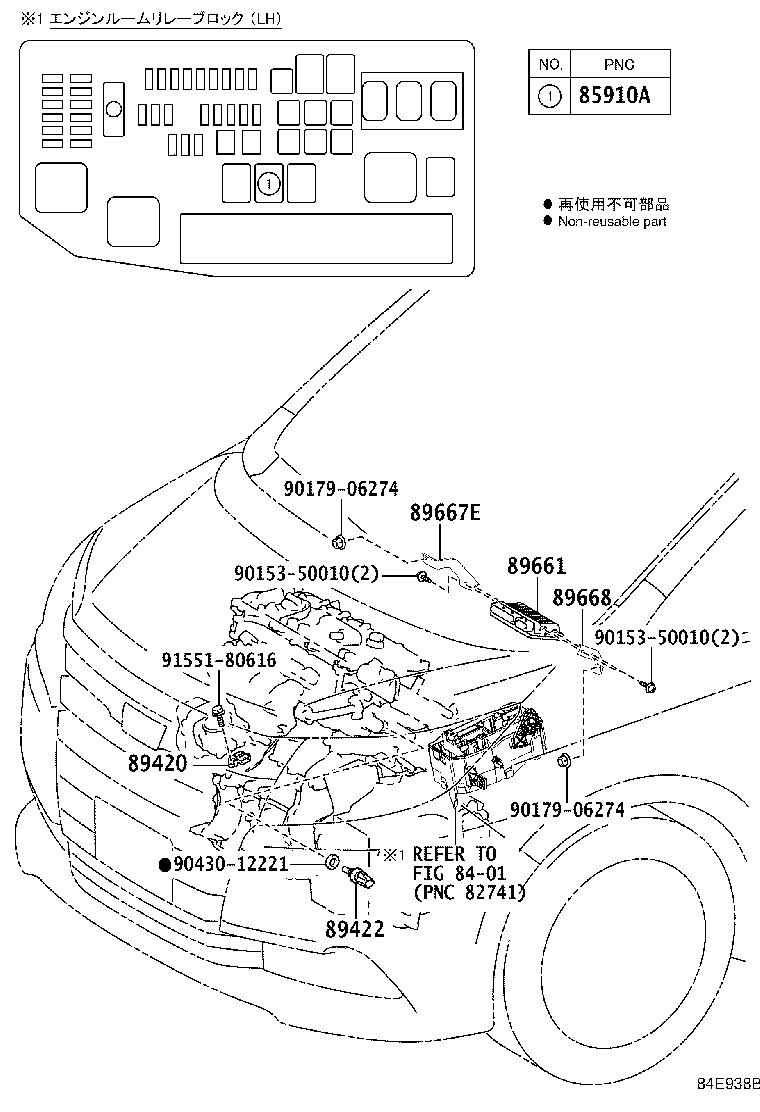

Click highlighted areas on diagram

diagram 8401 85910A 89420 89422 89661 89667E 89668 9015350010 9015350010 9017906274 9017906274 9043012221 9155180616
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02024

ZWR80

MARK 90987−02024

 1
90987-02027

ZWR80

MARK 90987−02027

 1
89420 - SENSOR ASSY, VACUUM
89421-47010

ZWR80

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ZRR8#,ZWR80

 1
89661 - COMPUTER, ENGINE CONTROL
89661-28F30

ZWR80

FUJITSU TEN

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-28160

ZRR8#,ZWR80

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-28160

ZRR8#,ZWR80

 1
Common parts
90153-50010
90179-06274
90430-12221
91551-80616
Linked diagrams
8401
