ZWR80G-BPXGB (2014)

Toyota Noah/Voxy/Esquire

Production Feb 2014 - Jun 2017
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1402- )ZWR80

Click highlighted areas on diagram

12V ﾊﾞｯﾃﾘ

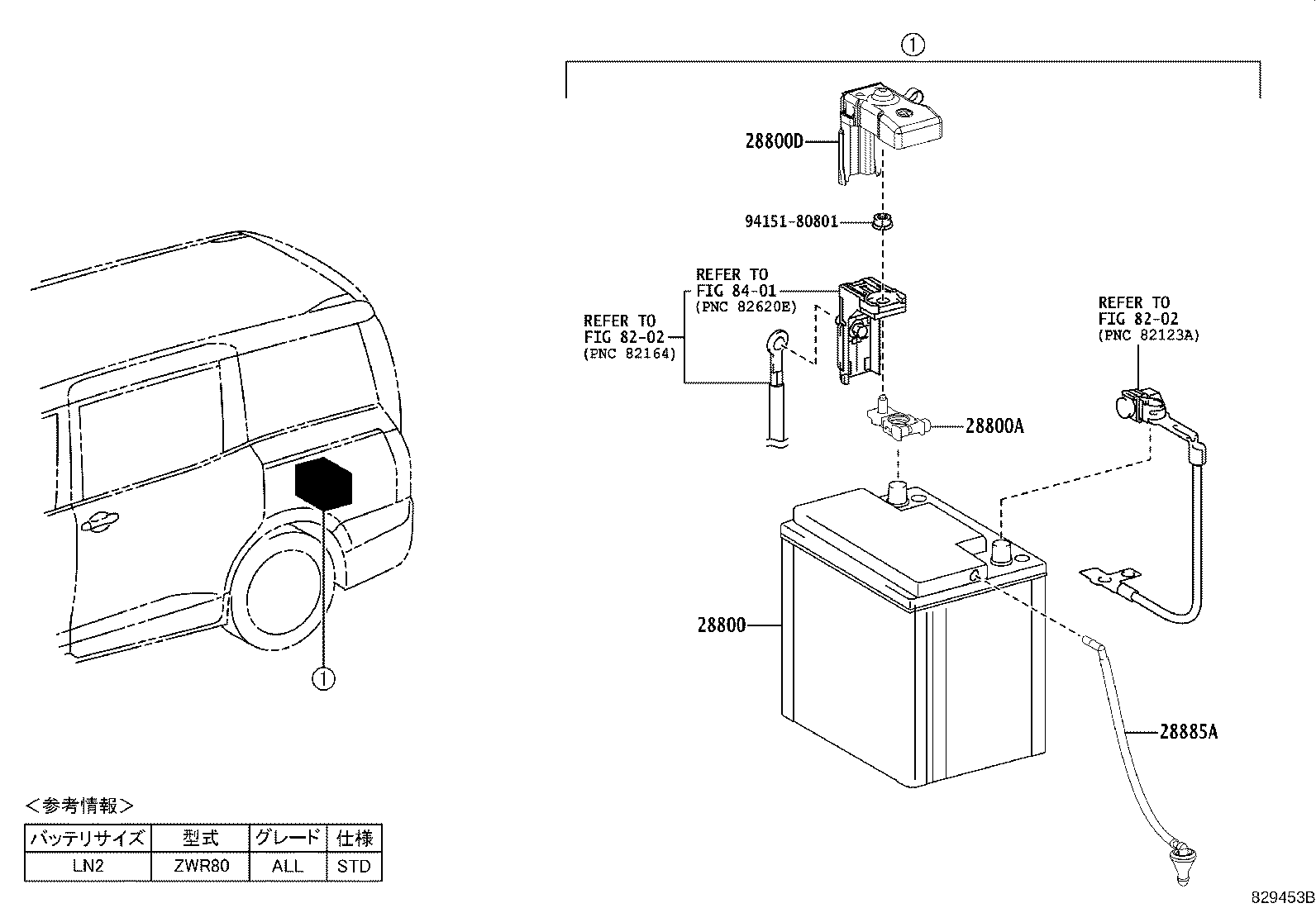

diagram 28800 28800A 28800D 28885A 8202 8202 8401 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-37110

2ZRFXE..ZWR80

LN2

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05056

2ZRFXE..ZWR80

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-28260

2ZRFXE..ZWR80

 1
28885A - HOSE, BATTERY ROOM VENTILATION
28885-37080

2ZRFXE..ZWR80

 1
Common parts
94151-80801
Linked diagrams
8202
8401

ILLUST NO. 2 OF 3(1402- )ZWR80

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 8715 9011906706 9017906319 9046707214 9046707214 9046707214 9046707214 G9230 G9295B G9295C G92D1 G92E1 G92EC G92F2 G92F3
Part # Description Qty Price
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-28030

ZWR80

 1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020

ZWR80

 2
G9295C - STRIKER, BATTERY COVER LOCK, NO.2
G9295-30020

ZWR80

 1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92D1-28010

ZWR80

 1
G92E1 - DUCT, HV BATTERY COVER INTAKE, NO.1
G92E1-28010

ZWR80

 1
G92EC - FILTER, EV BATTERY AIR CLEANER
G92EC-28010

ZWR80

 1
G92F2 - DUCT, HYBRID BATTERY EXHAUST, NO.2
G92F2-28020

ZWR80

 1
G92F3 - DUCT, HYBRID BATTERY EXHAUST, NO.3
G92F3-28010

ZWR80

 1
Common parts
90119-06706
90179-06319
90467-07214
Linked diagrams
8715

ILLUST NO. 3 OF 3(1402- )ZWR80

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

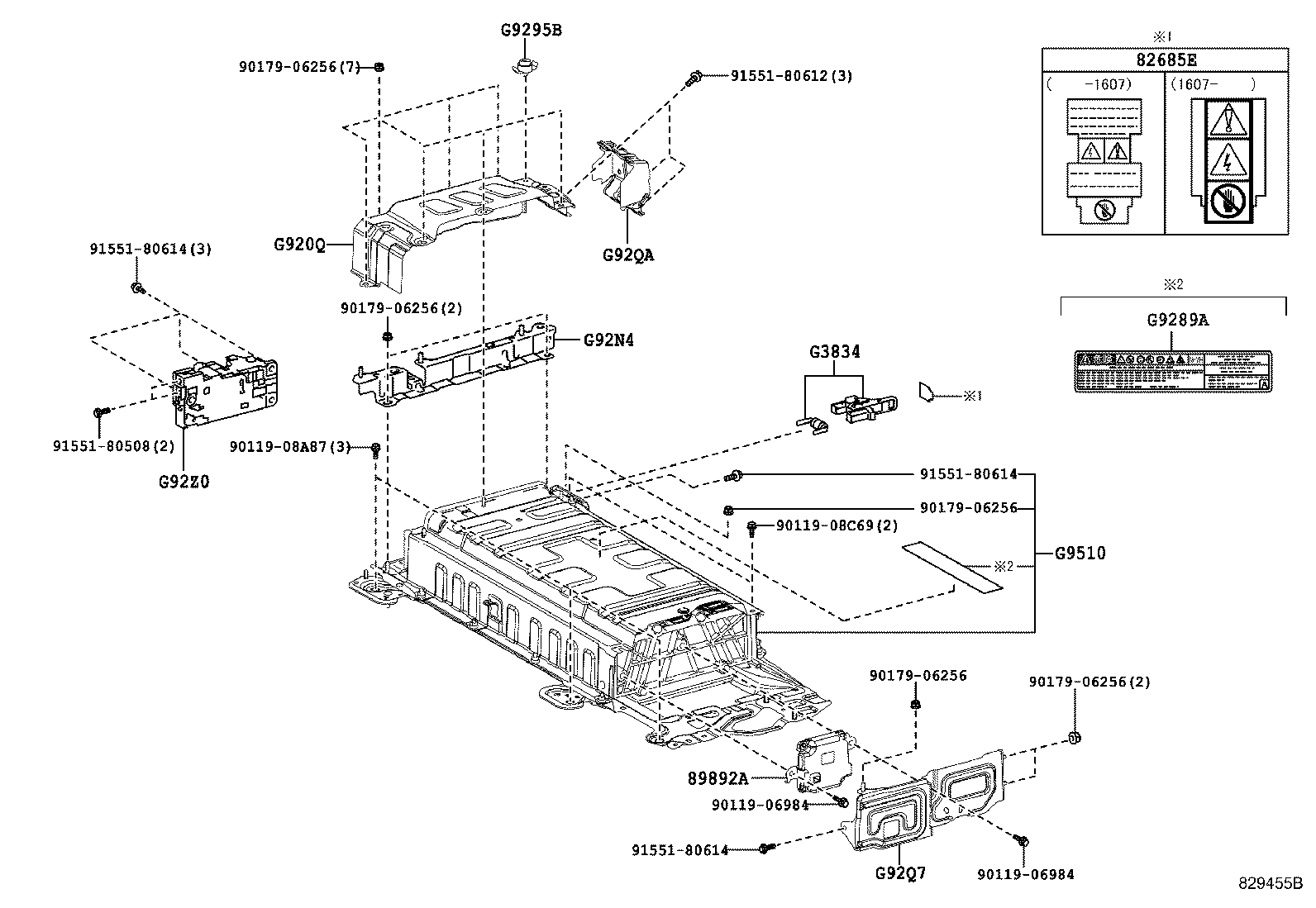

diagram 82685E 89892A 9011906984 9011906984 9011908A87 9011908C69 9017906256 9017906256 9017906256 9017906256 9017906256 9155180508 9155180612 9155180614 9155180614 9155180614 G3834 G920Q G9289A G9295B G92N4 G92Q7 G92QA G92Z0 G9510
Part # Description Qty Price
82685E - PLATE, SERVICE PLUG CAUTION
82685-76020

ZWR80

 1
82685-50050

ZWR80

 1
89892A - SENSOR, BATTERY VOLTAGE
89892-12010

ZWR80

 1
G3834 - GRIP, SERVICE PLUG
G3834-48010

ZWR80

 1
G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1
G920Q-28020

ZWR80

 1
G9289A - LABEL, BATTERY CAUTION
G9288-50010

ZWR80

 1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020

ZWR80

 2
G92N4 - BRACKET, HV BATTERY UPPER COVER, NO.2
G92N4-28020

ZWR80

 1
G92Q7 - PANEL, HV BATTERY SHIELD, NO.5
G92Q7-28010

ZWR80

 1
G92QA - PANEL, HV BATTERY SHIELD, NO.8
G92QA-28010

ZWR80

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-33030

ZWR80

 1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-28030

ZWR80

 1
Common parts
90119-06984
90119-08A87
90119-08C69
90179-06256
91551-80508
91551-80612
91551-80614
