ZWR80G-BPXEB (2014)
Toyota Noah/Voxy/Esquire
Production
Feb 2014
-
Jun 2017
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401-1706)VOXY

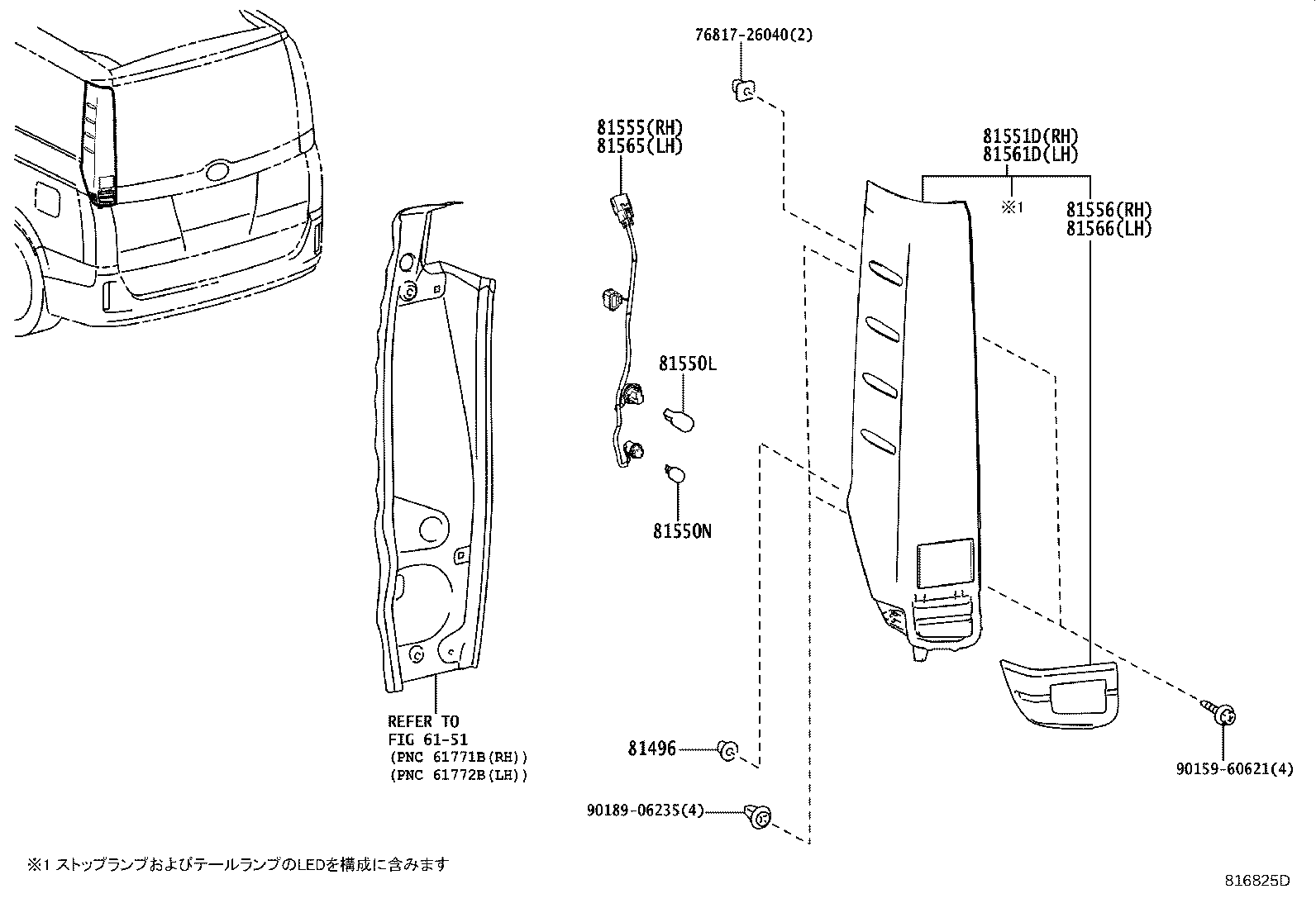

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
ZRR8#,ZWR80 |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
ZRR8#,ZWR80 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
ZRR8#,ZWR80 12V 16W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-28560 |
ZRR8#,ZWR80..VOXY |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-28560 |
ZRR8#,ZWR80..VOXY |
1 | ||
| 81556 - RIM, REAR COMBINATION LAMP, RH | ||||
| 81556-28560 |
ZRR8#,ZWR80..VOXY |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-28640 |
ZRR8#,ZWR80..VOXY |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-28560 |
ZRR8#,ZWR80..VOXY |
1 | ||
| 81566 - RIM, REAR COMBINATION LAMP, LH | ||||
| 81566-28640 |
ZRR8#,ZWR80..VOXY |
1 | ||
| Common parts | ||||
| 76817-26040 | ||||
| 90159-60621 | ||||
| 90189-06235 | ||||
| Linked diagrams | ||||
| 6151 | ||||
