ZWR80G-APXGB (2014)

Toyota Noah/Voxy/Esquire

Production Feb 2014 - Jun 2017
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1402- )2ZRFXE

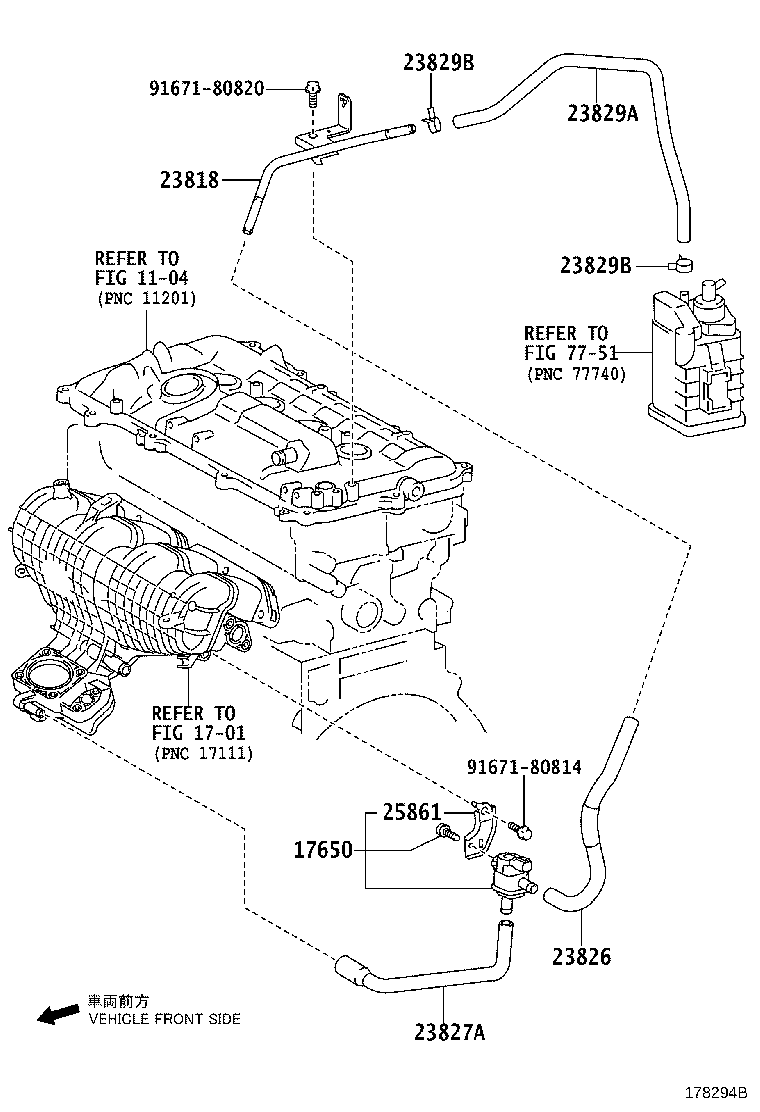

Click highlighted areas on diagram

diagram 1104 1701 17650 23818 23826 23827A 23829A 23829B 23829B 25861 7751 9167180814 9167180820
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
25860-37040

2ZRFXE..ZWR80

 1
23818 - PIPE, FUEL VAPOR FEED
23818-37020

2ZRFXE..ZWR80

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-37140

2ZRFXE..ZWR80

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-37050

2ZRFXE..ZWR80

 1
23829A - HOSE, FUEL VAPOR FEED
23826-37170

2ZRFXE..ZWR80

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51100

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51100

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

 2
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-37020

2ZRFXE..ZWR80

 1
Common parts
91671-80814
91671-80820
Linked diagrams
1104
1701
7751
