ZWR80G-APXEB (2017)

Toyota Noah/Voxy/Esquire

Production Jun 2017 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1706- )NOAH,VOXY

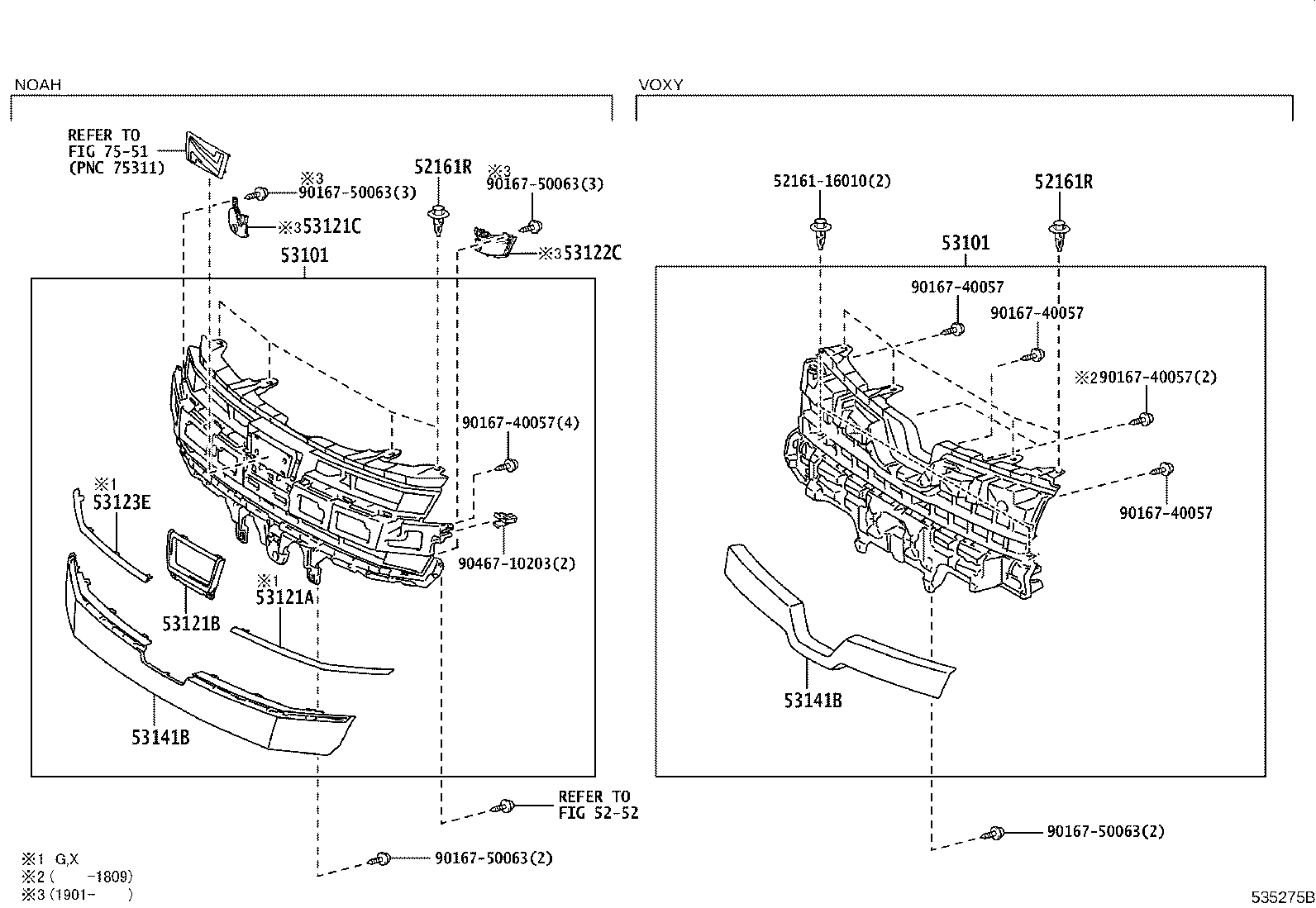

Click highlighted areas on diagram

diagram 5216116010 52161R 52161R 5252 53101 53101 53121A 53121B 53121C 53122C 53123E 53141B 53141B 7551 9016740057 9016740057 9016740057 9016740057 9016740057 9016750063 9016750063 9016750063 9016750063 9046710203
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

ZRR8#,ZWR80

 4
52161R - PIECE, FRONT BUMPER
52161-16010

ZRR8#,ZWR80

 4
53101 - GRILLE SUB-ASSY, RADIATOR
53101-28600B0

ZRR8#,ZWR80..NOAH..(G,X)

SILVER ME.,1F7

 1
53101-28600E0

ZRR8#,ZWR80..NOAH..(G,X)

AVANT-GARDE BRONZE ME.,4V8

 1
53101-28600D0

ZRR8#,ZWR80..NOAH..(G,X)

DEEP RED M.M.,3R9

 1
53101-28600A1

ZRR8#,ZWR80..NOAH..(G,X)

LUXURY WHITE PEARL CS.GF.,086

 1
53101-28600A0

ZRR8#,ZWR80..NOAH..(G,X)

WHITE PEARL CS.,070

 1
53101-28600C0

ZRR8#,ZWR80..NOAH..(G,X)

BLACK,202

 1
53101-28670B0

ZRR8#,ZWR80..NOAH..(G,X)

SILVER ME.,1F7

 1
53101-28670A0

ZRR8#,ZWR80..NOAH..(G,X)

WHITE PEARL CS.,070

 1
53101-28670C0

ZRR8#,ZWR80..NOAH..(G,X)

BLACK,202

 1
53101-28670E0

ZRR8#,ZWR80..NOAH..(G,X)

AVANT-GARDE BRONZE ME.,4V8

 1
53101-28670A1

ZRR8#,ZWR80..NOAH..(G,X)

LUXURY WHITE PEARL CS.GF.,086

 1
53101-28670D0

ZRR8#,ZWR80..NOAH..(G,X)

DEEP RED M.M.,3R9

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-28600B0

ZRR8#,ZWR80..NOAH..(G,X)

SILVER ME.,1F7

 1
53101-28600E0

ZRR8#,ZWR80..NOAH..(G,X)

AVANT-GARDE BRONZE ME.,4V8

 1
53101-28600D0

ZRR8#,ZWR80..NOAH..(G,X)

DEEP RED M.M.,3R9

 1
53101-28600A1

ZRR8#,ZWR80..NOAH..(G,X)

LUXURY WHITE PEARL CS.GF.,086

 1
53101-28600A0

ZRR8#,ZWR80..NOAH..(G,X)

WHITE PEARL CS.,070

 1
53101-28600C0

ZRR8#,ZWR80..NOAH..(G,X)

BLACK,202

 1
53101-28670B0

ZRR8#,ZWR80..NOAH..(G,X)

SILVER ME.,1F7

 1
53101-28670A0

ZRR8#,ZWR80..NOAH..(G,X)

WHITE PEARL CS.,070

 1
53101-28670C0

ZRR8#,ZWR80..NOAH..(G,X)

BLACK,202

 1
53101-28670E0

ZRR8#,ZWR80..NOAH..(G,X)

AVANT-GARDE BRONZE ME.,4V8

 1
53101-28670A1

ZRR8#,ZWR80..NOAH..(G,X)

LUXURY WHITE PEARL CS.GF.,086

 1
53101-28670D0

ZRR8#,ZWR80..NOAH..(G,X)

DEEP RED M.M.,3R9

 1
53121A - MOULDING, RADIATOR GRILLE
53123-28140

ZRR8#,ZWR80..NOAH..(G,X)

 1
53121B - MOULDING, RADIATOR GRILLE, UPPER
53121-28210

ZRR8#,ZWR80..NOAH

 1
53121C - PLATE, RADIATOR GRILLE FINISH, RH
53121-28230

ZRR8#,ZWR80..(G,SI)..CBU

 1
53121-28240

ZRR85..NOAH..X;ZRR80..NOAH..IV5;ZRR80,ZWR80..NOAH..X..CBU

 1
53121-28230

ZRR8#,ZWR80..NOAH..X..CBU

ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ)

 1
53122C - PLATE, RADIATOR GRILLE FINISH, LH
53122-28070

ZRR85..NOAH..X;ZRR80..NOAH..IV5;ZRR80,ZWR80..NOAH..X..CBU

 1
53122-28060

ZRR8#,ZWR80..(G,SI)..CBU

 1
53122-28060

ZRR8#,ZWR80..NOAH..X..CBU

ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ)

 1
53123E - MOULDING, RADIATOR GRILLE, LOWER RH
53122-28040

ZRR8#,ZWR80..NOAH..(G,X)

 1
53141B - GARNISH, RADIATOR GRILLE, NO.1
53141-28060B0

ZRR8#,ZWR80..NOAH..(G,X)

SILVER ME.,1F7

 1
53141-28060A1

ZRR8#,ZWR80..NOAH..(G,X)

LUXURY WHITE PEARL CS.GF.,086

 1
53141-28060D0

ZRR8#,ZWR80..NOAH..(G,X)

DEEP RED M.M.,3R9

 1
53141-28060E0

ZRR8#,ZWR80..NOAH..(G,X)

AVANT-GARDE BRONZE ME.,4V8

 1
53141-28060A0

ZRR8#,ZWR80..NOAH..(G,X)

WHITE PEARL CS.,070

 1
53141-28060C0

ZRR8#,ZWR80..NOAH..(G,X)

BLACK,202

 1
53141B - GARNISH, RADIATOR GRILLE, NO.1
53141-28060B0

ZRR8#,ZWR80..NOAH..(G,X)

SILVER ME.,1F7

 1
53141-28060A1

ZRR8#,ZWR80..NOAH..(G,X)

LUXURY WHITE PEARL CS.GF.,086

 1
53141-28060D0

ZRR8#,ZWR80..NOAH..(G,X)

DEEP RED M.M.,3R9

 1
53141-28060E0

ZRR8#,ZWR80..NOAH..(G,X)

AVANT-GARDE BRONZE ME.,4V8

 1
53141-28060A0

ZRR8#,ZWR80..NOAH..(G,X)

WHITE PEARL CS.,070

 1
53141-28060C0

ZRR8#,ZWR80..NOAH..(G,X)

BLACK,202

 1
Common parts
52161-16010
90167-40057
90167-50063
90467-10203
Linked diagrams
5252
7551
