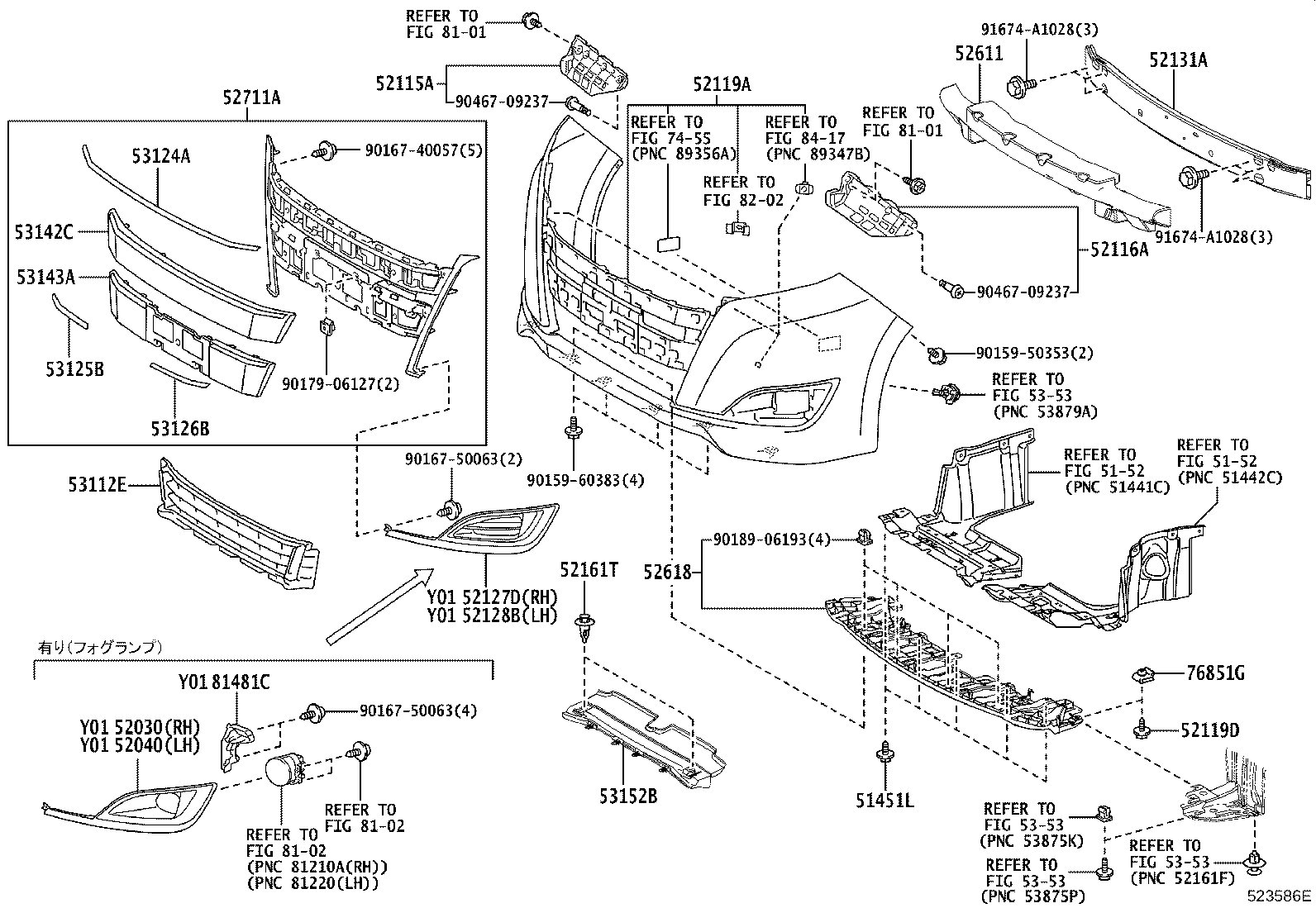

ZWR80G-APXEB (2017)
Toyota Noah/Voxy/Esquire
(1706- )NOAH..G,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-06767 |
ZRR8#,ZWR80 |
5 | ||
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-28130 |
ZRR8#,ZWR80..V |
1 | ||
| 52030-28110 |
ZRR8#,ZWR80..G ﾒｯｷ |
1 | ||
| 52030-28110 |
ZRR8#,ZWR80..NOAH..X..CBU ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有りiﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 52030-28110 |
ZRR8#,ZWR80..NOAH..X ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-28130 |
ZRR8#,ZWR80..V |
1 | ||
| 52040-28110 |
ZRR8#,ZWR80..NOAH..X ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52040-28110 |
ZRR8#,ZWR80..NOAH..X..CBU ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有りiﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 52040-28110 |
ZRR8#,ZWR80..G ﾒｯｷ |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28270 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28270 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28K90A1 |
ZRR8#,ZWR80..G LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-28K90B0 |
ZRR8#,ZWR80..G SILVER ME.,1F7 |
1 | ||
| 52119-28K90C0 |
ZRR8#,ZWR80..G BLACK,202 |
1 | ||
| 52119-28K90A0 |
ZRR8#,ZWR80..G WHITE PEARL CS.,070 |
1 | ||
| 52119-28K90D0 |
ZRR8#,ZWR80..G DEEP RED M.M.,3R9 |
1 | ||
| 52119-28K90E0 |
ZRR8#,ZWR80..G AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 52119-28L10C1 |
ZRR8#,ZWR80..V BLACKISH AGEHA GF.,221 |
1 | ||
| 52119-28L10C0 |
ZRR8#,ZWR80..V BLACK,202 |
1 | ||
| 52119-28L10E0 |
ZRR8#,ZWR80..V AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 52119-28L10B0 |
ZRR8#,ZWR80..V SILVER ME.,1F7 |
1 | ||
| 52119-28L10C2 |
ZRR8#,ZWR80..V INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-28L10A0 |
ZRR8#,ZWR80..V WHITE PEARL CS.,070 |
1 | ||
| 52119-2R912B0 |
ZRR8#,ZWR80..V SILVER ME,1F7 |
1 | ||
| 52119-2R912C0 |
ZRR8#,ZWR80..V BLACK,202 |
1 | ||
| 52119-2R912A0 |
ZRR8#,ZWR80..V WHITE PEARL CS,070 |
1 | ||
| 52119-2R912C2 |
ZRR8#,ZWR80..V INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-2R912C1 |
ZRR8#,ZWR80..V BLACKISH AGEHA GF,221 |
1 | ||
| 52119-28K90E0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI) AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 52119-28K90A1 |
ZRR8#,ZWR80..NOAH..X LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-2R912E0 |
ZRR8#,ZWR80..V AVANT-GARDE BRONZE ME,4V8 |
1 | ||
| 52119-28K90C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI) BLACK,202 |
1 | ||
| 52119-28K90A0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI) WHITE PEARL CS.,070 |
1 | ||
| 52119-28K90D0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI) DEEP RED M.M.,3R9 |
1 | ||
| 52119-2R910A0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),WHITE PEARL CS,070 |
1 | ||
| 52119-28K90B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI) SILVER ME.,1F7 |
1 | ||
| 52119-2R910B0 |
ZRR8#,ZWR80..G,GI SILVER ME,1F7 |
1 | ||
| 52119-2R910A0 |
ZRR8#,ZWR80..G,GI WHITE PEARL CS,070 |
1 | ||
| 52119-2R910C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),BLACK,202 |
1 | ||
| 52119-2R910A1 |
ZRR8#,ZWR80..NOAH..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),LUXURY WHITE PEARL CS GF,086 |
1 | ||
| 52119-2R910B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),SILVER ME,1F7 |
1 | ||
| 52119-2R910A1 |
ZRR8#,ZWR80..G LUXURY WHITE PEARL CS GF,086 |
1 | ||
| 52119-2R910E0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),AVANT-GARDE BRONZE ME,4V8 |
1 | ||
| 52119-2R910D0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),DEEP RED M.M,3R9 |
1 | ||
| 52119-2R910D0 |
ZRR8#,ZWR80..G,GI DEEP RED M.M,3R9 |
1 | ||
| 52119-2R910C0 |
ZRR8#,ZWR80..G,GI BLACK,202 |
1 | ||
| 52119-2R910E0 |
ZRR8#,ZWR80..G,GI AVANT-GARDE BRONZE ME,4V8 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ZRR8#,ZWR80 |
2 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-28560 |
ZRR8#,ZWR80..NOAH..X |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28560 |
ZRR8#,ZWR80..NOAH..X |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-28170 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80..V |
2 | ||
| 52161-16010 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) |
2 | ||
| 52161-16010 |
ZRR8#,ZWR80..V |
4 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28111 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-28030 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 53105-28080A1 |
ZRR8#,ZWR80..NOAH..(G,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 53105-28080E0 |
ZRR8#,ZWR80..NOAH..(G,X) AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 53105-28080C0 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,202 |
1 | ||
| 53105-28080D0 |
ZRR8#,ZWR80..NOAH..(G,X) DEEP RED M.M.,3R9 |
1 | ||
| 53105-28080B0 |
ZRR8#,ZWR80..NOAH..(G,X) SILVER ME.,1F7 |
1 | ||
| 53105-28080A0 |
ZRR8#,ZWR80..NOAH..(G,X) WHITE PEARL CS.,070 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28310 |
ZRR8#,ZWR80..NOAH..(G,X) 塗装不要 |
1 | ||
| 53124A - MOULDING, RADIATOR GRILLE, NO.4 | ||||
| 53124-28140 |
ZRR8#,ZWR80..NOAH..(G,X) |
1 | ||
| 53125B - MOULDING, RADIATOR GRILLE, CENTER RH | ||||
| 53125-28100 |
ZRR8#,ZWR80..NOAH..(G,X) |
1 | ||
| 53126B - MOULDING, RADIATOR GRILLE, CENTER LH | ||||
| 53126-28100 |
ZRR8#,ZWR80..NOAH..(G,X) |
1 | ||
| 53142C - GARNISH, RADIATOR GRILLE, NO.2 | ||||
| 53142-28060A0 |
ZRR8#,ZWR80..NOAH..(G,X) WHITE PEARL CS.,070 |
1 | ||
| 53142-28060A1 |
ZRR8#,ZWR80..NOAH..(G,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 53142-28060B0 |
ZRR8#,ZWR80..NOAH..(G,X) SILVER ME.,1F7 |
1 | ||
| 53142-28060D0 |
ZRR8#,ZWR80..NOAH..(G,X) DEEP RED M.M.,3R9 |
1 | ||
| 53142-28060C0 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,202 |
1 | ||
| 53142-28060E0 |
ZRR8#,ZWR80..NOAH..(G,X) AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 53143A - GARNISH, RADIATOR GRILLE, NO.3 | ||||
| 53143-28010A1 |
ZRR8#,ZWR80..NOAH..(G,X) LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 53143-28010D0 |
ZRR8#,ZWR80..NOAH..(G,X) DEEP RED M.M.,3R9 |
1 | ||
| 53143-28010B0 |
ZRR8#,ZWR80..NOAH..(G,X) SILVER ME.,1F7 |
1 | ||
| 53143-28010A0 |
ZRR8#,ZWR80..NOAH..(G,X) WHITE PEARL CS.,070 |
1 | ||
| 53143-28010C0 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,202 |
1 | ||
| 53143-28010E0 |
ZRR8#,ZWR80..NOAH..(G,X) AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 53152B - GUIDE, RADIATOR GRILLE AIR | ||||
| 53152-28040 |
ZRR8#,ZWR80..G,GI,V,X,XI |
1 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06131 |
ZRR8#,ZWR80 |
2 | ||
| 81481C - BRACKET, FOG LAMP | ||||
| 81481-28470 |
ZRR8#,ZWR80..G,GI,XI 右側 |
1 | ||
| 81481-28470 |
ZRR8#,ZWR80..NOAH..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP),右側 |
1 | ||
| 81481-28470 |
ZRR8#,ZWR80..NOAH..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),右側 |
1 | ||
| 81482-28470 |
ZRR8#,ZWR80..NOAH..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP),左側 |
1 | ||
| 81482-28470 |
ZRR8#,ZWR80..G,GI,XI 左側 |
1 | ||
| 81482-28470 |
ZRR8#,ZWR80..NOAH..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),左側 |
1 | ||
| Common parts | ||||
| 90159-50353 | ||||
| 90159-60383 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90189-06193 | ||||
| 90467-09237 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 7455 | ||||
| 8101 | ||||
| 8102 | ||||
| 8202 | ||||
| 8417 | ||||
(1706- )V,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-06767 |
ZRR8#,ZWR80 |
5 | ||
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-28130 |
ZRR8#,ZWR80..V |
1 | ||
| 52030-28110 |
ZRR8#,ZWR80..G ﾒｯｷ |
1 | ||
| 52030-28110 |
ZRR8#,ZWR80..NOAH..X..CBU ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有りiﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 52030-28110 |
ZRR8#,ZWR80..NOAH..X ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-28130 |
ZRR8#,ZWR80..V |
1 | ||
| 52040-28110 |
ZRR8#,ZWR80..NOAH..X ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52040-28110 |
ZRR8#,ZWR80..NOAH..X..CBU ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有りiﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 52040-28110 |
ZRR8#,ZWR80..G ﾒｯｷ |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28270 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28270 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28K90A1 |
ZRR8#,ZWR80..G LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-28K90B0 |
ZRR8#,ZWR80..G SILVER ME.,1F7 |
1 | ||
| 52119-28K90C0 |
ZRR8#,ZWR80..G BLACK,202 |
1 | ||
| 52119-28K90A0 |
ZRR8#,ZWR80..G WHITE PEARL CS.,070 |
1 | ||
| 52119-28K90D0 |
ZRR8#,ZWR80..G DEEP RED M.M.,3R9 |
1 | ||
| 52119-28K90E0 |
ZRR8#,ZWR80..G AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 52119-28L10C1 |
ZRR8#,ZWR80..V BLACKISH AGEHA GF.,221 |
1 | ||
| 52119-28L10C0 |
ZRR8#,ZWR80..V BLACK,202 |
1 | ||
| 52119-28L10E0 |
ZRR8#,ZWR80..V AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 52119-28L10B0 |
ZRR8#,ZWR80..V SILVER ME.,1F7 |
1 | ||
| 52119-28L10C2 |
ZRR8#,ZWR80..V INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-28L10A0 |
ZRR8#,ZWR80..V WHITE PEARL CS.,070 |
1 | ||
| 52119-2R912B0 |
ZRR8#,ZWR80..V SILVER ME,1F7 |
1 | ||
| 52119-2R912C0 |
ZRR8#,ZWR80..V BLACK,202 |
1 | ||
| 52119-2R912A0 |
ZRR8#,ZWR80..V WHITE PEARL CS,070 |
1 | ||
| 52119-2R912C2 |
ZRR8#,ZWR80..V INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-2R912C1 |
ZRR8#,ZWR80..V BLACKISH AGEHA GF,221 |
1 | ||
| 52119-28K90E0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI) AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 52119-28K90A1 |
ZRR8#,ZWR80..NOAH..X LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-2R912E0 |
ZRR8#,ZWR80..V AVANT-GARDE BRONZE ME,4V8 |
1 | ||
| 52119-28K90C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI) BLACK,202 |
1 | ||
| 52119-28K90A0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI) WHITE PEARL CS.,070 |
1 | ||
| 52119-28K90D0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI) DEEP RED M.M.,3R9 |
1 | ||
| 52119-2R910A0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),WHITE PEARL CS,070 |
1 | ||
| 52119-28K90B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI) SILVER ME.,1F7 |
1 | ||
| 52119-2R910B0 |
ZRR8#,ZWR80..G,GI SILVER ME,1F7 |
1 | ||
| 52119-2R910A0 |
ZRR8#,ZWR80..G,GI WHITE PEARL CS,070 |
1 | ||
| 52119-2R910C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),BLACK,202 |
1 | ||
| 52119-2R910A1 |
ZRR8#,ZWR80..NOAH..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),LUXURY WHITE PEARL CS GF,086 |
1 | ||
| 52119-2R910B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),SILVER ME,1F7 |
1 | ||
| 52119-2R910A1 |
ZRR8#,ZWR80..G LUXURY WHITE PEARL CS GF,086 |
1 | ||
| 52119-2R910E0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),AVANT-GARDE BRONZE ME,4V8 |
1 | ||
| 52119-2R910D0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),DEEP RED M.M,3R9 |
1 | ||
| 52119-2R910D0 |
ZRR8#,ZWR80..G,GI DEEP RED M.M,3R9 |
1 | ||
| 52119-2R910C0 |
ZRR8#,ZWR80..G,GI BLACK,202 |
1 | ||
| 52119-2R910E0 |
ZRR8#,ZWR80..G,GI AVANT-GARDE BRONZE ME,4V8 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ZRR8#,ZWR80 |
2 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-28560 |
ZRR8#,ZWR80..NOAH..X |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28560 |
ZRR8#,ZWR80..NOAH..X |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-28170 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80..V |
2 | ||
| 52161-16010 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) |
2 | ||
| 52161-16010 |
ZRR8#,ZWR80..V |
4 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28111 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-28030 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28310 |
ZRR8#,ZWR80..NOAH..(G,X) 塗装不要 |
1 | ||
| 53152B - GUIDE, RADIATOR GRILLE AIR | ||||
| 53152-28040 |
ZRR8#,ZWR80..G,GI,V,X,XI |
1 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06131 |
ZRR8#,ZWR80 |
2 | ||
| 81481C - BRACKET, FOG LAMP | ||||
| 81481-28470 |
ZRR8#,ZWR80..G,GI,XI 右側 |
1 | ||
| 81481-28470 |
ZRR8#,ZWR80..NOAH..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP),右側 |
1 | ||
| 81481-28470 |
ZRR8#,ZWR80..NOAH..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),右側 |
1 | ||
| 81482-28470 |
ZRR8#,ZWR80..NOAH..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP),左側 |
1 | ||
| 81482-28470 |
ZRR8#,ZWR80..G,GI,XI 左側 |
1 | ||
| 81482-28470 |
ZRR8#,ZWR80..NOAH..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),左側 |
1 | ||
| Common parts | ||||
| 90159-50353 | ||||
| 90159-60383 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90189-06193 | ||||
| 90467-09237 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 7455 | ||||
| 8101 | ||||
| 8102 | ||||
| 8202 | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
