ZRR85W-BRXSP (2017)
Toyota Noah/Voxy/Esquire

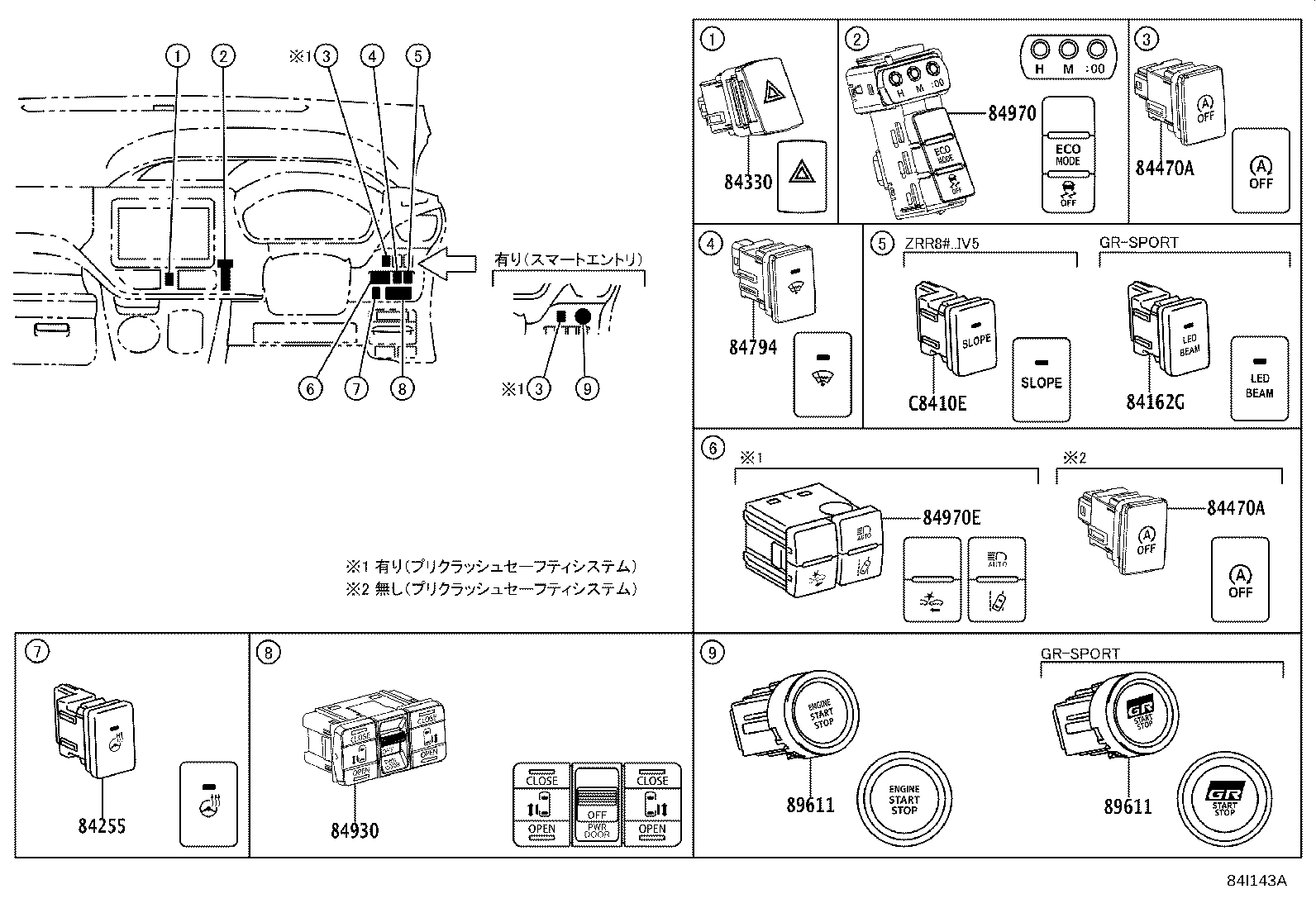

ILLUST NO. 5 OF10(1706- )ZRR8#
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28201 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 84332-28201 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 84470A - SWITCH ASSY, ECORUN CANCEL | ||||
| 84470-28011 |
ZRR8#..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 84470-28011 |
ZRR8#..NOAH..X;ZRR8#..G,GI,SI,ZS |
1 | ||
| 84470A - SWITCH ASSY, ECORUN CANCEL | ||||
| 84470-28011 |
ZRR8#..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 84470-28011 |
ZRR8#..NOAH..X;ZRR8#..G,GI,SI,ZS |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84871-35011 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) 寒冷地仕様−有り |
1 | ||
| 84871-35011 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS 寒冷地仕様−有り |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-28160 |
ZRR8#,ZWR80..G,SI,ZS;ZRR8#,ZWR80..NOAH..X |
1 | ||
| 84930-28160 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 84930-28170 |
ZRR8#,ZWR80..G,SI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) & 有り(ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞ) |
1 | ||
| 84930-28170 |
ZRR8#,ZWR80..V ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) & 有り(ﾊﾞｯｸﾄﾞｱｲｰｼﾞｰｸﾛｰｻﾞ) |
1 | ||
| 84930-28170 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(X,XI) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-28010 |
ZRR8#..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 84970-28010 |
ZRR8#..NOAH..X;ZRR8#..G,GI,SI,ZS |
1 | ||
| 84970E - SWITCH ASSY, COMBINATION NO.2 | ||||
| 84970-28060 |
ZRR8#..V,XI;ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 84970-28060 |
ZRR8#..X ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り |
1 | ||
| 84970-28060 |
ZRR8#..VOXY..X |
1 | ||
| 84970-28060 |
ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52034 |
ZRR8#..(X,XI)..CBU ﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ(ﾌﾛﾝﾄ & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89611-52034 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52034 |
ZRR8#..V 始動方式−ﾌﾟｯｼｭｽﾀｰﾄｽｲｯﾁ(GR SPORT用(DOP)) |
1 | ||
| 89611-52034 |
ZRR8#..(G,SI,ZS)..CBU 始動方式−ﾌﾟｯｼｭｽﾀｰﾄｽｲｯﾁ(GR SPORT用(DOP)) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52034 |
ZRR8#..(X,XI)..CBU ﾄﾞｱﾛｯｸ−ｽﾏｰﾄｴﾝﾄﾘ(ﾌﾛﾝﾄ & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89611-52034 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52034 |
ZRR8#..V 始動方式−ﾌﾟｯｼｭｽﾀｰﾄｽｲｯﾁ(GR SPORT用(DOP)) |
1 | ||
| 89611-52034 |
ZRR8#..(G,SI,ZS)..CBU 始動方式−ﾌﾟｯｼｭｽﾀｰﾄｽｲｯﾁ(GR SPORT用(DOP)) |
1 | ||
ILLUST NO. 6 OF10(1706- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-28042 |
ZRR8#..V;ZWR80..V,XI |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-28042 |
ZRR8#..V;ZWR80..V,XI |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-52082 |
ZRR8#..V;ZWR80..V,XI |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-52082 |
ZRR8#..V;ZWR80..V,XI |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85500-28080 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85513-28010 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85520-28010 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZRR8#,ZWR80 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZRR8#,ZWR80 |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-33010 |
ZRR8#..G,SI,V,X,XI,ZS |
1 | ||
| 85532-33020 |
ZRR8#..NOAH,VOXY |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85533-30060 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-28070C0 |
ZRR80..SI..IV5;ZRR8#,ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-28070C0 |
ZRR80..SI..IV5;ZRR8#,ZWR80..GI,V,X,XI,ZS BLACK,TRIM2# |
1 | ||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 8 OF10(1710- )
ｼｰﾄ(ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟﾁﾙﾄｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E360 | ||||
| 91673-80616 | ||||
| 93560-54008 | ||||
