ZRR85W-BRXSP (2017)

Toyota Noah/Voxy/Esquire

Production Jun 2017 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1706- )VOXY

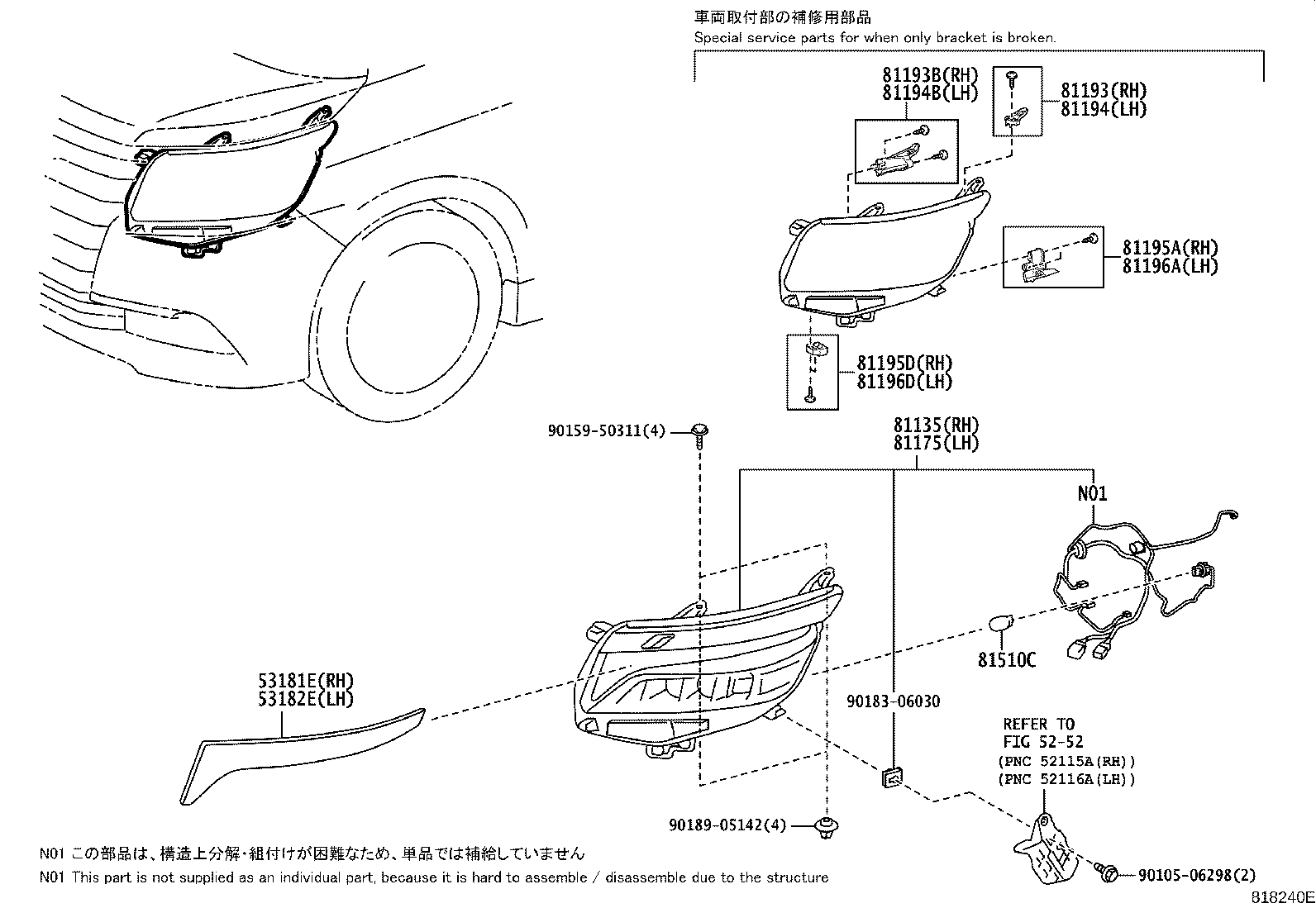

Click highlighted areas on diagram

diagram 5252 53181E 53182E 81135 81175 81193 81193B 81194 81194B 81195A 81195D 81196A 81196D 81510C 9010506298 9015950311 9018306030 9018905142
Part # Description Qty Price
53181E - COVER, HEADLAMP, RH
53181-28150B0

ZRR8#,ZWR80..VOXY..(V,X)

SILVER ME.,1F7

 1
53181-28150E0

ZRR8#,ZWR80..VOXY..(V,X)

AVANT-GARDE BRONZE ME.,4V8

 1
53181-28150A0

ZRR8#,ZWR80..VOXY

WHITE PEARL CS.,070

 1
53181-28150C1

ZRR8#,ZWR80..VOXY

BLACKISH AGEHA GF.,221

 1
53181-28150C0

ZRR8#,ZWR80..VOXY

BLACK,202

 1
53181-28150C2

ZRR8#,ZWR80..VOXY

INAZUMA SPARKING BLACK GF,224

 1
53181-28150D0

ZRR8#,ZWR80..ZS

DEEP RED M.M.,3R9

 1
53182E - COVER, HEADLAMP, LH
53182-28150B0

ZRR8#,ZWR80..VOXY..(V,X)

SILVER ME.,1F7

 1
53182-28150C2

ZRR8#,ZWR80..VOXY

INAZUMA SPARKING BLACK GF,224

 1
53182-28150C0

ZRR8#,ZWR80..VOXY

BLACK,202

 1
53182-28150A0

ZRR8#,ZWR80..VOXY

WHITE PEARL CS.,070

 1
53182-28150C1

ZRR8#,ZWR80..VOXY

BLACKISH AGEHA GF.,221

 1
53182-28150D0

ZRR8#,ZWR80..ZS

DEEP RED M.M.,3R9

 1
53182-28150E0

ZRR8#,ZWR80..VOXY..(V,X)

AVANT-GARDE BRONZE ME.,4V8

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-28G60

ZRR8#,ZWR80..VOXY..(V,X)

 1
81130-28G70

ZRR8#,ZWR80..ZS

 1
81130-28J10

ZRR8#,ZWR80..ZS..CBU

ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F)

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-28G60

ZRR8#,ZWR80..VOXY..(V,X)

 1
81170-28G70

ZRR8#,ZWR80..ZS

 1
81170-28J10

ZRR8#,ZWR80..ZS..CBU

ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F)

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-28190

ZRR8#,ZWR80..VOXY..(V,X)

 1
81193-28190

ZRR8#,ZWR80..ZS

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-28200

ZRR8#,ZWR80..VOXY..(V,X)

 1
81193-28200

ZRR8#,ZWR80..ZS

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-28190

ZRR8#,ZWR80..ZS

 1
81194-28190

ZRR8#,ZWR80..VOXY..(V,X)

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-28200

ZRR8#,ZWR80..VOXY..(V,X)

 1
81194-28200

ZRR8#,ZWR80..ZS

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-28030

ZRR8#,ZWR80..VOXY..(V,X)

 1
81195-28030

ZRR8#,ZWR80..ZS

 1
81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81195-28040

ZRR8#,ZWR80..ZS

 1
81195-28040

ZRR8#,ZWR80..VOXY..(V,X)

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-28030

ZRR8#,ZWR80..VOXY..(V,X)

 1
81196-28030

ZRR8#,ZWR80..ZS

 1
81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
81196-28040

ZRR8#,ZWR80..VOXY..(V,X)

 1
81196-28040

ZRR8#,ZWR80..ZS

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

ZRR8#,ZWR80

12V 21W,ｱﾝﾊﾞｰ

 2
Common parts
90105-06298
90159-50311
90183-06030
90189-05142
Linked diagrams
5252
