ZRR85W-BRXSP (2017)

Toyota Noah/Voxy/Esquire

Production Jun 2017 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )08S

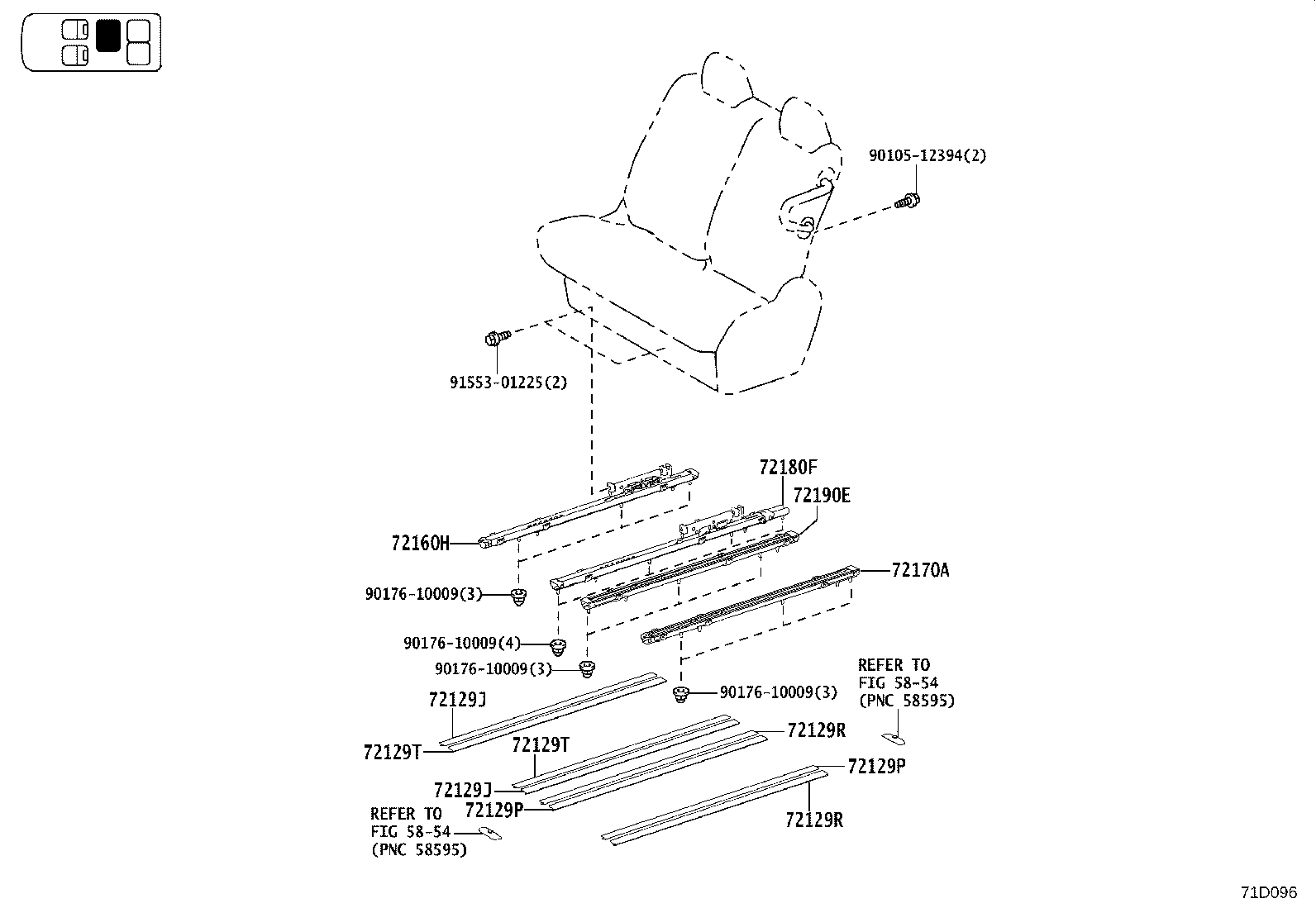

Click highlighted areas on diagram

ｳｪﾙｼﾞｮｲﾝ

diagram 5854 5854 72129J 72129J 72129P 72129P 72129R 72129R 72129T 72129T 72160H 72170A 72180F 72190E 9010512394 9017610009 9017610009 9017610009 9017610009 9155301225
Part # Description Qty Price
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-28270C0

ZRR8#..08S..(GI,V,X,XI,ZS)..CBU

BLACK,TRIM2#

 2
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-28270C0

ZRR8#..08S..(GI,V,X,XI,ZS)..CBU

BLACK,TRIM2#

 2
72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1
72129-28420C0

ZRR8#..08S..(GI,V,X,XI,ZS)..CBU

BLACK,TRIM2#

 2
72129-28270C0

ZRR8#..08S..(GI,V,X,XI,ZS)..CBU

BLACK,TRIM2#

 2
72129-28420C0

ZRR8#..08S..(X,XI)..CBU

ｳｪﾙｼﾞｮｲﾝ仕様,BLACK,TRIM2#

 2
72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1
72129-28420C0

ZRR8#..08S..(GI,V,X,XI,ZS)..CBU

BLACK,TRIM2#

 2
72129-28270C0

ZRR8#..08S..(GI,V,X,XI,ZS)..CBU

BLACK,TRIM2#

 2
72129-28420C0

ZRR8#..08S..(X,XI)..CBU

ｳｪﾙｼﾞｮｲﾝ仕様,BLACK,TRIM2#

 2
72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1
72129-28270C0

ZRR8#..08S..(GI,V,X,XI,ZS)..CBU

BLACK,TRIM2#

 2
72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1
72129-28270C0

ZRR8#..08S..(GI,V,X,XI,ZS)..CBU

BLACK,TRIM2#

 2
72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1
72129-28420C0

ZRR8#..08S..(GI,V,X,XI,ZS)..CBU

BLACK,TRIM2#

 2
72129-28270C0

ZRR8#..08S..(GI,V,X,XI,ZS)..CBU

BLACK,TRIM2#

 2
72129-28420C0

ZRR8#..08S..(X,XI)..CBU

ｳｪﾙｼﾞｮｲﾝ仕様,BLACK,TRIM2#

 2
72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1
72129-28420C0

ZRR8#..08S..(GI,V,X,XI,ZS)..CBU

BLACK,TRIM2#

 2
72129-28270C0

ZRR8#..08S..(GI,V,X,XI,ZS)..CBU

BLACK,TRIM2#

 2
72129-28420C0

ZRR8#..08S..(X,XI)..CBU

ｳｪﾙｼﾞｮｲﾝ仕様,BLACK,TRIM2#

 2
72160H - TRACK ASSY, REAR SEAT, OUTER RH
72160-28670

ZRR8#..08S..CBU

 1
72170A - TRACK ASSY, REAR SEAT, OUTER LH
72170-28660

ZRR8#..(ESQIR,VOXY)..08S..(X,XI)..CBU

ｳｪﾙｼﾞｮｲﾝ仕様

 1
72170-28660

ZRR8#..08S..CBU

 1
72170-28690

ZRR8#..08S..(X,XI)..CBU

ｳｪﾙｼﾞｮｲﾝ仕様

 1
72180F - TRACK ASSY, REAR SEAT, INNER RH
72180-28150

ZRR8#..08S..CBU

 1
72190E - TRACK ASSY, REAR SEAT, INNER LH
72190-28130

ZRR8#..08S

 1
72190-28130

ZRR8#..(ESQIR,VOXY)..08S..(X,XI)..CBU

ｳｪﾙｼﾞｮｲﾝ仕様

 1
72190-28120

ZRR8#..08S..(X,XI)..CBU

ｳｪﾙｼﾞｮｲﾝ仕様

 1
Common parts
90105-12394
90176-10009
91553-01225
Linked diagrams
5854
