ZRR85W-BRXSP (2017)

Toyota Noah/Voxy/Esquire

Production Jun 2017 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

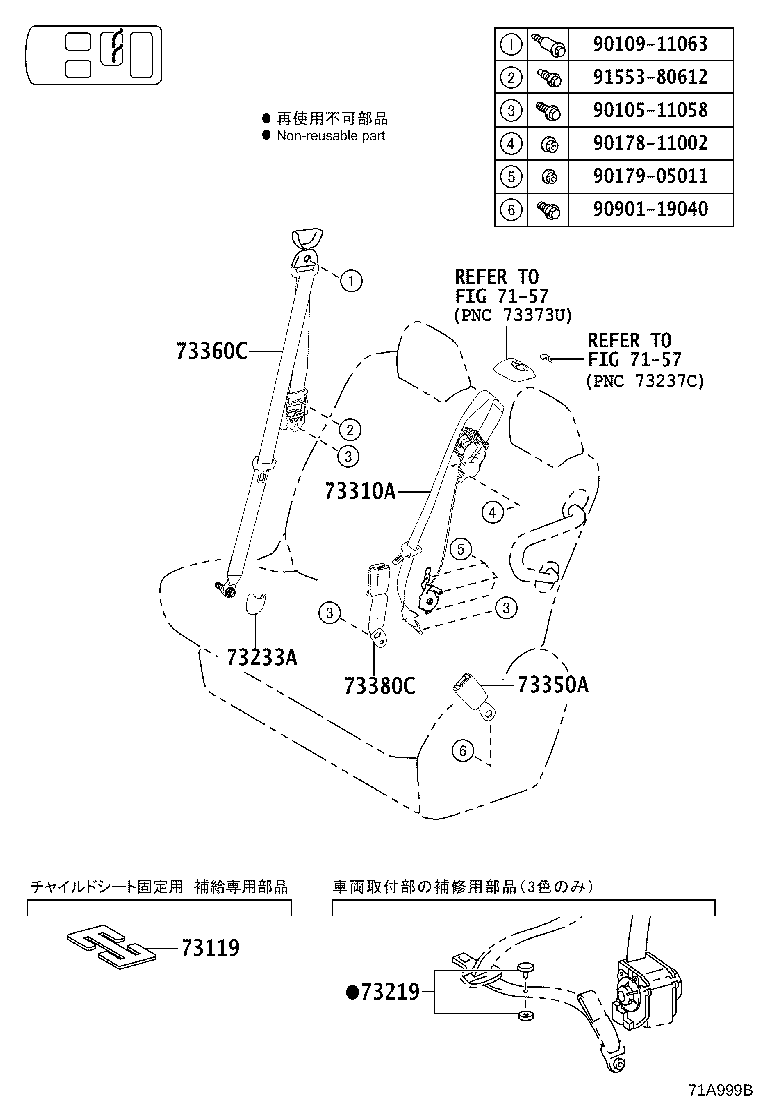

ILLUST NO. 3 OF 4(1709- )08S

Click highlighted areas on diagram

ﾘﾔNO.1ｼｰﾄ(ｳｪﾙｼﾞｮｲﾝ)

diagram 7157 7157 73119 73219 73233A 73310A 73350A 73360C 73380C 9010511058 9010911063 9017811002 9017905011 9090119040 9155380612
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 1
73119-22010

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 1
73219 - STOPPER, TONGUE PLATE
73219-33020

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

ｸﾞﾚｰ

 1
73219-33020

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

ｸﾞﾚｰ

 1
73219-33010

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

ﾌﾞﾗｯｸ

 1
73219-33030

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

ﾍﾞｰｼﾞｭ

 1
73219-33010

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

ﾌﾞﾗｯｸ

 1
73219-33030

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

ﾍﾞｰｼﾞｭ

 1
73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT
73233-60020C1

ZRR8#..08S..(X,XI)..CBU

ｳｪﾙｼﾞｮｲﾝ仕様,BLACK,TRIM2#

 1
73233-60020C1

ZRR80..08S..SI..IV5;ZRR8#..08S..(GI,V,X,XI,ZS)

BLACK,TRIM2#

 2
73310A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, RH
73310-28291C0

ZRR8#..08S..(X,XI)..CBU

ｳｪﾙｼﾞｮｲﾝ仕様,BLACK,TRIM2#

 1
73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER
73350-28310C0

ZRR80..08S..SI..IV5;ZRR8#..08S..(GI,V,X,XI,ZS)

BLACK,TRIM2#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-28731C0

ZRR80..08S..SI..IV5;ZRR8#..08S..(GI,V,X,XI,ZS)

BLACK,TRIM2#

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-28540C1

ZRR80..08S..SI..IV5;ZRR8#..08S..(GI,V,X,XI,ZS)

BLACK,TRIM2#

 1
Common parts
90105-11058
90109-11063
90178-11002
90179-05011
90901-19040
91553-80612
Linked diagrams
7157
