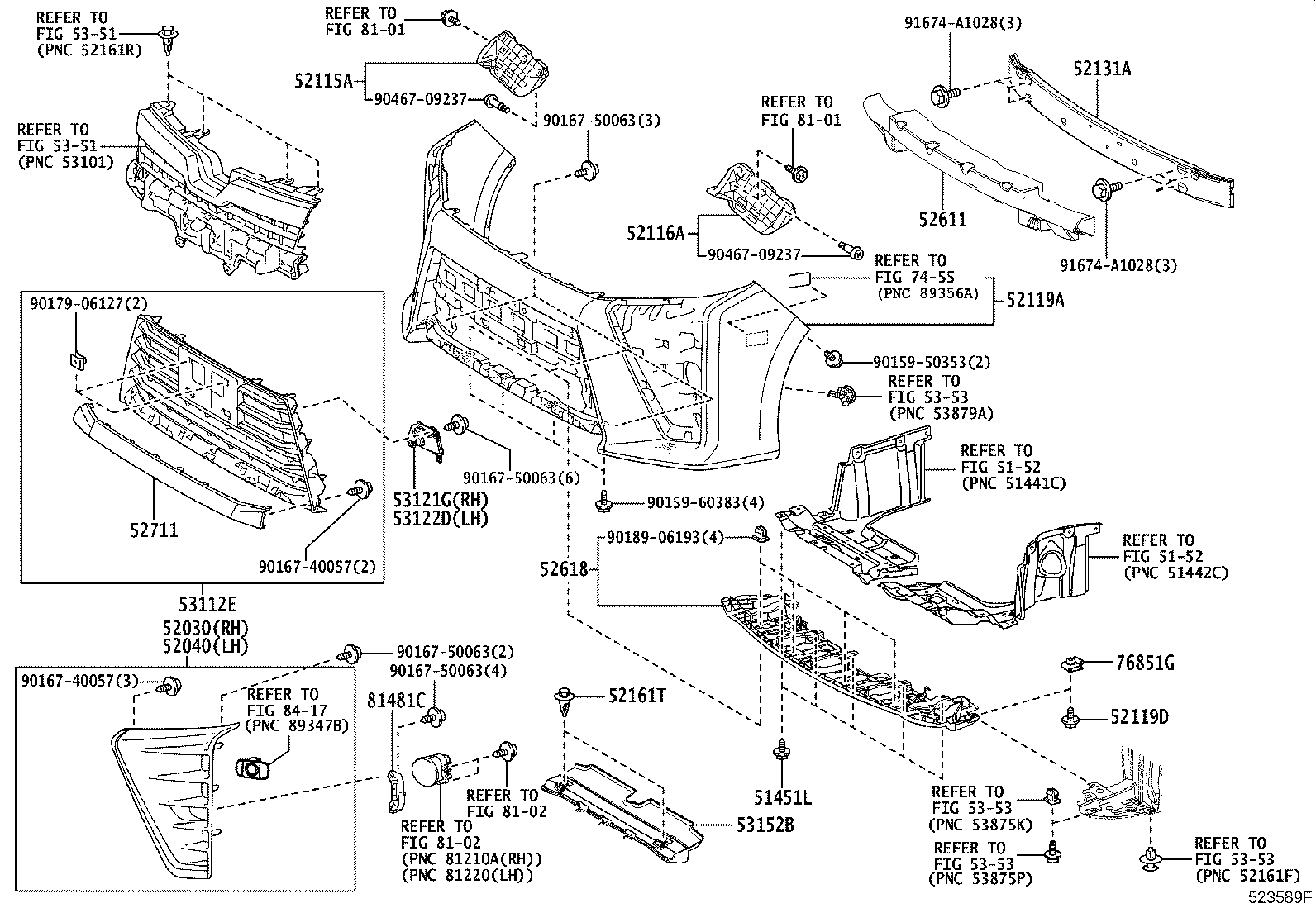

ZRR85W-BRXSP (2017)
Toyota Noah/Voxy/Esquire
(1706- )V,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-06767 |
ZRR8#,ZWR80 |
5 | ||
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-28140 |
ZRR8#,ZWR80..ZS..CBU |
1 | ||
| 52030-28130 |
ZRR8#,ZWR80..V |
1 | ||
| 52030-28130 |
ZRR8#,ZWR80..VOXY..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 52030-28130 |
ZRR8#,ZWR80..VOXY..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52030-28160 |
ZRR8#,ZWR80..ZS..CBU ﾒｯｷ |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-28130 |
ZRR8#,ZWR80..V |
1 | ||
| 52040-28140 |
ZRR8#,ZWR80..ZS..CBU |
1 | ||
| 52040-28130 |
ZRR8#,ZWR80..VOXY..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 52040-28130 |
ZRR8#,ZWR80..VOXY..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52040-28160 |
ZRR8#,ZWR80..ZS..CBU ﾒｯｷ |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28280 |
ZRR8#,ZWR80..VOXY..(V,X) |
1 | ||
| 52115-28251 |
ZRR8#,ZWR80..ZS |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28280 |
ZRR8#,ZWR80..VOXY..(V,X) |
1 | ||
| 52116-28231 |
ZRR8#,ZWR80..ZS |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28L10C1 |
ZRR8#,ZWR80..V BLACKISH AGEHA GF.,221 |
1 | ||
| 52119-28L10C0 |
ZRR8#,ZWR80..V BLACK,202 |
1 | ||
| 52119-28L10E0 |
ZRR8#,ZWR80..V AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 52119-28L10B0 |
ZRR8#,ZWR80..V SILVER ME.,1F7 |
1 | ||
| 52119-28L10C2 |
ZRR8#,ZWR80..V INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-28L20C1 |
ZRR8#,ZWR80..ZS..CBU BLACKISH AGEHA GF.,221 |
1 | ||
| 52119-28L10A0 |
ZRR8#,ZWR80..V WHITE PEARL CS.,070 |
1 | ||
| 52119-28L10B0 |
ZRR8#,ZWR80..VOXY..X SILVER ME.,1F7 |
1 | ||
| 52119-28L20C0 |
ZRR8#,ZWR80..ZS..CBU BLACK,202 |
1 | ||
| 52119-28L10C2 |
ZRR8#,ZWR80..VOXY..X INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-28L20C2 |
ZRR8#,ZWR80..ZS..CBU INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-28L10E0 |
ZRR8#,ZWR80..VOXY..X AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 52119-28L20D0 |
ZRR8#,ZWR80..ZS..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-28L10C0 |
ZRR8#,ZWR80..VOXY..X BLACK,202 |
1 | ||
| 52119-28L20A0 |
ZRR8#,ZWR80..ZS..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-28L10C1 |
ZRR8#,ZWR80..VOXY..X BLACKISH AGEHA GF.,221 |
1 | ||
| 52119-2R912C0 |
ZRR8#,ZWR80..VOXY..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),BLACK,202 |
1 | ||
| 52119-2R912B0 |
ZRR8#,ZWR80..V SILVER ME,1F7 |
1 | ||
| 52119-2R912C0 |
ZRR8#,ZWR80..V BLACK,202 |
1 | ||
| 52119-2R912A0 |
ZRR8#,ZWR80..V WHITE PEARL CS,070 |
1 | ||
| 52119-2R912C2 |
ZRR8#,ZWR80..V INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-2R912B0 |
ZRR8#,ZWR80..VOXY..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),SILVER ME,1F7 |
1 | ||
| 52119-2R912C1 |
ZRR8#,ZWR80..VOXY..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),BLACKISH AGEHA GF,221 |
1 | ||
| 52119-2R912E0 |
ZRR8#,ZWR80..VOXY..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),AVANT-GARDE BRONZE ME,4V8 |
1 | ||
| 52119-2R912C2 |
ZRR8#,ZWR80..VOXY..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),INAZUMA SPARKING BLACKGF,224 |
1 | ||
| 52119-2R912A0 |
ZRR8#,ZWR80..VOXY..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),WHITE PEARL CS,070 |
1 | ||
| 52119-28L10A0 |
ZRR8#,ZWR80..VOXY..X WHITE PEARL CS.,070 |
1 | ||
| 52119-2R912C1 |
ZRR8#,ZWR80..V BLACKISH AGEHA GF,221 |
1 | ||
| 52119-2R912E0 |
ZRR8#,ZWR80..V AVANT-GARDE BRONZE ME,4V8 |
1 | ||
| 52119-2R913A0 |
ZRR8#,ZWR80..ZS..CBU WHITE PEARL CS,070 |
1 | ||
| 52119-2R913C0 |
ZRR8#,ZWR80..ZS..CBU ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F),BLACK,202 |
1 | ||
| 52119-2R913C1 |
ZRR8#,ZWR80..ZS..CBU BLACKISH AGEHA GF,221 |
1 | ||
| 52119-2R913C2 |
ZRR8#,ZWR80..ZS..CBU INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-2R913C1 |
ZRR8#,ZWR80..ZS..CBU ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F),BLACKISH AGEHA GF,221 |
1 | ||
| 52119-2R913C0 |
ZRR8#,ZWR80..ZS..CBU BLACK,202 |
1 | ||
| 52119-2R913C2 |
ZRR8#,ZWR80..ZS..CBU ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F),INAZUMA SPARKING BLACKGF,224 |
1 | ||
| 52119-2R913A0 |
ZRR8#,ZWR80..ZS..CBU ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F),WHITE PEARL CS,070 |
1 | ||
| 52119-2R913D0 |
ZRR8#,ZWR80..ZS..CBU DEEP RED M.M,3R9 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ZRR8#,ZWR80 |
2 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-28590 |
ZRR8#,ZWR80..VOXY..X |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28590 |
ZRR8#,ZWR80..VOXY..X |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-28170 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 52131-28170 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80..ZS |
2 | ||
| 52161-16010 |
ZRR8#,ZWR80..ZS |
4 | ||
| 52161-16010 |
ZRR8#,ZWR80..V |
2 | ||
| 52161-16010 |
ZRR8#,ZWR80..SI;ZRR8#,ZWR80..VOXY..X |
4 | ||
| 52161-16010 |
ZRR8#,ZWR80..V |
4 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28111 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 52611-28111 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-28030 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 52618-28030 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28330 |
ZRR8#,ZWR80..VOXY..(V,X) |
1 | ||
| 53102-28090 |
ZRR8#,ZWR80..ZS ﾒｯｷ |
1 | ||
| 53102-28070 |
ZRR8#,ZWR80..ZS |
1 | ||
| 53102-28100 |
ZRR8#,ZWR80..ZS..CBU ﾒｯｷ,ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F) |
1 | ||
| 53152B - GUIDE, RADIATOR GRILLE AIR | ||||
| 53152-28060 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 53152-28040 |
ZRR8#,ZWR80..G,GI,V,X,XI |
1 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06131 |
ZRR8#,ZWR80 |
2 | ||
| 81481C - BRACKET, FOG LAMP | ||||
| 81481-28500 |
ZRR8#,ZWR80..ZS 右側 |
1 | ||
| 81481-28490 |
ZRR8#,ZWR80..VOXY..(V,X) 右側 |
1 | ||
| 81482-28490 |
ZRR8#,ZWR80..VOXY..(V,X) 左側 |
1 | ||
| 81482-28500 |
ZRR8#,ZWR80..ZS 左側 |
1 | ||
| Common parts | ||||
| 90159-50353 | ||||
| 90159-60383 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90189-06193 | ||||
| 90467-09237 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 7455 | ||||
| 8101 | ||||
| 8102 | ||||
| 8202 | ||||
| 8417 | ||||
(1706- )ZS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-06767 |
ZRR8#,ZWR80 |
5 | ||
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-28140 |
ZRR8#,ZWR80..ZS..CBU |
1 | ||
| 52030-28130 |
ZRR8#,ZWR80..V |
1 | ||
| 52030-28130 |
ZRR8#,ZWR80..VOXY..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 52030-28130 |
ZRR8#,ZWR80..VOXY..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52030-28160 |
ZRR8#,ZWR80..ZS..CBU ﾒｯｷ |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-28130 |
ZRR8#,ZWR80..V |
1 | ||
| 52040-28140 |
ZRR8#,ZWR80..ZS..CBU |
1 | ||
| 52040-28130 |
ZRR8#,ZWR80..VOXY..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 52040-28130 |
ZRR8#,ZWR80..VOXY..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52040-28160 |
ZRR8#,ZWR80..ZS..CBU ﾒｯｷ |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28280 |
ZRR8#,ZWR80..VOXY..(V,X) |
1 | ||
| 52115-28251 |
ZRR8#,ZWR80..ZS |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28280 |
ZRR8#,ZWR80..VOXY..(V,X) |
1 | ||
| 52116-28231 |
ZRR8#,ZWR80..ZS |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28L10C1 |
ZRR8#,ZWR80..V BLACKISH AGEHA GF.,221 |
1 | ||
| 52119-28L10C0 |
ZRR8#,ZWR80..V BLACK,202 |
1 | ||
| 52119-28L10E0 |
ZRR8#,ZWR80..V AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 52119-28L10B0 |
ZRR8#,ZWR80..V SILVER ME.,1F7 |
1 | ||
| 52119-28L10C2 |
ZRR8#,ZWR80..V INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-28L20C1 |
ZRR8#,ZWR80..ZS..CBU BLACKISH AGEHA GF.,221 |
1 | ||
| 52119-28L10A0 |
ZRR8#,ZWR80..V WHITE PEARL CS.,070 |
1 | ||
| 52119-28L10B0 |
ZRR8#,ZWR80..VOXY..X SILVER ME.,1F7 |
1 | ||
| 52119-28L20C0 |
ZRR8#,ZWR80..ZS..CBU BLACK,202 |
1 | ||
| 52119-28L10C2 |
ZRR8#,ZWR80..VOXY..X INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-28L20C2 |
ZRR8#,ZWR80..ZS..CBU INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-28L10E0 |
ZRR8#,ZWR80..VOXY..X AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 52119-28L20D0 |
ZRR8#,ZWR80..ZS..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-28L10C0 |
ZRR8#,ZWR80..VOXY..X BLACK,202 |
1 | ||
| 52119-28L20A0 |
ZRR8#,ZWR80..ZS..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-28L10C1 |
ZRR8#,ZWR80..VOXY..X BLACKISH AGEHA GF.,221 |
1 | ||
| 52119-2R912C0 |
ZRR8#,ZWR80..VOXY..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),BLACK,202 |
1 | ||
| 52119-2R912B0 |
ZRR8#,ZWR80..V SILVER ME,1F7 |
1 | ||
| 52119-2R912C0 |
ZRR8#,ZWR80..V BLACK,202 |
1 | ||
| 52119-2R912A0 |
ZRR8#,ZWR80..V WHITE PEARL CS,070 |
1 | ||
| 52119-2R912C2 |
ZRR8#,ZWR80..V INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-2R912B0 |
ZRR8#,ZWR80..VOXY..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),SILVER ME,1F7 |
1 | ||
| 52119-2R912C1 |
ZRR8#,ZWR80..VOXY..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),BLACKISH AGEHA GF,221 |
1 | ||
| 52119-2R912E0 |
ZRR8#,ZWR80..VOXY..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),AVANT-GARDE BRONZE ME,4V8 |
1 | ||
| 52119-2R912C2 |
ZRR8#,ZWR80..VOXY..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),INAZUMA SPARKING BLACKGF,224 |
1 | ||
| 52119-2R912A0 |
ZRR8#,ZWR80..VOXY..X..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り(ﾌﾛﾝﾄ & ﾘﾔ),WHITE PEARL CS,070 |
1 | ||
| 52119-28L10A0 |
ZRR8#,ZWR80..VOXY..X WHITE PEARL CS.,070 |
1 | ||
| 52119-2R912C1 |
ZRR8#,ZWR80..V BLACKISH AGEHA GF,221 |
1 | ||
| 52119-2R912E0 |
ZRR8#,ZWR80..V AVANT-GARDE BRONZE ME,4V8 |
1 | ||
| 52119-2R913A0 |
ZRR8#,ZWR80..ZS..CBU WHITE PEARL CS,070 |
1 | ||
| 52119-2R913C0 |
ZRR8#,ZWR80..ZS..CBU ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F),BLACK,202 |
1 | ||
| 52119-2R913C1 |
ZRR8#,ZWR80..ZS..CBU BLACKISH AGEHA GF,221 |
1 | ||
| 52119-2R913C2 |
ZRR8#,ZWR80..ZS..CBU INAZUMA SPARKING BLACK GF,224 |
1 | ||
| 52119-2R913C1 |
ZRR8#,ZWR80..ZS..CBU ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F),BLACKISH AGEHA GF,221 |
1 | ||
| 52119-2R913C0 |
ZRR8#,ZWR80..ZS..CBU BLACK,202 |
1 | ||
| 52119-2R913C2 |
ZRR8#,ZWR80..ZS..CBU ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F),INAZUMA SPARKING BLACKGF,224 |
1 | ||
| 52119-2R913A0 |
ZRR8#,ZWR80..ZS..CBU ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F),WHITE PEARL CS,070 |
1 | ||
| 52119-2R913D0 |
ZRR8#,ZWR80..ZS..CBU DEEP RED M.M,3R9 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ZRR8#,ZWR80 |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-28170 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 52131-28170 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80..ZS |
2 | ||
| 52161-16010 |
ZRR8#,ZWR80..ZS |
4 | ||
| 52161-16010 |
ZRR8#,ZWR80..V |
2 | ||
| 52161-16010 |
ZRR8#,ZWR80..SI;ZRR8#,ZWR80..VOXY..X |
4 | ||
| 52161-16010 |
ZRR8#,ZWR80..V |
4 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28111 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 52611-28111 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-28030 |
ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI) |
1 | ||
| 52618-28030 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-28220 |
ZRR8#,ZWR80..ZS ﾒｯｷ |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28330 |
ZRR8#,ZWR80..VOXY..(V,X) |
1 | ||
| 53102-28090 |
ZRR8#,ZWR80..ZS ﾒｯｷ |
1 | ||
| 53102-28070 |
ZRR8#,ZWR80..ZS |
1 | ||
| 53102-28100 |
ZRR8#,ZWR80..ZS..CBU ﾒｯｷ,ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F) |
1 | ||
| 53121G - PLATE, RADIATOR GRILLE FINISH, RH | ||||
| 53121-28250 |
ZRR8#,ZWR80..ZS..CBU |
1 | ||
| 53121-28310 |
ZRR8#,ZWR80..ZS..CBU ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F) |
1 | ||
| 53122D - PLATE, RADIATOR GRILLE FINISH, LH | ||||
| 53122-28080 |
ZRR8#,ZWR80..ZS..CBU |
1 | ||
| 53122-28140 |
ZRR8#,ZWR80..ZS..CBU ZS“煌”*(D)or“煌U”*(E)or“煌V”*(F) |
1 | ||
| 53152B - GUIDE, RADIATOR GRILLE AIR | ||||
| 53152-28060 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 53152-28040 |
ZRR8#,ZWR80..G,GI,V,X,XI |
1 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06131 |
ZRR8#,ZWR80 |
2 | ||
| 81481C - BRACKET, FOG LAMP | ||||
| 81481-28500 |
ZRR8#,ZWR80..ZS 右側 |
1 | ||
| 81481-28490 |
ZRR8#,ZWR80..VOXY..(V,X) 右側 |
1 | ||
| 81482-28490 |
ZRR8#,ZWR80..VOXY..(V,X) 左側 |
1 | ||
| 81482-28500 |
ZRR8#,ZWR80..ZS 左側 |
1 | ||
| Common parts | ||||
| 90159-50353 | ||||
| 90159-60383 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90189-06193 | ||||
| 90467-09237 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 7455 | ||||
| 8101 | ||||
| 8102 | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
