ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
ILLUST NO. 1 OF 4(1401- )

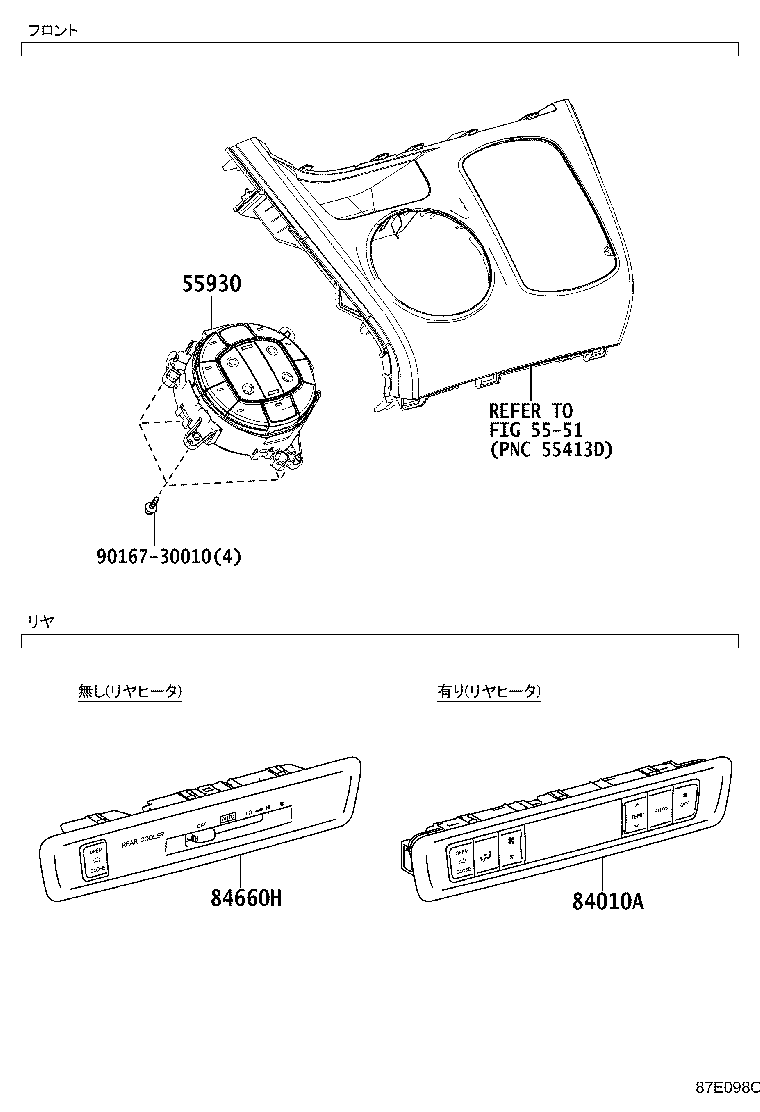

ﾋｰﾀｺﾝﾄﾛｰﾙﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55930 - CONTROL ASSY, CENTER CLUSTER MODULE | ||||
| 55930-28060 |
ZRR8#..NOAH..X..CBU X“Delight Plus”*(A) |
1 | ||
| 55930-28060 |
ZRR8#..X..CBU 寒冷地仕様−有り |
1 | ||
| 55930-28060 |
ZRR8#..NOAH..X..CBU X“Delight Plus”*(A)&寒冷地仕様−有り |
1 | ||
| 55930-28070 |
ZRR8#..(G,GI,SI,V,XI,ZS)..CBU |
1 | ||
| 55930-28080 |
ZRR8#..(G,GI,SI,V,XI,ZS)..CBU 寒冷地仕様−有り |
1 | ||
| 55930-28050 |
ZRR8#..X..CBU |
1 | ||
| 55930-28080 |
ZRR8#..SI..CBU Si“WxB”*(C)&寒冷地仕様−有り |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-28200B0 |
ZRR8#,ZWR80..NOAH..X..CBU X“Delight Plus”*(A),LT.GRAY,TRIM0#,2# |
1 | ||
| 84010-28200B0 |
ZRR8#,ZWR80..NOAH..X..CBU X“Delight Plus”*(A)&寒冷地仕様−有り,LT.GRAY,TRIM0#,2# |
1 | ||
| 84010-28200B0 |
ZWR80..SI,ZS;ZRR8#..(GI,SI,V,ZS)..CBU;ZRR8#,ZWR80..VOXY..X..CBU 寒冷地仕様−有り,LT.GRAY,TRIM2# |
1 | ||
| 84010-28200B0 |
ZWR80..(ESQIR,NOAH)..(X,XI);ZRR8#..(ESQIR,NOAH)..(G,X,XI)..CBU 寒冷地仕様−有り,LT.GRAY,TRIM0#,2# |
1 | ||
| 84010-28210B0 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(GI,SI,V,ZS);ZRR80..(GI,SI,V,ZS)..CBU 寒冷地仕様−有り&ﾂｲﾝﾑｰﾝﾙｰﾌ−有り,LT.GRAY,TRIM2# |
1 | ||
| 84010-28320 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C)&寒冷地仕様−有り |
1 | ||
| 84660H - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-28030B0 |
ZWR80..(ESQIR,NOAH)..(X,XI);ZRR8#..(ESQIR,NOAH)..(G,X,XI)..CBU LT.GRAY,TRIM0#,2# |
1 | ||
| 84660-28030B0 |
ZWR80..SI,ZS;ZRR8#..(GI,SI,V,ZS)..CBU;ZRR8#,ZWR80..VOXY..X..CBU LT.GRAY,TRIM2# |
1 | ||
| 84660-28030B0 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(GI,SI,V,ZS);ZRR80..(GI,SI,V,ZS)..CBU 寒冷地仕様−有り&ﾂｲﾝﾑｰﾝﾙｰﾌ−有り,LT.GRAY,TRIM2# |
1 | ||
| 84660-28030B0 |
ZRR8#,ZWR80..NOAH..X..CBU X“Delight Plus”*(A)&寒冷地仕様−有り,LT.GRAY,TRIM0#,2# |
1 | ||
| 84660-28030B0 |
ZWR80..SI,ZS;ZRR8#..(GI,SI,V,ZS)..CBU;ZRR8#,ZWR80..VOXY..X..CBU 寒冷地仕様−有り,LT.GRAY,TRIM2# |
1 | ||
| 84660-28030B0 |
ZRR8#,ZWR80..NOAH..X..CBU X“Delight Plus”*(A),LT.GRAY,TRIM0#,2# |
1 | ||
| 84660-28040B0 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(GI,SI,V,ZS);ZRR80..(GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り,LT.GRAY,TRIM2# |
1 | ||
| 84660-28030B0 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C)&寒冷地仕様−有り,LT.GRAY,TRIM2# |
1 | ||
| 84660-28030B0 |
ZWR80..(ESQIR,NOAH)..(X,XI);ZRR8#..(ESQIR,NOAH)..(G,X,XI)..CBU 寒冷地仕様−有り,LT.GRAY,TRIM0#,2# |
1 | ||
| 84660-28050 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C),黒色塗装 |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| Linked diagrams | ||||
| 5551 | ||||
ILLUST NO. 2 OF 4(1401- )

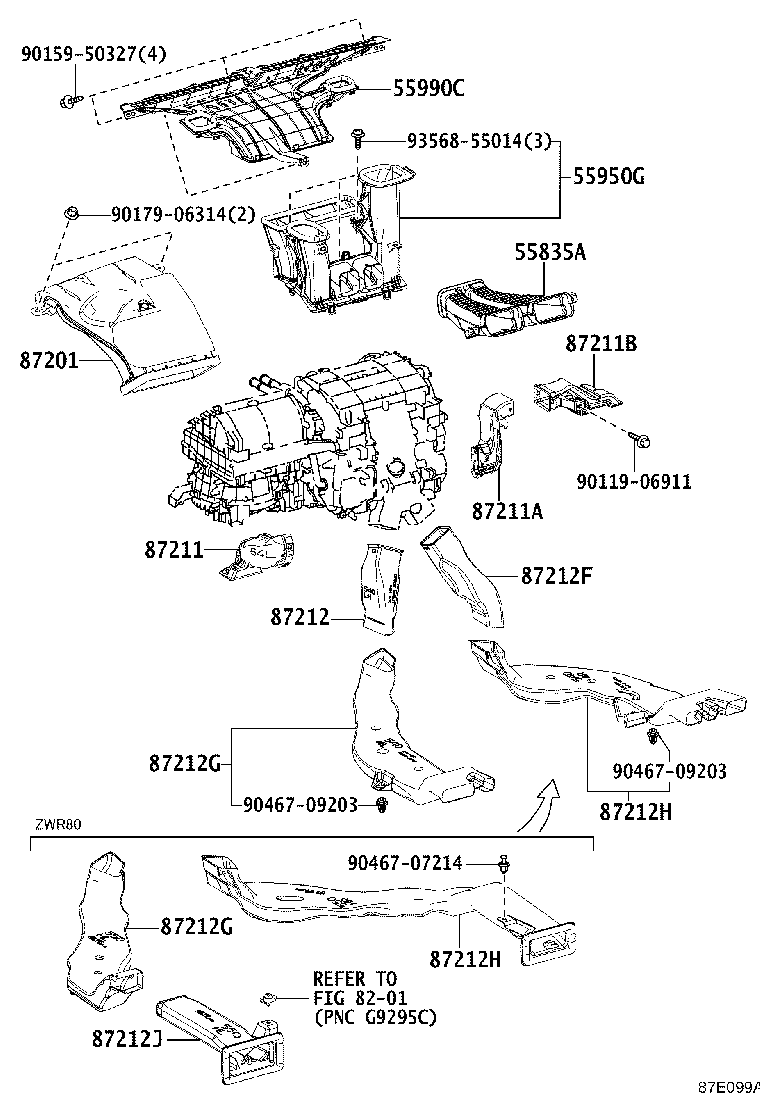

ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-28120 |
ZRR8#,ZWR80 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-28200 |
ZRR8#,ZWR80 |
1 | ||
| 55990C - NOZZLE ASSY, CENTER DEFROSTER | ||||
| 55990-28031 |
ZRR8#,ZWR80 |
1 | ||
| 55990-28030 |
ZRR8#,ZWR80 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-28320 |
ZRR8# 寒冷地仕様−有り |
1 | ||
| 87201-28300 |
ZRR8#,ZWR80 |
1 | ||
| 87201-28320 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E)&ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し&寒冷地仕様−有り |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-28340 |
ZRR8#,ZWR80 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-28350 |
ZRR8#,ZWR80 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-28360 |
ZRR8#,ZWR80 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-28390 |
ZRR8#,ZWR80 |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87212-28380 |
ZRR8#,ZWR80 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87212-28410 |
ZRR8# |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87212-28410 |
ZRR8# |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87212-28400 |
ZRR8# |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87212-28400 |
ZRR8# |
1 | ||
| Common parts | ||||
| 90119-06911 | ||||
| 90159-50327 | ||||
| 90179-06314 | ||||
| 90467-07214 | ||||
| 90467-09203 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 3 OF 4(1401- )

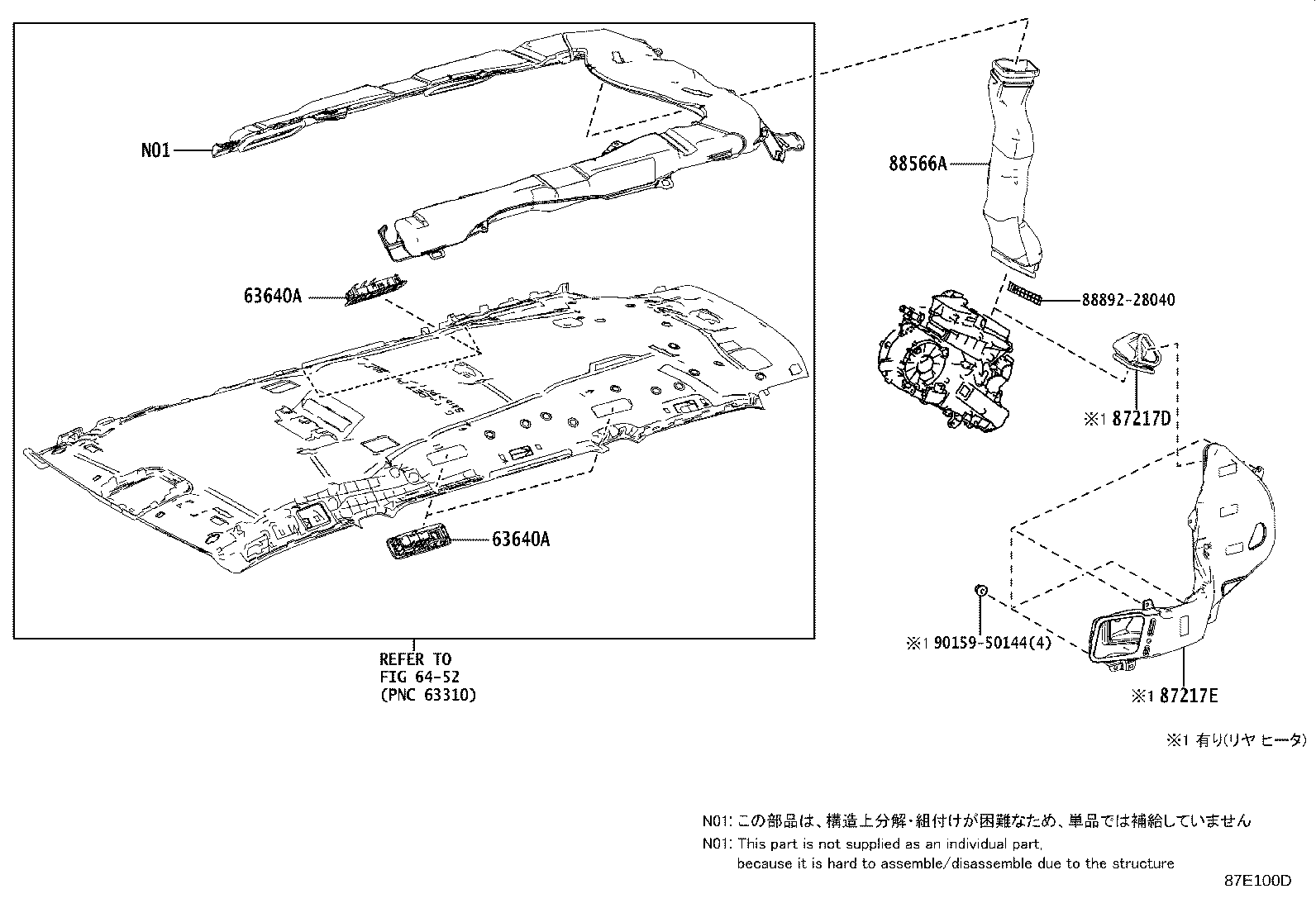

ﾘﾔ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63640A - REGISTER ASSY, AIR OUTLET, NO.4 | ||||
| 63640-28040B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
4 | ||
| 63640-28041B0 |
ZRR80..07S..ZS..CBU;ZRR8#,ZWR80..SI..CBU LT.GRAY,TRIM2# |
4 | ||
| 63640-28041B0 |
ZRR8#,ZWR80..NOAH..(G,X) LT.GRAY,TRIM0#,2# |
4 | ||
| 63640-28040B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) LT.GRAY,TRIM2# |
4 | ||
| 63640-28041B0 |
ZRR85,ZWR80..SI;ZRR80..08S..SI..CBU LT.GRAY,TRIM20 |
4 | ||
| 63640-28041C0 |
ZRR85,ZWR80..SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
4 | ||
| 63640A - REGISTER ASSY, AIR OUTLET, NO.4 | ||||
| 63640-28040B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
4 | ||
| 63640-28041B0 |
ZRR80..07S..ZS..CBU;ZRR8#,ZWR80..SI..CBU LT.GRAY,TRIM2# |
4 | ||
| 63640-28041B0 |
ZRR8#,ZWR80..NOAH..(G,X) LT.GRAY,TRIM0#,2# |
4 | ||
| 63640-28040B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) LT.GRAY,TRIM2# |
4 | ||
| 63640-28041B0 |
ZRR85,ZWR80..SI;ZRR80..08S..SI..CBU LT.GRAY,TRIM20 |
4 | ||
| 63640-28041C0 |
ZRR85,ZWR80..SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
4 | ||
| 87217D - DUCT, AIR, REAR SIDE NO.1 | ||||
| 87220-28180 |
ZRR8#,ZWR80..NOAH..X..CBU X“Delight Plus”*(A) |
1 | ||
| 87220-28180 |
ZRR8#..CBU;ZWR80..SI,X,XI,ZS 寒冷地仕様−有り |
1 | ||
| 87220-28180 |
ZRR8#,ZWR80..NOAH..X..CBU X“Delight Plus”*(A)&寒冷地仕様−有り |
1 | ||
| 87217E - DUCT, AIR, REAR SIDE NO.2 | ||||
| 87220-28190 |
ZRR8#,ZWR80..NOAH..X..CBU X“Delight Plus”*(A) |
1 | ||
| 87220-28190 |
ZRR8#,ZWR80..NOAH..X..CBU X“Delight Plus”*(A)&寒冷地仕様−有り |
1 | ||
| 87220-28190 |
ZRR8#..CBU;ZWR80..SI,X,XI,ZS 寒冷地仕様−有り |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-28440 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 88892-28040 | ||||
| 90159-50144 | ||||
| Linked diagrams | ||||
| 6452 | ||||
ILLUST NO. 4 OF 4(1401- )

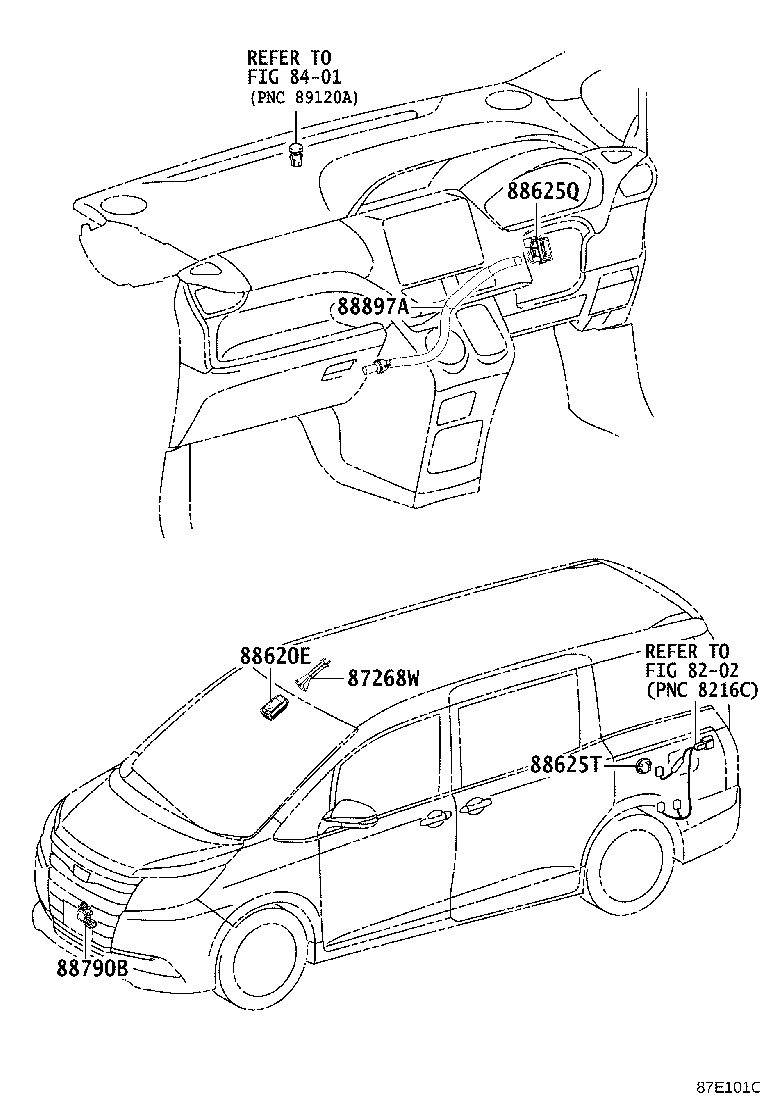

ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-48070 |
ZRR8# |
1 | ||
| 88625T - THERMISTOR, COOLER (ROOM TEMP. SENSOR NO.2) | ||||
| 88625-45020C0 |
ZRR8#,ZWR80..NOAH..X..CBU X“Delight Plus”*(A),BLACK,TRIM0#,2# |
1 | ||
| 88625-45020C0 |
ZRR8#,ZWR80..NOAH..X..CBU X“Delight Plus”*(A)&寒冷地仕様−有り,BLACK,TRIM0#,2# |
1 | ||
| 88625-45020C0 |
ZWR80..(ESQIR,NOAH)..(X,XI);ZRR8#..(ESQIR,NOAH)..(G,X,XI)..CBU 寒冷地仕様−有り,BLACK,TRIM0#,2# |
1 | ||
| 88625-45020C0 |
ZWR80..SI,ZS;ZRR8#..(GI,SI,V,ZS)..CBU;ZRR8#,ZWR80..VOXY..X..CBU 寒冷地仕様−有り,BLACK,TRIM2# |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28100 |
ZRR8#,ZWR80 |
1 | ||
| 88897A - PIPE, ASPIRATOR | ||||
| 88505-28070 |
ZRR8#,ZWR80 |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
