ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )ZRR8#

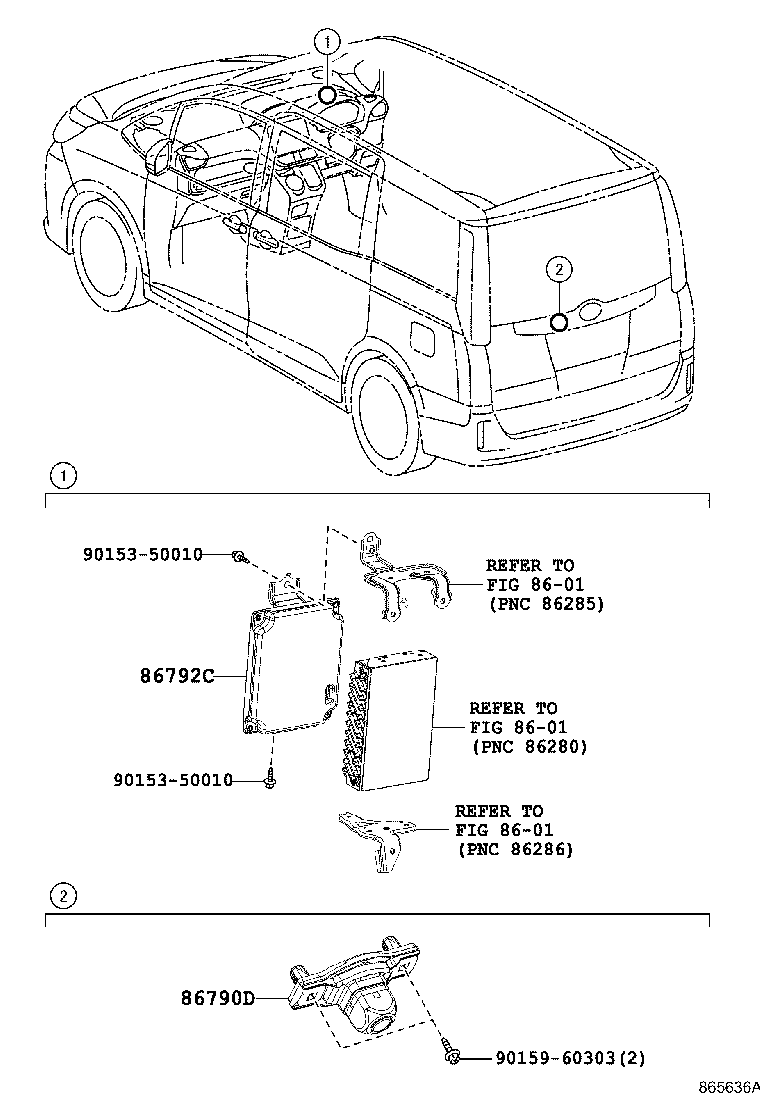

Click highlighted areas on diagram

diagram 8601 8601 8601 86790D 86792C 9015350010 9015350010 9015960303
Part # Description Qty Price
86790D - CAMERA ASSY, TELEVISION, RR
86790-28380

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86790-28380

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86792C - COMPUTER, PARKING ASSIST
86792-28330

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86792-28330

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86792-28160

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
Common parts
90153-50010
90159-60303
Linked diagrams
8601
