ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401-1706)

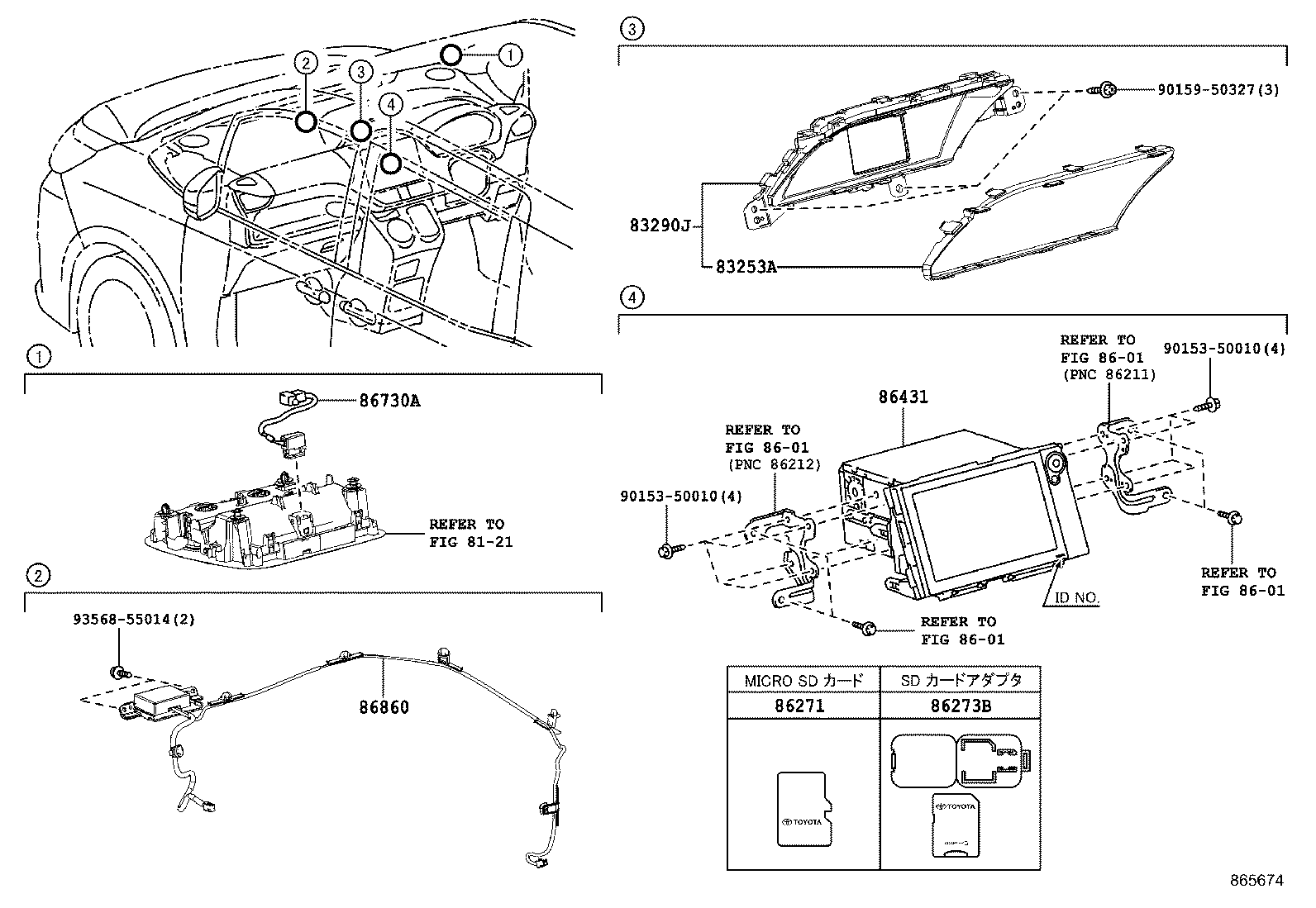

Click highlighted areas on diagram

diagram 8121 83253A 83290J 8601 8601 8601 8601 86271 86273B 86431 86730A 86860 9015350010 9015350010 9015950327 9356855014
Part # Description Qty Price
83253A - GLASS, ACCESSORY METER
83253-28010

ZRR8#,ZWR80

 1
83290J - METER ASSY, ACCESSORY
83290-28020

ZRR8#..SI,X,ZS

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
83290-28010

ZRR8#..SI,X,ZS

 1
83290-28021

ZRR8#..SI,X,ZS

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
83290-28030

ZRR8#,ZWR80..G,GI,V

 1
83290-28011

ZRR8#..SI,X,ZS

 1
83290-28031

ZRR8#,ZWR80..G,GI,V

 1
86271 - DISC, DISC PLAYER
86271-48234

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86271-33263

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86271-33266

ZRR8#

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86271-48231

ZRR8#

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86271-33264

ZRR8#

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86271-48233

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86271-33265

ZRR8#

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86271-48230

ZRR8#

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86271-48232

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86273B - ADAPTER, DISC PLAYER
86273-48030

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86273-48030

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86431 - DISPLAY, DISPLAY & NAVIGATION MODULE
86804-28030

ZRR8#..NOAH,VOXY

AISIN AW,ID=B9079,ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86804-28020

ZRR8#..NOAH,VOXY

AISIN AW,ID=B9062,ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-28060

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86730-28060

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86860 - ANTENNA ASSY, NAVIGATION
86870-28110

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
86870-28110

ZRR8#..NOAH,VOXY

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
Common parts
90153-50010
90159-50327
93568-55014
Linked diagrams
8121
8601
