ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire

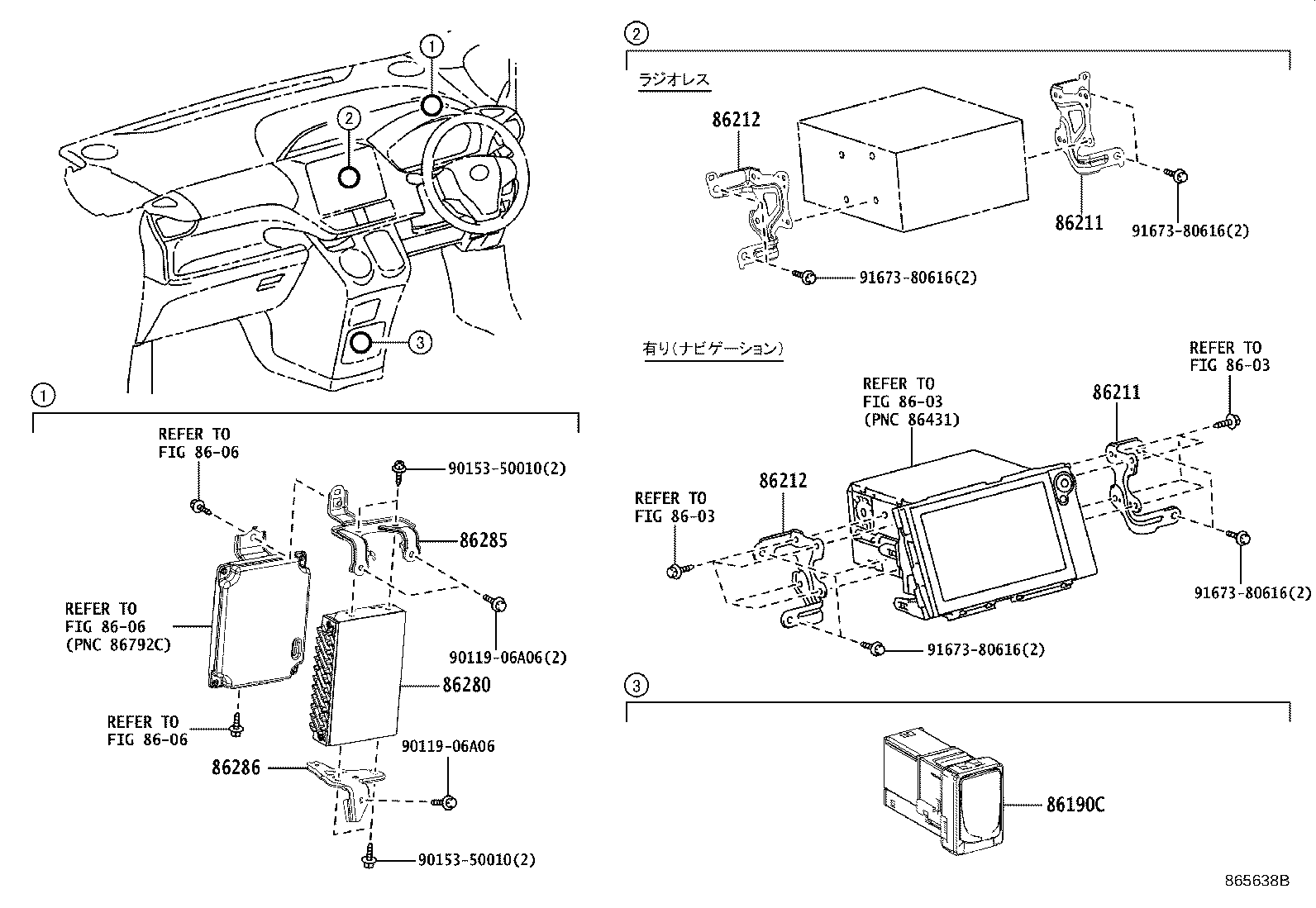

ILLUST NO. 1 OF 3(1401- )
ﾚｼｰﾊﾞ & ｱﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-48080 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86190-42040 |
ZRR8# ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-28200 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86211-28200 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86211-28150 |
ZRR8#,ZWR80 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-28200 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86211-28200 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86211-28150 |
ZRR8#,ZWR80 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-28200 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86212-28200 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86212-28150 |
ZRR85..07S;ZRR80..07S..GI;ZWR80..G,GI,V,X,XI;ZRR80..G,SI,V,X,XI,ZS;ZRR85..08S..(G,SI,V,X,XI,ZS) ｵｰﾃﾞｨｵ−無し&有り(ｵｰﾃﾞｨｵﾚｽｶﾊﾞｰ) |
1 | ||
| 86212-28150 |
ZRR8#,ZWR80 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-28200 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86212-28200 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86212-28150 |
ZRR85..07S;ZRR80..07S..GI;ZWR80..G,GI,V,X,XI;ZRR80..G,SI,V,X,XI,ZS;ZRR85..08S..(G,SI,V,X,XI,ZS) ｵｰﾃﾞｨｵ−無し&有り(ｵｰﾃﾞｨｵﾚｽｶﾊﾞｰ) |
1 | ||
| 86212-28150 |
ZRR8#,ZWR80 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-28280 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86280-28280 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-28200 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86285-28200 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-28020 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 86286-28020 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90153-50010 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8603 | ||||
| 8606 | ||||

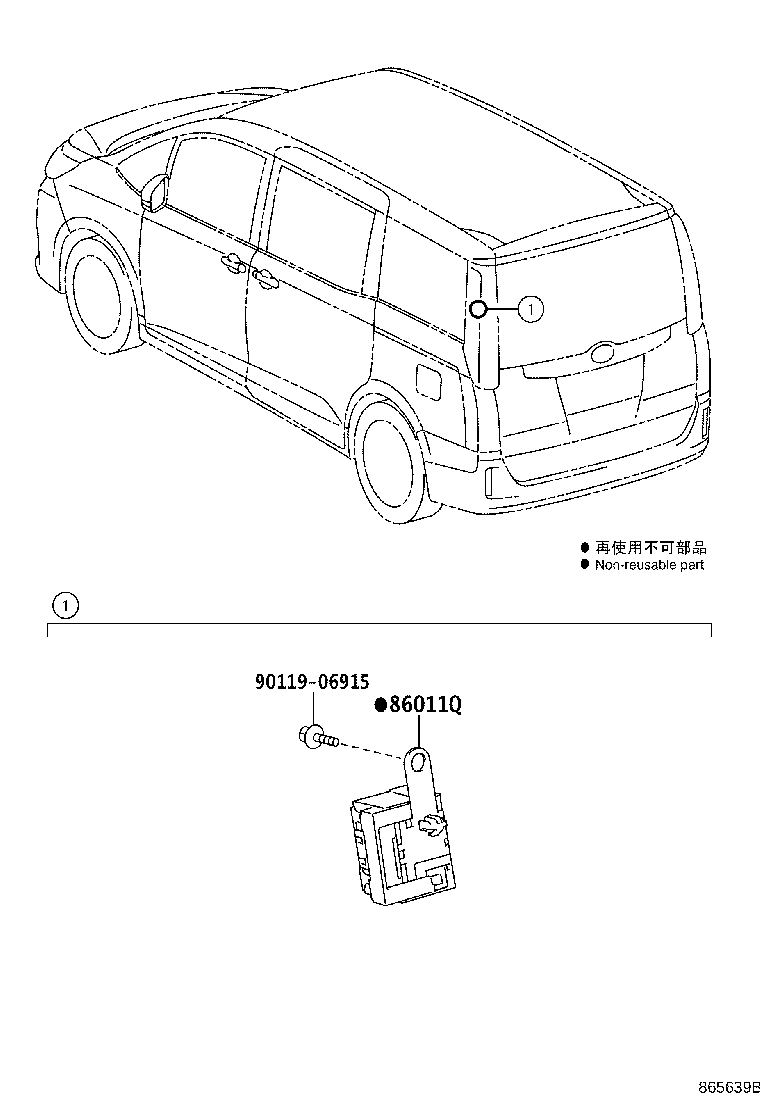

ILLUST NO. 2 OF 3(1401- )
ｺﾝﾃﾞﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04204 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

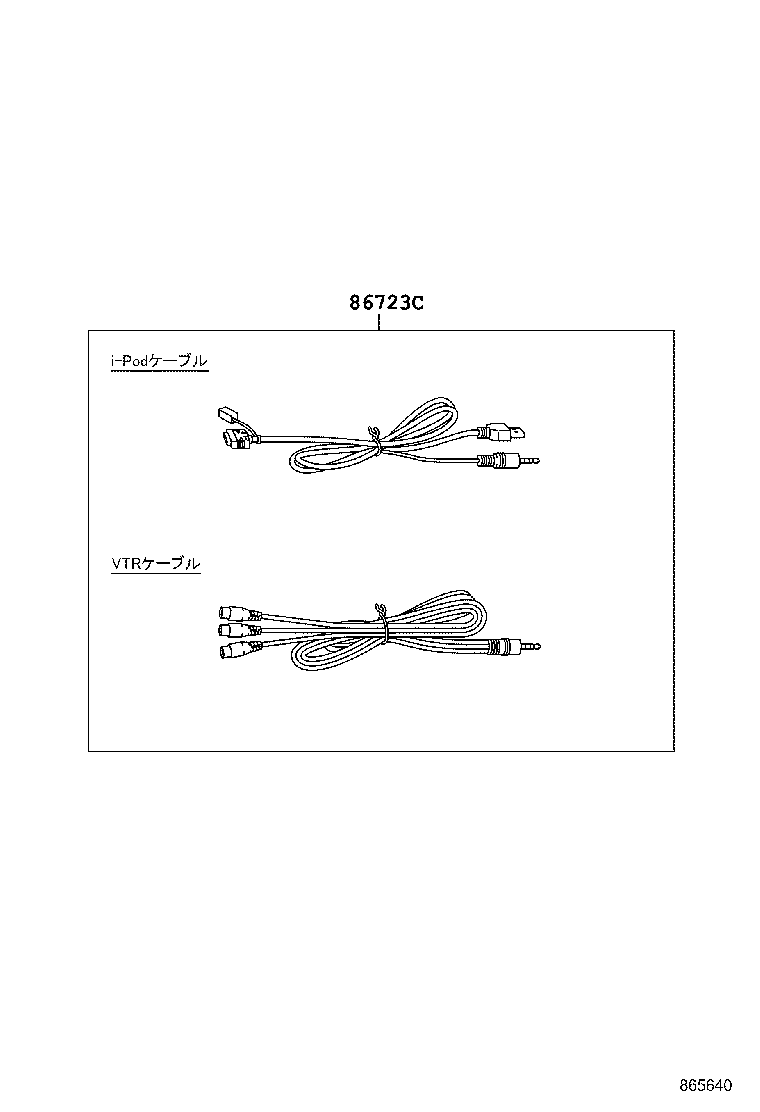

ILLUST NO. 3 OF 3(1401-1601)ZRR8#
IPOD/VTRｷｷｾﾂｿﾞｸﾖｳｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86723C - WIRE, MOBILEPHONE | ||||
| 86723-75010 |
ZRR8# IPOD/VTR接続ｹｰﾌﾞﾙ−有り |
1 | ||
