ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401-1706)

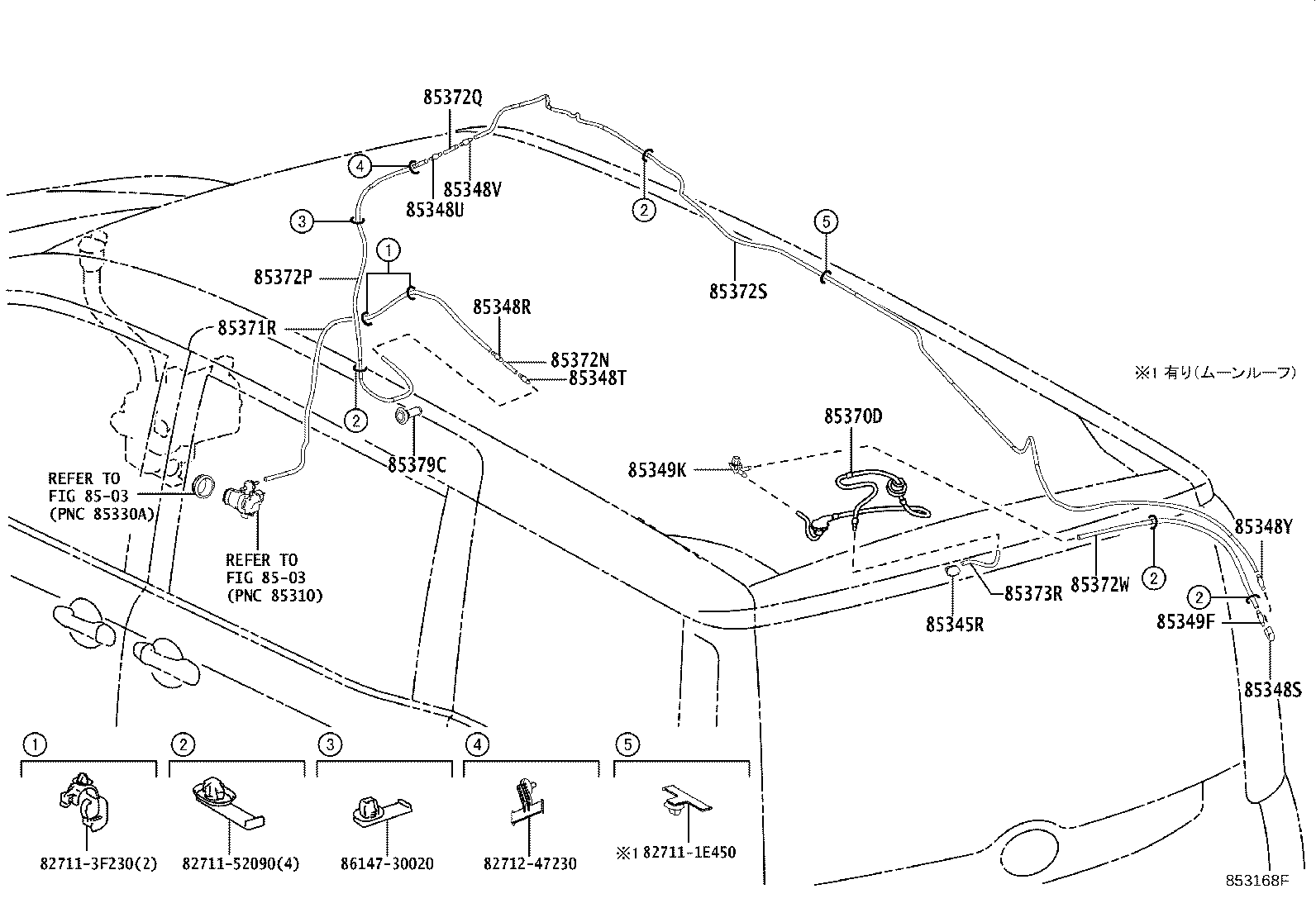

Click highlighted areas on diagram

diagram 827111E450 827113F230 8271152090 8271247230 8503 8503 85345R 85348R 85348S 85348T 85348U 85348V 85348Y 85349F 85349K 85370D 85371R 85372N 85372P 85372Q 85372S 85372W 85373R 85379C 8614730020
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85391-28170

ZRR8#,ZWR80

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ZRR8#,ZWR80

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85375-33040

ZRR8#,ZWR80

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ZRR8#,ZWR80

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

ZRR8#,ZWR80

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

ZRR8#,ZWR80

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

ZRR8#,ZWR80

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ZRR8#,ZWR80

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85377-35160

ZRR8#,ZWR80

 1
85370D - HOSE ASSY, REAR WASHER, NO.1
85370-28B12

ZRR8#,ZWR80

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

ZRR8#,ZWR80

*H,L=930

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU

*H,L=30,ﾂｲﾝﾑｰﾝﾙｰﾌ−有り

 1
90099-33080

ZRR8#,ZWR80

*H,L=30

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

ZRR8#,ZWR80

*H,L=980

 1
90446-07001

ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU

*H,L=980,ﾂｲﾝﾑｰﾝﾙｰﾌ−有り

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU

*H,L=60,ﾂｲﾝﾑｰﾝﾙｰﾌ−有り

 1
90099-33080

ZRR8#,ZWR80

*H,L=60

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-59392

ZRR8#,ZWR80

長さ=3593

 1
90099-33595

ZRR8#,ZWR80

*H,L=3656

 1
90099-59392

ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU

長さ=3593,ﾂｲﾝﾑｰﾝﾙｰﾌ−有り

 1
90099-33595

ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU

*H,L=3656,ﾂｲﾝﾑｰﾝﾙｰﾌ−有り

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90446-07001

ZRR8#,ZWR80

*H,L=450

 1
90446-07001

ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU

*H,L=450,ﾂｲﾝﾑｰﾝﾙｰﾌ−有り

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

ZRR8#,ZWR80

*H,L=105

 1
90099-33080

ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU

*H,L=105,ﾂｲﾝﾑｰﾝﾙｰﾌ−有り

 1
85379C - GROMMET, REAR WASHER HOSE NO.1
85379-16180

ZRR8#,ZWR80

 1
Common parts
82711-1E450
82711-3F230
82711-52090
82712-47230
86147-30020
Linked diagrams
8503
