ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )

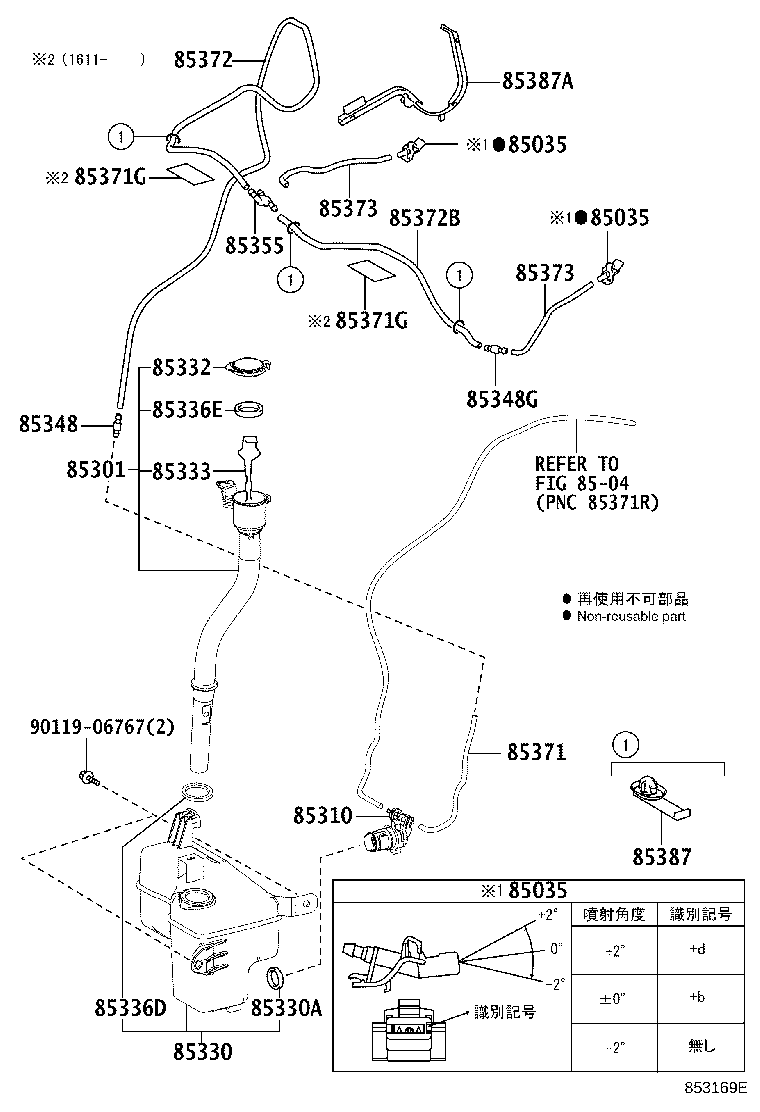

Click highlighted areas on diagram

diagram 85035 85035 85035 8504 85301 85310 85330 85330A 85332 85333 85336D 85336E 85348 85348G 85355 85371 85371G 85371G 85372 85372B 85373 85373 85387 85387A 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

ZRR8#,ZWR80

角度 −2

 2
85381-30240

ZRR8#,ZWR80

角度 +2

 2
85381-30220

ZRR8#,ZWR80

角度 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

ZRR8#,ZWR80

角度 −2

 2
85381-30240

ZRR8#,ZWR80

角度 +2

 2
85381-30220

ZRR8#,ZWR80

角度 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

ZRR8#,ZWR80

角度 −2

 2
85381-30240

ZRR8#,ZWR80

角度 +2

 2
85381-30220

ZRR8#,ZWR80

角度 0

 2
85301 - INLET SUB-ASSY, WASHER
85301-28110

ZRR8#,ZWR80

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-12350

ZRR8#,ZWR80

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-28340

ZRR8#,ZWR80

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

ZRR8#,ZWR80

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-16070

ZRR8#,ZWR80

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-47020

ZRR8#,ZWR80

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

ZRR8#,ZWR80

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-42320

ZRR8#,ZWR80

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

ZRR8#,ZWR80

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

ZRR8#,ZWR80

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

ZRR8#,ZWR80

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

ZRR8#,ZWR80

*H,L=325

 1
85371G - PROTECTOR, FRONT WASHER
85389-28A60

ZRR8#,ZWR80

 2
85371G - PROTECTOR, FRONT WASHER
85389-28A60

ZRR8#,ZWR80

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803

ZRR8#,ZWR80

*H,L=1490

 1
90099-33803

ZRR8#,ZWR80

*H,L=1510

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

ZRR8#,ZWR80

*H,L=580

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ZRR8#,ZWR80

*H,L=220

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ZRR8#,ZWR80

*H,L=220

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-52090

ZRR8#,ZWR80

 3
85387A - CLAMP, WASHER, NO.2
85387-28A60

ZRR8#,ZWR80

 1
Common parts
90119-06767
Linked diagrams
8504
