ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
Production
Jan 2014
-
Jun 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401- )

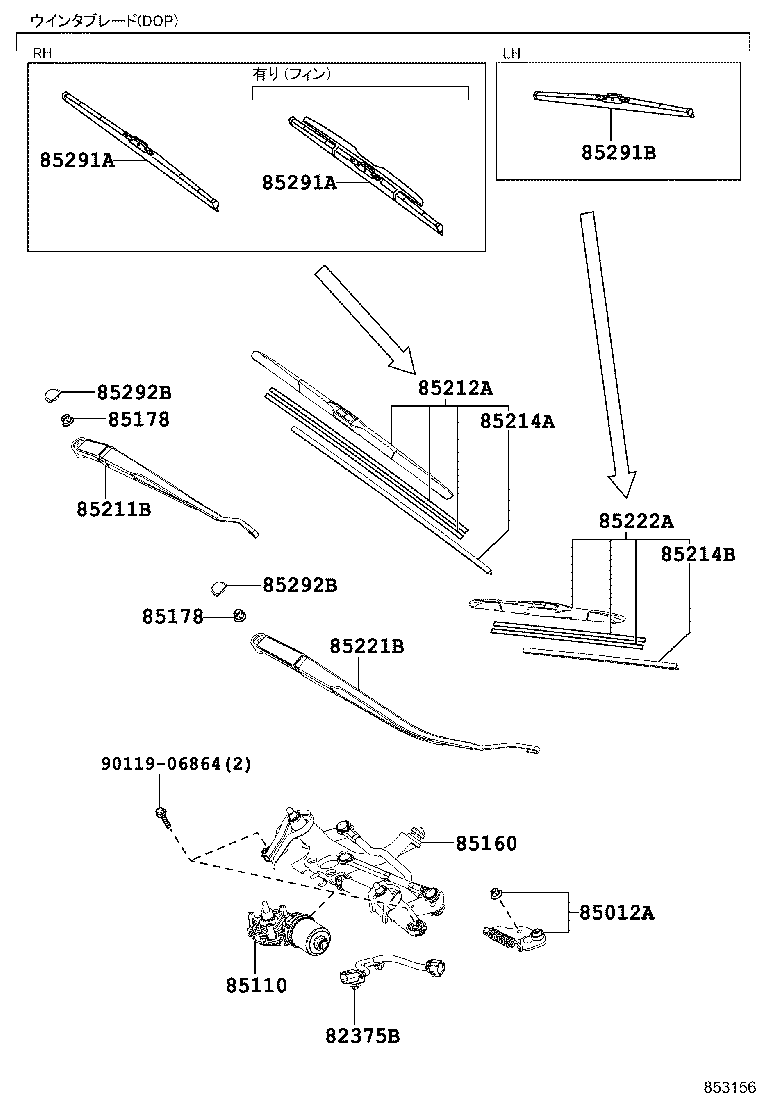

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82375B - WIRE, WIPER MOTOR | ||||
| 82375-28020 |
ZRR8#,ZWR80 |
1 | ||
| 85012A - CRANK SUB-ASSY, FRONT WIPER | ||||
| 85012-50010 |
ZRR8#,ZWR80 |
1 | ||
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-28241 |
ZRR8#,ZWR80 |
1 | ||
| 85110-28250 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 85110-28240 |
ZRR8#,ZWR80 |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-28220 |
ZRR8#,ZWR80 |
1 | ||
| 85150-28221 |
ZRR8#,ZWR80 |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-10006 |
ZRR8#,ZWR80 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-10006 |
ZRR8#,ZWR80 |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-28212 |
ZRR8#,ZWR80 |
1 | ||
| 85211-28213 |
ZRR8#,ZWR80 |
1 | ||
| 85211-28210 |
ZRR8#,ZWR80 |
1 | ||
| 85211-28211 |
ZRR8#,ZWR80 |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-28201 |
ZRR8#,ZWR80 |
1 | ||
| 85212-28200 |
ZRR8#,ZWR80 |
1 | ||
| 85212-52240 |
ZRR8#,ZWR80 |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-28100 |
ZRR8#,ZWR80 |
1 | ||
| 85214-28080 |
ZRR8#,ZWR80 |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-28110 |
ZRR8#,ZWR80 |
1 | ||
| 85214-68030 |
ZRR8#,ZWR80 |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-28171 |
ZRR8#,ZWR80 |
1 | ||
| 85221-28170 |
ZRR8#,ZWR80 |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-28201 |
ZRR8#,ZWR80 |
1 | ||
| 85222-28200 |
ZRR8#,ZWR80 |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-52110 |
ZRR8#,ZWR80 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291-52100 |
ZRR8#,ZWR80 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-52110 |
ZRR8#,ZWR80 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ) |
1 | ||
| 85291-52100 |
ZRR8#,ZWR80 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85291B - BLADE, FRONT WIPER, WINTER, LH | ||||
| 85291-28120 |
ZRR8#,ZWR80 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
ZRR8#,ZWR80 |
2 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-13010 |
ZRR8#,ZWR80 |
2 | ||
| Common parts | ||||
| 90119-06864 | ||||
(1401- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85213B - RUBBER, WIPER BLADE, RH(FOR GLASS COAT) | ||||
| 85213-28110 |
ZRR8#,ZWR80 |
1 | ||
| 85213C - RUBBER, WIPER BLADE, LH(FOR GLASS COAT) | ||||
| 85213-12320 |
ZRR8#,ZWR80 |
1 | ||
