ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire

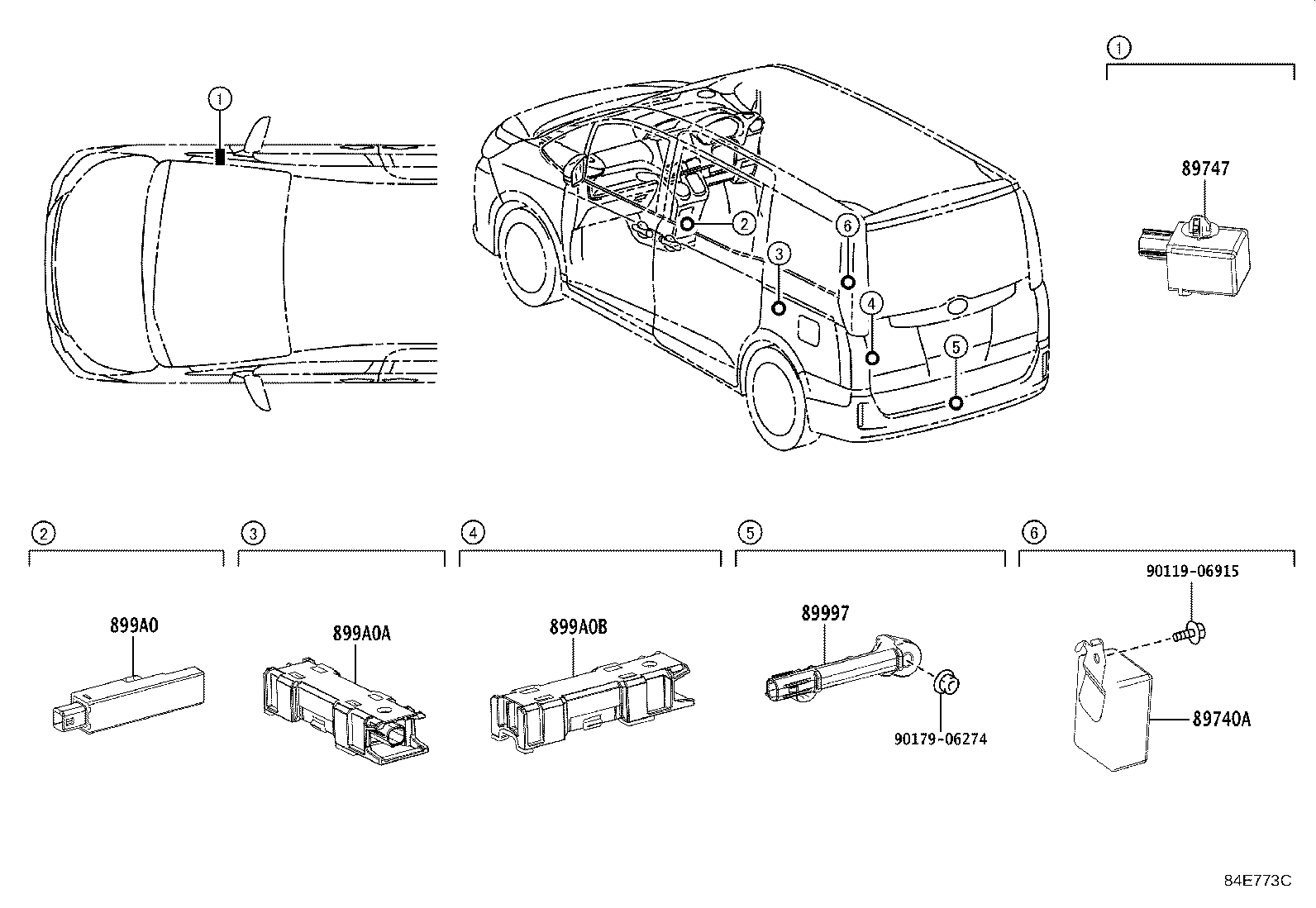

ILLUST NO. 2 OF 2(1401- )CBU
ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ(ｱﾝﾃﾅ & ﾚｼｰﾊﾞ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89740A - RECEIVER ASSY, SMART DOOR CONTROL | ||||
| 89740-28110 |
ZWR80;ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89740-28110 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 89740-28110 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-30040 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89747-30040 |
ZWR80;ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-30100 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89997-30100 |
ZWR80;ZRR8#..(G,GI,SI,V,ZS)..CBU |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-47010 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 899A0-47010 |
ZWR80;ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-60020 |
ZWR80;ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 899A0-60020 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 899A0-60020 |
ZWR80;ZRR8#..IV5;ZRR8#..(G,GI,SI,V,ZS)..CBU |
1 | ||
| 899A0-60020 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||

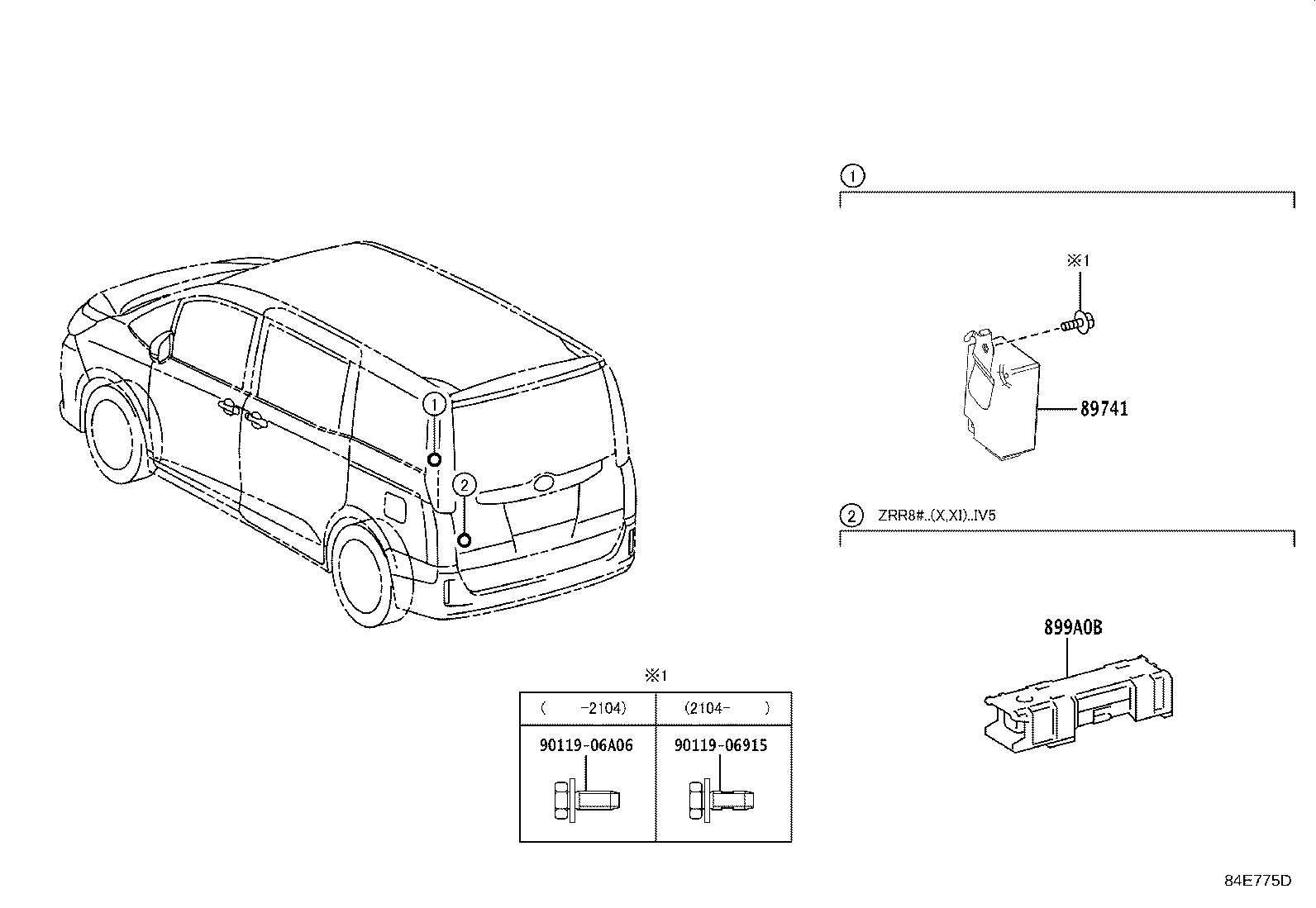

(1401- )
ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-28310 |
ZRR8#..X,XI |
1 | ||
| 899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 899A0-60020 |
ZWR80;ZRR8#..IV5;ZRR8#..(G,GI,SI,V,ZS)..CBU |
1 | ||
| 899A0-60020 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||

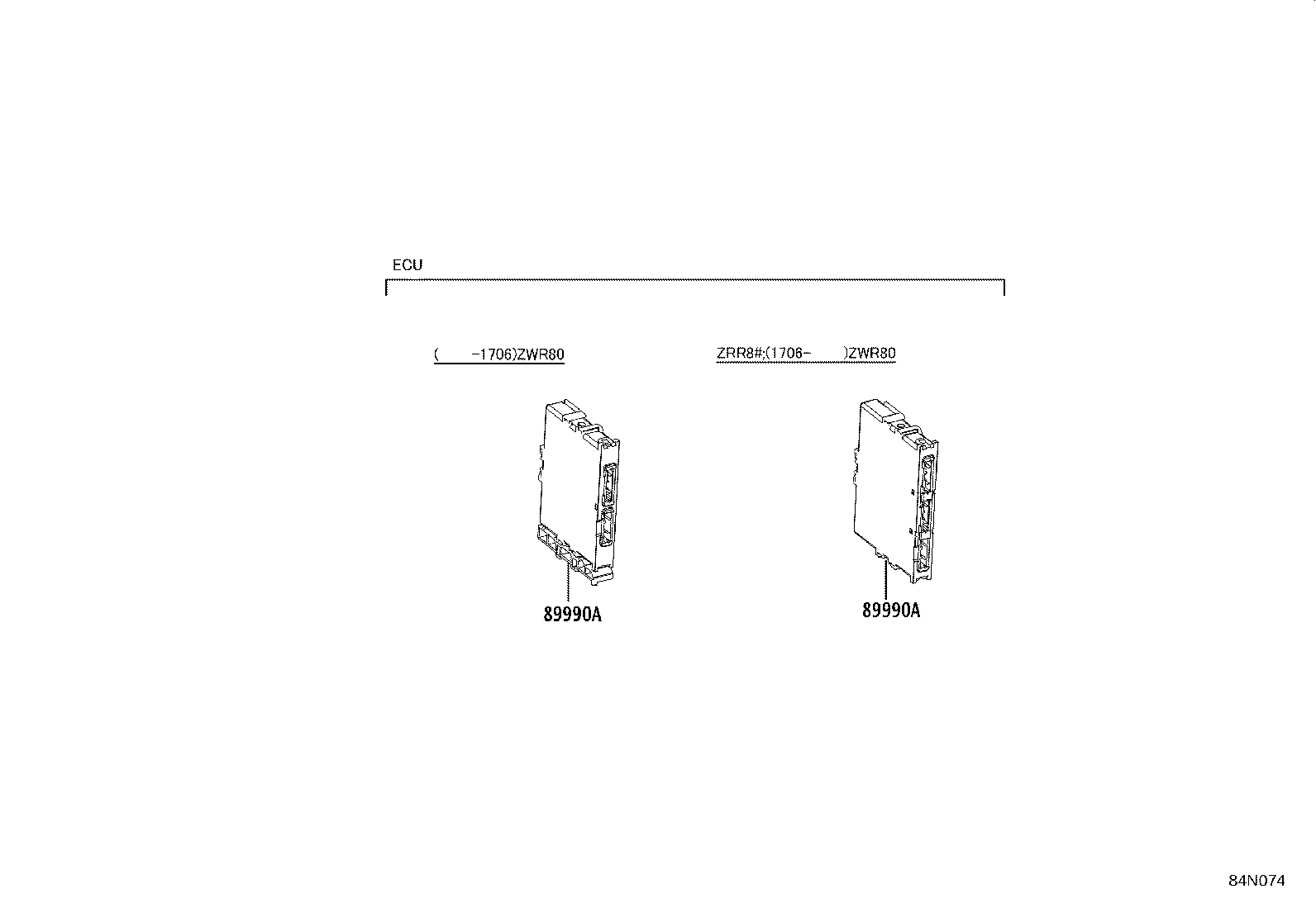

ILLUST NO. 1 OF 2(1401- )
ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ(ECU))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-28310 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89990-28311 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89990-28310 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89990-28311 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-28310 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89990-28311 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89990-28310 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89990-28311 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
