ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
Production
Jan 2014
-
Jun 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401- )ZRR8#

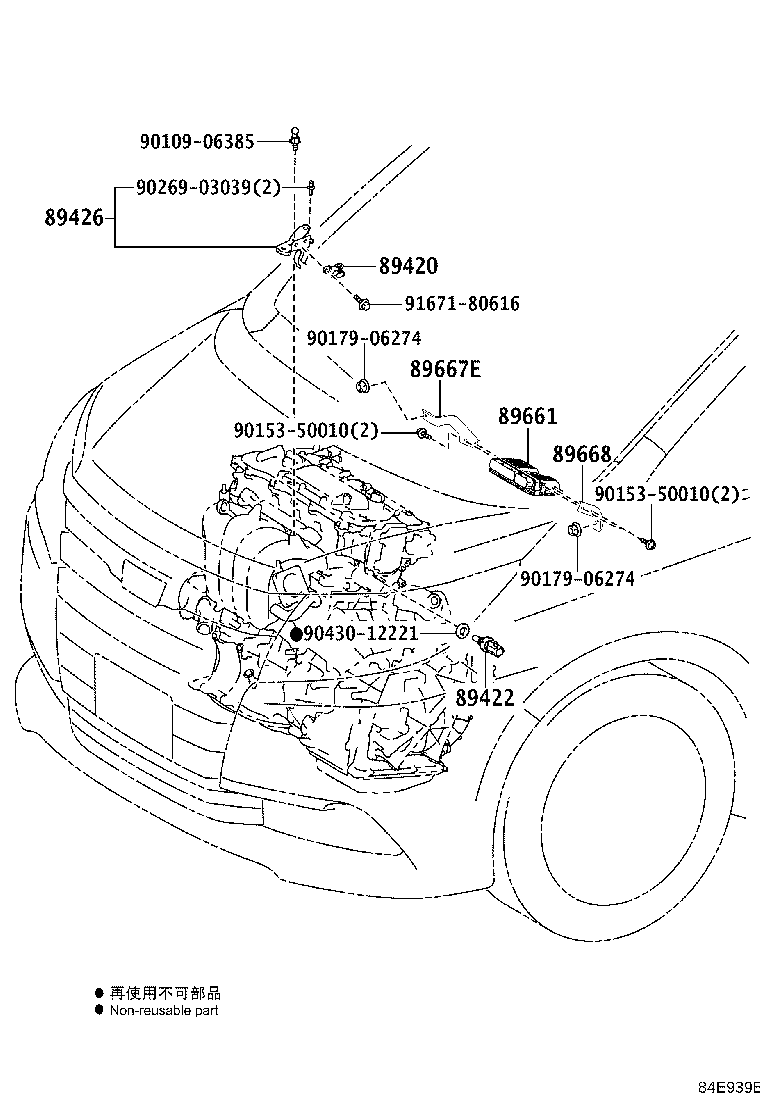

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89420 - SENSOR ASSY, VACUUM | ||||
| 89421-26030 |
ZRR8# |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
ZRR8#,ZWR80 |
1 | ||
| 89426 - BRACKET, VACUUM SENSOR | ||||
| 89426-13020 |
ZRR8# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-28J30 |
ZRR85..X..CBU DENSO,ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 89661-28F60 |
ZRR85..X..CBU DENSO,ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 89661-28J31 |
ZRR85..X..CBU DENSO,ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 89661-28J40 |
ZRR85 DENSO |
1 | ||
| 89661-28F70 |
ZRR85 DENSO |
1 | ||
| 89661-28J41 |
ZRR85 DENSO |
1 | ||
| 89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-28160 |
ZRR8#,ZWR80 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-28160 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90109-06385 | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 90269-03039 | ||||
| 90430-12221 | ||||
| 91671-80616 | ||||
