ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
ILLUST NO. 5 OF10(1401-1601)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28200 |
ZRR8#,ZWR80 |
1 | ||
| 84332-28201 |
ZRR8#,ZWR80 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-28010 |
ZRR8# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZRR8#,ZWR80 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-28070C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 85535-28070C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
ILLUST NO. 4 OF10(1401- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRR8#,ZWR80 30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZRR8#,ZWR80 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09023 |
ZRR8#,ZWR80 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09020 |
ZRR8#,ZWR80 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
ZRR8#,ZWR80 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
ZRR8#,ZWR80 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZRR8#,ZWR80 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09023 |
ZRR8#,ZWR80 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09020 |
ZRR8#,ZWR80 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
ZRR8#,ZWR80 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
ZRR8#,ZWR80 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-28190 |
ZRR8#,ZWR80 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-28120 |
ZRR8#,ZWR80 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-28130 |
ZRR8#,ZWR80 |
1 | ||
| 82730F - BLOCK ASSY, JUNCTION, LH | ||||
| 82730-28621 |
ZRR8#,ZWR80 |
1 | ||
| 82730-28620 |
ZRR8#,ZWR80 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-28010 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 82877-28010 |
ZRR8#,ZWR80 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
ZRR8#,ZWR80 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69115 |
ZRR8#,ZWR80 |
1 | ||
| 84340-49065 |
ZRR8#,ZWR80 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ZRR8#,ZWR80 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
ZRR8#,ZWR80 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-28020 |
ZRR8#..(NOAH,VOXY)..CBU ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 89100-28050 |
ZRR8#..X..CBU ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り&ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 89100-28050 |
ZWR80;ZRR8#..X..IV5;ZRR8#..G,GI,SI,V,XI,ZS |
1 | ||
| 89100-28010 |
ZRR8#..CBU ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 89100-28050 |
ZRR8#..X..CBU ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 89100-28050 |
ZRR8#..X..CBU ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ZRR8#,ZWR80 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-28040 |
ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 89220-28030 |
ZRR85..CBU |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-28190 |
ZRR85;ZRR80..SI,ZS JTEKT |
1 | ||
| 89650-28131 |
ZRR85;ZRR80..SI,ZS JTEKT |
1 | ||
| 89650-28130 |
ZRR85;ZRR80..SI,ZS JTEKT |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-28190 |
ZRR85;ZRR80..SI,ZS JTEKT |
1 | ||
| 89650-28131 |
ZRR85;ZRR80..SI,ZS JTEKT |
1 | ||
| 89650-28130 |
ZRR85;ZRR80..SI,ZS JTEKT |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-28191 |
ZRR8#..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 89960-28190 |
ZRR8#..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 89960-28190 |
ZRR8#,ZWR80..CBU |
1 | ||
| 89960-28191 |
ZRR8#,ZWR80..CBU |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90179-06110 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
| 91551-80512 | ||||
| 91553-80818 | ||||
| 91673-80616 | ||||
| 91673-80622 | ||||
| 93313-15010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8407 | ||||
| 8611 | ||||
ILLUST NO. 1 OF10(1401- )ZRR8#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ZRR8#,ZWR80 YAZAKI |
1 | ||
| 83530-12050 |
ZRR8# |
1 | ||
| 83530-28020 |
ZRR8#,ZWR80 DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-28030 |
ZRR8# |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-12010 |
ZRR8# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-28470 |
ZRR8# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-28470 |
ZRR8# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52060 |
ZRR8#,ZWR80 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52060 |
ZRR8#,ZWR80 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 82715-28G60 | ||||
| 82715-28G70 | ||||
| 82715-28K00 | ||||
| 90179-06219 | ||||
| 90430-12221 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40625 | ||||
ILLUST NO. 9 OF10(1401- )
ﾄﾞｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-28080 |
ZRR8#,ZWR80 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
ZRR8#,ZWR80 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
ZRR8#,ZWR80 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ZRR8#,ZWR80 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ZRR8#,ZWR80 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-28040 |
ZRR8#,ZWR80 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-28040 |
ZRR8#,ZWR80 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-28040 |
ZRR8#,ZWR80 |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-28030 |
ZRR8#,ZWR80 |
1 | ||
| 85975B - RELAY, SLIDE DOOR CLOSER, RH | ||||
| 85975-58020 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90901-48003 | ||||
| Linked diagrams | ||||
| 6755 | ||||

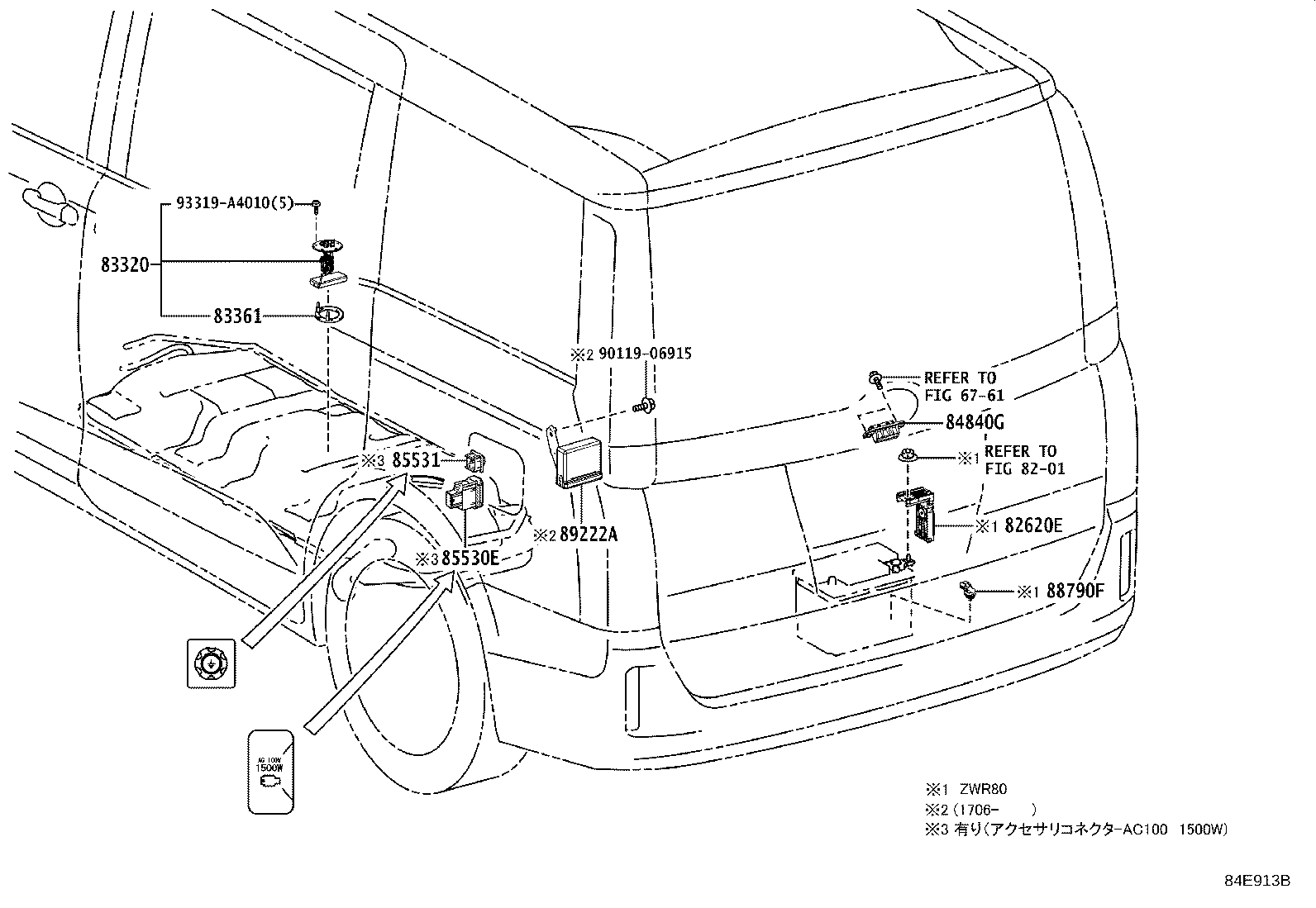

ILLUST NO.10 OF10(1401- )CBU
ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80521 |
ZRR85 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
ZRR8#,ZWR80 |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28050 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84840-28020 |
ZRR8#..X,XI;ZRR80..(SI,ZS)..IV5 |
1 | ||
| 84840-28050 |
ZWR80;ZRR8#..(G,GI,SI,V,ZS)..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 6761 | ||||
| 8201 | ||||
ILLUST NO. 2 OF10(1401- )ZRR8#
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28040 |
3ZRFAE..ZRR8# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-28120 |
ZRR8# |
1 | ||
| Common parts | ||||
| 82715-28N50 | ||||
| 90119-06951 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 3 OF10(1401- )ZRR8#
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300E - RELAY ASSY, STARTER, NO.1 | ||||
| 28300-21020 |
3ZRFAE..ZRR8# |
1 | ||
| 28300F - RELAY ASSY, STARTER, NO.2 | ||||
| 28300-21020 |
3ZRFAE..ZRR8# |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
ZRR8#,ZWR80 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08246 |
ZRR8# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08296 |
ZRR8#,ZWR80 50A,ﾒｽ端子,赤 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
ZRR8#,ZWR80 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09019 |
ZRR8#,ZWR80 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
ZRR8#,ZWR80 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
ZRR8#,ZWR80 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
ZRR8#,ZWR80 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
ZRR8#,ZWR80 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
ZRR8#,ZWR80 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09019 |
ZRR8#,ZWR80 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
ZRR8#,ZWR80 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
ZRR8#,ZWR80 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
ZRR8#,ZWR80 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
ZRR8#,ZWR80 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZRR8#,ZWR80 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28250 |
ZRR8# |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28260 |
ZRR8# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-28020 |
ZRR8# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-28270 |
ZWR80;ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 82660-28270 |
ZRR8#..(X,XI)..CBU 寒冷地仕様−有り&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82660-28270 |
ZRR8#..X,XI 寒冷地仕様−有り |
1 | ||
| 82660-28270 |
ZRR8#..X..CBU X“V Package” *(E) OR “C Package” *(E)&ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し&寒冷地仕様−有り |
1 | ||
| 82660-28270 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-28280 |
ZRR8# |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
ZRR8#..(X,XI)..CBU 寒冷地仕様−有り&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82660-48030 |
ZRR8#..X..CBU X“V Package” *(E) OR “C Package” *(E)&ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し&寒冷地仕様−有り |
1 | ||
| 82660-48030 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-48020 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 82660-48020 |
ZRR8#..(X,XI)..CBU 寒冷地仕様−有り&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82660-48020 |
ZRR8#..X..CBU X“V Package” *(E) OR “C Package” *(E)&ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し&寒冷地仕様−有り |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-48020 |
ZRR8#..X..CBU X“V Package” *(E) OR “C Package” *(E)&ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し&寒冷地仕様−有り |
1 | ||
| 82660-48020 |
ZRR8#..(X,XI)..CBU 寒冷地仕様−有り&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82660-48020 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-28350 |
ZRR8#,ZWR80 |
1 | ||
| 82660J - BLOCK ASSY, RELAY | ||||
| 82660-52100 |
ZRR8# |
1 | ||
| 82660K - BLOCK ASSY, RELAY | ||||
| 82660-48030 |
ZRR85;ZRR80..SI,ZS |
1 | ||
| 82660L - BLOCK ASSY, RELAY | ||||
| 82660-48040 |
ZRR8# |
1 | ||
| 82660M - BLOCK ASSY, RELAY | ||||
| 82660-48020 |
ZRR8# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-28200 |
ZRR8# |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-28210 |
ZRR8# |
1 | ||
| 82661B - COVER, RELAY BLOCK, NO.3 | ||||
| 82661-28190 |
ZRR8# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-28290 |
ZRR8# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-28280 |
ZRR8# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-28130 |
ZRR8# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-28080 |
ZRR8#,ZWR80 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82660-28290 |
ZRR8# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82660-28300 |
ZRR8#,ZWR80 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
ZRR8#,ZWR80 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
ZRR8#,ZWR80 |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ZRR8#,ZWR80..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 90987-02027 |
ZRR8#,ZWR80..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZRR8#,ZWR80 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ZRR8#,ZWR80 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 90987-02025 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E)&ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し&寒冷地仕様−有り |
1 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02027 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E)&ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し&寒冷地仕様−有り |
2 | ||
| 90987-02027 |
ZRR8#,ZWR80 寒冷地仕様−有り |
2 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90987-02025 |
ZRR85,ZWR80;ZRR80..SI,ZS |
1 | ||
ILLUST NO. 8 OF10(1401- )
ｼｰﾄ(ﾘﾌﾄｱｯﾌﾟｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E340 | ||||
| 82711-1E360 | ||||
| 93260-56008 | ||||
| 93269-63016 | ||||
| 93530-54010 | ||||
| C2815-D1020 | ||||
| C6565-18010 | ||||
ILLUST NO. 8 OF10(1404- )
ｼｰﾄ(ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ - ﾀﾞｯﾁｬｸﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06145 | ||||
| 90189-05131 | ||||
| 93260-56012 | ||||
| 93269-63016 | ||||
| 93313-13012 | ||||
| 93319-13010 | ||||
| 93530-55020 | ||||
| 94170-60620 | ||||
| C2815-D1020 | ||||
| C5398-D1020 | ||||
| C6565-18010 | ||||
| Linked diagrams | ||||
| 7157 | ||||
ILLUST NO. 5 OF10(1601-1706)ZRR8#
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28200 |
ZRR8#,ZWR80 |
1 | ||
| 84332-28201 |
ZRR8#,ZWR80 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-28010 |
ZRR8# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZRR8#,ZWR80 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
ZRR8#,ZWR80 ｼｶﾞﾚｯﾄﾗｲﾀ−有り |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-28070C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 85535-28070C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
ILLUST NO. 7 OF10(1401- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ZRR8#..X,XI |
1 | ||
| 84052-71010 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33230 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| 84140-12830 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 84140-33230 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84140-12A20 |
ZRR8#,ZWR80..X..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-12A10 |
ZRR8#,ZWR80..X |
1 | ||
| 84140-12A10 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E)&ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り |
1 | ||
| 84140-33231 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| 84140-12850 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84140-33220 |
ZRR8#,ZWR80..(G,GI,SI,V,XI,ZS)..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-33231 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84140-33231 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E)&ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84140-33220 |
ZRR8#,ZWR80..X..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-28330 |
ZRR8#,ZWR80 |
1 | ||
| 84250-28340 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 84250-28340 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-28330 |
ZRR8#,ZWR80 |
1 | ||
| 84250-28340 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 84250-28340 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-12010 |
ZRR8#,ZWR80 |
1 | ||
| 84308-28010 |
ZRR8#,ZWR80 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-33090 |
ZRR8#,ZWR80 |
1 | ||
| 84307-28050 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 84307-28050 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 84307-12100 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 84307-28140 |
ZRR8#,ZWR80 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12320 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 84450-12320 |
ZRR8#..X,XI |
1 | ||
| 84650D - SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | ||||
| 84652-28700 |
ZRR8#,ZWR80 |
1 | ||
| 84652-28702 |
ZRR8#,ZWR80 |
1 | ||
| 84652-28701 |
ZRR8#,ZWR80 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-52010 |
ZRR8#..X,XI |
1 | ||
| 85432-52010 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-33010 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 6 OF10(1401-1601)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52091 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 84152-52090 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-28021 |
ZRR8#..G,GI,V |
1 | ||
| 84153-28020 |
ZRR8#..G,GI,V |
1 | ||
| 84470A - SWITCH ASSY, ECORUN CANCEL | ||||
| 84470-28010 |
ZRR8# |
1 | ||
| 84470-28010 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 84470-28011 |
ZRR8# |
1 | ||
| 84470-28011 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84871-35010 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 84871-35011 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-28170 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 84930-28160 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| 84930-28160 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52032 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52032 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89611-52033 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89611-52033 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52034 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52034 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52032 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52032 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89611-52033 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89611-52033 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52034 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52034 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
ILLUST NO. 6 OF10(1601-1706)ZRR8#
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52091 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 84152-52090 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 84470A - SWITCH ASSY, ECORUN CANCEL | ||||
| 84470-28010 |
ZRR8# |
1 | ||
| 84470-28010 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 84470-28011 |
ZRR8# |
1 | ||
| 84470-28011 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 84470A - SWITCH ASSY, ECORUN CANCEL | ||||
| 84470-28010 |
ZRR8# |
1 | ||
| 84470-28010 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 84470-28011 |
ZRR8# |
1 | ||
| 84470-28011 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84871-35010 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 84871-35011 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-28170 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 84930-28160 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| 84930-28160 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し |
1 | ||
| 84970E - SWITCH ASSY, COMBINATION NO.2 | ||||
| 84970-28060 |
ZWR80;ZRR8#..G,GI,SI,V,XI,ZS |
1 | ||
| 84970-28060 |
ZRR8#..X ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52032 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52032 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89611-52033 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89611-52033 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52034 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52034 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52032 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52032 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89611-52033 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89611-52033 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52034 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 89611-52034 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
