ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )ZRR8#

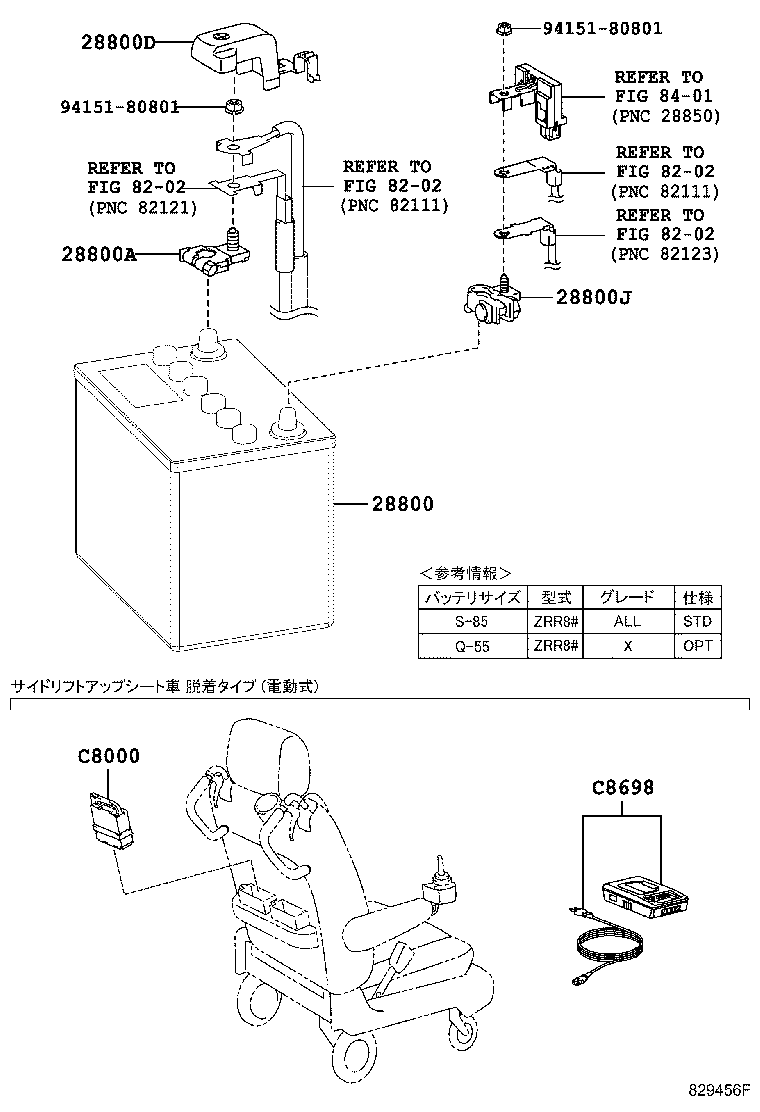

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 8202 8202 8202 8202 8401 9415180801 9415180801 C8000 C8698
Part # Description Qty Price
28800 - BATTERY
28800-47080

3ZRFAE..ZRR8#

S−85

 1
28800-47050

3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU

Q−55,ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

3ZRFAE..ZRR8#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-28280

3ZRFAE..ZRR8#

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06056

3ZRFAE..ZRR8#

 1
Common parts
94151-80801
Linked diagrams
8202
8401
