ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire

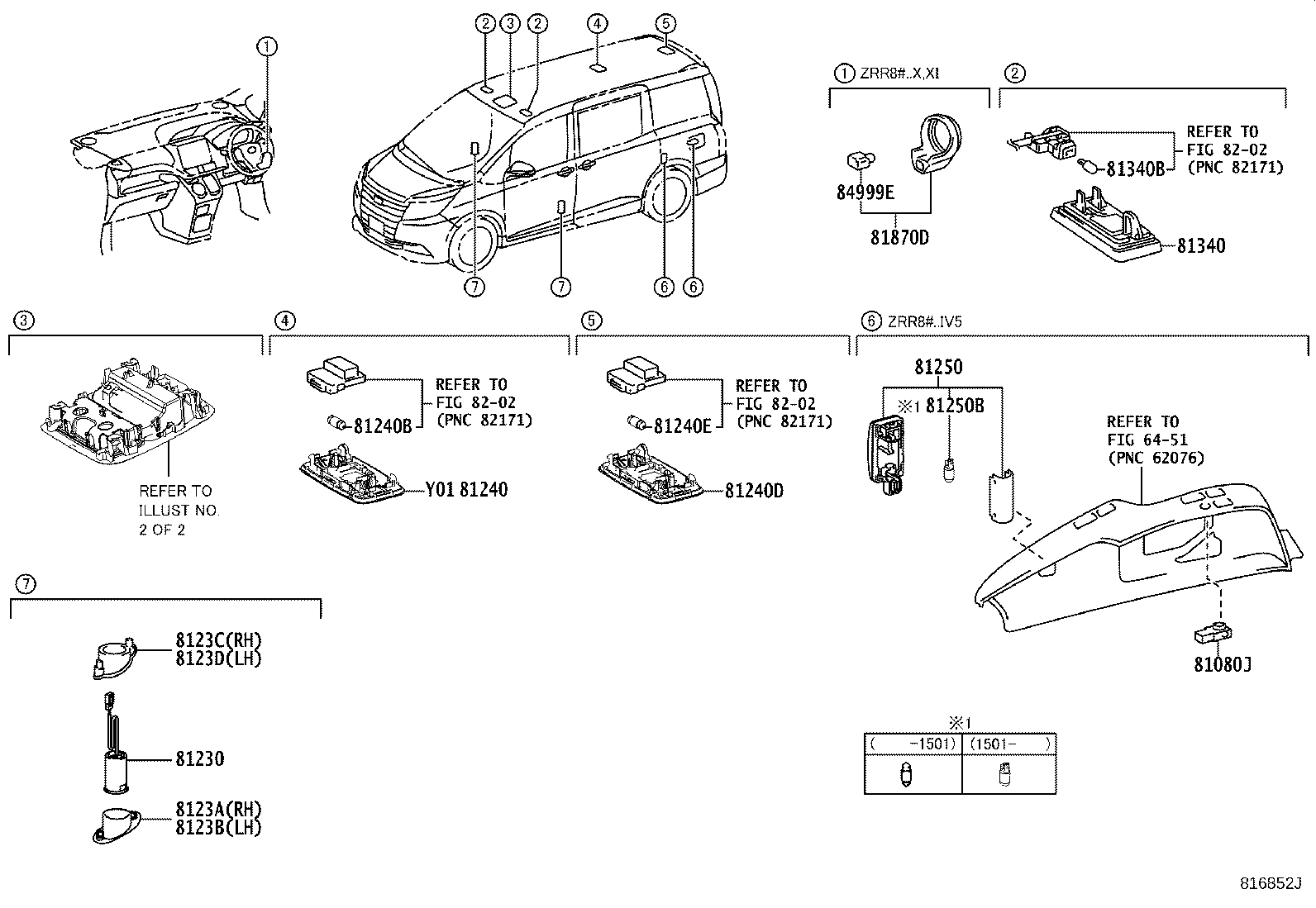

ILLUST NO. 1 OF 2(1401-1706)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-35020B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 81240-35020B0 |
ZRR80..07S..ZS..CBU;ZRR8#,ZWR80..(GI,SI)..CBU LT.GRAY,TRIM2# |
1 | ||
| 81240-35020C0 |
ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
1 | ||
| 81240-35020C1 |
ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
1 | ||
| 81240-35020B0 |
ZRR85..SI;ZRR80..08S..SI..CBU LT.GRAY,TRIM20,27 |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
ZRR8#,ZWR80 12V 8W |
1 | ||
| 81240D - LAMP ASSY, ROOM, NO.2 | ||||
| 81240-35020B0 |
ZRR80..07S..ZS..CBU;ZRR8#,ZWR80..(GI,SI)..CBU LT.GRAY,TRIM2# |
1 | ||
| 81240-35020C0 |
ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
1 | ||
| 81240-35020B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 81240-35020C1 |
ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
1 | ||
| 81240-35020B0 |
ZRR85..SI;ZRR80..08S..SI..CBU LT.GRAY,TRIM20,27 |
1 | ||
| 81240E - BULB, ROOM LAMP, NO.2 | ||||
| 90981-14011 |
ZRR8#,ZWR80 12V 8W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30110 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
2 | ||
| 81340-30110 |
ZRR8#,ZWR80 |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
ZRR8#,ZWR80 12V 8W |
2 | ||
| 90981-11062 |
ZRR80..X;ZRR85..X..CBU 12V 8W,X“V Package” *(E) OR “C Package” *iE) |
2 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-22130 |
ZRR8#..X,XI |
1 | ||
| 84999E - BULB, KEY CYLINDER LAMP | ||||
| 84999-10250 |
ZRR8#..X,XI |
1 | ||
| Linked diagrams | ||||
| 6451 | ||||
| 8202 | ||||

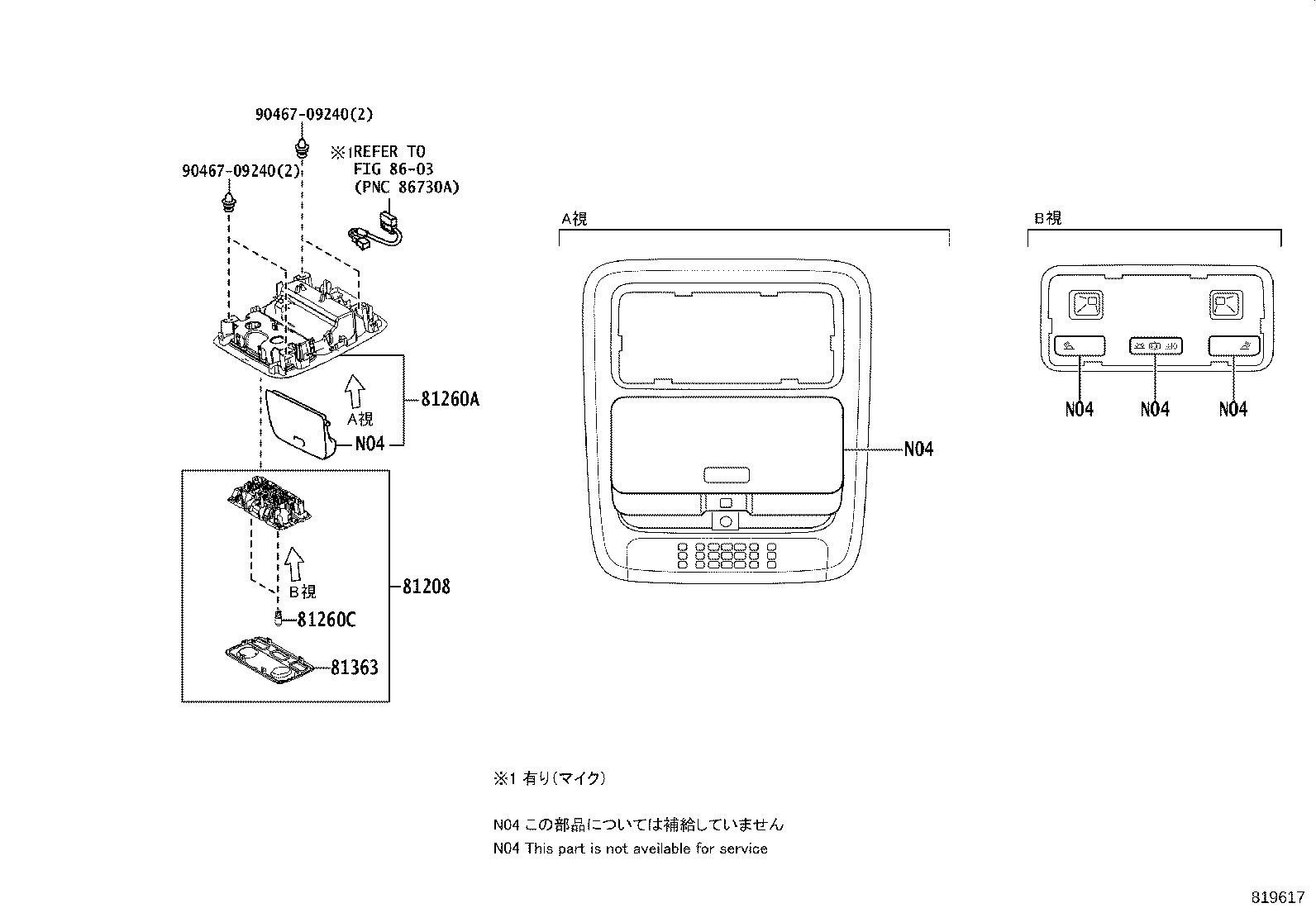

ILLUST NO. 2 OF 2(1401-1706)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81208 - LAMP SUB-ASSY, MAP | ||||
| 81208-28070B0 |
ZRR8#,ZWR80..SI..CBU LT.GRAY,TRIM20 |
1 | ||
| 81208-28070B0 |
ZRR8#,ZWR80..NOAH..(G,X) LT.GRAY,TRIM0#,2# |
1 | ||
| 81208-28070B0 |
ZRR8#..SI..CBU;ZRR80..07S..ZS..CBU ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM2# |
1 | ||
| 81208-52010 |
ZRR8#,ZWR80 |
1 | ||
| 81208-28070C0 |
ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
1 | ||
| 81208-28070B0 |
ZRR8#..SI..CBU;ZRR80..07S..ZS..CBU ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM2# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81208-28050B0 |
ZRR8#..NOAH..(G,X) ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| 81208-28060B0 |
ZRR8#..(GI,SI)..CBU;ZRR80..07S..ZS..CBU LT.GRAY,TRIM2# |
1 | ||
| 81208-28060B0 |
ZRR8#..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 81208-28050B0 |
ZRR8#..SI,V,ZS;ZRR8#..VOXY..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM2# |
1 | ||
| 81208-28050B0 |
ZRR8#..SI,V,ZS;ZRR8#..VOXY..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM2# |
1 | ||
| 81208-28050B0 |
ZRR8#..NOAH..(G,X) ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| 81208-28060C0 |
ZRR80..GI;ZRR85..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
1 | ||
| 81208-28060B0 |
ZRR85..SI;ZRR80..08S..SI..CBU LT.GRAY,TRIM20,27 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 99132-12050 |
ZRR8#,ZWR80 12V 5W |
2 | ||
| 81363 - LENS, ROOM LAMP, OUTER | ||||
| 81363-52010 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90467-09240 | ||||
| Linked diagrams | ||||
| 8603 | ||||
