ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
Production
Jan 2014
-
Jun 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401-1706)ESQIR,NOAH

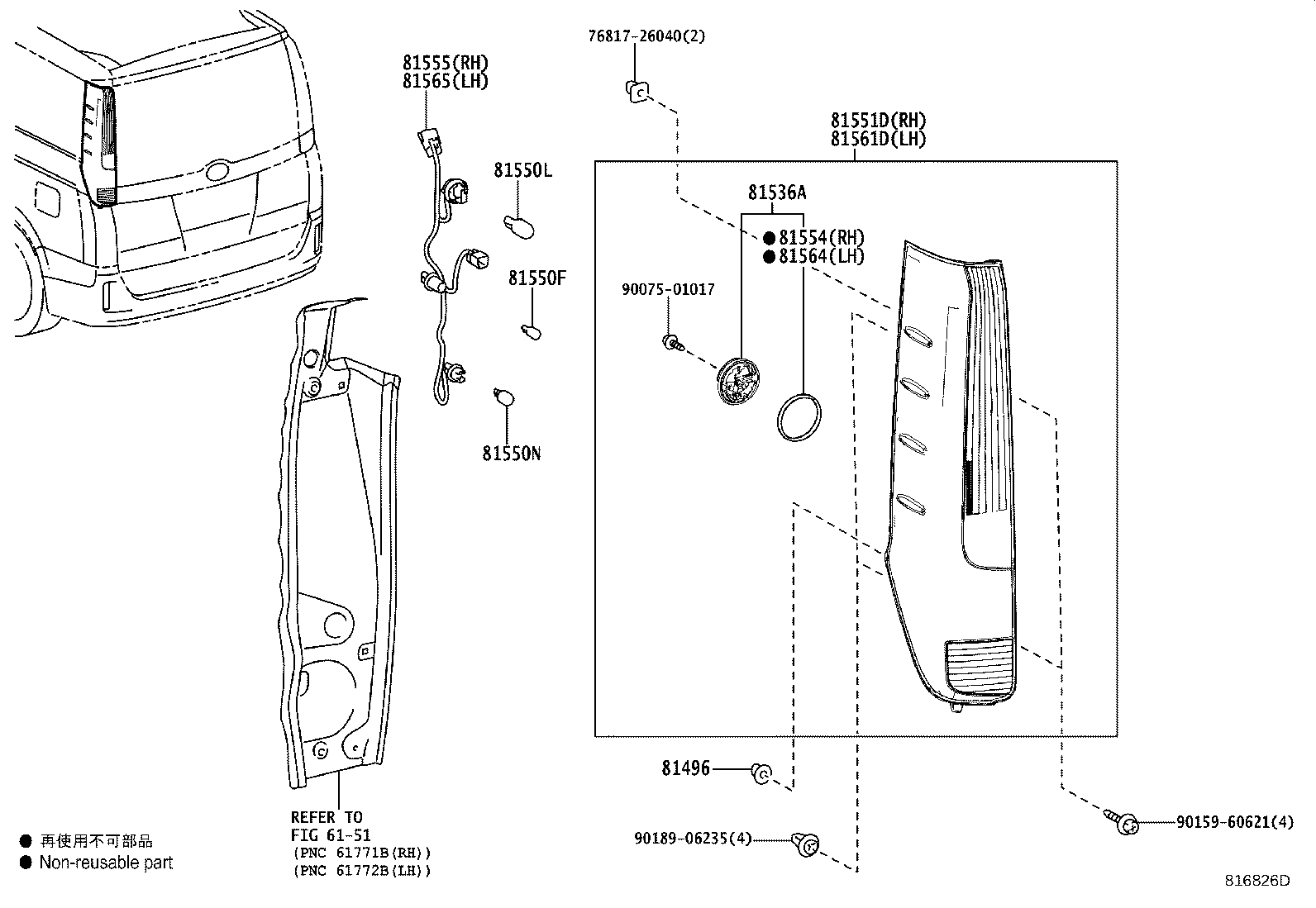

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
ZRR8#,ZWR80 |
2 | ||
| 81536A - LED, REAR COMBINATION LAMP | ||||
| 81536-28550 |
ZRR8#,ZWR80..ESQIR,NOAH |
2 | ||
| 81550F - BULB, TAIL LAMP | ||||
| 90981-11069 |
ZRR8#,ZWR80..ESQIR,NOAH 12V 5W |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
ZRR8#,ZWR80 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
ZRR8#,ZWR80 12V 16W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-28550 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-28550 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-28550 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-28630 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-28550 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-28550 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| Common parts | ||||
| 76817-26040 | ||||
| 90075-01017 | ||||
| 90159-60621 | ||||
| 90189-06235 | ||||
| Linked diagrams | ||||
| 6151 | ||||
