ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
(1401-1706)

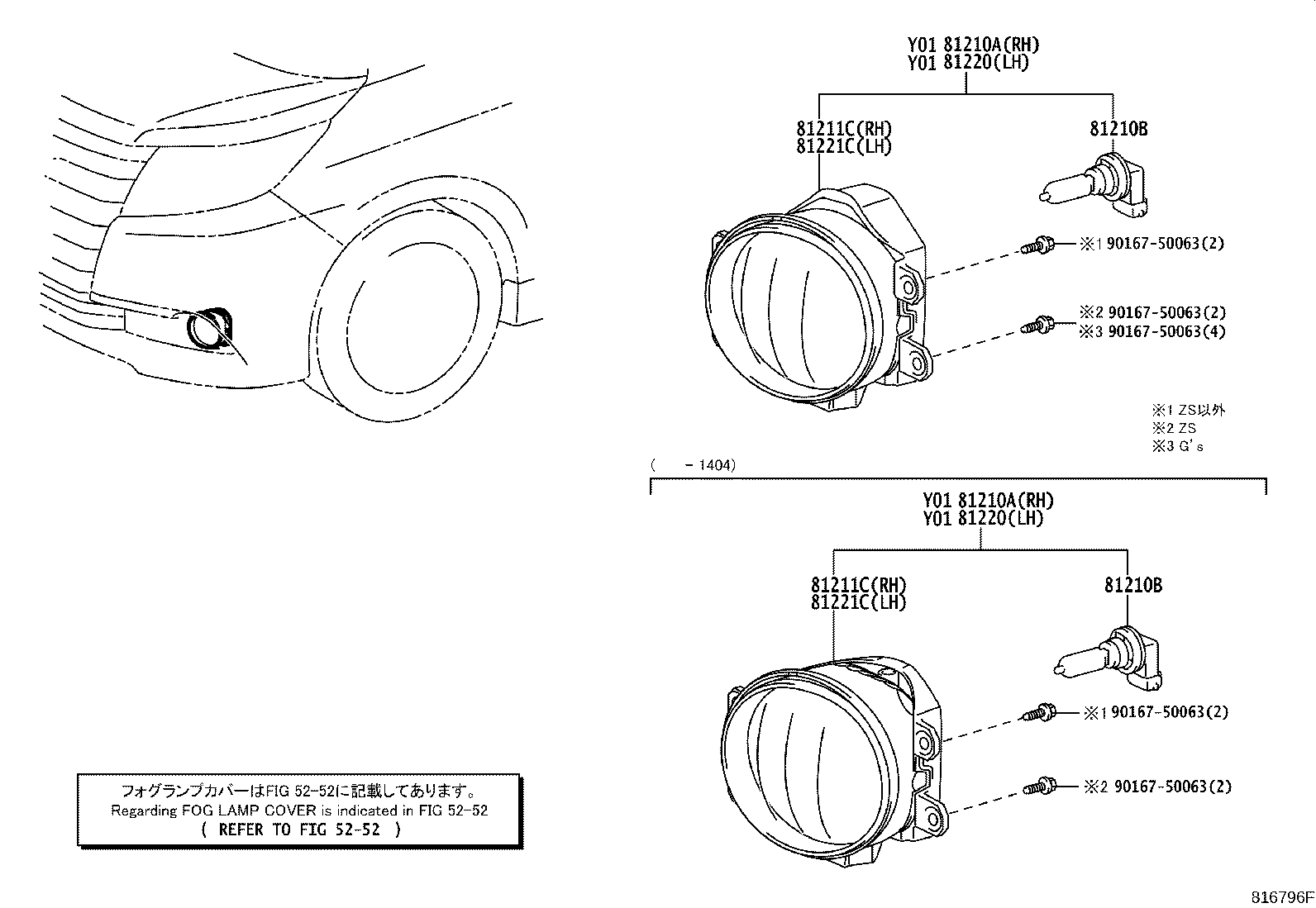

ﾊﾞﾙﾌﾞﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-12230 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81210-12230 |
ZRR8#,ZWR80..G,SI,V,ZS |
1 | ||
| 81210-47010 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81210-47010 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-12230 |
ZRR8#,ZWR80..G,SI,V,ZS |
1 | ||
| 81210-12230 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81210-47010 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81210-47010 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13090 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS 12V 19W |
2 | ||
| 90981-13090 |
ZRR8#,ZWR80..X 12V 19W,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
2 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13090 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS 12V 19W |
2 | ||
| 90981-13090 |
ZRR8#,ZWR80..X 12V 19W,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-47010 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| 81211-12230 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81211-47010 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81211-12230 |
ZRR8#,ZWR80..G,SI,V,ZS |
1 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-47010 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| 81211-12230 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81211-47010 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81211-12230 |
ZRR8#,ZWR80..G,SI,V,ZS |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-12230 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81220-47010 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| 81220-12230 |
ZRR8#,ZWR80..G,SI,V,ZS |
1 | ||
| 81220-47010 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-12230 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81220-47010 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| 81220-12230 |
ZRR8#,ZWR80..G,SI,V,ZS |
1 | ||
| 81220-47010 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-12230 |
ZRR8#,ZWR80..G,SI,V,ZS |
1 | ||
| 81221-47010 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81221-12230 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81221-47010 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-12230 |
ZRR8#,ZWR80..G,SI,V,ZS |
1 | ||
| 81221-47010 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81221-12230 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81221-47010 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 5252 | ||||
(1601- )

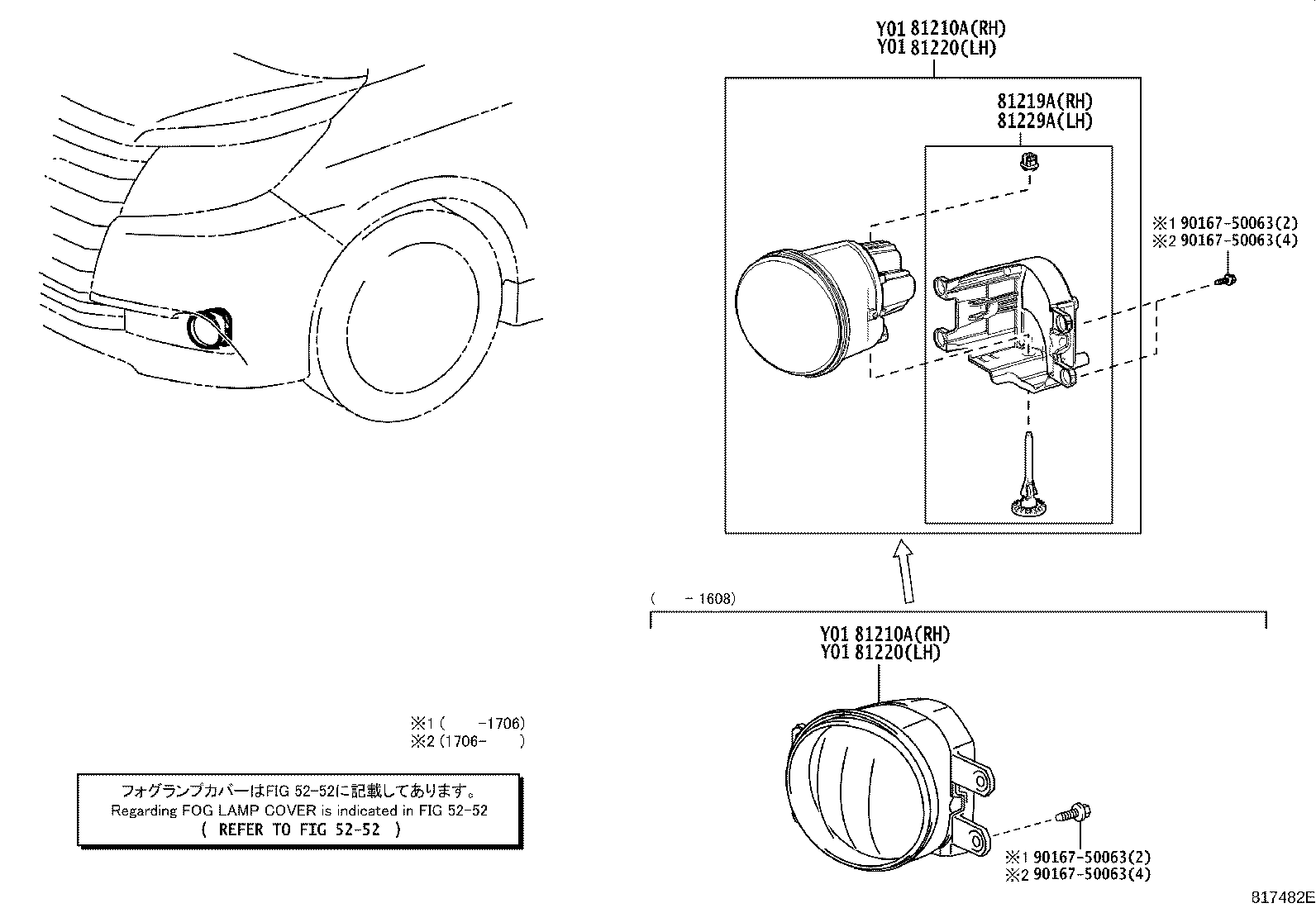

LEDﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-12230 |
ZRR8#,ZWR80..G,SI,V,ZS |
1 | ||
| 81210-12230 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81210-47010 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81210-47010 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-12230 |
ZRR8#,ZWR80..G,SI,V,ZS |
1 | ||
| 81210-12230 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81210-47010 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81210-47010 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-12230 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81220-47010 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| 81220-12230 |
ZRR8#,ZWR80..G,SI,V,ZS |
1 | ||
| 81220-47010 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-12230 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 81220-47010 |
ZRR8#,ZWR80..G,GI,SI,V,XI,ZS |
1 | ||
| 81220-12230 |
ZRR8#,ZWR80..G,SI,V,ZS |
1 | ||
| 81220-47010 |
ZRR8#,ZWR80..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 5252 | ||||
