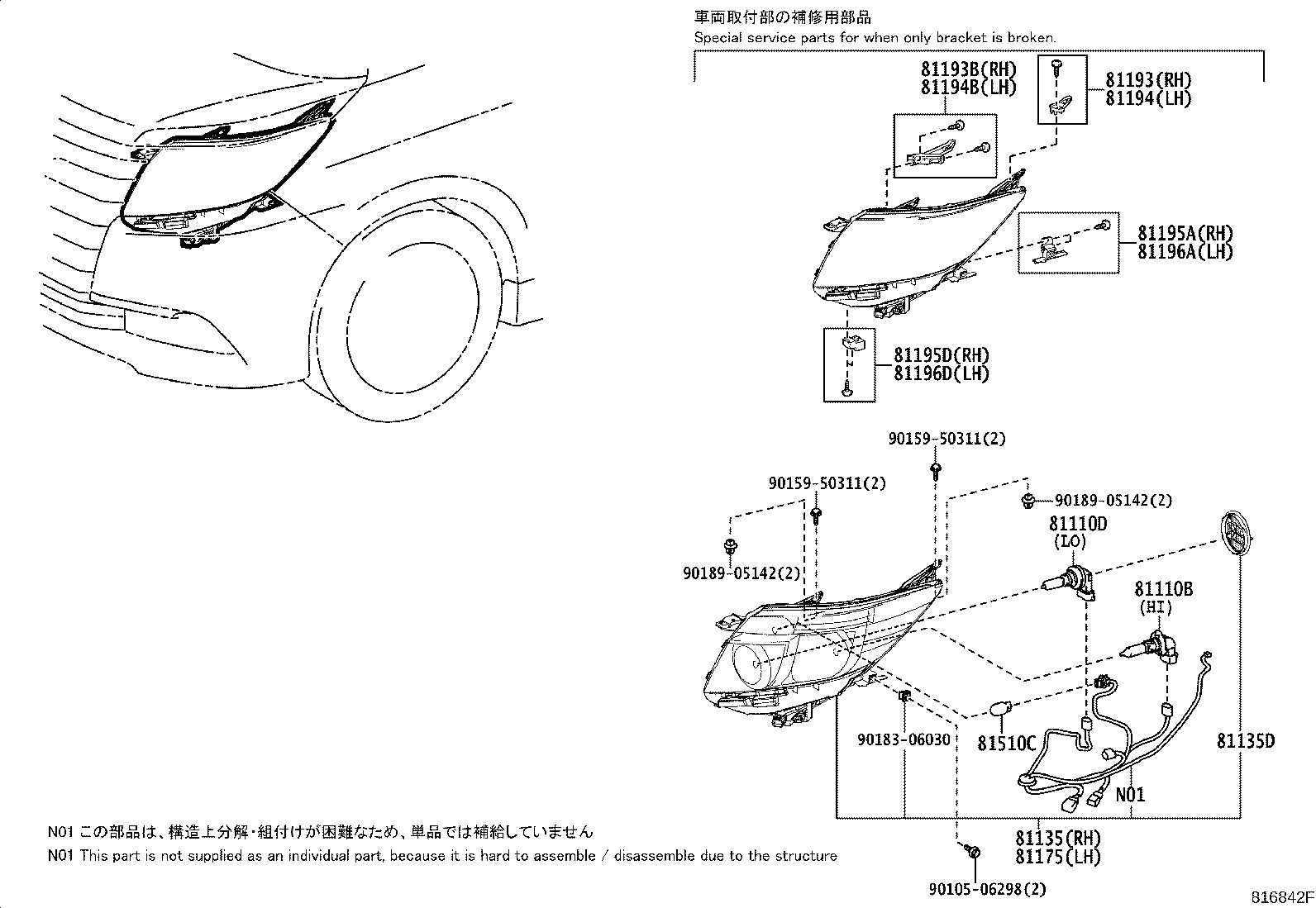

ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
(1401-1706)ESQIR,NOAH
LEDﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ZRR8#,ZWR80 12V65W(SAE),60W(ECE) |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-28D01 |
ZRR8#,ZWR80..NOAH..(G,X) |
1 | ||
| 81130-28D10 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 81130-28F71 |
ZRR8#,ZWR80..GI,SI,XI |
1 | ||
| 81130-28D00 |
ZRR8#,ZWR80..NOAH..(G,X) |
1 | ||
| 81130-28F70 |
ZRR8#,ZWR80..GI,SI,XI |
1 | ||
| 81130-28G30 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-28721 |
ZRR8#,ZWR80..NOAH..(G,X) |
1 | ||
| 81170-28720 |
ZRR8#,ZWR80..NOAH..(G,X) |
1 | ||
| 81170-28C90 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 81170-28G30 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C) |
1 | ||
| 81170-28D21 |
ZRR8#,ZWR80..GI,SI,XI |
1 | ||
| 81170-28D20 |
ZRR8#,ZWR80..GI,SI,XI |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-28170 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-28180 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-28170 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-28180 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-28010 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81195-28020 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-28010 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81196-28020 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ZRR8#,ZWR80 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
(1401-1706)NOAH
ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ZRR8#,ZWR80 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13082 |
ZRR80..X;ZRR85..X..CBU 12V 55W,ﾊﾛｹﾞﾝ,X“V Package” *(E) OR “C Pack≠e” *(E) |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-28D01 |
ZRR8#,ZWR80..NOAH..(G,X) |
1 | ||
| 81130-28D10 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 81130-28F71 |
ZRR8#,ZWR80..GI,SI,XI |
1 | ||
| 81130-28D00 |
ZRR8#,ZWR80..NOAH..(G,X) |
1 | ||
| 81130-28F70 |
ZRR8#,ZWR80..GI,SI,XI |
1 | ||
| 81130-28G30 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C) |
1 | ||
| 81135D - COVER, HEADLAMP BACK, NO.2 | ||||
| 81135-58050 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-28720 |
ZRR8#,ZWR80..NOAH..(G,X) |
1 | ||
| 81170-28721 |
ZRR8#,ZWR80..NOAH..(G,X) |
1 | ||
| 81170-28C90 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 81170-28G30 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C) |
1 | ||
| 81170-28D21 |
ZRR8#,ZWR80..GI,SI,XI |
1 | ||
| 81170-28D20 |
ZRR8#,ZWR80..GI,SI,XI |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-28170 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-28180 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-28170 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-28180 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-28010 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81195-28020 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-28010 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81196-28020 |
ZRR8#,ZWR80..ESQIR,NOAH |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ZRR8#,ZWR80 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
