ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire

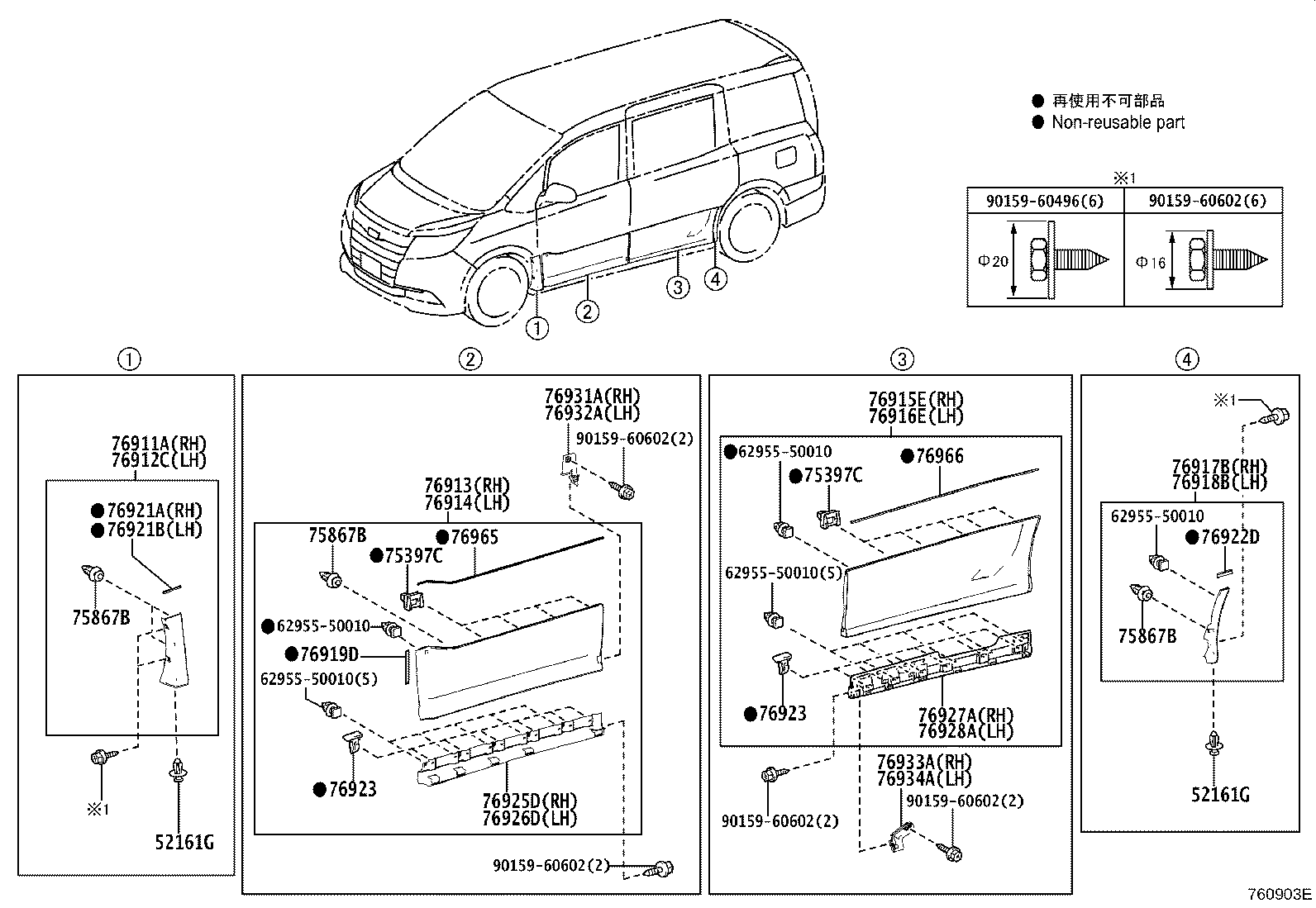

ILLUST NO. 1 OF 2(1401- )SI,ZS
ｻｲﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161G - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80..SI,ZS |
4 | ||
| 52161G - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80..SI,ZS |
4 | ||
| 75397C - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75397-58030 |
ZRR8#,ZWR80..SI,ZS |
18 | ||
| 75397C - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75397-58030 |
ZRR8#,ZWR80..SI,ZS |
18 | ||
| 75867B - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33030 |
ZRR8#,ZWR80..SI,ZS |
8 | ||
| 75867B - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33030 |
ZRR8#,ZWR80..SI,ZS |
8 | ||
| 75867B - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33030 |
ZRR8#,ZWR80..SI,ZS |
8 | ||
| 76911A - MUDGUARD, FENDER PANEL, RH | ||||
| 76901-28090C0 |
ZRR8#,ZWR80..SI,ZS BLACK,202 |
1 | ||
| 76901-28090B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 76901-28090K0 |
ZRR8#,ZWR80..SI DK.VIOLET M.M.,9AF |
1 | ||
| 76901-28090A0 |
ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
1 | ||
| 76901-28090B0 |
ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
1 | ||
| 76901-28090D0 |
ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 76912C - MUDGUARD, FENDER PANEL, LH | ||||
| 76902-28090C0 |
ZRR8#,ZWR80..SI,ZS BLACK,202 |
1 | ||
| 76902-28090A0 |
ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
1 | ||
| 76902-28090B0 |
ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
1 | ||
| 76902-28090D0 |
ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 76902-28090K0 |
ZRR8#,ZWR80..SI DK.VIOLET M.M.,9AF |
1 | ||
| 76902-28090B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 76913 - MUDGUARD, FRONT DOOR, RH | ||||
| 76903-28160B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 76903-28160B0 |
ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
1 | ||
| 76903-28160D0 |
ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 76903-28160C0 |
ZRR8#,ZWR80..SI,ZS BLACK,202 |
1 | ||
| 76903-28160K0 |
ZRR8#,ZWR80..SI DK.VIOLET M.M.,9AF |
1 | ||
| 76903-28160A0 |
ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
1 | ||
| 76914 - MUDGUARD, FRONT DOOR, LH | ||||
| 76904-28140A0 |
ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
1 | ||
| 76904-28140B0 |
ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
1 | ||
| 76904-28140C0 |
ZRR8#,ZWR80..SI,ZS BLACK,202 |
1 | ||
| 76904-28140B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 76904-28140K0 |
ZRR8#,ZWR80..SI DK.VIOLET M.M.,9AF |
1 | ||
| 76904-28140D0 |
ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 76915E - MUDGUARD, SLIDE DOOR, RH | ||||
| 76905-28080A0 |
ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
1 | ||
| 76905-28080C0 |
ZRR8#,ZWR80..SI,ZS BLACK,202 |
1 | ||
| 76905-28080B0 |
ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
1 | ||
| 76905-28080K0 |
ZRR8#,ZWR80..SI DK.VIOLET M.M.,9AF |
1 | ||
| 76905-28080B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 76905-28080D0 |
ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 76916E - MUDGUARD, SLIDE DOOR, LH | ||||
| 76906-28160A0 |
ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
1 | ||
| 76906-28160D0 |
ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 76906-28160K0 |
ZRR8#,ZWR80..SI DK.VIOLET M.M.,9AF |
1 | ||
| 76906-28160B0 |
ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
1 | ||
| 76906-28160B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 76906-28160C0 |
ZRR8#,ZWR80..SI,ZS BLACK,202 |
1 | ||
| 76917B - MUDGUARD, QUARTER PANEL, RH | ||||
| 76907-28100K0 |
ZRR8#,ZWR80..SI DK.VIOLET M.M.,9AF |
1 | ||
| 76907-28100C0 |
ZRR8#,ZWR80..SI,ZS BLACK,202 |
1 | ||
| 76907-28100D0 |
ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 76907-28100B0 |
ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
1 | ||
| 76907-28100B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 76907-28100A0 |
ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
1 | ||
| 76918B - MUDGUARD, QUARTER PANEL, LH | ||||
| 76908-28100A0 |
ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
1 | ||
| 76908-28100B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 76908-28100B0 |
ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
1 | ||
| 76908-28100D0 |
ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 76908-28100C0 |
ZRR8#,ZWR80..SI,ZS BLACK,202 |
1 | ||
| 76908-28100K0 |
ZRR8#,ZWR80..SI DK.VIOLET M.M.,9AF |
1 | ||
| 76919D - PAD, SIDE MUDGUARD | ||||
| 76919-28220 |
ZRR8#,ZWR80..SI,ZS |
2 | ||
| 76921A - PROTECTOR, SIDE MUDGUARD, NO.1 | ||||
| 76921-28120B0 |
ZRR8#,ZWR80..SI..CBU DARK GRAY,1H4 ,202 ,3R9 ,9AF |
1 | ||
| 76921-28120B2 |
ZRR8#,ZWR80..SI,ZS MEDIUM GRAY,1F7 |
1 | ||
| 76921-28120B1 |
ZRR8#,ZWR80..SI,ZS LT. GRAY,070 |
1 | ||
| 76921B - PROTECTOR, SIDE MUDGUARD, NO.1 | ||||
| 76921-28130B0 |
ZRR8#,ZWR80..SI..CBU DARK GRAY,1H4 ,202 ,3R9 ,9AF |
1 | ||
| 76921-28130B1 |
ZRR8#,ZWR80..SI,ZS LT. GRAY,070 |
1 | ||
| 76921-28130B2 |
ZRR8#,ZWR80..SI,ZS MEDIUM GRAY,1F7 |
1 | ||
| 76922D - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76922-28110B0 |
ZRR8#,ZWR80..SI..CBU DARK GRAY,1H4 ,202 ,3R9 ,9AF |
2 | ||
| 76922-28110B2 |
ZRR8#,ZWR80..SI,ZS MEDIUM GRAY,1F7 |
2 | ||
| 76922-28110B1 |
ZRR8#,ZWR80..SI,ZS LT. GRAY,070 |
2 | ||
| 76923 - RETAINER, SIDE MUDGUARD | ||||
| 75392-35220 |
ZRR8#,ZWR80..SI,ZS |
24 | ||
| 76923 - RETAINER, SIDE MUDGUARD | ||||
| 75392-35220 |
ZRR8#,ZWR80..SI,ZS |
24 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-28160 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76926-28130 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 76927A - PROTECTOR, SIDE MUDGUARD, REAR RH | ||||
| 76927-28100 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 76928A - PROTECTOR, SIDE MUDGUARD, REAR LH | ||||
| 76928-28070 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 76931A - BRACKET, SIDE MUDGUARD, NO.1 RH | ||||
| 76931-28050 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 76932A - BRACKET, SIDE MUDGUARD, NO.1 LH | ||||
| 76932-28060 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 76933A - BRACKET, SIDE MUDGUARD, NO.2 RH | ||||
| 76933-28050 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 76934A - BRACKET, SIDE MUDGUARD, NO.2 LH | ||||
| 76934-28050 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 76965 - PROTECTOR, FRONT DOOR LOWER MUDGUARD | ||||
| 76965-28120B0 |
ZRR8#,ZWR80..SI..CBU DARK GRAY,1H4 ,202 ,3R9 ,9AF |
2 | ||
| 76965-28120B2 |
ZRR8#,ZWR80..SI,ZS MEDIUM GRAY,1F7 |
2 | ||
| 76965-28120B1 |
ZRR8#,ZWR80..SI,ZS LT. GRAY,070 |
2 | ||
| 76966 - PROTECTOR, SLIDE DOOR LOWER MUDGUARD | ||||
| 76966-28130B1 |
ZRR8#,ZWR80..SI,ZS LT. GRAY,070 |
2 | ||
| 76966-28130B0 |
ZRR8#,ZWR80..SI..CBU DARK GRAY,1H4 ,202 ,3R9 ,9AF |
2 | ||
| 76966-28130B2 |
ZRR8#,ZWR80..SI,ZS MEDIUM GRAY,1F7 |
2 | ||
| Common parts | ||||
| 62955-50010 | ||||
| 90159-60496 | ||||
| 90159-60602 | ||||

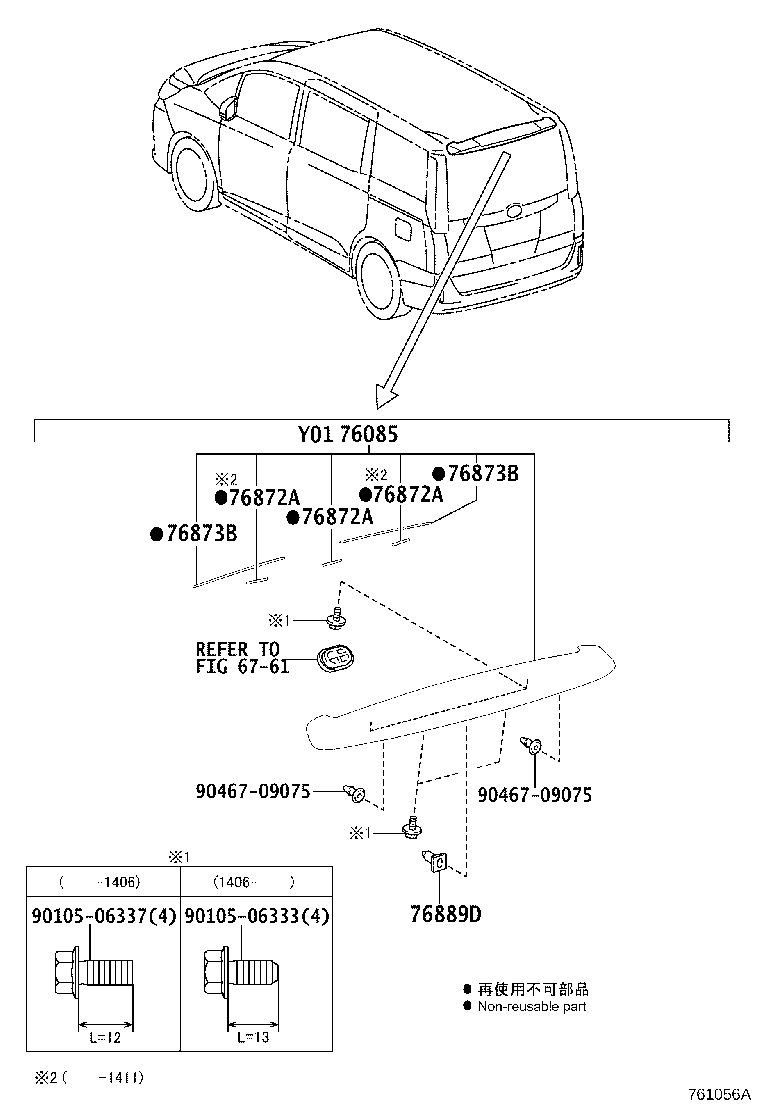

ILLUST NO. 2 OF 2(1401- )SI,ZS
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-28190A0 |
ZRR8#..SI,ZS WHITE PEARL CS.,070 |
1 | ||
| 76085-28190B0 |
ZRR8#..SI,ZS SILVER ME.,1F7 |
1 | ||
| 76085-28190C0 |
ZRR8#..SI,ZS BLACK,202 |
1 | ||
| 76085-28190D0 |
ZRR8#..SI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 76085-28191B0 |
ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
1 | ||
| 76085-28190K0 |
ZRR8#..SI DK.VIOLET M.M.,9AF |
1 | ||
| 76085-28191K0 |
ZRR8#,ZWR80..SI DK.VIOLET M.M.,9AF |
1 | ||
| 76085-28191A0 |
ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
1 | ||
| 76085-28191C0 |
ZRR8#,ZWR80..SI,ZS BLACK,202 |
1 | ||
| 76085-28191D0 |
ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 76085-28191B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 76872A - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-28120 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 76872-28120 |
ZRR8#..SI,ZS |
3 | ||
| 76872A - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-28120 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 76872-28120 |
ZRR8#..SI,ZS |
3 | ||
| 76872A - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-28120 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 76872-28120 |
ZRR8#..SI,ZS |
3 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-28130 |
ZRR8#,ZWR80..SI,ZS |
2 | ||
| 76873B - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-28130 |
ZRR8#,ZWR80..SI,ZS |
2 | ||
| 76889D - CLIP, REAR SPOILER, NO.2 | ||||
| 76889-44020 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90105-06337 | ||||
| 90467-09075 | ||||
| Linked diagrams | ||||
| 6761 | ||||
